P2DD46A22-KVM-SWITCH
2 Port Dual DP 1 2 4K60Hz KVM w Audio USB 3 2 RS232

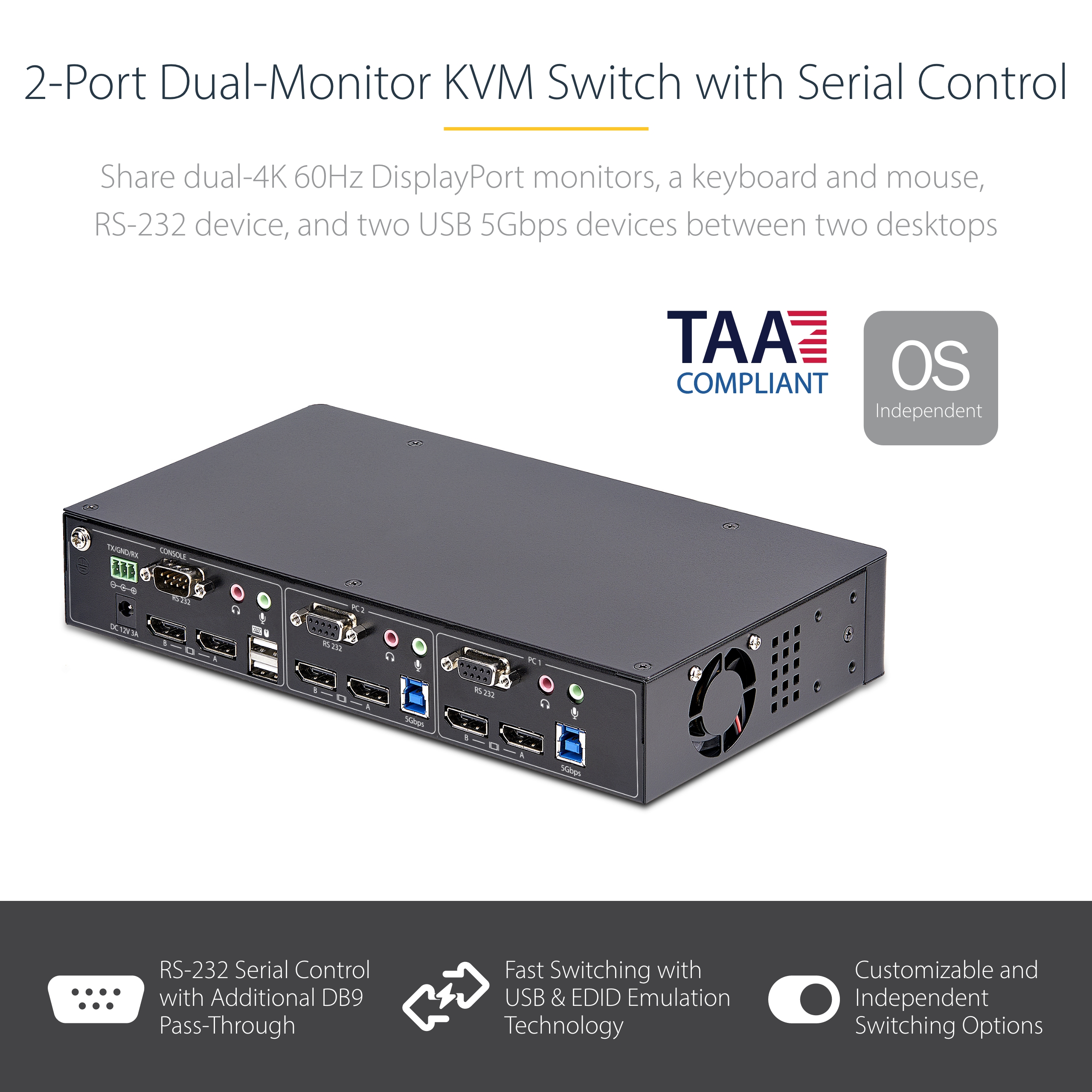

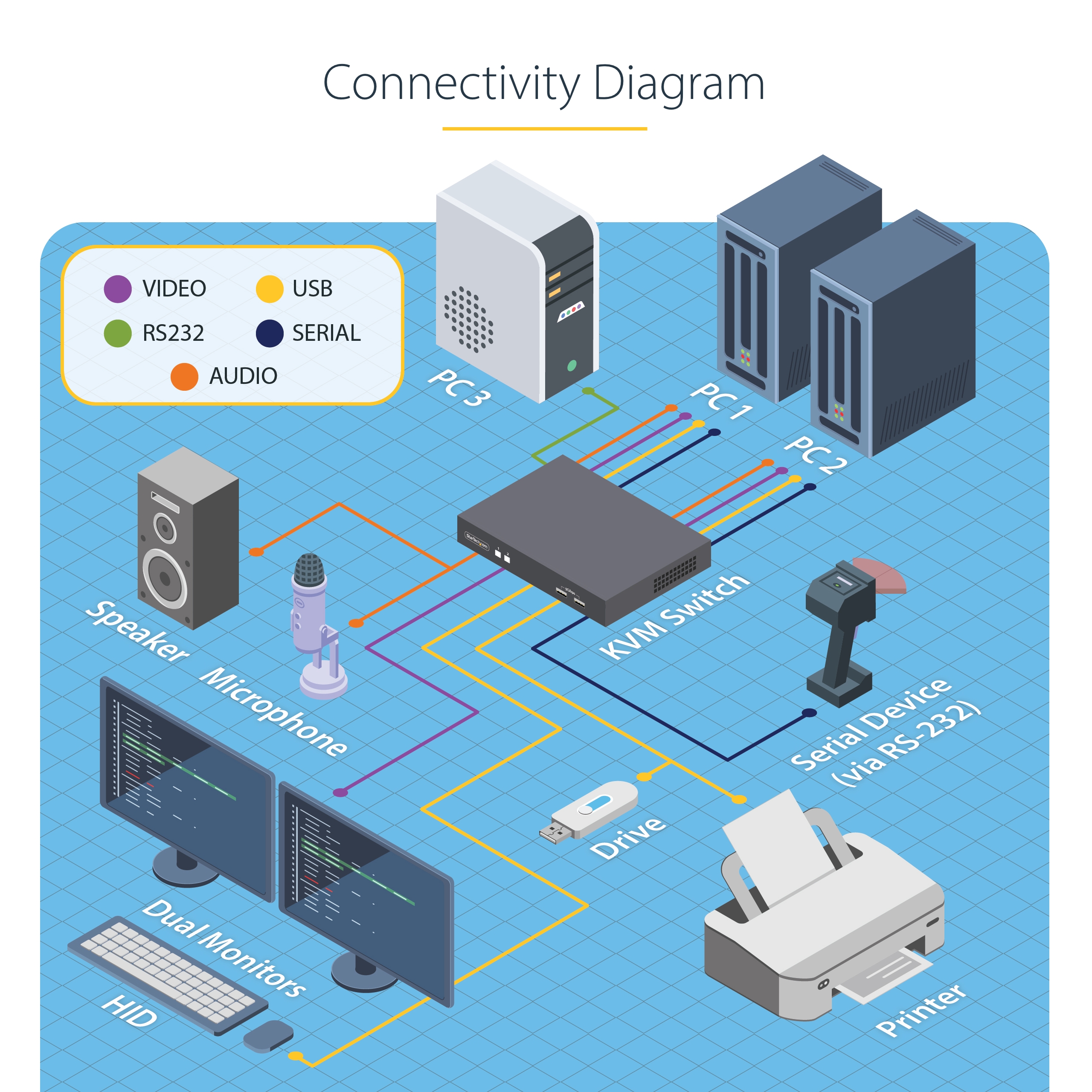

Share a mouse, keyboard, RS-232 device, and dual-4K 60Hz DisplayPort monitors between two DisplayPort-enabled desktops
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name 2 Port Dual DP 1 2 4K60Hz KVM w Audio USB 3 2 RS232 Product Number P2DD46A22-KVM-SWITCH UPC 065030900485 Lifecycle status Active Warranty 2 Years Weighted Opportunity 140396 Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB 3.0 - DisplayPort KVMs Family Pro Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) 2-Port KVM Switch Product Title (Short) 2-Port Dual-DisplayPort KVM Switch, 4K Product Title (Medium) 2-Port Dual-Monitor DisplayPort KVM Switch, RS232 Serial Control, 4K 60Hz Product Title (Standard) 2-Port Dual-Monitor DisplayPort KVM Switch, RS232 Serial Control, 4K 60Hz, 2x USB 5Gbps Hub Ports, TAA Compliant Product Title (Long) 2-Port Dual-Monitor DisplayPort KVM Switch, RS232 Serial Control, 4K 60Hz, 2x USB 5Gbps Hub Ports, 2x USB 2.0 HID Ports, Hotkey/Pushbutton Switching, TAA Compliant Product Title (AMZ) 2-Port Dual-Monitor DisplayPort KVM Switch, RS232 Serial Control, 4K 60Hz, 2x USB 5Gbps Hub Ports, 2x USB 2.0 HID Ports, Hotkey/Pushbutton Switching, TAA Compliant (P2DD46A22-KVM-SWITCH) Title Ingram (Part 1) 2-Port KVM Switch, 4K 60Hz - Title Ingram (Part 2) Dual-Monitor DisplayPort KVM Website Product Headline Share a mouse, keyboard, RS-232 device, and dual-4K 60Hz DisplayPort monitors between two DisplayPort-enabled desktops Bullet 1 RS-232 SERIAL CONTROL: Control this 2-Port KVM Switch using serial commands, allowing for switching of host ports, changing hotkeys, and more; Additional DB9 pass-through ports allow the switching of an RS-232 device between two desktop computers Bullet 2 NEAR INSTANTANEOUS SWITCHING: DisplayPort and USB Emulation enabling seamless switching of a keyboard, video, and mouse between two desktops; EDID Emulation retains window placement while switching; USB Emulation enables combo keyboard/mouse compatibility Bullet 3 CUSTOMIZABLE SWITCHING: Universal KVM features push-button and hotkey switching; Independent switching of Video, RS-232, and Audio; Listen to audio from one computer while controlling the other, or switch without interrupting RS-232 Serial communication Bullet 4 DUAL 4K 60HZ MONITORS: KVM Switch supports dual-4K 60Hz DisplayPort monitors, making it ideal for high-resolution applications such as CAD/CAM, video editing, and content creation; Supports MST Pass-through to daisy chain additional monitors Bullet 5 UNIVERSAL COMPATIBILITY: TAA Compliant KVM Switch works with any operating system including Windows, macOS, and Linux; Compatible with all hardware platforms such as Intel and AMD Bullets (Compact) 2-Port Dual-Monitor DisplayPort KVM Switch features RS232 control for changing settings/switching desktops; Independently switch PC/RS232/Audio; DisplayPort EDID and USB Emulation for faster switching; USB 5Gbps Ports; No Drivers or software required Bullets (Consolidated) - Control this KVM using serial commands to change settings or switch desktops; Switch an RS232 device between PCs with DB9 Ports - Near instantaneous switching of keyboard/video/mouse enabled by DisplayPort and USB Emulation - Independent switching of PC/RS232/Audio; Listen to audio from one desktop while controlling the other; Switch without interrupting serial communication - Push-button or hotkey switching; OS Independent; No drivers/software Marketing Copy Marketing Copy (No HTML) Applications - Switch dual displays, mouse, keyboard, serial, and audio peripherals between two desktop computers
- Great for applications like CAD/CAM, video editing, and content creation
Website Search Keyword - 2 port displayport kvm
- 2 port dual monitor kvm switch
- 2 port kvm switch
- 4k dual monitor kvm
- display port kvm
- display port switch
- displayport kvm 4k
- kvm switch displayport
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- 104
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - All other Plastics
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Special Notes The DisplayPort source device must support multi-stream transport (MST) for MST Pass-through to work Accessory Products - DISPLPORT6L
- MXT1001MBK
- MU6MM
- DISPLPORT3L
- USB3CAB2M
Related Products - P2DD46A2-KVM-SWITCH
- SV231DPDDUA2
- SV431DPDDUA2
Input Current 1 A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 0.1 W Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 0% ~ 90% RH (non-condensing) Material - Steel
- Nickel-plated Zinc
Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 255.000 Product Width (mm) 130.000 Product Height (mm) 40.000 Product Weight (g) 1073.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Audio Specifications - DisplayPort - 2 Channel Audio
- Analog Stereo - 2 Channel Audio

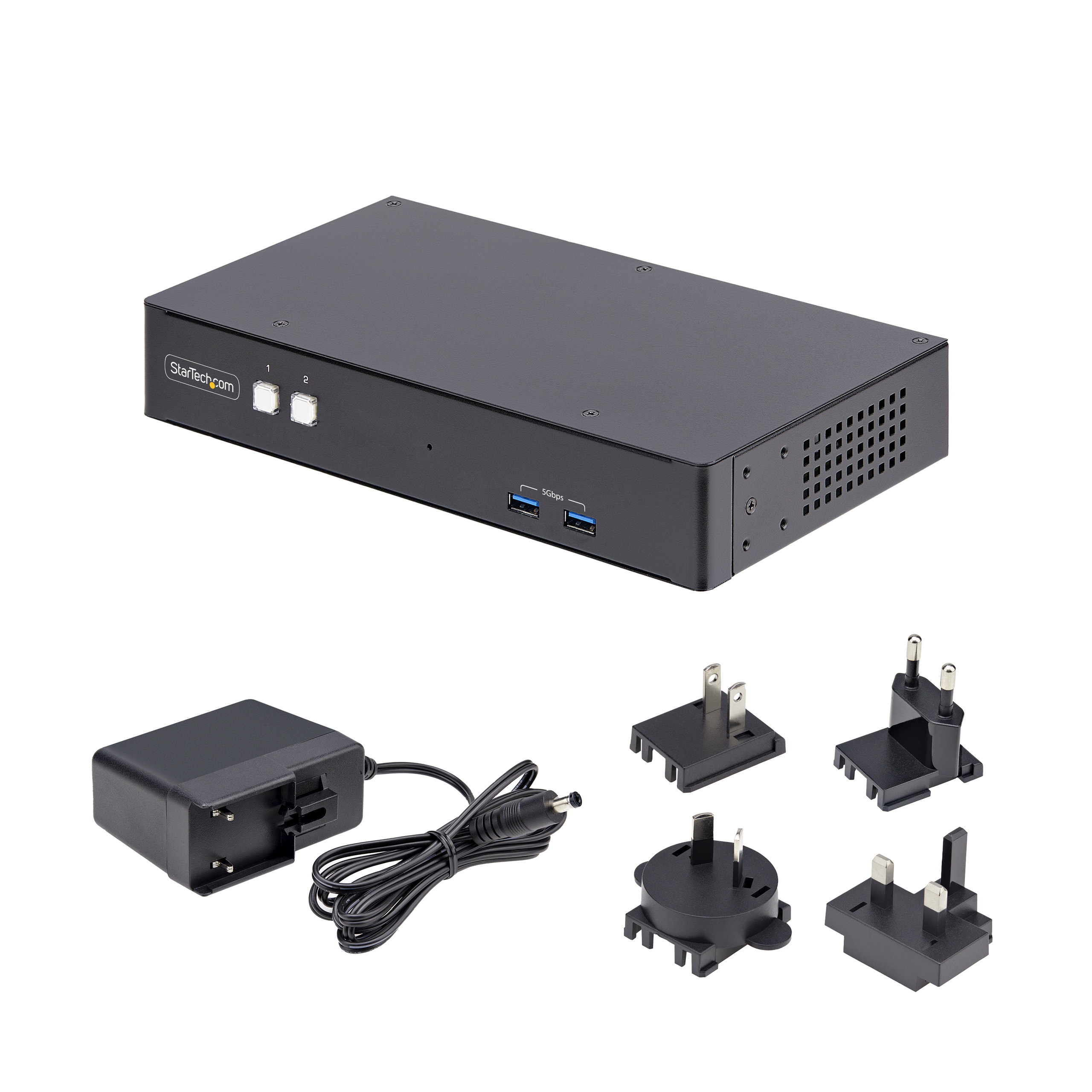

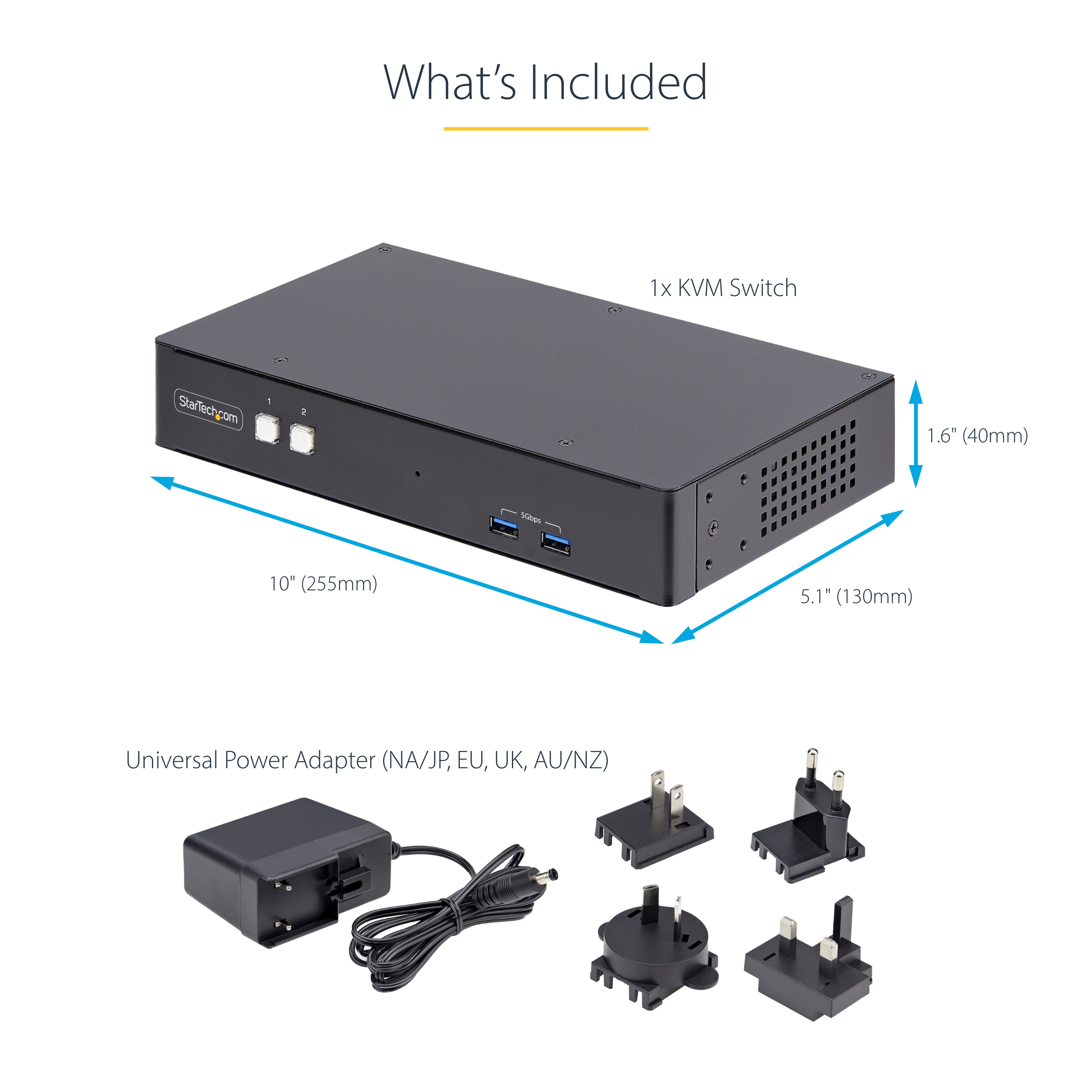

Auto Scan 10, 20, 30, 40, 50, and 60 seconds Hot-Key Selection Yes KVM IP Control No Maximum Data Transfer Rate 5Gbps Maximum Digital Resolutions 3840 x 2160 60Hz MTBF (hours) 80,907 Hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Push Button, Hotkeys, and OSD (On Screen Display) Audio Yes Cables Included No CAC Support No Cascadable No LED Indicators Number of KVM Ports 2 Number of Monitors Supported 2 PC Video Type DisplayPort Rack-Mountable No Supported Platforms USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 606 Carton Height (mm) 327 Carton Quantity 10 Carton Weight Gross (g) 13628 Included in Package - 1 - KVM Switch
- 1 - Power Supply
- 1 - Quick-Start Guide

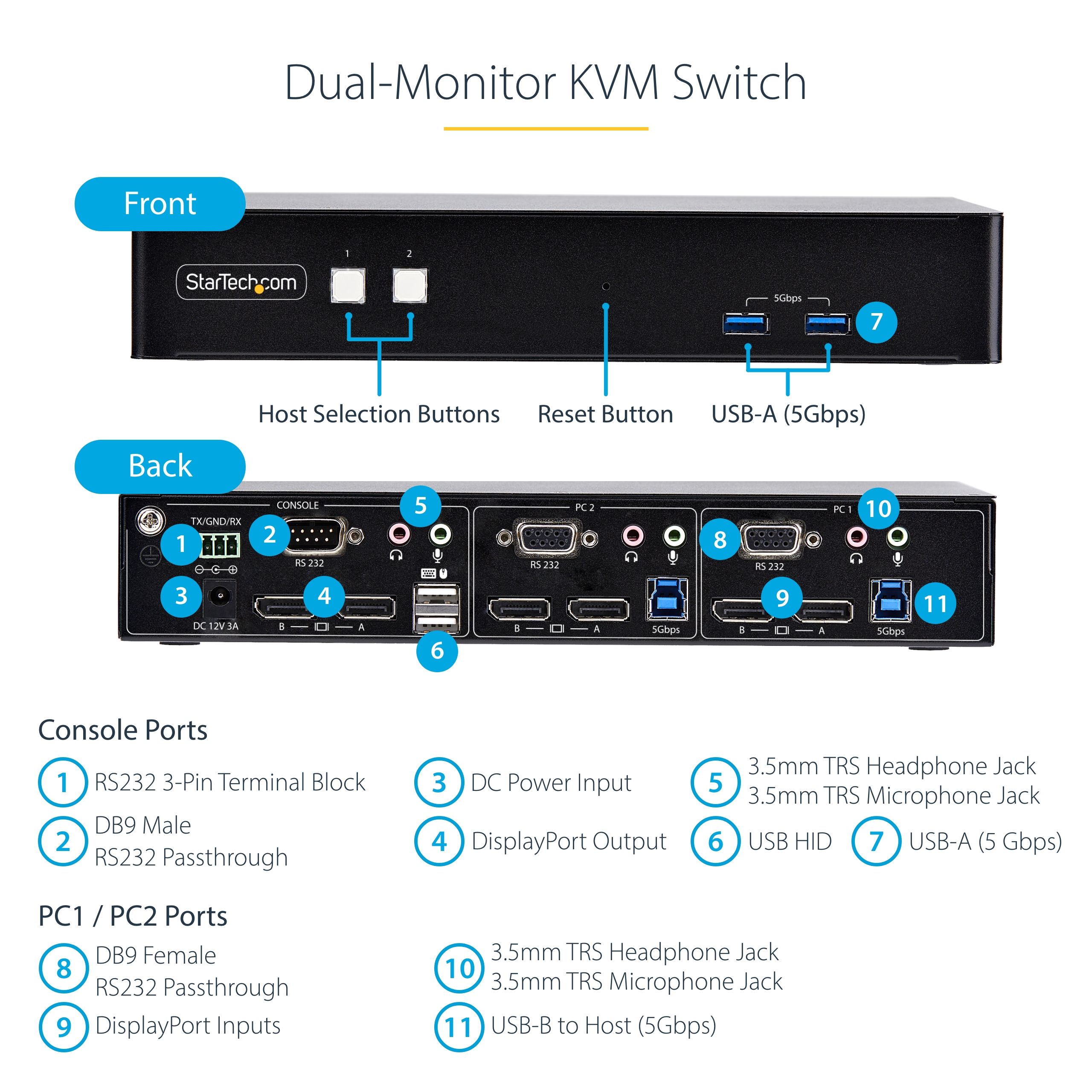

Package Depth (mm) 301 Package Height (mm) 81 Package Width (mm) 286 Package Weight (g) 1582 Packaging Description 2-Port Dual Monitor KVM Switch - DisplayPort - 4K 60Hz - Serial Control Packaging Description India 2-Port Dual Monitor KVM Switch - DisplayPort - 4K 60Hz - Serial Control Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 2 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Connector 4 DB-9 Serial Connector 4 (Quantity) 1 Connector 5 Terminal Block (3 Wire) Connector 5 (Quantity) 1 Connector 6 Barrel Power (N-Type, OD 5.5mm / ID 2.5mm) Connector 6 (Quantity) 1 Connector 7 USB-A (5Gbps, 4.5W) Connector 7 (Quantity) 2 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (5Gbps, 4.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 Host Connector 4 DB-9 Serial Host Connector 4 (Quantity) 2 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Required Artwork Due Date 2023-05-01 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment 4K60 USB 2.0 Dual DP Comparable SKU 2 Comment 4K60 USB 3.0 Dual HDMI Digital Content Due Date 2023-08-10 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) CA,US Primary Technology - USB 3.2 Gen 1 / 5Gbps
- DisplayPort 1.2 / 4K 60Hz
