P4A20132-KM-SWITCH

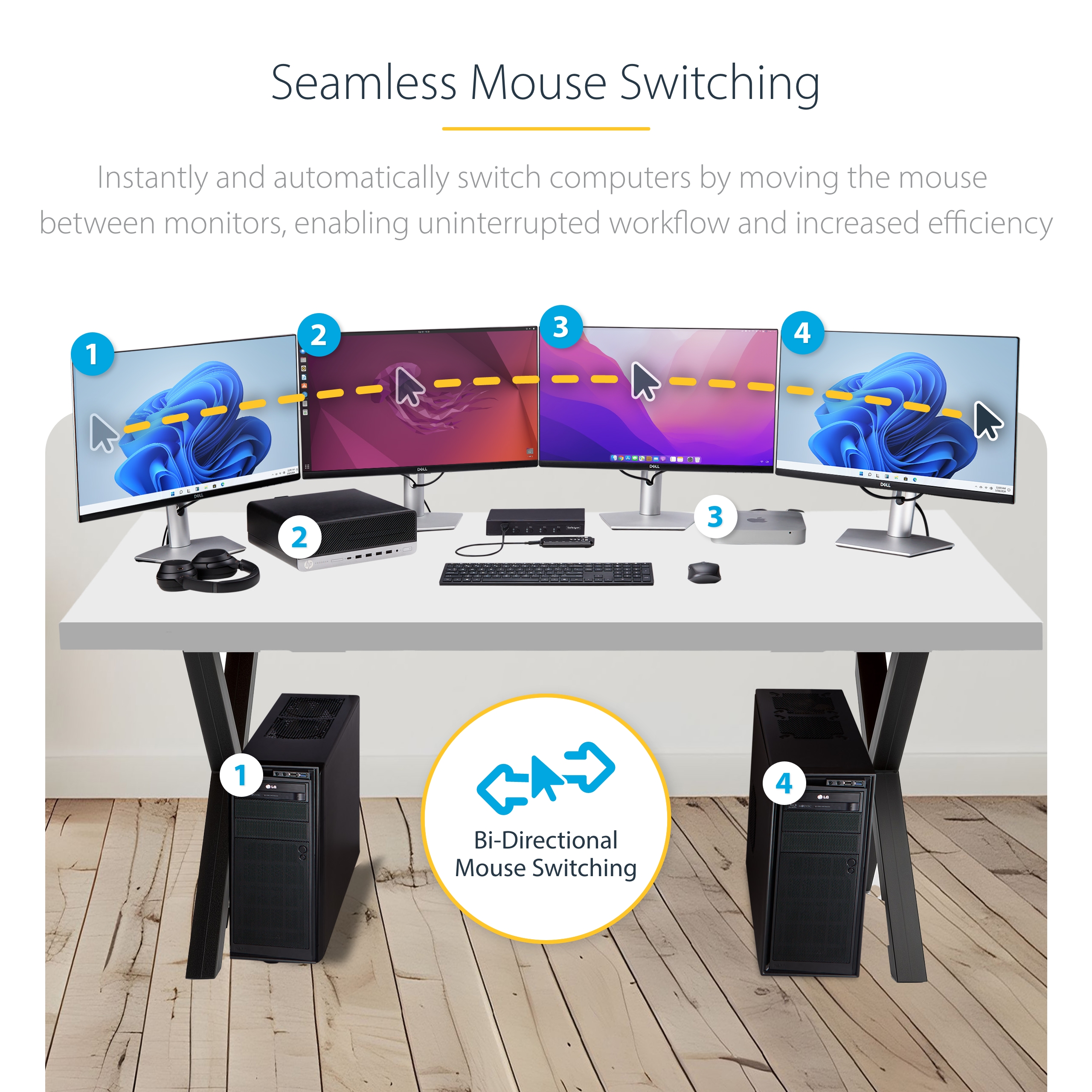

4 Port KM Switch USB 3 2 Gen 1 Hub and Mouse Roaming
Control up to four computers with a single keyboard and mouse
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name 4 Port KM Switch USB 3 2 Gen 1 Hub and Mouse Roaming Product Number P4A20132-KM-SWITCH UPC 065030902250 Lifecycle status Active Warranty 2 Years Weighted Opportunity 100750 Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 KM Switch Cables Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 4-Port KM Switch Product Title (Short) 4-Port USB/KM Switch w/ Mouse Switching Product Title (Medium) 4-Port KM Switch with Mouse Switching, USB Switch for Keyboard/Mouse Product Title (Standard) 4-Port KM Switch w/ Mouse Switching, USB 3.0 Keyboard/Mouse Switcher for 4 Computers, 3.5mm and USB Audio, TAA Compliant Product Title (Long) 4-Port KM Switch with Mouse Switching, USB Switch for Keyboard/Mouse, 3.5mm/USB Audio, Peripheral Sharing for 4 Computers, TAA Compliant Product Title (AMZ) 4-Port KM Switch with Mouse Switching, USB 3.0 Switcher, Keyboard/Mouse Sharing, 3.5mm/USB Audio, TAA Compliant Title Ingram (Part 1) 4-Port Keyboard/Mouse Switch - Title Ingram (Part 2) Mouse Switching, KM/USB Switch Website Product Headline Control up to four computers with a single keyboard and mouse Bullet 1 SEAMLESS MOUSE SWITCHING: Instantly and automatically switch computers by moving the mouse between monitors, enabling uninterrupted workflow and increased efficiency; Hotkey and push-button switching options are also available Bullet 2 SCREEN LAYOUT PRESETS: Monitor layouts controlled via hotkeys are designed to accommodate a variety of physical monitor setups, allowing for seamless mouse movement across host monitors; 4 different preset display configurations available Bullet 3 USB CONNECTIVITY: Supports up to three USB Human Interface Device (HID) peripherals and two USB 3.2 Gen 1 (5Gbps) devices; Ideal for environments such as control rooms, security facilities, server rooms, and financial operations Bullet 4 THOUGHTFUL DESIGN: Independent audio switching allows users to listen to audio from one computer while controlling another; USB audio and 3.5mm pass-through available; LEDs provide visual port selection status; Audible buzzer for hotkey confirmation Bullet 5 UNIVERSAL COMPATIBILITY: Mouse Roaming is supported by most major desktop operating systems including Windows, macOS, and Linux; Hotkey and push-button switching are OS independent; Works with all hardware platforms including Intel and AMD Bullets (Compact) Mouse Roaming allows users to instantly switch computers by moving the mouse between monitors without using hotkeys or physical buttons; 3x USB HID and 2x USB 5Gbps ports; Independent audio switching Bullets (Consolidated) - Mouse Roaming allows users to instantly switch computers by moving the mouse between monitors without using hotkeys or physical buttons - 4 different preset display configurations available - Supports 3x USB HID peripherals and 2x USB 5Gbps devices - Independent audio switching allows users to listen to audio from one computer while controlling another; USB/3.5mm audio pass-through - LEDs provide visual port selection status; Audible buzzer for hotkey confirmation; Windows/macOS/Linux Marketing Copy Marketing Copy (No HTML) Applications - Manage multiple computers simultaneously, such as in data centers, server rooms, or network operations centers
- Navigate between platforms and workstations, increasing productivity and responsiveness
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
Special Notes - On computers with multiple monitors connected with Mouse Switching/Roaming enabled, mouse/keyboard operation is limited to the primary display
- 6-Key Rollover (6KRO) and N-Key Rollover (NKRO) are not supported by this product.
Accessory Products - MU6MMS
- USB3CAB2M
- USB315CB2M
- USB3CAB1M
- MUYHSFMM
Related Products - SVKMS2
- HBS304A24A
- SV431HU34K6
- SV431DPUA2

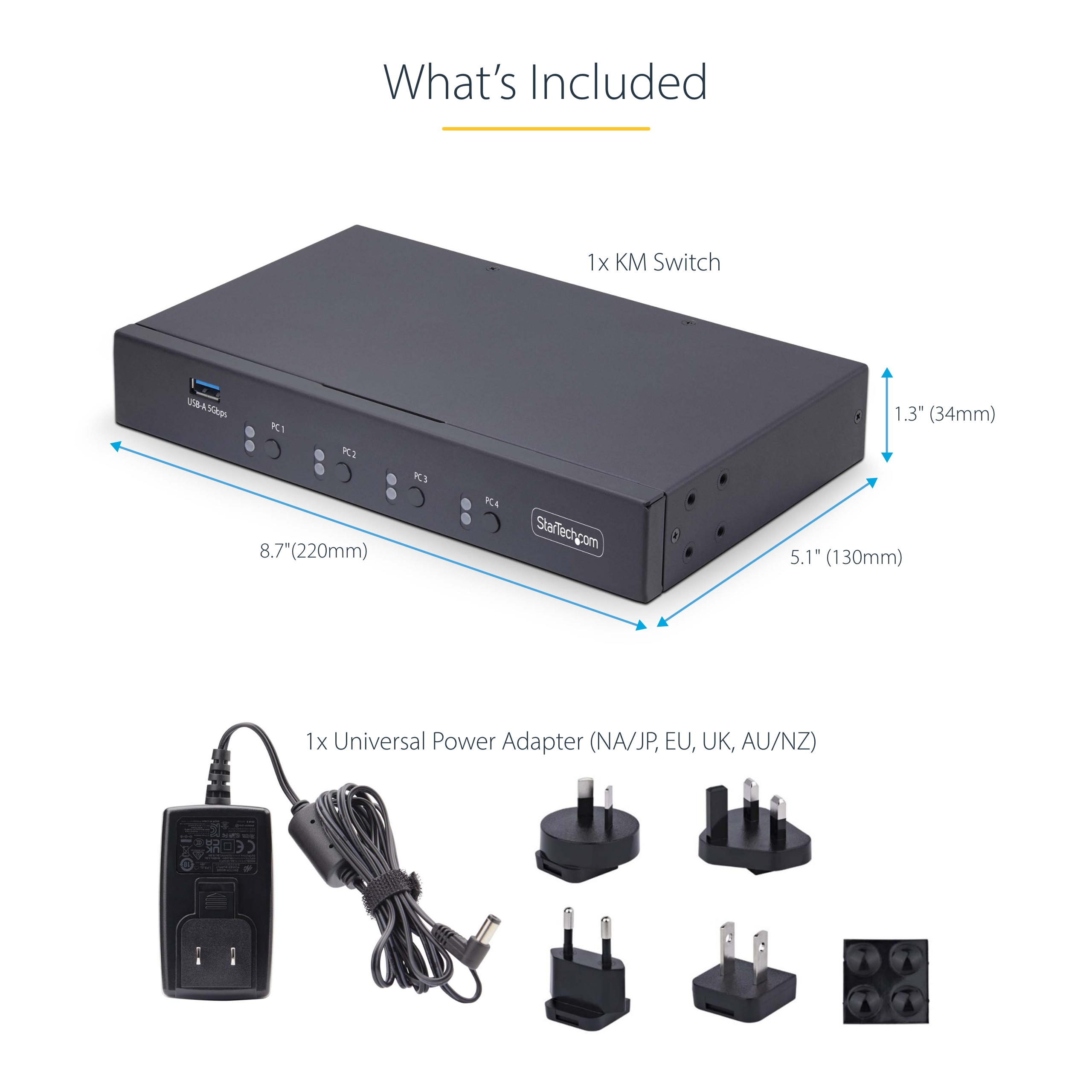

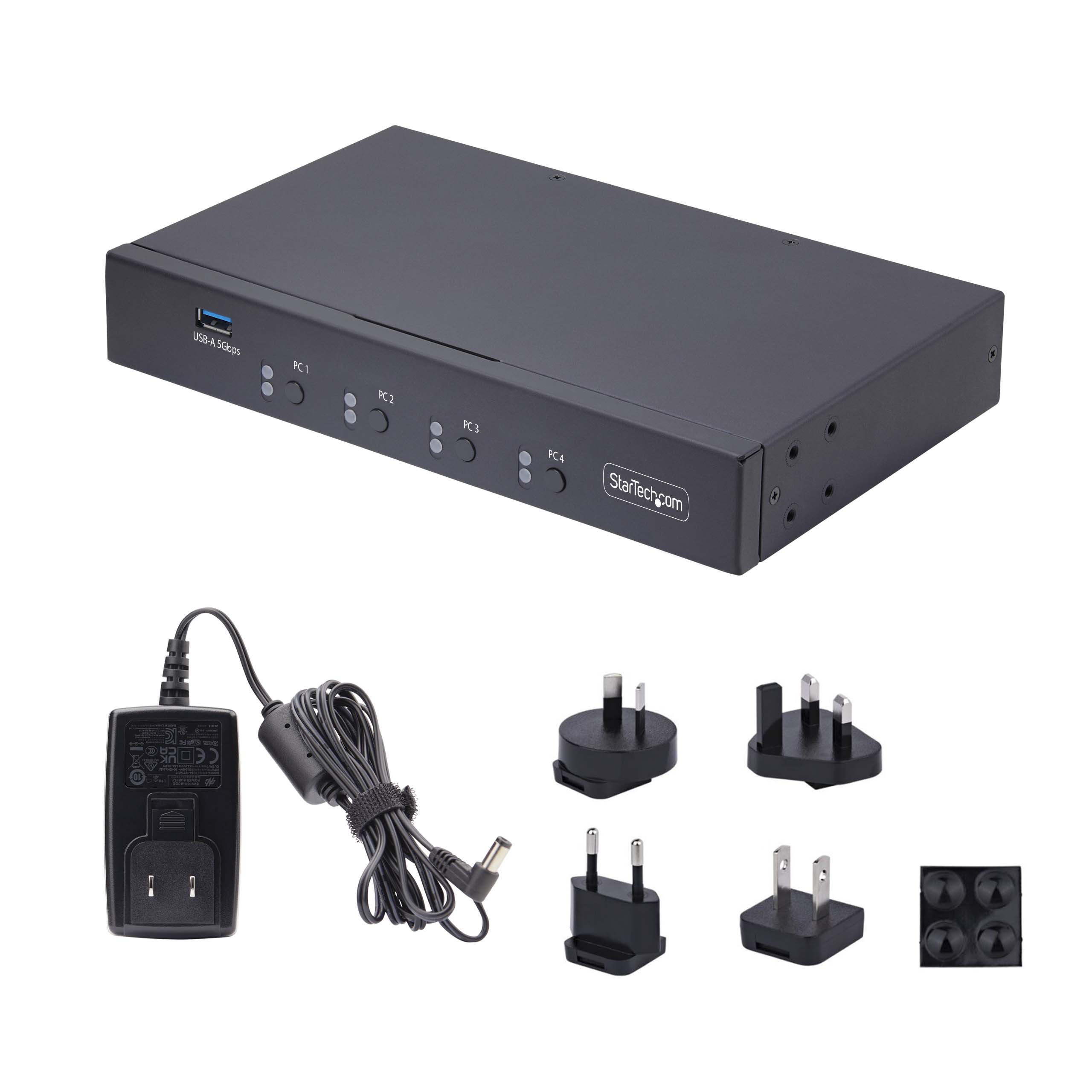

Input Current 0.6A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% ~ 80% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 220.000 Product Width (mm) 130.000 Product Height (mm) 34.000 Product Weight (g) 834 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Audio Specifications Analog Stereo - 2 Channel Audio Hot-Key Selection Yes KVM IP Control No Maximum Data Transfer Rate 5Gbps MTBF (hours) 156,000 Hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button, Hotkeys, and Mouse Switching Audio Yes Cables Included No CAC Support No Cascadable No Chipset ID GL3523 LED Indicators Number of KVM Ports 4 Number of Monitors Supported 0 Supported Platforms USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 320 Carton Height (mm) 290 Carton Quantity 8 Carton Weight Gross (g) 10850 Included in Package - 1 - KM Switch
- 1 - Universal Power Adapter (NA/EU/UK/ANZ)
- 1 - Quick-Start Guide
- 1 - Set of Rubber Feet

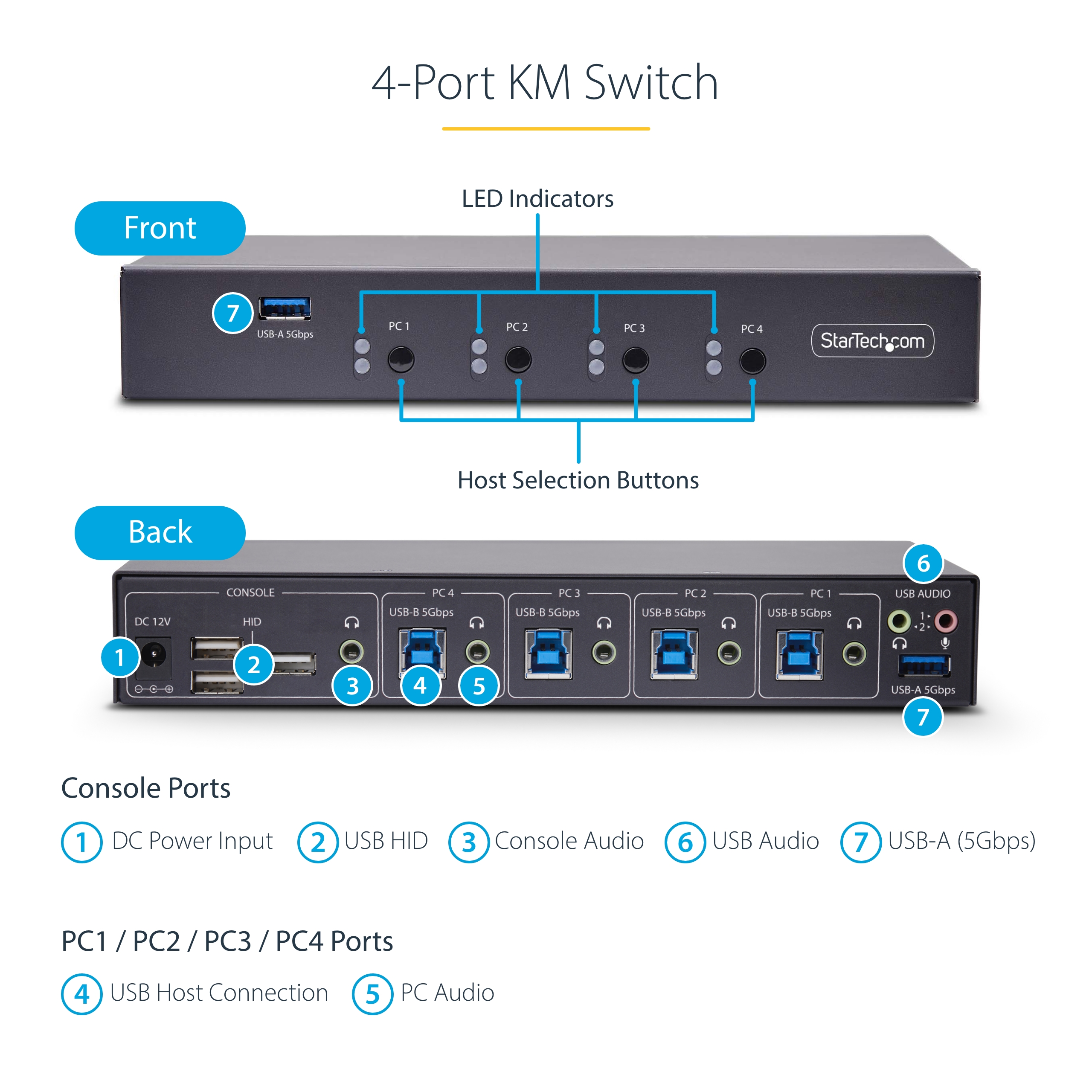

Package Depth (mm) 295 Package Height (mm) 63 Package Width (mm) 245 Package Weight (g) 1250 Packaging Description 4-Port USB Keyboard and Mouse Switch with Mouse Roaming Packaging Description India 4-Port USB Keyboard and Mouse Switch with Mouse Roaming Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 2 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 3 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 3 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 4 Host Connector 2 3.5mm (3 Conductors, TRS) Host Connector 2 (Quantity) 4 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Not Required Artwork Due Date 2023-10-31 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment 4 hosts, 4 USB 3.0 ports USB Switch Comparable SKU 2 Comment 4K30 4-Port KVM switch, USB 3.0 hub ports, HDMI, T12 $369K, 1172 units [May 2023] USDIST $338.84 Digital Content Due Date 2024-01-31 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 37x20mm Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology USB 3.2 Gen 1 / 5Gbps Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2023-08-17 Target Production Release 2023-10-31 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle Latest Vending Machine Not Compatible with Vending Machine Video Required
