P4AD122-KVM-SWITCH
4 Port 4K60 DisplayPort KVM Switch with USB 3 2 Gen 1 5Gbps
Share a mouse, keyboard, USB 5Gbps hub, audio output device, and 4K 60Hz DisplayPort display between four DisplayPort-enabled computers

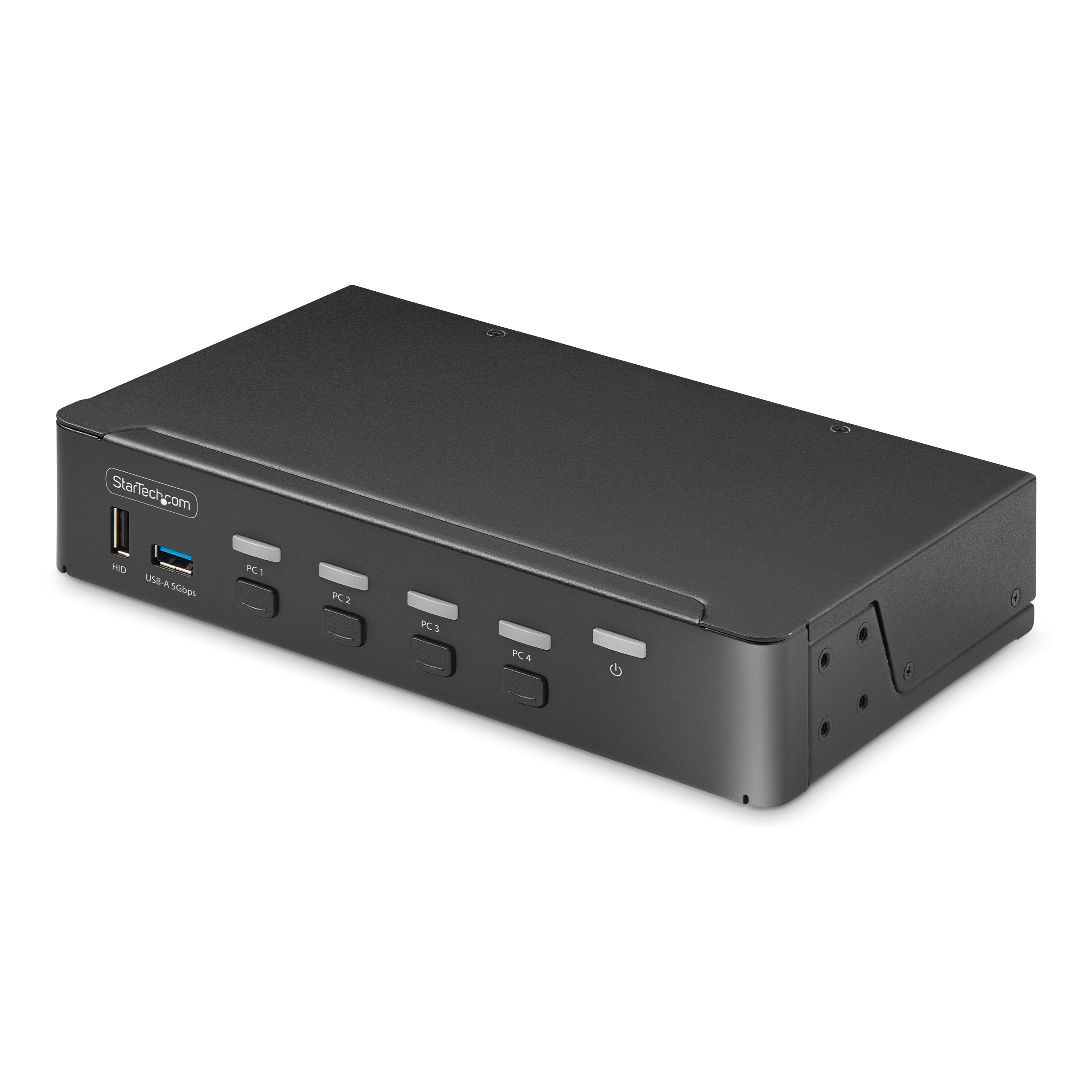

Main Image

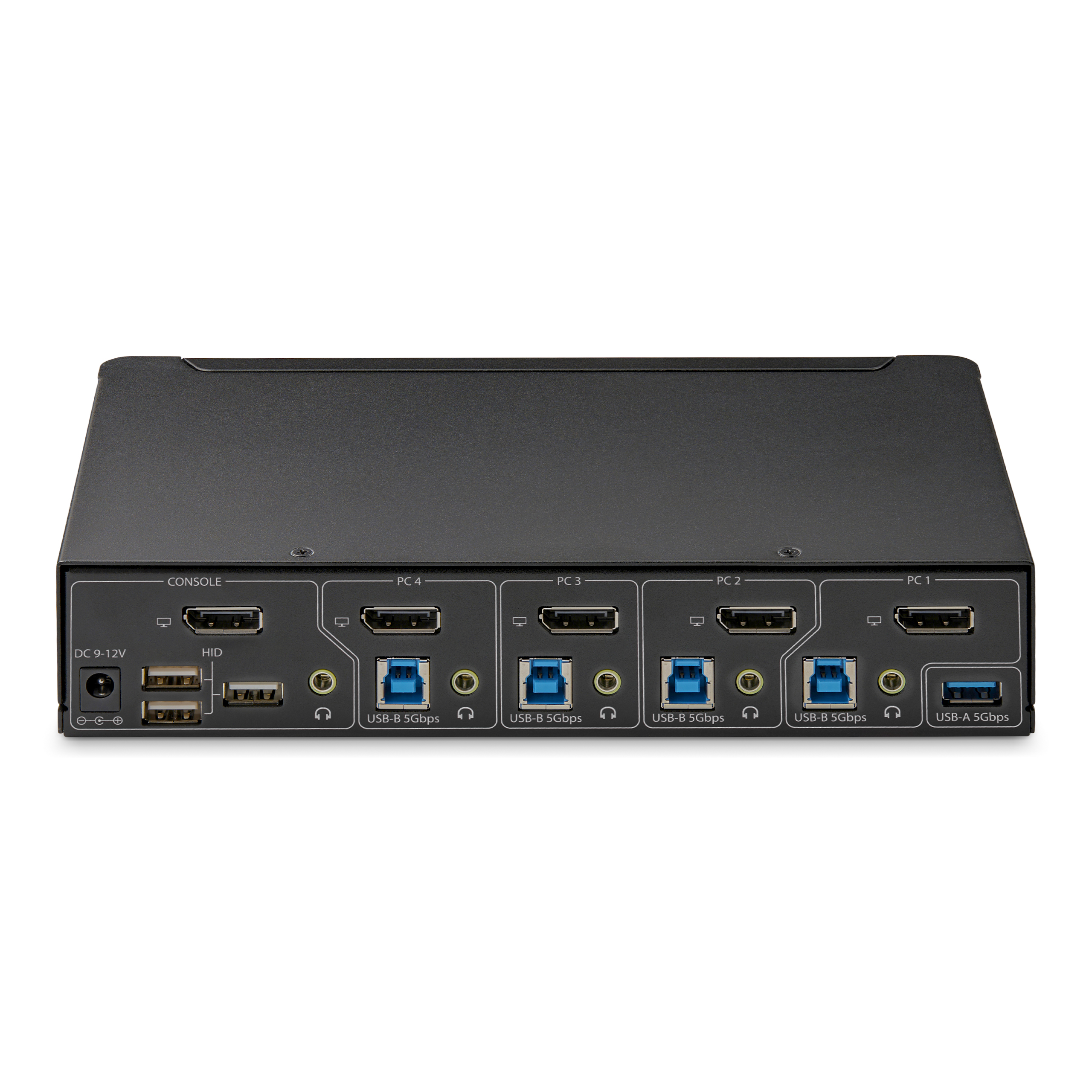

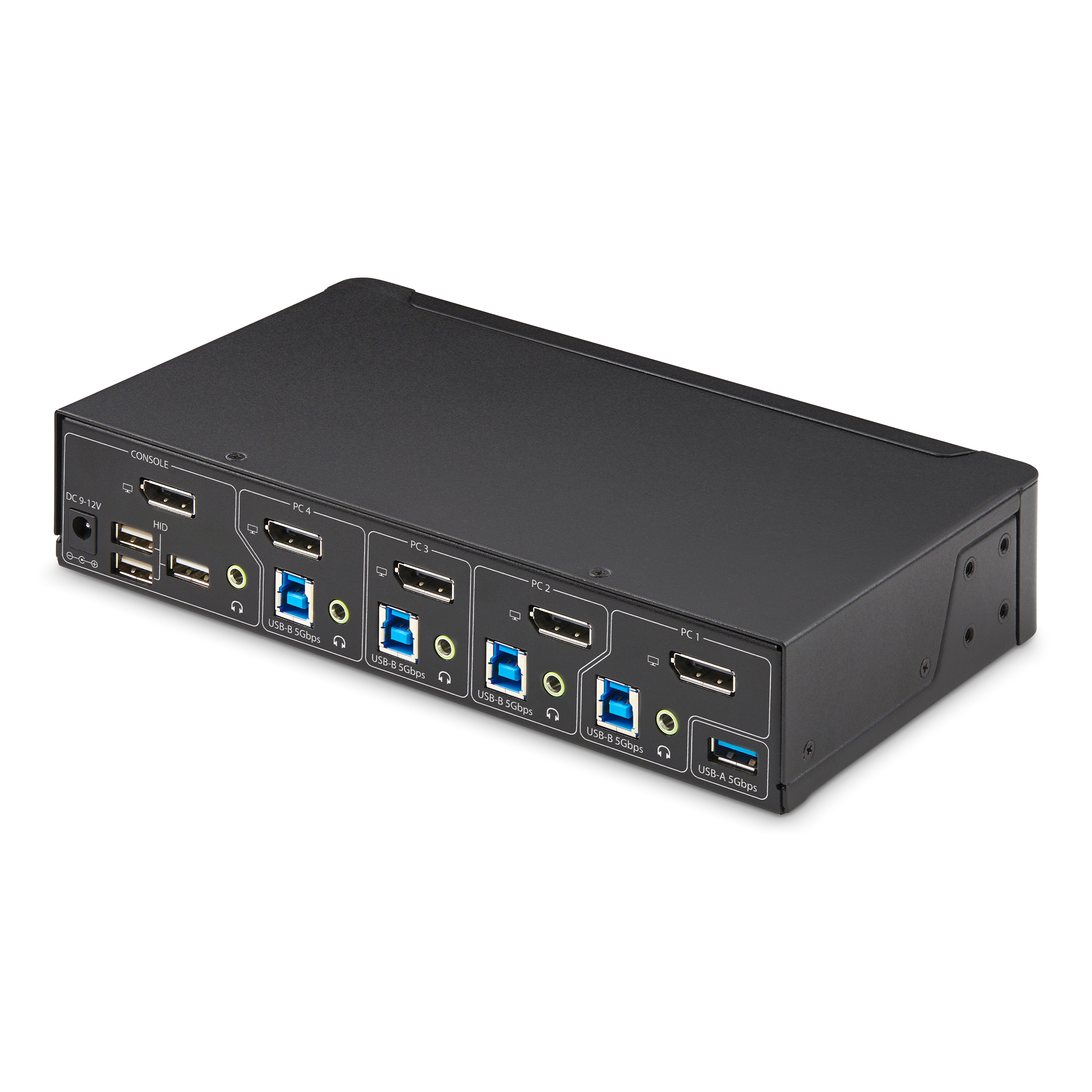

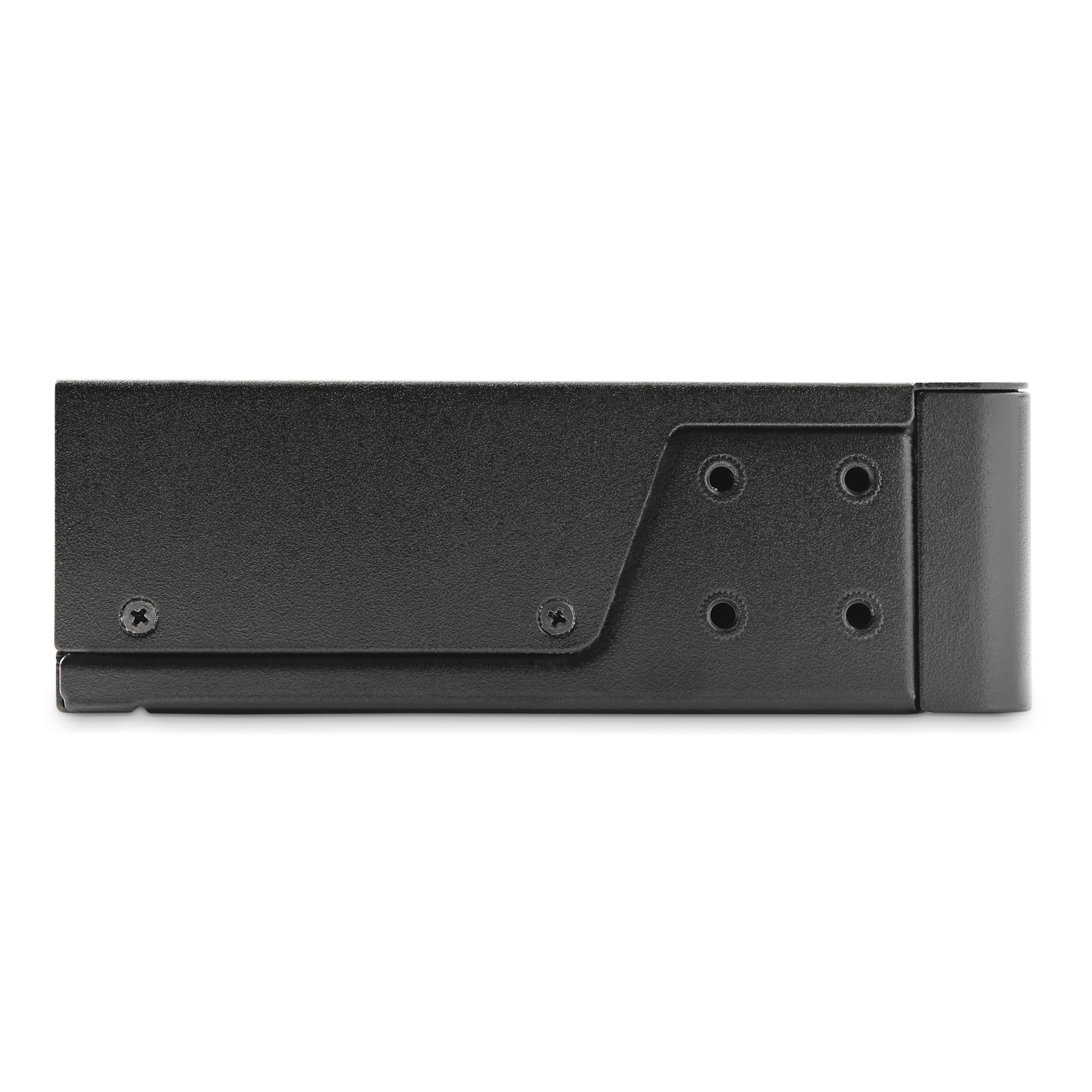

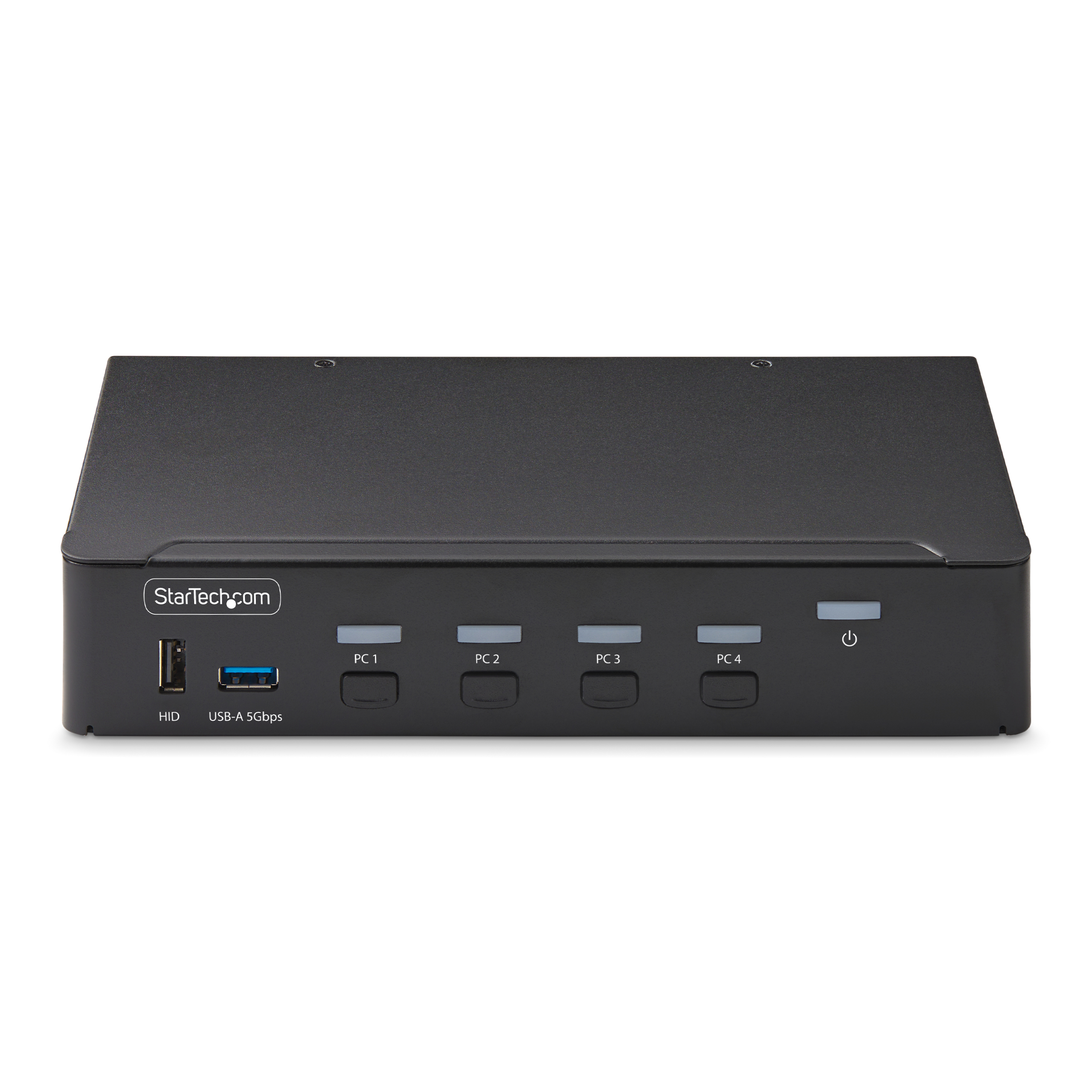

Product Images
Product Images
Product Images
Product Images

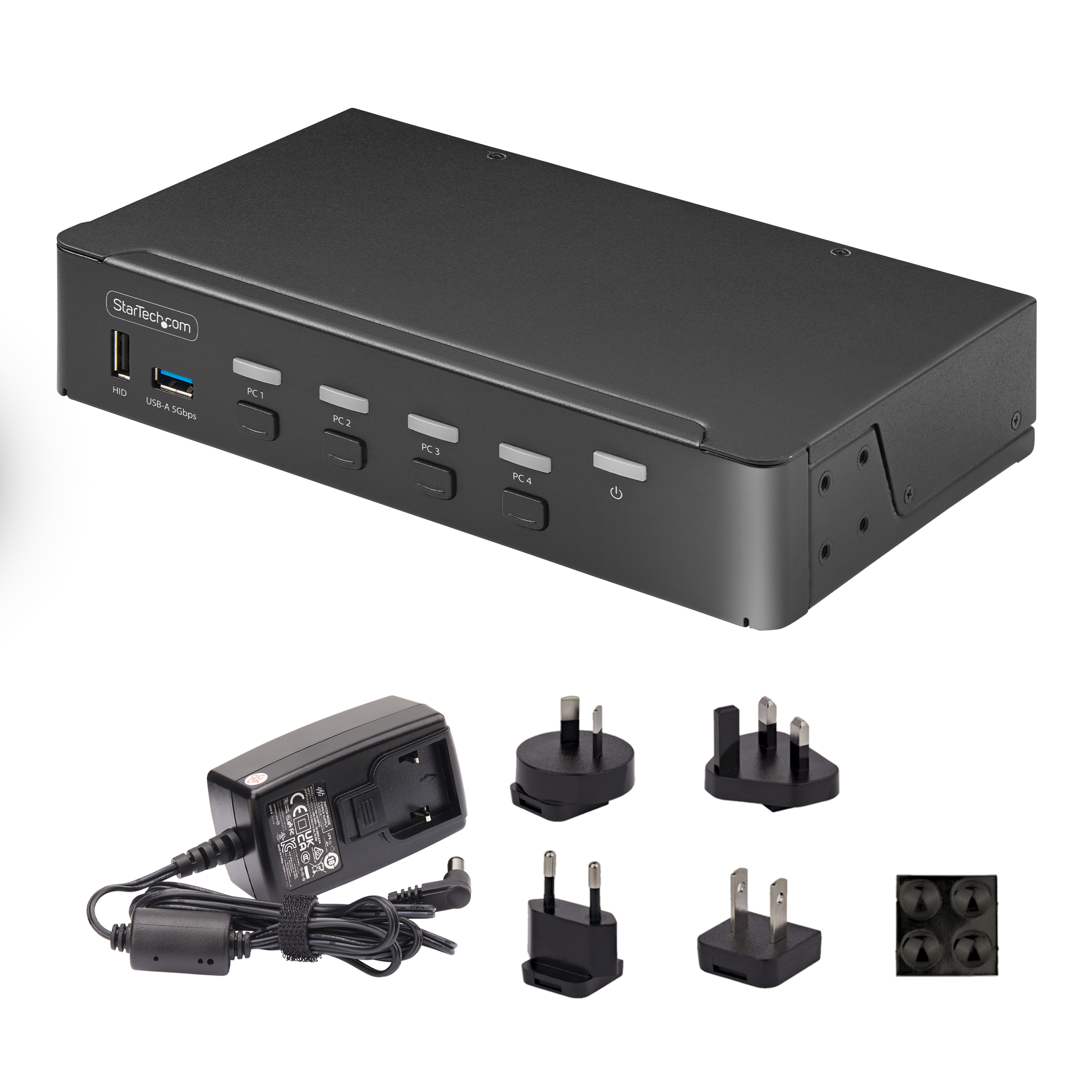

BOM Image
Quick-Start Guide
Product Name 4 Port 4K60 DisplayPort KVM Switch with USB 3 2 Gen 1 5Gbps Product Number P4AD122-KVM-SWITCH UPC 065030903264 Lifecycle status Active Warranty 2 Years Weighted Opportunity 62868 Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB 3.0 - DisplayPort KVMs Family Pro Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 4-Port DP KVM Switch Product Title (Short) 4-Port DisplayPort KVM Switch, 4K 60Hz Product Title (Medium) 4-Port DisplayPort KVM Switch, 4K 60Hz, 6x USB Ports, TAA Compliant Product Title (Standard) 4-Port DisplayPort KVM Switch, Single 4K 60Hz Monitor, 6x USB Ports, Hotkey & Push-Button Switching, TAA Compliant Product Title (Long) 4-Port DisplayPort KVM Switch, Single 4K 60Hz Monitor, 6x USB Ports, Push-Button & Hotkey Switching, DisplayPort 1.2, OS Independent, TAA Compliant Product Title (AMZ) 4-Port DisplayPort KVM Switch, Single 4K 60Hz Monitor, 6x USB Ports, Hotkey Switching, TAA Compliant Title Ingram (Part 1) 4-Port DP KVM Switch - Title Ingram (Part 2) 4K 60Hz DisplayPort, TAA Compliant Website Product Headline Share a mouse, keyboard, USB 5Gbps hub, audio output device, and 4K 60Hz DisplayPort display between four DisplayPort-enabled computers Bullet 1 FAST SWITCHING 4K 60HZ KVM: Control up to four DisplayPort-enabled desktops/workstations/servers from one mouse, keyboard, USB 5Gbps hub, and 4K 60Hz DisplayPort monitor; Ideal for CAD/CAM, video editing, and content creation applications Bullet 2 MULTIPLE SWITCHING OPTIONS: Fast Switching via push-buttons or hotkeys with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer while controlling another Bullet 3 UNIVERSAL COMPATIBILITY: TAA-Compliant KVM Switch provides BIOS/UEFI control and works with any operating system including Windows, macOS, ChromeOS, and Linux; No software required; Compatible with all hardware platforms such as Intel, AMD, and Apple Bullet 4 DURABLE DESIGN: Metal housing helps prevent Electro-magnetic Interference (EMI); 8kV Air/6kV Contact ESD protection enhances the reliability and longevity of the KVM; Included rubber feet protect the work surface and keep KVM in place during operation Bullet 5 TECHNICAL SPECIFICATIONS: KVM Switch is DisplayPort 1.2 compliant, supporting resolutions up to 4K 60Hz, HDR10, and HDCP 1.4; Supports DisplayPort Audio and 3.5mm analog audio; 4x USB HID Ports; 2x USB 5Gbps Hub Ports; OS Independent Bullets (Compact) 4-Port KVM enables fast switching between USB/DisplayPort-enabled desktops sharing a mouse, keyboard, USB 5Gbps hub, and single 4K 60Hz DP monitor; TAA-Compliant KVM is OS independent; Push-button or hotkey switching; Metal housing reduces EMI Bullets (Consolidated) - Control up to four DisplayPort-enabled desktops from one mouse, keyboard, USB 5Gbps hub, and 4K 60Hz DisplayPort monitor - Push-button or hotkey switching with audible confirmation; Port selection LEDs; Audio from one computer while controlling another - TAA-compliant KVM Switch works with Windows/macOS/ChromeOS/Linux; Compatible with all hardware platforms such as Intel/AMD/Apple - Metal housing reduces EMI; 8kV Air/6kV Contact ESD protection enhances the reliability and longevity of the KVM Marketing Copy Marketing Copy (No HTML) Applications - Share a monitor, mouse, keyboard, and stereo audio peripheral between four desktop computers
- Great for applications like CAD/CAM, video editing, and content creation
Website Search Keyword - 4 port displayport kvm switch
- 4 port kvm switch
- 4k 60hz displayport kvm
- computer monitor switch box
- displayport 1.2 kvm switch
- dp kvm switch
- keyboard mouse monitor switch
- kvm switch with audio
- kvm with usb
- USB 3.0 Hub
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- WEEE - Waste - European Union - DO NOT USE - Disposal of Waste Batteries and Electrical & Electronic Equipment (WEEE)
- WEEE - Waste - United Kingdom - DO NOT USE - UK Waste Electrical and Electronic Equipment (WEEE) Regulations 2013.
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
Accessory Products - DP14VMM2M
- MU6MMS
- USB3SAB6
- DP14VMM1M
- DP14VMM3M
- MU3MMS
- USB3SAB6BK
- USB3CAB1M
- SV431RACK
Related Products - D86A2-4-PORT-8K-KVM
- P4DD46A2-KVM-SWITCH
- D86A2-2-PORT-8K-KVM
- P2DD46A22-KVM-SWITCH
- P2AD122-KVM-SWITCH
Input Current 1.0A Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 12V DC Power Consumption (In Watts) 36W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% ~ 80% RH Material Metal Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 220.000 Product Width (mm) 130.000 Product Height (mm) 44.000 Product Weight (g) 1040.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Audio Specifications - DisplayPort - 2 Channel Audio
- Analog Stereo - 2 Channel Audio
Auto Scan 3, 8, 15 & 30 seconds Hot-Key Selection Yes KVM IP Control No Maximum Data Transfer Rate USB 5Gbps Maximum Digital Resolutions 4096 x 2160 60Hz MTBF (hours) 130,000 Hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Supported Resolutions Wide Screen Supported Yes Audio Yes Cables Included No CAC Support No Chipset ID GL3523 LED Indicators Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type DisplayPort Supported Platforms USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 516 Carton Height (mm) 300 Carton Quantity 6 Carton Weight Gross (g) 10606 Included in Package - 1 - KVM Switch
- 1 - Universal Power Adapter (NA/EU/UK/ANZ)
- 1 - Set of Rubber Feet
- 1 - Quick-Start Guide
Package Depth (mm) 297 Package Height (mm) 88 Package Width (mm) 246 Package Weight (g) 1620 Packaging Description 4-Port 4K 60Hz DisplayPort KVM Switch - USB 5Gbps Hub Packaging Description India 4-Port 4K 60Hz DisplayPort KVM Switch - USB 5Gbps Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 4 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 1 Connector 4 DisplayPort Connector 4 (Quantity) 1 Connector 5 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 5 (Quantity) 1 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (5Gbps, 4.5W) Host Connector 2 (Quantity) 4 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Required Artwork Due Date 2023-11-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment 4K30 with USB 3.0 hub ports Comparable SKU 2 Comment 4K60 with USB 2.0 Digital Content Due Date 2024-04-09 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Primary Technology DisplayPort 1.2 / 4K 60Hz Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Shane Arnett Target Development Completion Date 2023-11-23 Target Production Release 2023-11-30 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle Latest Vending Machine Not Compatible with Vending Machine Video Not Required
