P4AD122M-KVM-SWITCH
4 Port Multiview Quadview 4K DisplayPort KVM Switch USB 5G
Control up to four DisplayPort computers with mouse roaming, quad view, and picture-in-picture support

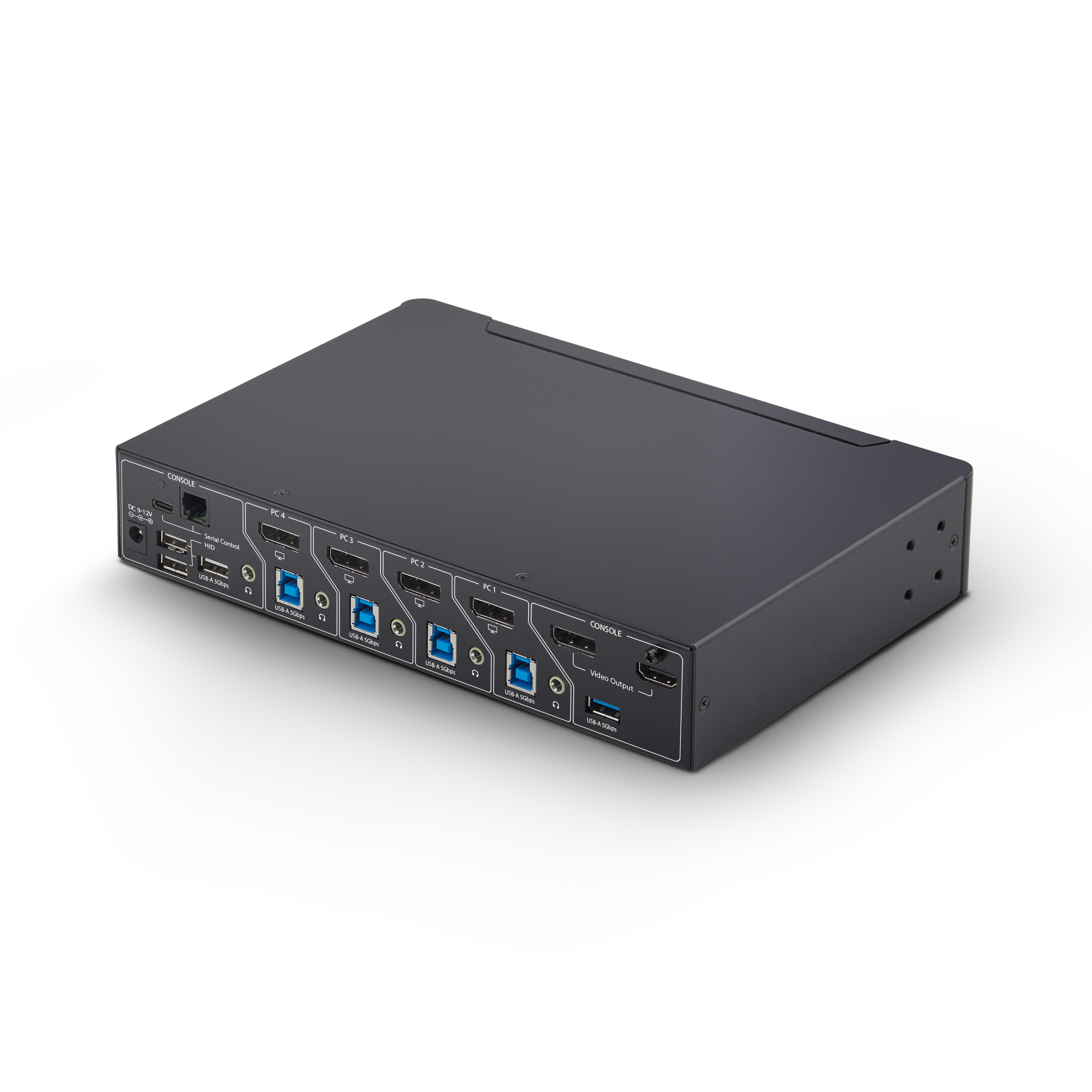

Main Image

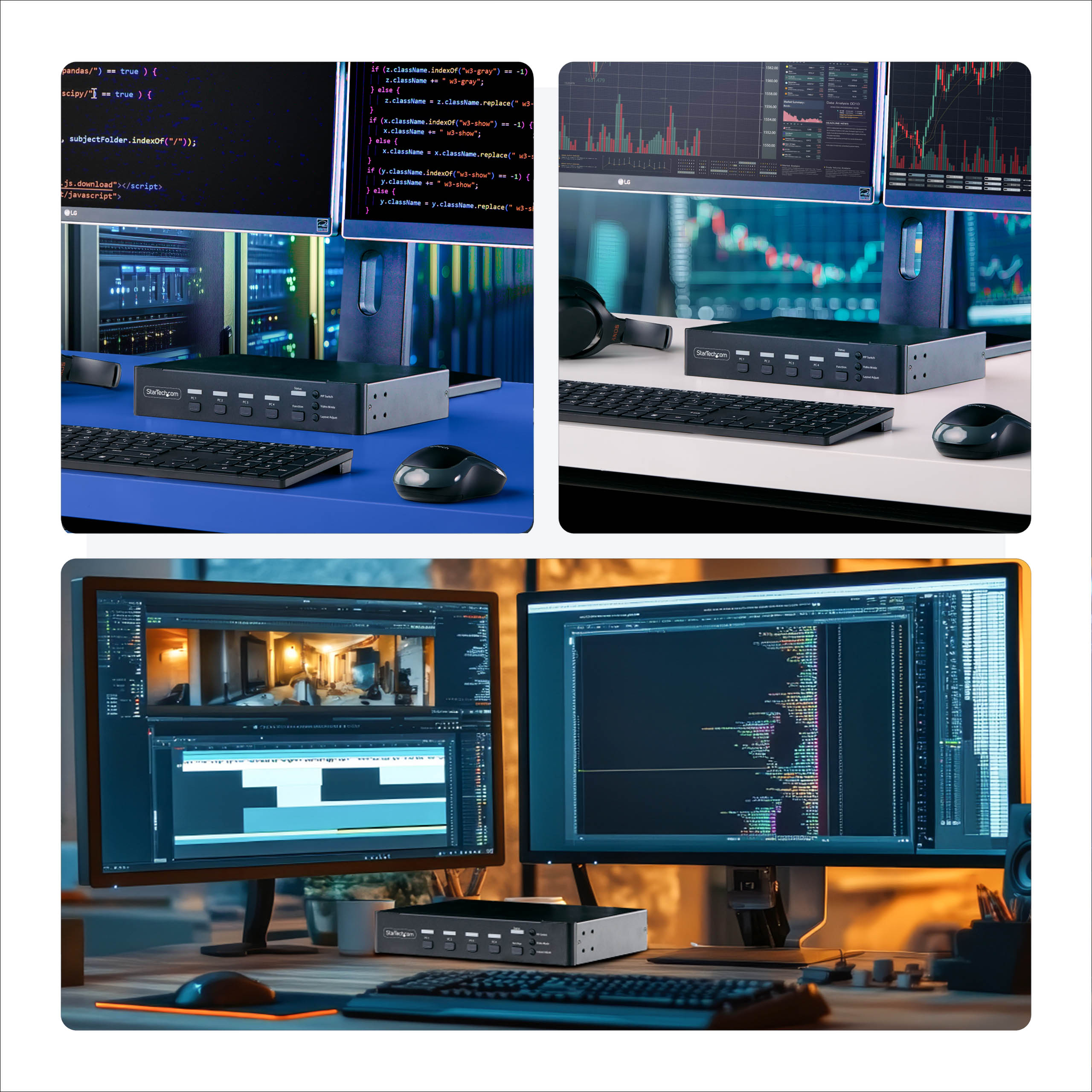

Product Images

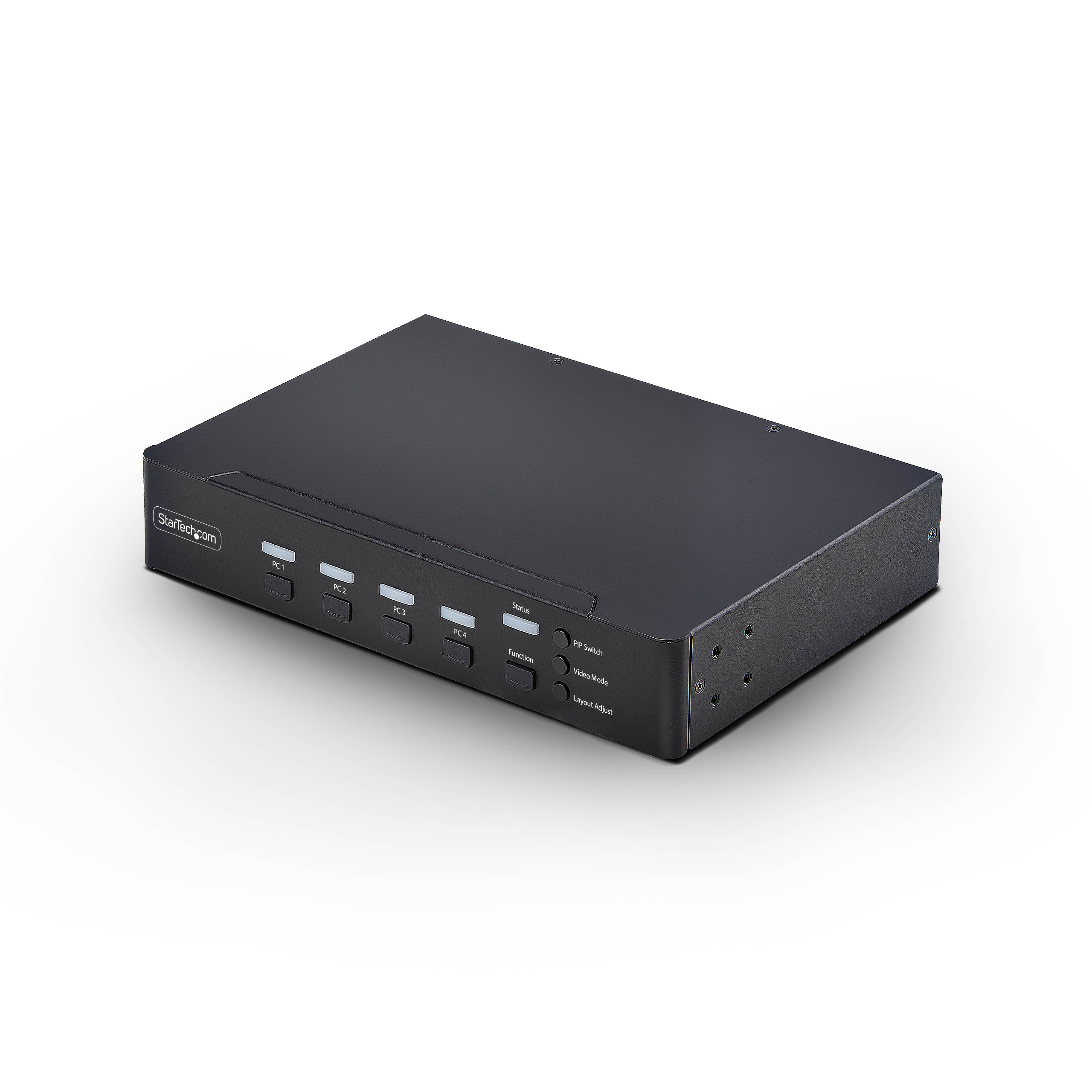

Product Images

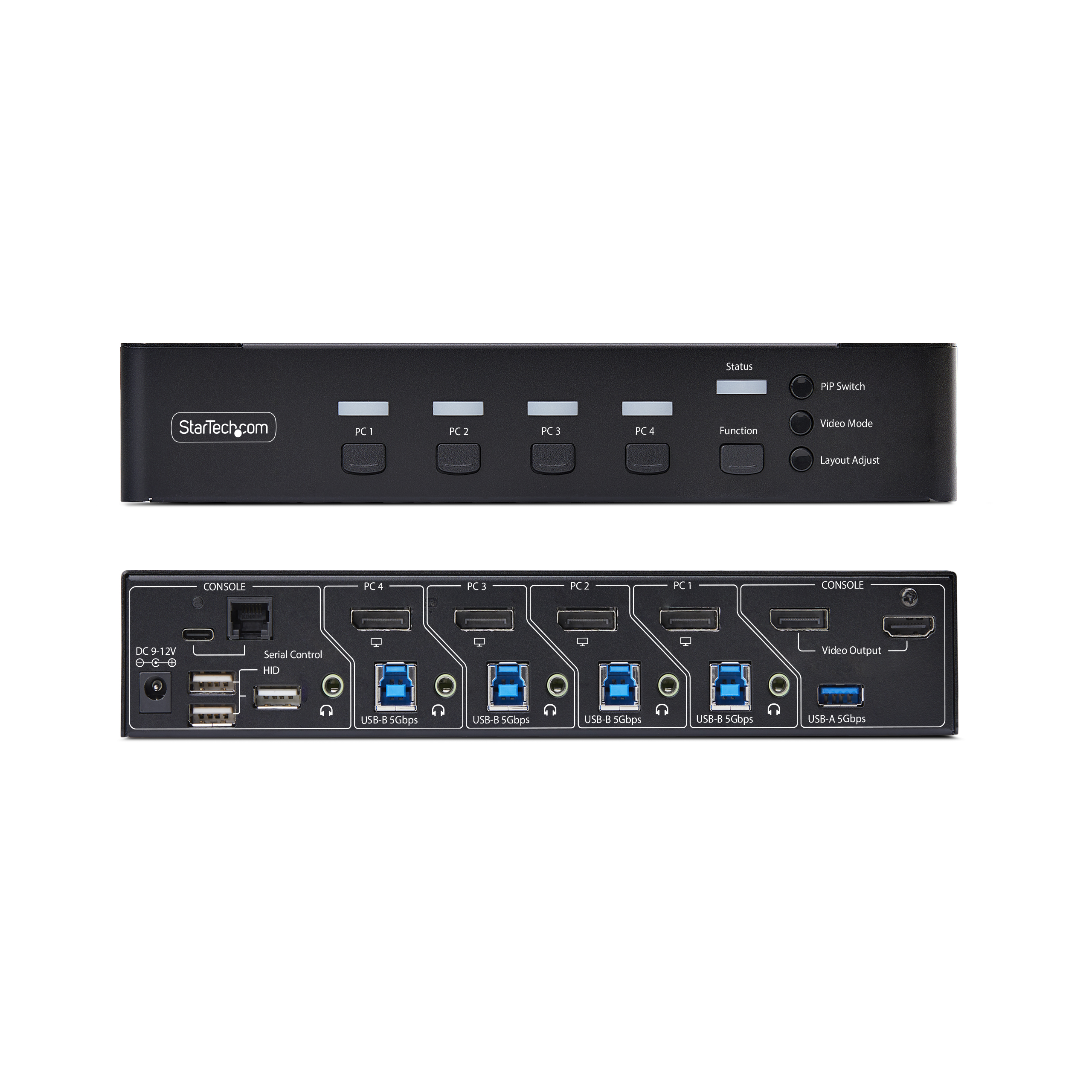

Product Images

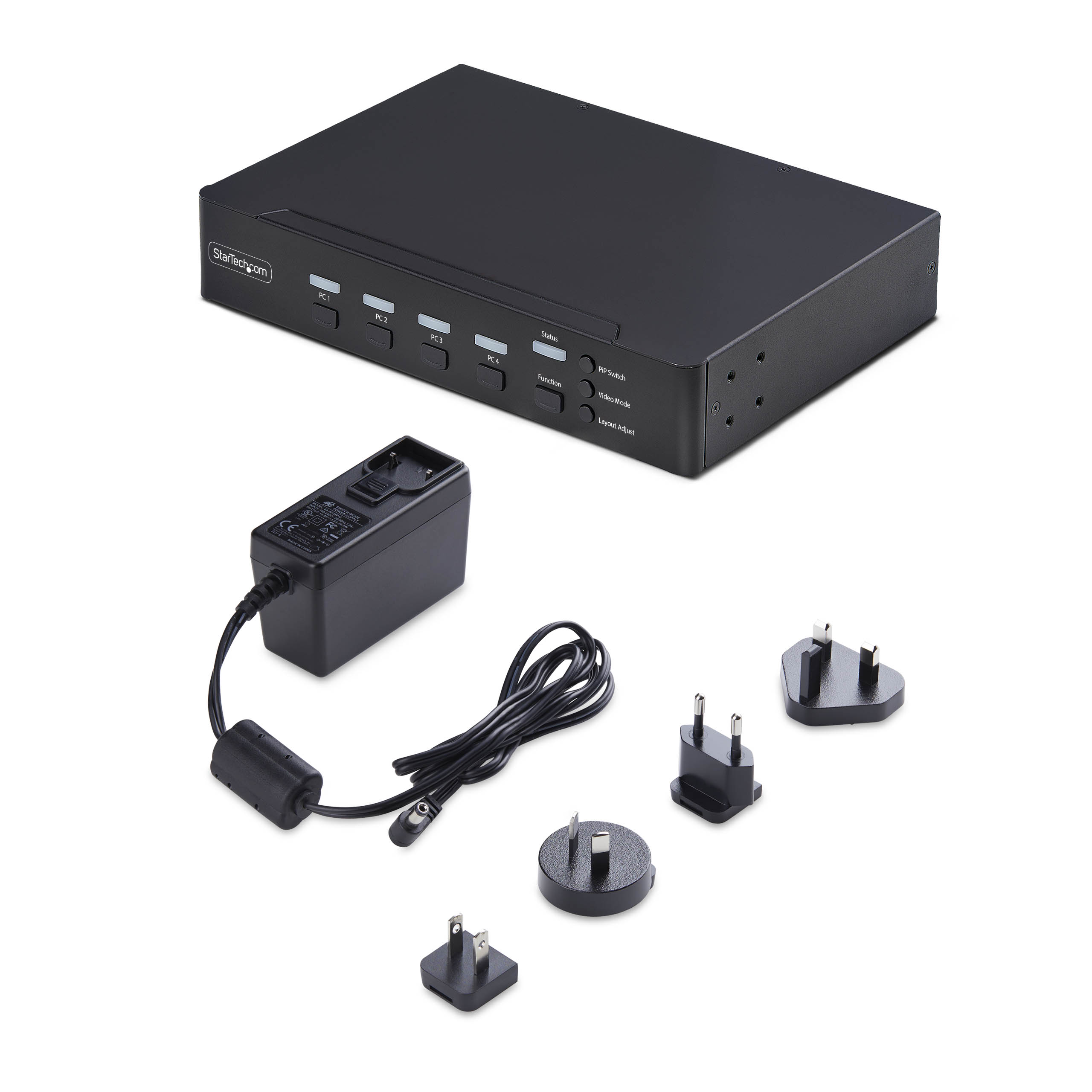

BOM Image
Quick-Start Guide
Product Name 4 Port Multiview Quadview 4K DisplayPort KVM Switch USB 5G Product Number P4AD122M-KVM-SWITCH UPC 065030908481 Lifecycle status Pending Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB 3.0 - DisplayPort KVMs Family Pro Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 4-Port DP KVM, PiP Product Title (Short) 4-Port DP KVM Switch with Mouse Roaming Product Title (Medium) 4-Port DisplayPort KVM Switch with Mouse Roaming, Multiview, 4K 60Hz, TAA Product Title (Standard) 4-Port DisplayPort KVM Switch with Mouse Roaming and Multi-View / Picture-in-Picture, 4K 60Hz, USB 3.0 (5Gbps) Hub, TAA Product Title (Long) 4-Port DisplayPort KVM Switch with Mouse Roaming and Multi-View / Picture-in-Picture, 4K 60Hz, USB 3.0 (5Gbps) Hub, Hotkey Control, TAA Compliant Product Title (AMZ) 4-Port DisplayPort KVM Switch with Mouse Roaming and Multi-View / Picture-in-Picture, 4K 60Hz, USB 3.0 (5Gbps) Hub, TAA Title Ingram (Part 1) 4-Port DisplayPort KVM - Title Ingram (Part 2) Multiview, Picture in Picture Website Product Headline Control up to four DisplayPort computers with mouse roaming, quad view, and picture-in-picture support Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Control up to four DisplayPort computers with one keyboard, mouse, and 4K 60Hz monitor; Full Screen, Quad, PiP, or PbP modes; Switch via buttons, hotkeys, mouse, or serial (RJ-11/USB-C); Mirrored dual outputs (DP + HDMI) to two displays Bullets (Consolidated) - Control up to four DisplayPort computers with one keyboard / mouse / monitor; Supports 4K 60Hz (4:4:4) video - View and manage up to four systems at once using Full Screen / Quad-View / PiP / PbP (1+3 / 3+1) modes - Mouse roaming enables instant switching with zero latency or screen blackout for uninterrupted workflows - Switch via front buttons / hotkeys / mouse roaming / side buttons / serial control (RJ-11 / USB-C)Dual video outputs (1x DP 1x HDMI) mirror the KVM display to two monitors Marketing Copy Marketing Copy (No HTML) Applications - Ideal for control rooms and network operations centers that need to monitor and manage multiple systems simultaneously
- Designed for industrial and security environments where zero-latency switching, continuous video output, and flexible control methods are critical to maintaining real-time system awareness
- For users or adminitstrators who require a local workstation for hands-on control while mirroring the same view to a larger display for team monitoring or collaboration
Website Search Keyword - KVM Switch
- KVM
- 4-port kvm
- picture in picture
- picture by picture
- quad view
- multiview
- DP KVM
- DisplayPort KVM
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes - Mouse Roaming only works in Quad View and Picture-by-Picture (PbP) modes
- Auto Scan only works in Full Screen mode
Accessory Products - DISPLPORT3L
- DISPLPORT6L
- USB3SAB3
- USB3SAB6BK
- USB2AC6FBKE
- HDMI2-CABLE-4K60-6F
Related Products - P4AD122-KVM-SWITCH
- R8AH202-KVM-SWITCH
- R8AD122-KVM-SWITCH
- P2ADD121D-KVM-SWITCH
Input Current 1.0A Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 12V DC Power Consumption (In Watts) 36W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% ~ 80% RH Material Aluminum and Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 220 Product Width (mm) 130 Product Height (mm) 40 Product Weight (g) 1050 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Hot-Key Selection Yes KVM IP Control No Maximum Data Transfer Rate USB 5Gbps MTBF (hours) 130,000 Hours On-Screen Display No OS Compatibility OS Independent Wide Screen Supported Yes Audio Yes Cables Included No CAC Support No Cascadable No LED Indicators Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type DisplayPort Supported Platforms USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 495 Carton Height (mm) 265 Carton Quantity 6 Carton Weight Gross (g) 10200 Included in Package - 1 - KVM Switch
- 1 - Universal Power Adapter (NA/EU/UK/ANZ)
- 1 - Set of Rubber Feet
- 1 - Product Documentation
Package Depth (mm) 365 Package Height (mm) 75 Package Width (mm) 235 Package Weight (g) 195 Packaging Description 4-Port DisplayPort KVM with Mouse Roaming and Picture-in-Picture - 4K 60Hz Packaging Description India 4-Port DisplayPort KVM with Mouse Roaming and Picture-in-Picture - 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 3 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 1 Connector 4 DisplayPort Connector 4 (Quantity) 1 Connector 5 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 5 (Quantity) 1 Connector 6 HDMI Connector 6 (Quantity) 1 Connector 7 USB-C (480Mbps, 2.5W) Connector 7 (Quantity) 1 Connector 8 RJ-11 Connector 8 (Quantity) 1 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (5Gbps, 4.5W) Host Connector 2 (Quantity) 4 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 A+ Not Required Actual Inbox Documents Created Compliance Insert & EN/DE QSG Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2025-01-03 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment 4 Port DisplayPort KVM Switch - 4K 60Hz - Single Display with USB 2.0 hub Comparable SKU 2 Comment 4-Port DisplayPort KVM Switch - USB 3.0 - 4K 30Hz Digital Content Due Date 2026-04-07 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Brooke Taylor ID Label Silkscreened or a Label Sticker label - custom size - requires size population below Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Primary Technology - USB 3.2 Gen 1 / 5Gbps
- DisplayPort 1.2 / 4K 60Hz
Priority New Product Medium Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2025-05-09 Target Production Release 2025-05-16 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Not Required
