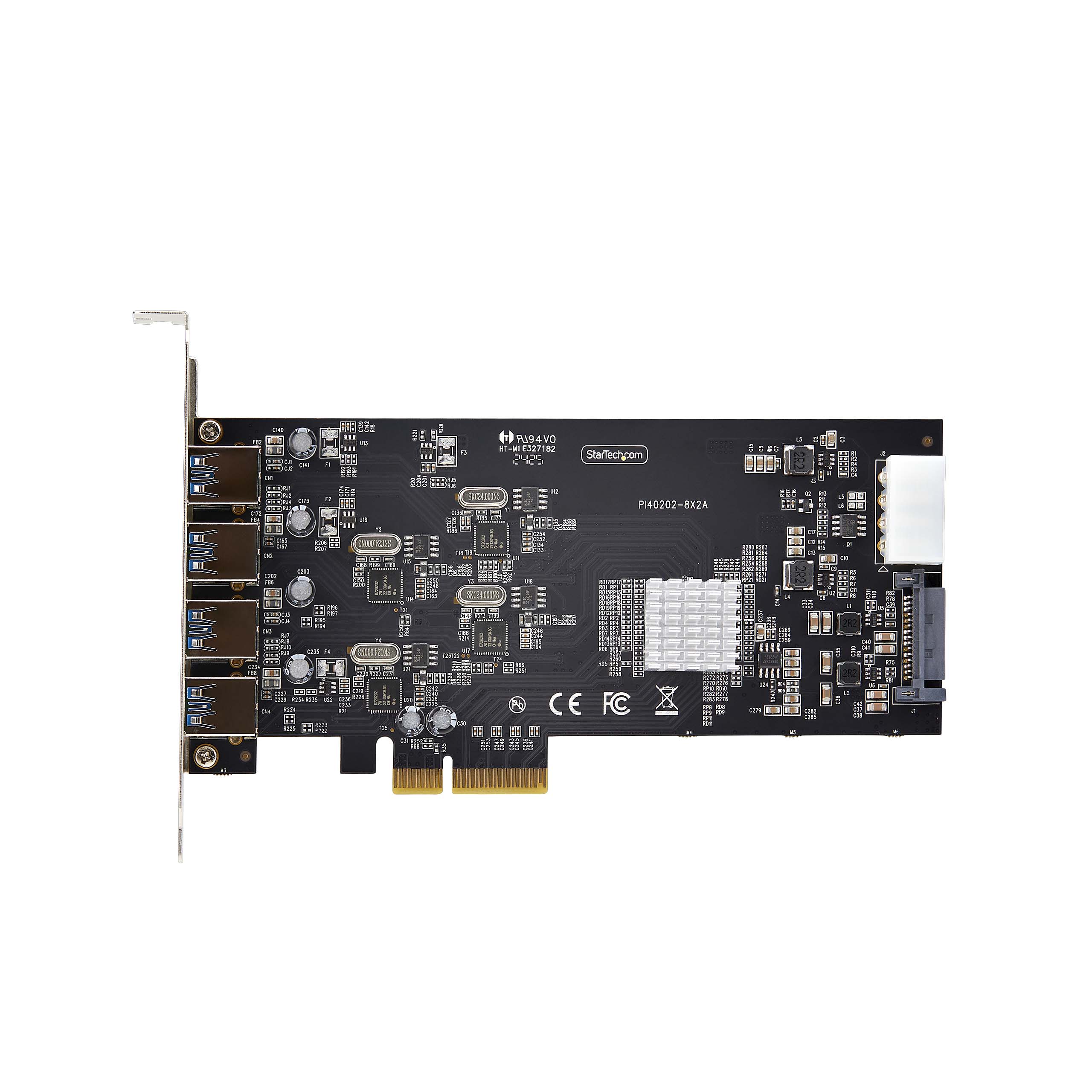

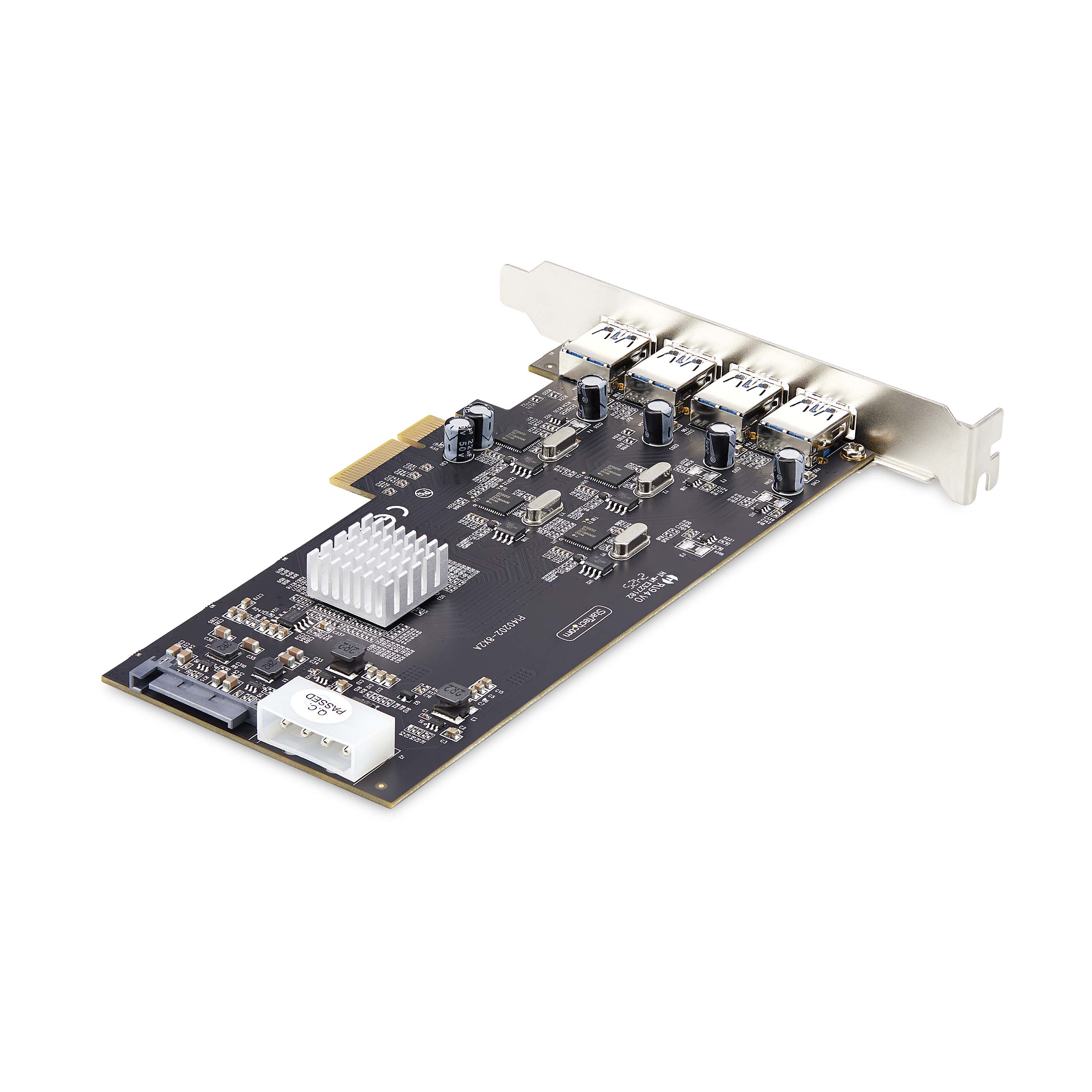

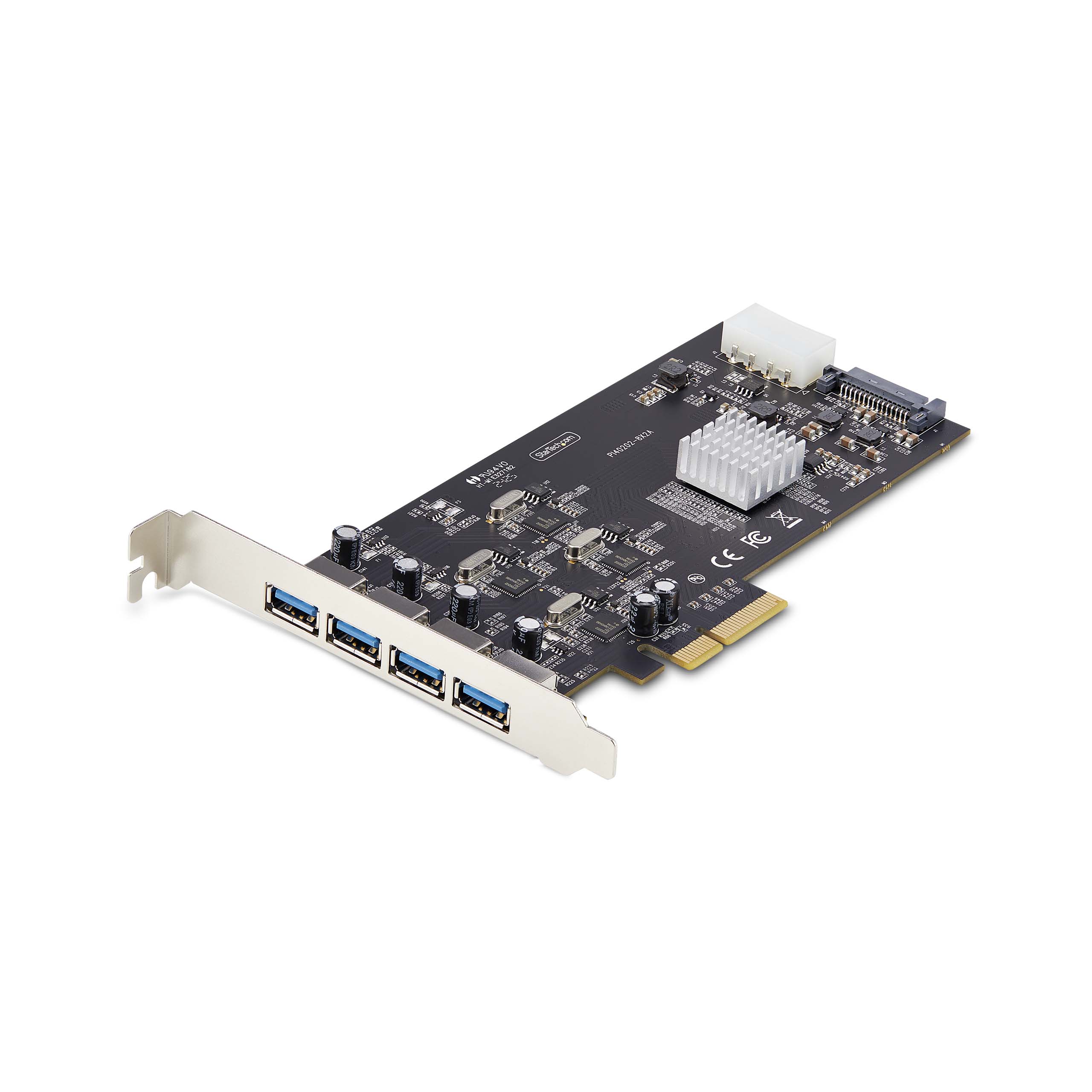

P5Q4A-USB-CARD

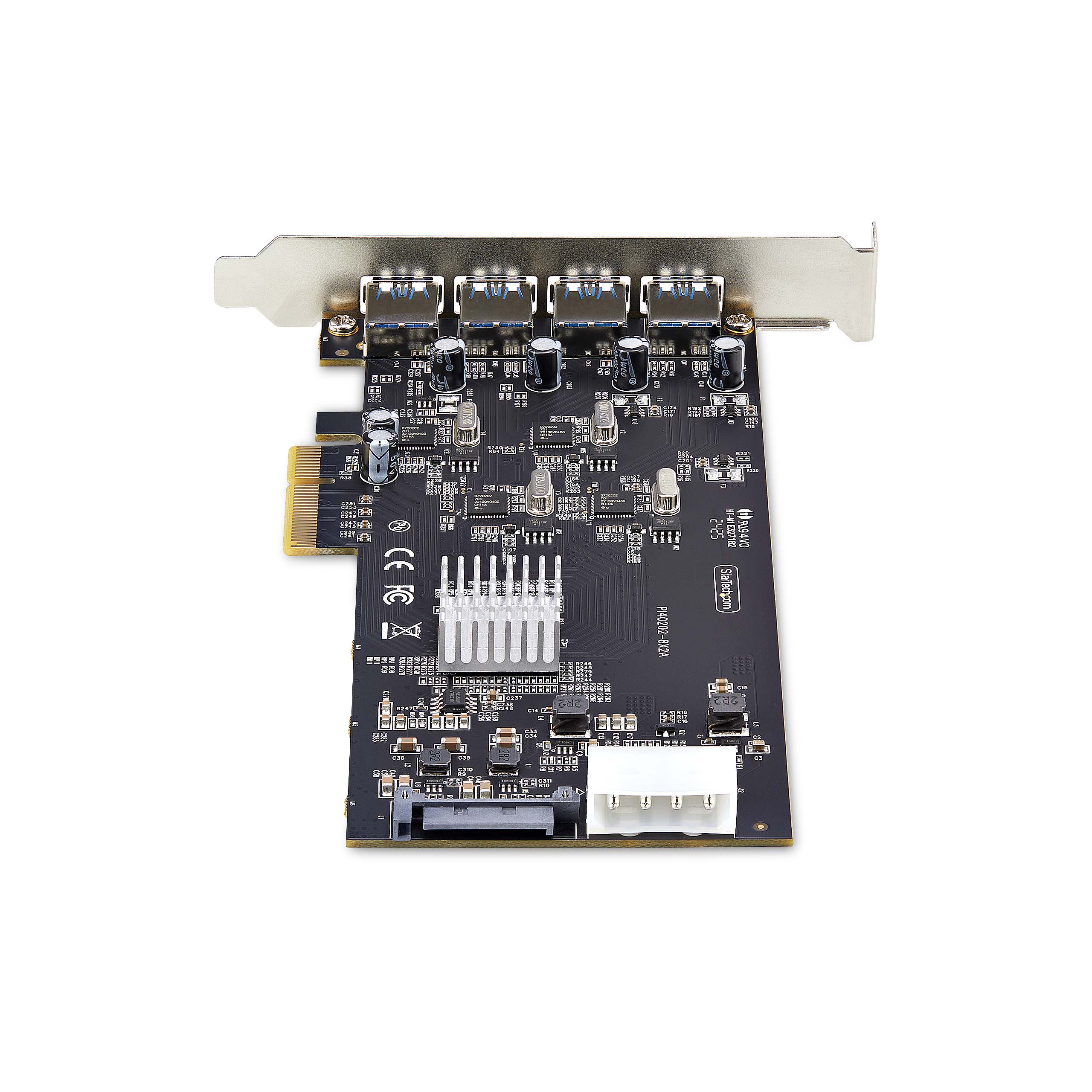

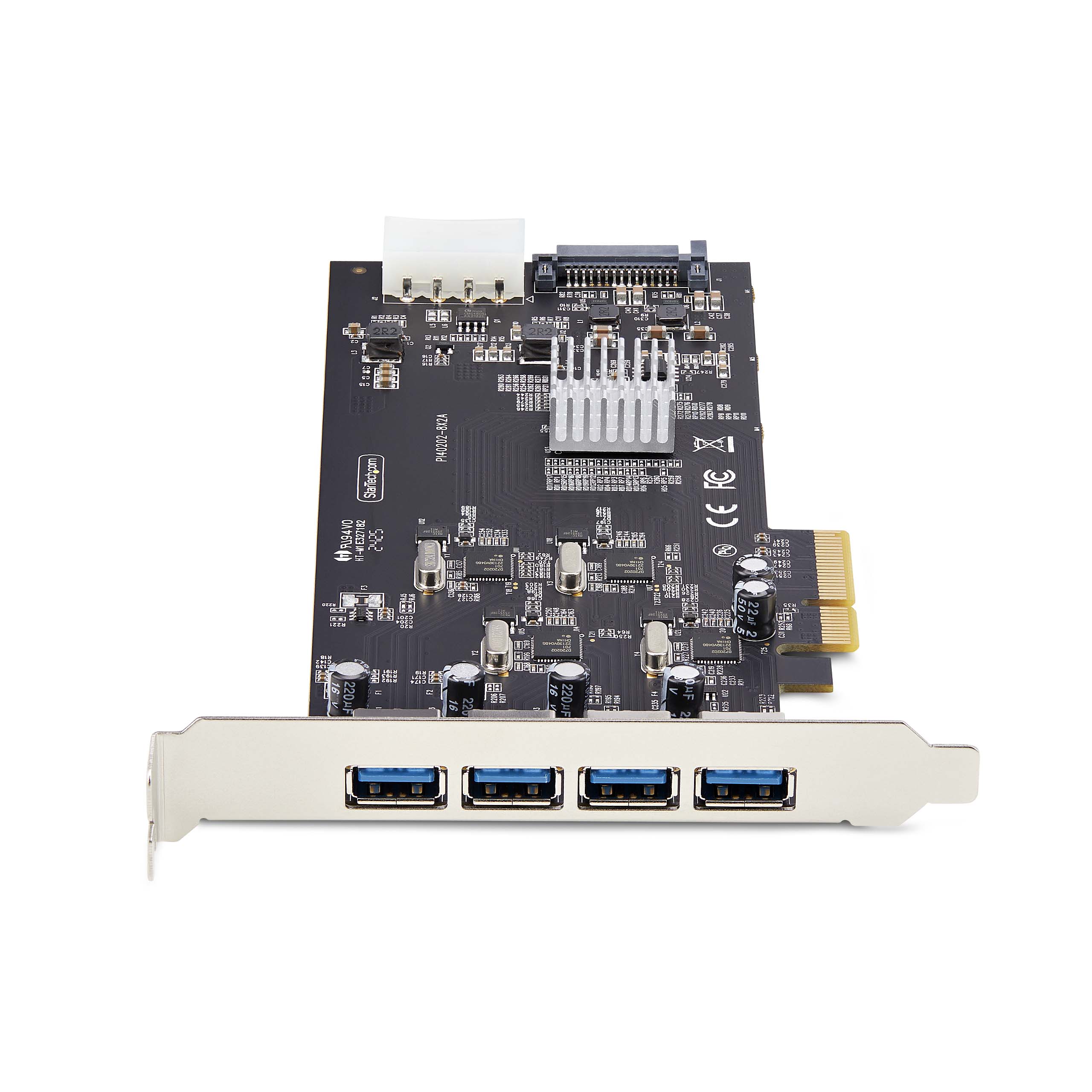

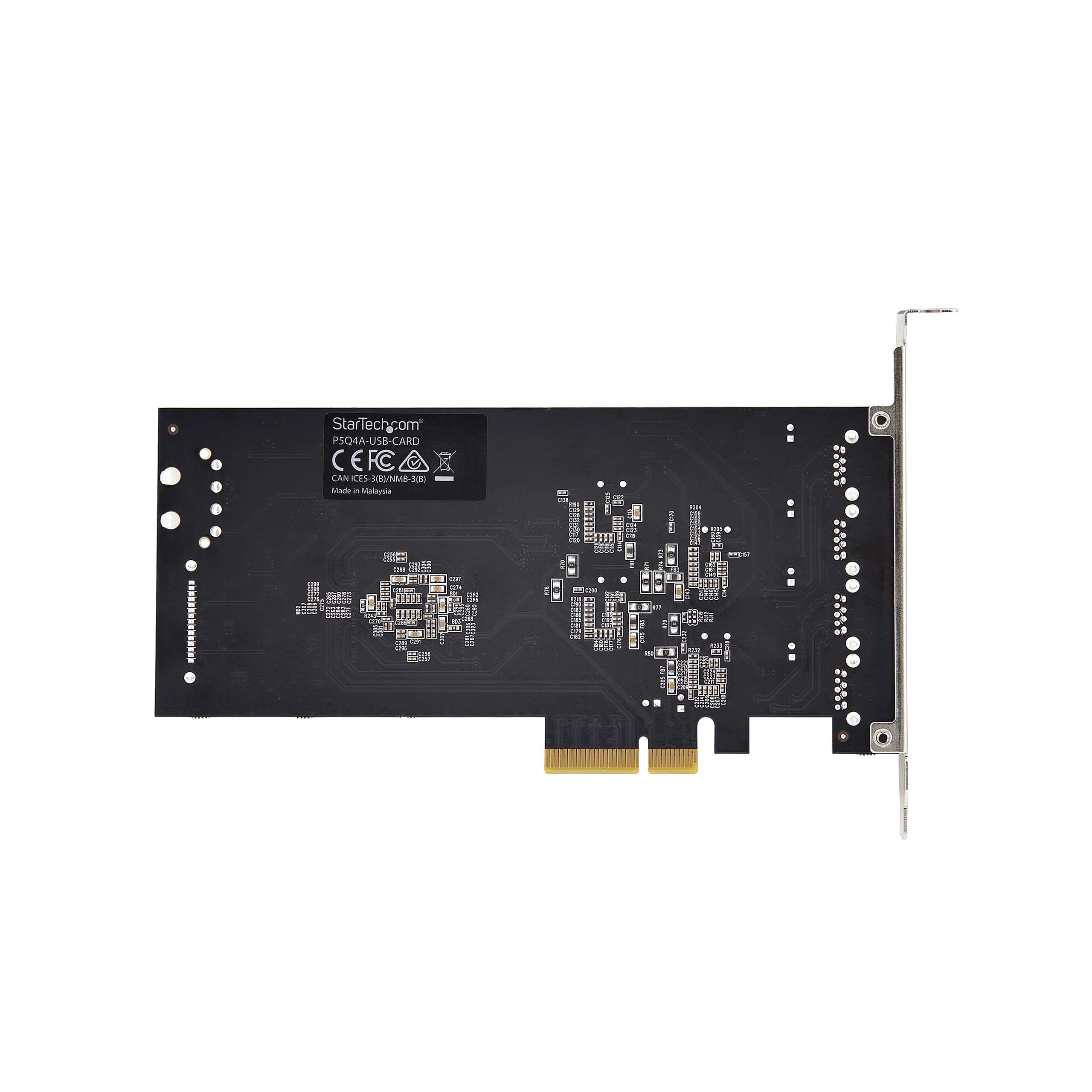

4-Port USB-A 5Gbps PCIe USB Card - 4 Dedicated Channels

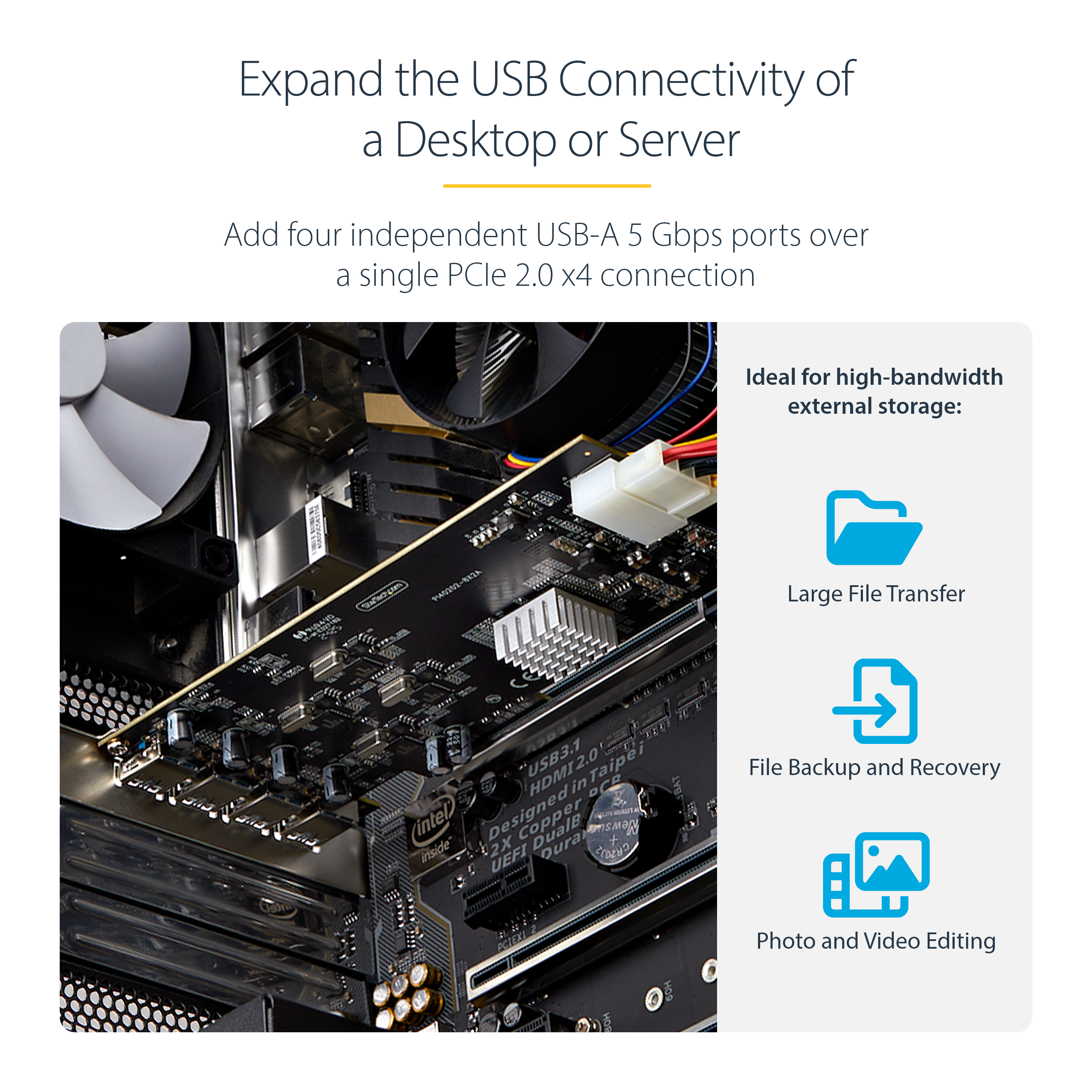

Add four 5Gbps USB Type-A ports through PCI Express
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name 4-Port USB-A 5Gbps PCIe USB Card - 4 Dedicated Channels Product Number P5Q4A-USB-CARD UPC 065030912761 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 5Gbps Family USB-A Cards - 5Gbps - PCIe Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Product Title (Ultra-Short) 4-Port USB PCIe Card Product Title (Short) 4-Port USB-A PCIe Card, USB 3.2 5Gbps Product Title (Medium) 4-Port USB-A PCIe Card, USB 3.2 5Gbps, 4x USB Controllers PCI Express Card Product Title (Standard) 4-Port USB PCIe Card, USB 3.2 5Gbps, PCI Express Expansion Card with 4x Independent USB Controllers, 4x USB-A Ports Product Title (Long) 4-Port USB PCIe Card, USB 3.2 5Gbps, PCI Express Expansion Card with 4x Independent USB Controllers, 4x USB-A Ports, Windows/Linux Product Title (AMZ) 4-Port USB PCIe Card, USB 3.2 5Gbps, PCI Express Card with 4x Independent USB Controllers, 4x USB-A Ports Title Ingram (Part 1) 4-Port USB-A PCIe Card, 5Gbps - Title Ingram (Part 2) 4x USB Controllers PCI Express Card Website Product Headline Add four 5Gbps USB Type-A ports through PCI Express Bullet 1 HIGH-PERFORMANCE USB CARD: Upgrade or expand a desktop or server's USB connectivity by adding four USB Type-A ports, each with a dedicated controller capable of up to 5Gbps, via a single PCI Express 2.0 x4 connection Bullet 2 4X INDEPENDENT USB CONTROLLERS: Dedicated USB controllers per port enhance data throughput and ensure each device has up to 5Gbps bandwidth available; Ideal for simultaneously transferring large files or editing photos/videos on external storage devices Bullet 3 HORIZONTAL USB PORTS: Enhance compatibility with different computer cases, reducing the risk of port clearance issues, and accommodating a wider range USB devices and cables Bullet 4 HIGH POWER: USB PCIe Expansion Card with SATA/LP4 power connectors provides additional power to the USB ports (when motherboard power is insufficient), supporting the Battery Charging 1.2 (5V 1.5A) specification & providing up to 5V 2A (10W) per port Bullet 5 COMPATIBILITY: Drivers auto-install in most major operating systems including Windows 8 & up, and Linux; Works with all hardware platforms, including Intel and AMD, that have a PCI Express 2.0 (or higher) x4, x8, or x16 slot Bullets (Compact) Upgrade or expand a desktop computer/server's USB connectivity by adding 4x USB-A ports via PCI Express - 4x USB controllers up to 5Gbps per port - PCIe 2.0 x4; 5V 1.5A - Supports Windows/Linux and Intel/AMD Bullets (Consolidated) Upgrade or expand a desktop computer/server's USB connectivity by adding four external USB Type-A ports - USB card features 4x independent controllers which allow for full 5Gbps performance per port simultaneously - USB PCIe expansion card with internal SATA and LP4 power; 5V 2A (10W) per port - USB expansion card works with Windows/Linux; Compatible with all hardware platforms including Intel/AMD/Apple Silicon - PCI Express 2.0 x4; Standard profile bracket pre-installed Marketing Copy Marketing Copy (No HTML) Applications - Upgrade a PCIe-equipped desktop to USB 5Gbps with 4x USB-A ports
- Ideal for simultaneously transferring large files or editing photos/videos on external storage devices
Website Search Keyword - 5 port usb card
- pci express to usb 3.1 gen 2
- pci express type c
- pci express usb 3.1
- pci express usb 3.1 card
- pci express usb c
- pci express usb c card
- pcie to usb 3.1
- pcie to usb c
- pcie to usb c adapter
- pcie to usb type c
- pcie usb 3.1
- pci-e usb 3.1
- pcie usb 3.1 card
- pcie usb 3.1 gen 2
- pcie usb 3.2 card
- pcie usb 3.2 gen 2 card
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - USB3S2SAT3CB
- USB315AC1M
- FCREADMICRO3V2
Related Products - PEXUSB312A1C1H
- PEXUSB312A2C2V
- PEXUSB314A2V2
- PEXUSB312A3
- PEXUSB311AC3
- PEXUSB312C3
- PEXUSB3S44V
- PS4C3IA3-USB-C-CARD

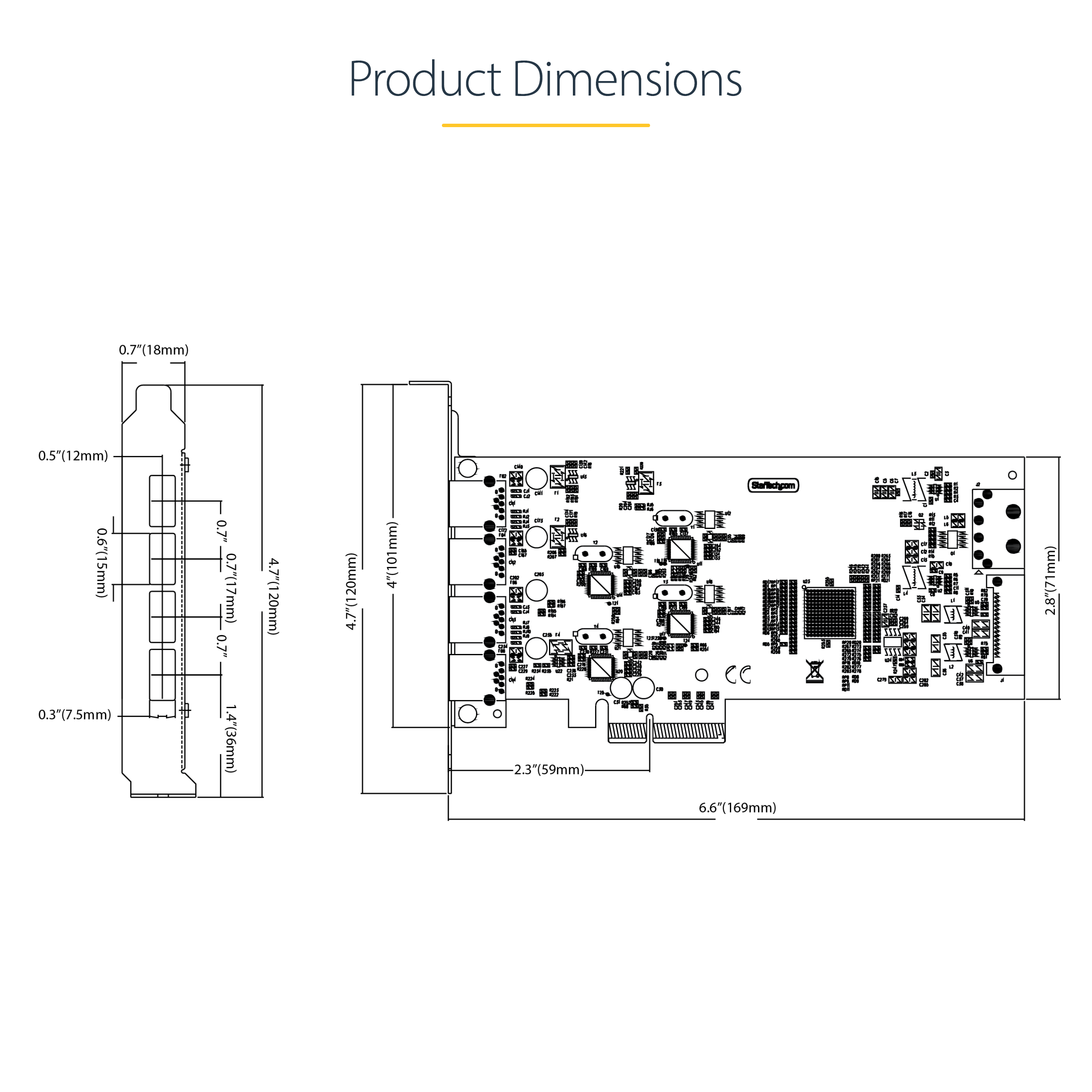

Power Source Bus Powered Color Black Humidity 5% ~ 90% RH (non-condensing) Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material PCB Product Length (mm) 168.900 Product Width (mm) 120.000 Product Height (mm) 19.000 Product Weight (g) 100.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Maximum Data Transfer Rate 5Gbps OS Compatibility - Windows 11
- Windows 10
- Windows 8.1
- Windows 8
- Windows 7
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016
- Windows Server 2012 R2
- Windows Server 2012

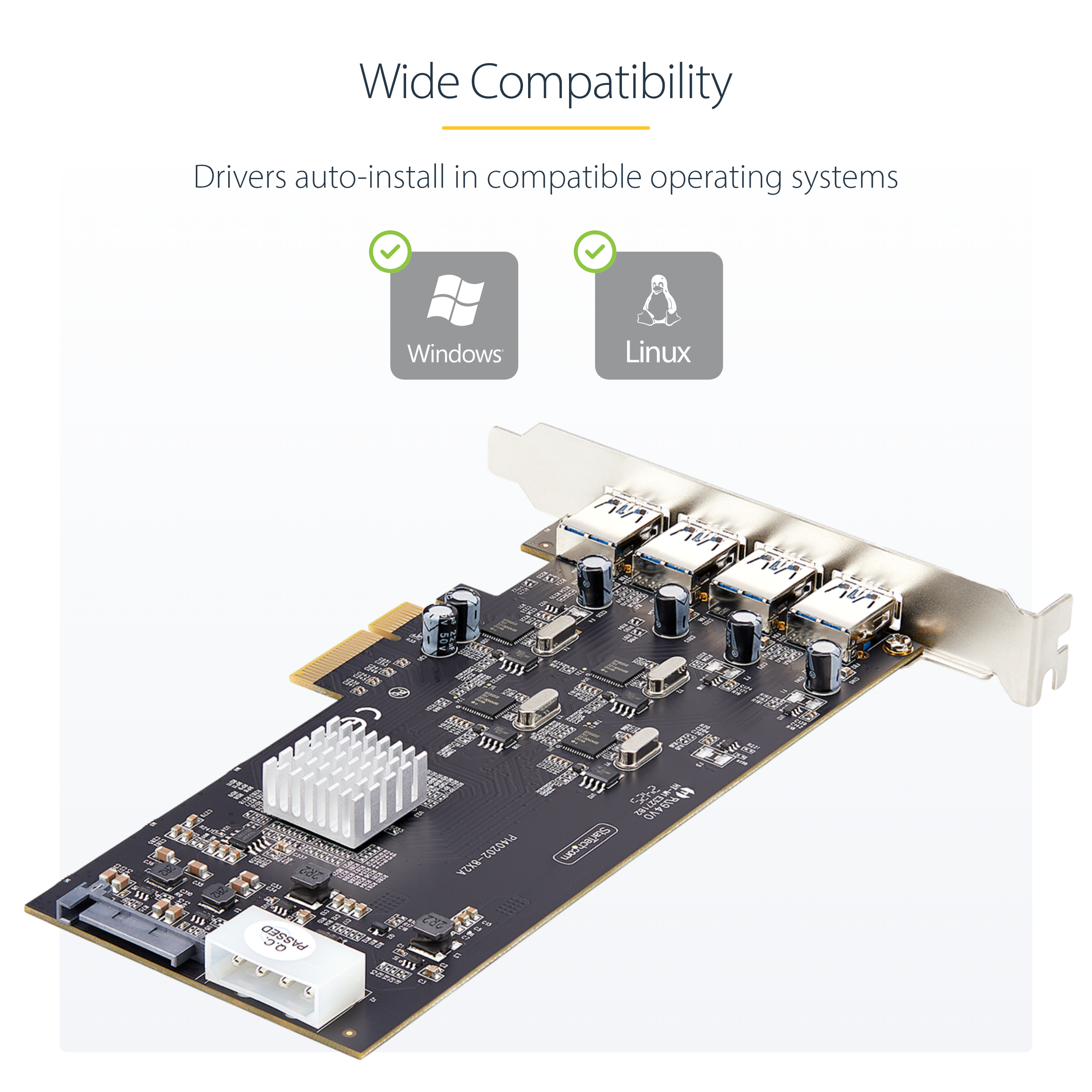

- Linux
- Windows Server 2025

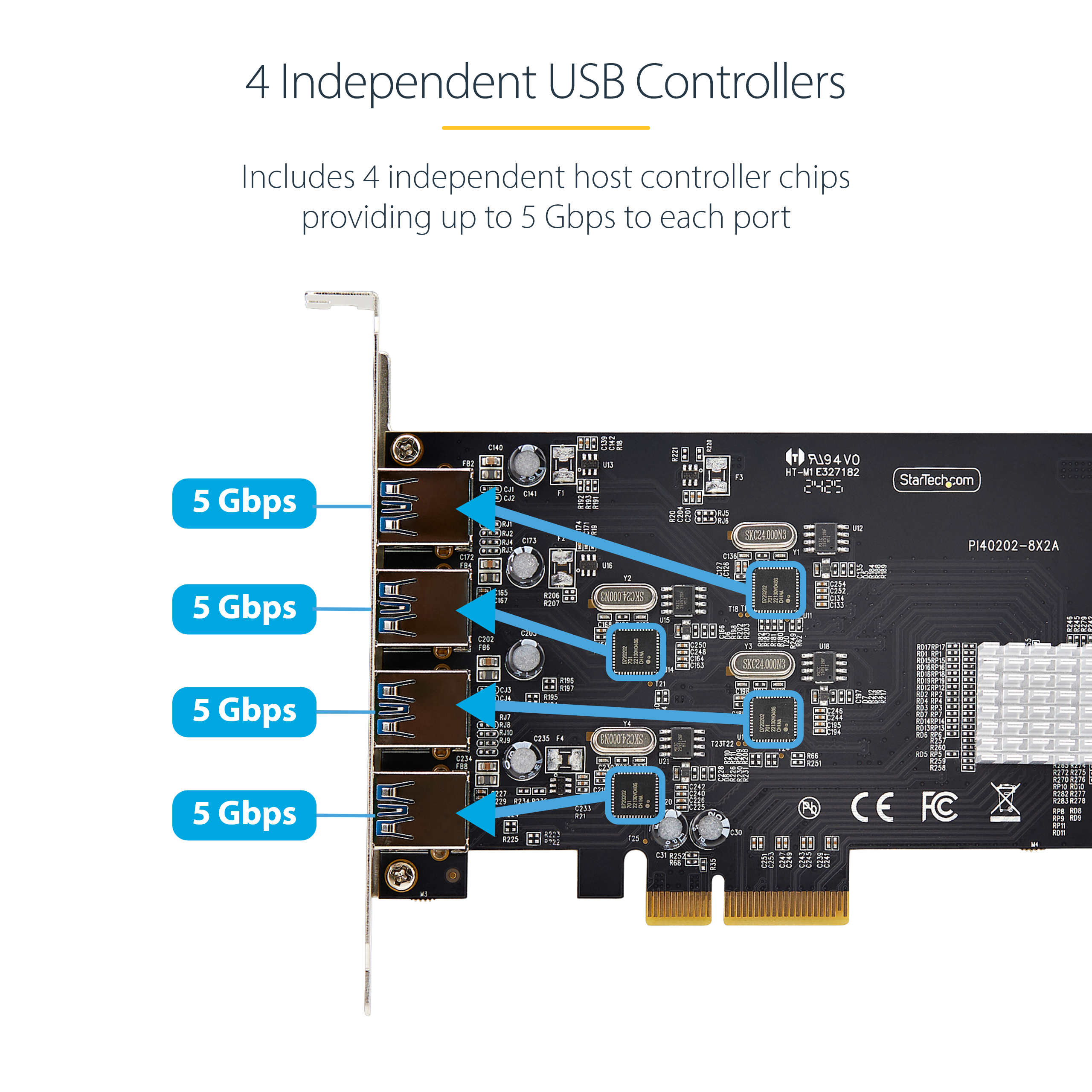

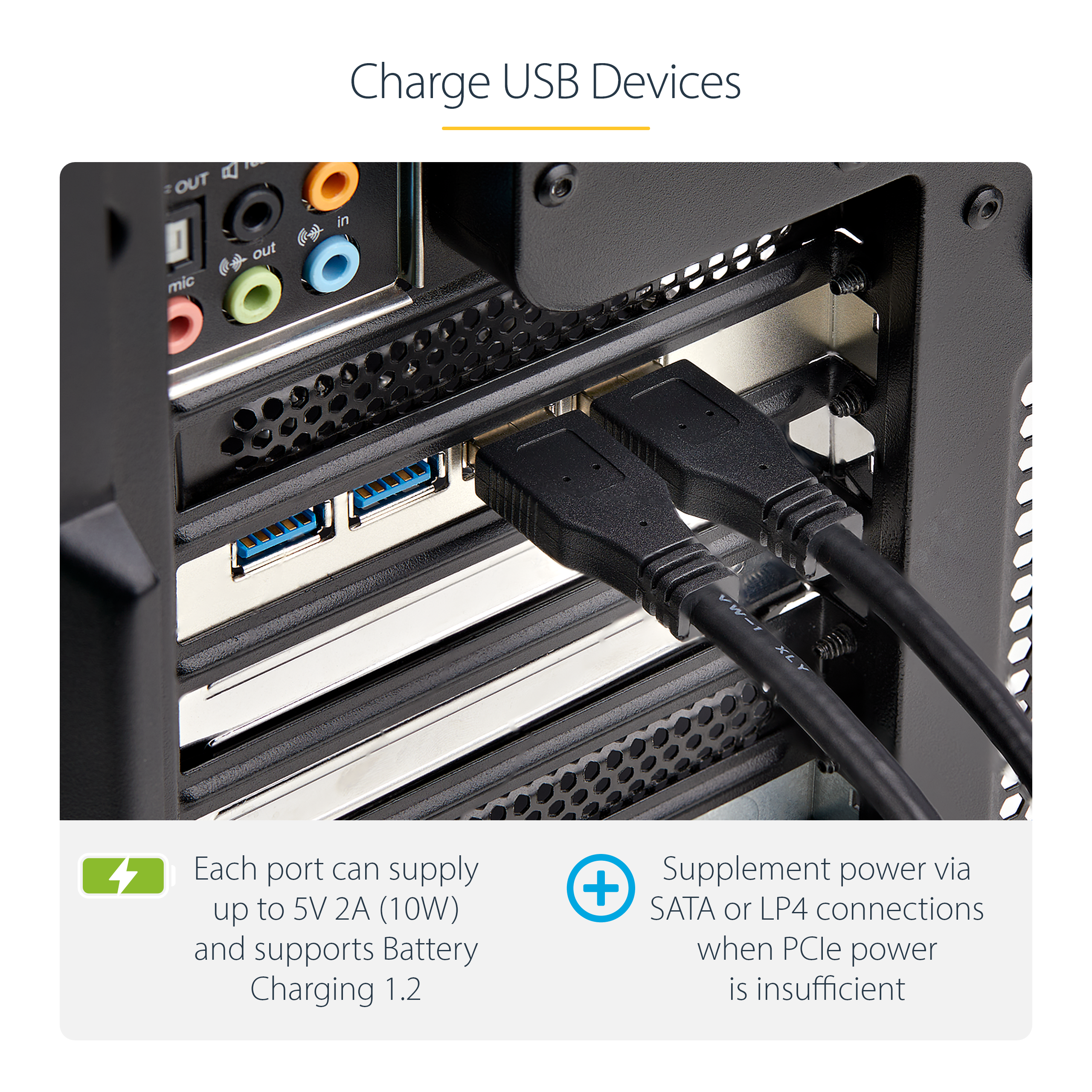

Total USB Power Output USB-A Power Output:</b> 10W Max UASP Support Yes USB Type and Rate USB 5Gbps Bus Type PCI Express Card Type Standard Profile Chipset ID - Renesas - UPD720202 x4
- Diodes Incorporated - PI7C9X2G608
Industry Standards PCI Express 2.0 Interface/Bridge PCI Express IO Card Port Style Integrated on Card USB Port Type USB-A Carton Depth (mm) 457 Carton Height (mm) 324 Carton Quantity 40 Carton Weight Gross (g) 7358 Included in Package - 1 - PCIe USB Card
- 1 - Quick-Start Guide
Included In Package for Label - 1 - PCIe USB Card
- 1 - Quick-Start Guide

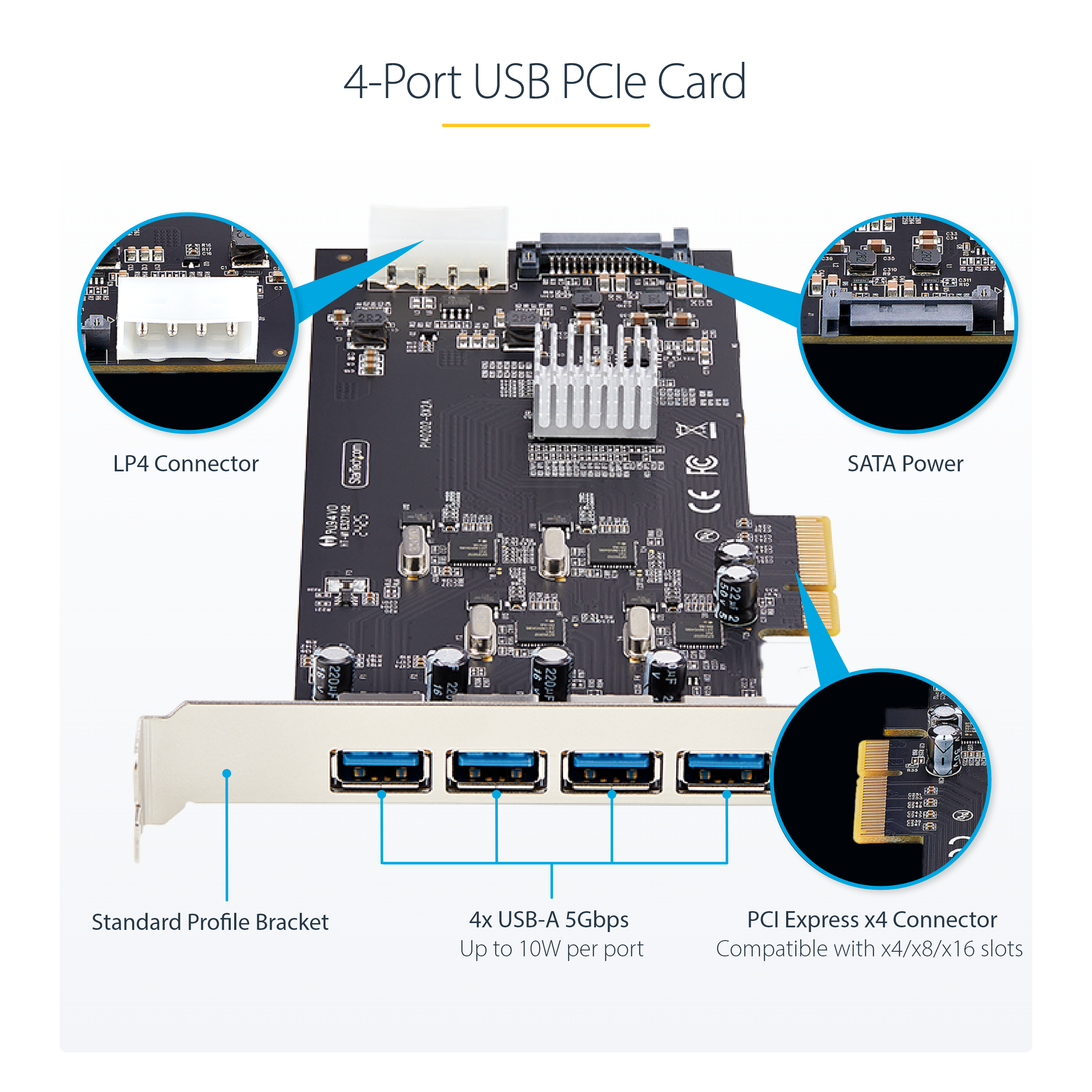

Package Depth (mm) 144 Package Height (mm) 33 Package Width (mm) 207 Package Weight (g) 162 Packaging Description 4-Port USB 3.2 (5Gbps) Card - 4 Dedicated Controllers Packaging Description India 4-Port USB 3.2 (5Gbps) Card - 4 Dedicated Controllers Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 4 Connector 2 SATA (15-Pin) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Host Connector 1 PCI Express x4 Host Connector 1 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2024-05-17 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment 4 Port USB 3.0 PCIe Card w/ 4 Dedicated 5Gbps Channels (USB 3.2 Gen 1) - UASP - SATA / LP4 Power - PCI Express Adapter Card Comparable SKU 2 Comment 4 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Card Adapter w/ 2 Dedicated 5Gbps Channels - UASP - SATA / LP4 Power Digital Content Due Date 2024-07-26 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 37x20mm Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,SE,UK,US Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2024-05-10 Target Production Release 2024-05-17 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle Latest Video Not Required
