PAC101R1

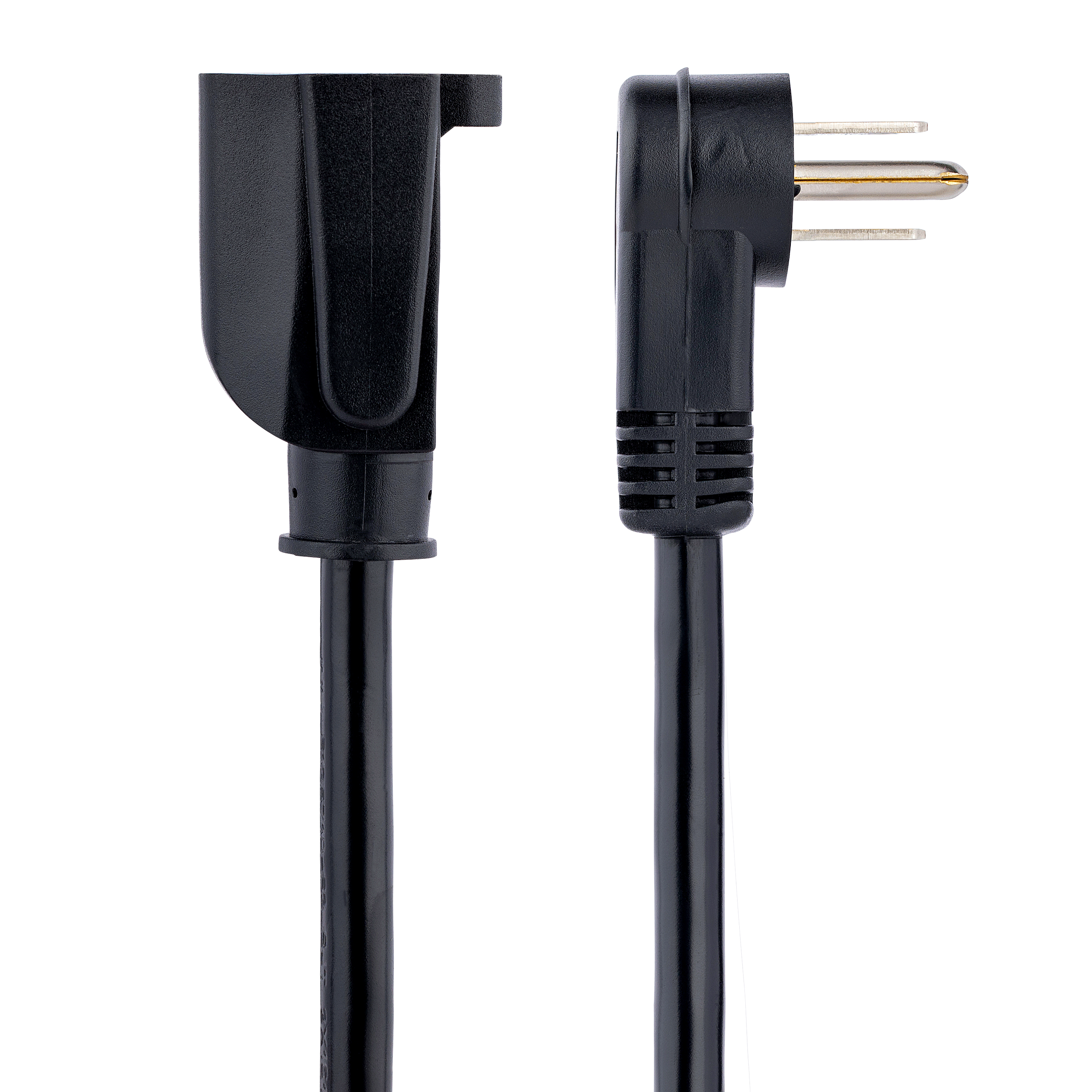

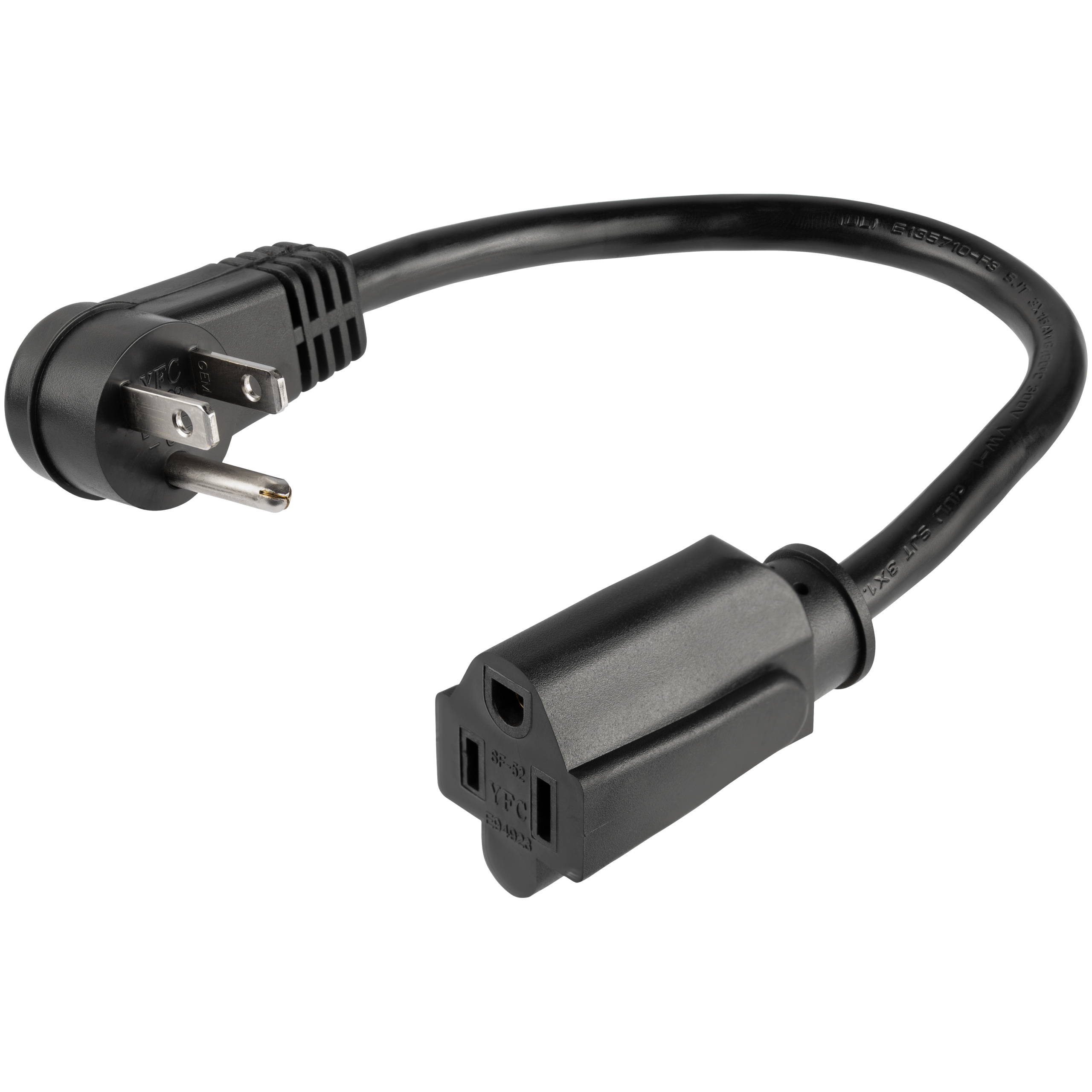

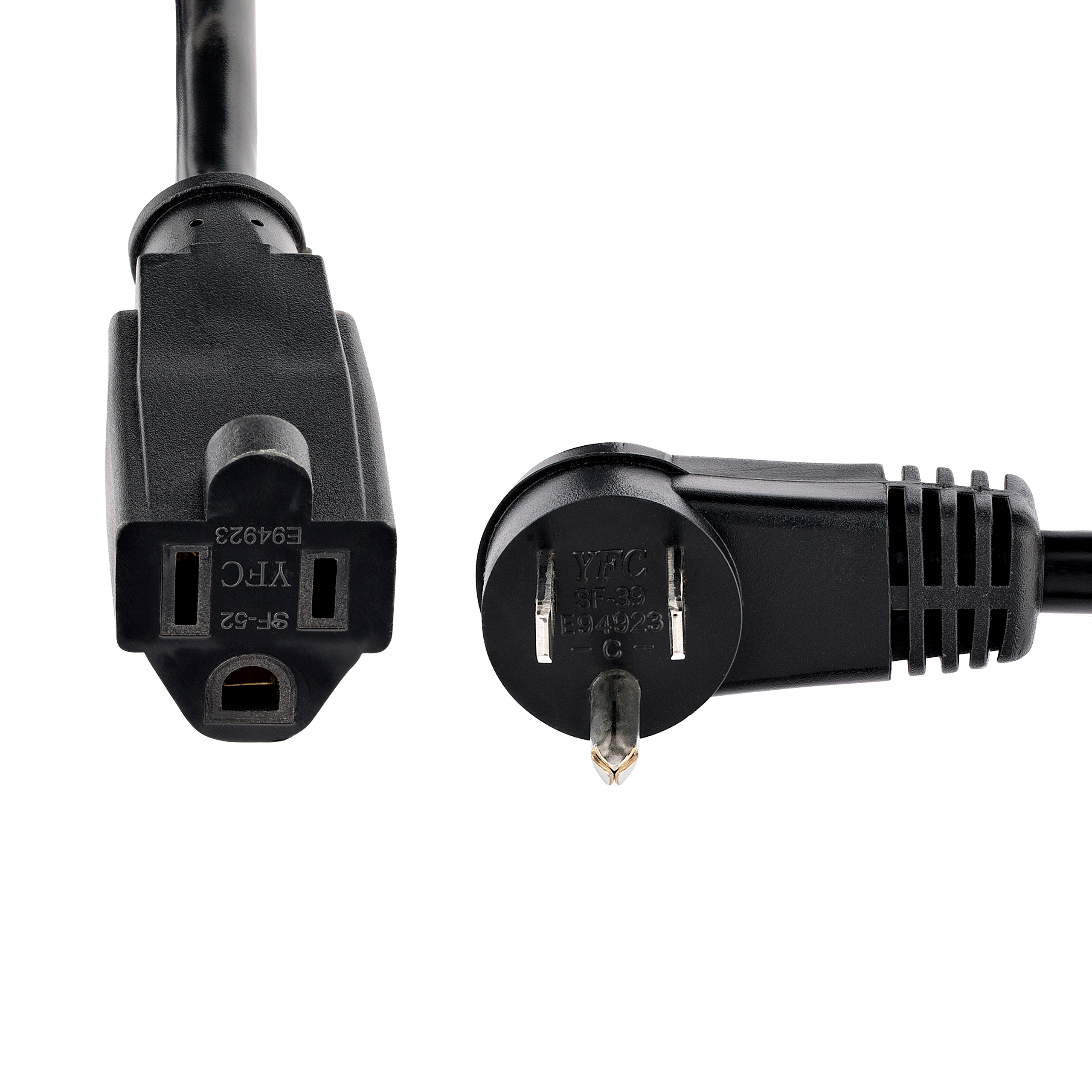

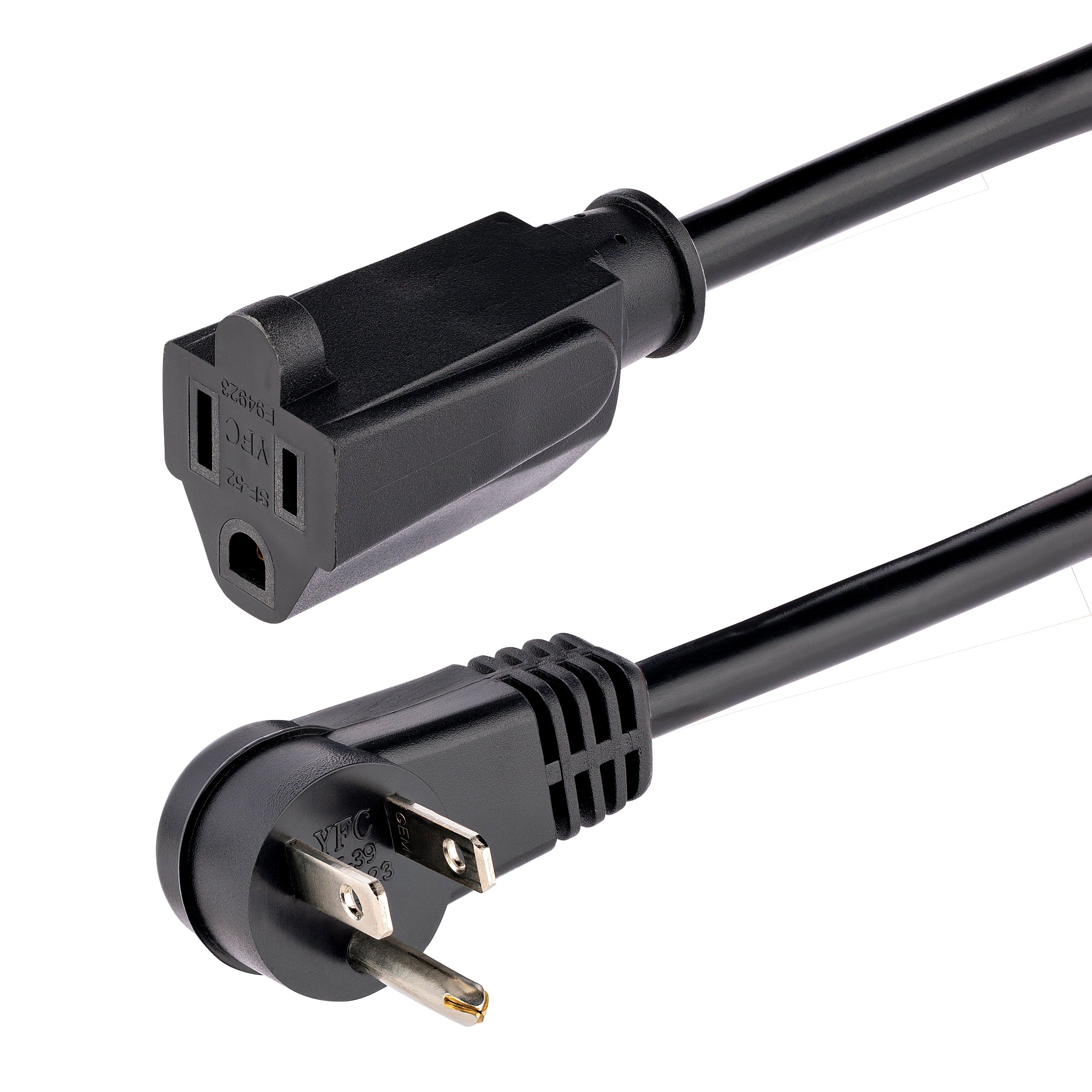

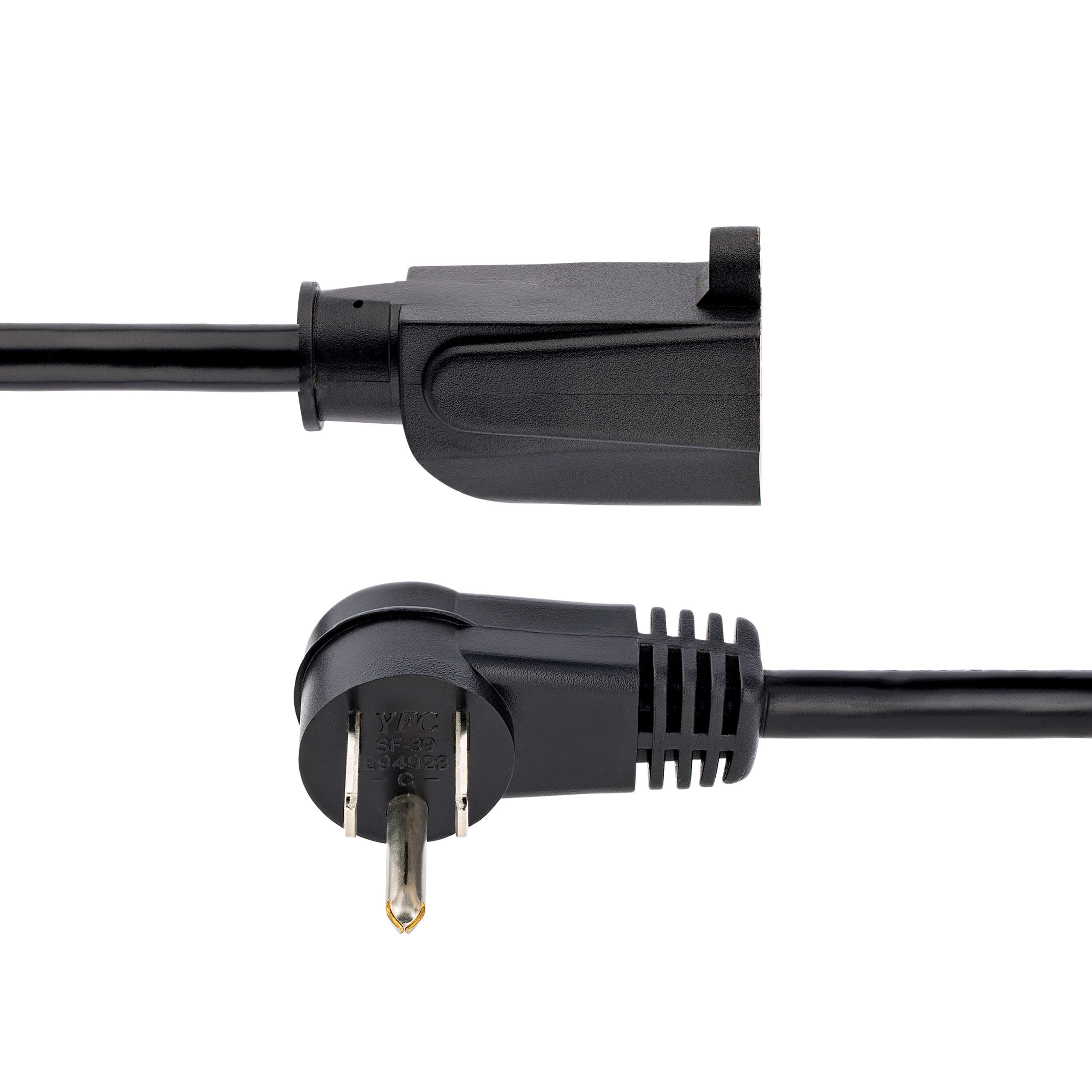

5-15R to 5-15P 1ft Right angled Power Cord Extension
1ft (0.3m) Power Extension Cord, NEMA5-15R to Right-Angle NEMA5-15P
Main Image
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name 5-15R to 5-15P 1ft Right angled Power Cord Extension Product Number PAC101R1 UPC 065030879835 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Power Cables Category Level 1 Cables - Other Category Level 2 Power Cables Category Level 3 External Power Cords Family 5-15 to 5-15 Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) Philippines Country of Origin Revision (1) XXXXXX174X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX093X Product Title (Ultra-Short) Power Extension Cord Product Title (Short) 1ft Power Extension Cord 5-15P to 5-15R Product Title (Medium) 1ft (0.3m) Power Extension Cord, NEMA5-15R to 5-15P Black Extension Power Cable Product Title (Standard) 1ft (0.3m) Power Extension Cord, Right Angle NEMA 5-15P to NEMA 5-15R, 13A 125V, 16AWG, Black, Outlet Extension Cable Product Title (Long) 1ft (30cm) Power Extension Cord, Right Angle NEMA 5-15P to NEMA 5-15R, 13A 125V, 16AWG, Black Computer Power Extension Cord, AC Outlet Extension Cable, UL Listed Product Title (AMZ) 1ft (0.3m) Power Extension Cord, Right Angle NEMA 5-15P to NEMA 5-15R, 13A 125V, 16AWG, Computer Power Extension Cord, AC Outlet Extension Cable, UL Listed (PAC101R1) Title Ingram (Part 1) Power Extension Cord - Title Ingram (Part 2) 0.3m (1ft) 5-15R to 5-15P, 13A 125V Website Product Headline 1ft (0.3m) Power Extension Cord, NEMA5-15R to Right-Angle NEMA5-15P Bullet 1 AC POWER EXTENSION CORD: This 1ft (0.3m) Right-Angle 16AWG AC power extension cord with NEMA 5-15R and NEMA 5-15P connectors is suitable for workstations/home office | Indoor use | Rated to carry 125V at 13A Bullet 2 PERFORMANCE AND SAFETY: UL listed (UL62 & UL817) | Fully molded strain relief connectors for durability | Fire Rating: VW-1 | 3 Conductor extension cord made with 100% copper wire | This power extension cord is available in other lengths Bullet 3 SPECS: 1ft (0.3m) AC Power Cord | NEMA 5-15R to Right-Angle NEMA 5-15P | 16AWG | 125V 13A (Max) | Jacket Type: SJT | Jacket Material: PVC | Black | Temperature Range: 37°F to 140°F (3°C to 60°C) | Cable Outer Diameter: 0.33in (8.5mm) Bullet 4 COMPATIBILITY: PC Power Extension Cord NEMA 5-15P works with North American outlets | Extend a 3-prong power connection from your desktop computer, server, or printer | Replacement power supply cable/cord Bullet 5 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this extension cord is backed for life, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) AC power extension cord 1ft (0.3m) 16AWG power supply extension cable NEMA 5-15R to Right-Angle NEMA 5-15P; 125V at 13A; UL listed; Fully molded connectors; 3 Conductor extension cord; Fire rating VW-1; Jacket Rating SJT; Jacket material PVC Bullets (Consolidated) AC power extension cord 1ft (0.3m) | 16AWG PC extension cable with NEMA 5-15R and NEMA 5-15P connectors is suitable for indoor workstations/home office | 125V at 13A - UL listed | Fully molded strain relief for durability | Fire Rating VW-1 | 3 Conductor extension cord - 1ft (0.3m) AC power cord extender | NEMA 5-15R to NEMA 5-15P | 16AWG | 125V 13A (Max) | Jacket Rating: SJT | Jacket material PVC | Black | Temperature range 37to 140DEG F (3 to 60DEG C) | Cable Outer diameter 0.33in (8.5mm) Marketing Copy Applications Extend an existing power cord by up to a foot Website Search Keyword - 1 foot extension cord
- angled power cord
- extension cord with flat plug head
- flat extension cord
- flat head extension cord
- flat plug extension cord
- flat power cord
- flat power extension cord
- flat wall plug extension cord
- low profile extension cord
- low profile right angle power cord
- power cable
- power extension cable
- power supply extension cord
- right angle computer power cord
- right angle extension cord
- right angle pc power cord
- right angle plug extension cord
- right angle power cable
- right angle power cord
- short power cord
- P02400113A15D
- P024-001-13A15D
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes UL Listed Related Products - PAC101R3
- PAC101
Input Current 13 A Input Voltage 125 AC Cable Length (mm) 304.8 Color Black Connector Style Straight to Right Angle Humidity 20~80% RH Operating Temperature -20°C to 60°C (-4°F to 140°F) Primary Material Plastic Product Length (mm) 304.800 Product Width (mm) 25.6 Product Height (mm) 35 Product Weight (g) 98.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Wire Gauge 16 AWG Features Flat Rotating Plug Voltage Rating 125V Cable Jacket Material PVC - Polyvinyl Chloride Cable Type SJT Female Connector 5-15R Fire Rating VW-1 Rated Male Connector / Plug 5-15P Number of Conductors 3 Type AC Extension Cord Carton Depth (mm) 330 Carton Height (mm) 302 Carton Quantity 180 Carton Weight Gross (g) 19558 Included in Package 1 - power cable Number of Sub-Cartons 18 Package Depth (mm) 151 Package Height (mm) 36 Package Width (mm) 151 Package Quantity 1 Package Weight (g) 104 Packaging Description Power Extension Cord - 5-15R to Right-Angle 5-15P Packaging Description India Power Extension Cord - 5-15R to Right-Angle 5-15P Sub-Carton Depth (mm) 245 Sub-Carton Height (mm) 99 Sub-Carton Width (mm) 215 Sub-Carton Quantity 10 Sub-Carton Weight (g) 1000 Connector 1 NEMA 5-15 (125V AC, 15A) Connector 1 (Quantity) 1 Connector 2 NEMA 5-15 (125V AC, 15A) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2018-04-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center Yes Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2018-06-01 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,MX,US Primary Technology None Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Target Development Completion Date 2018-03-30 Target Production Release 2018-06-08 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
