PATA2SATA3

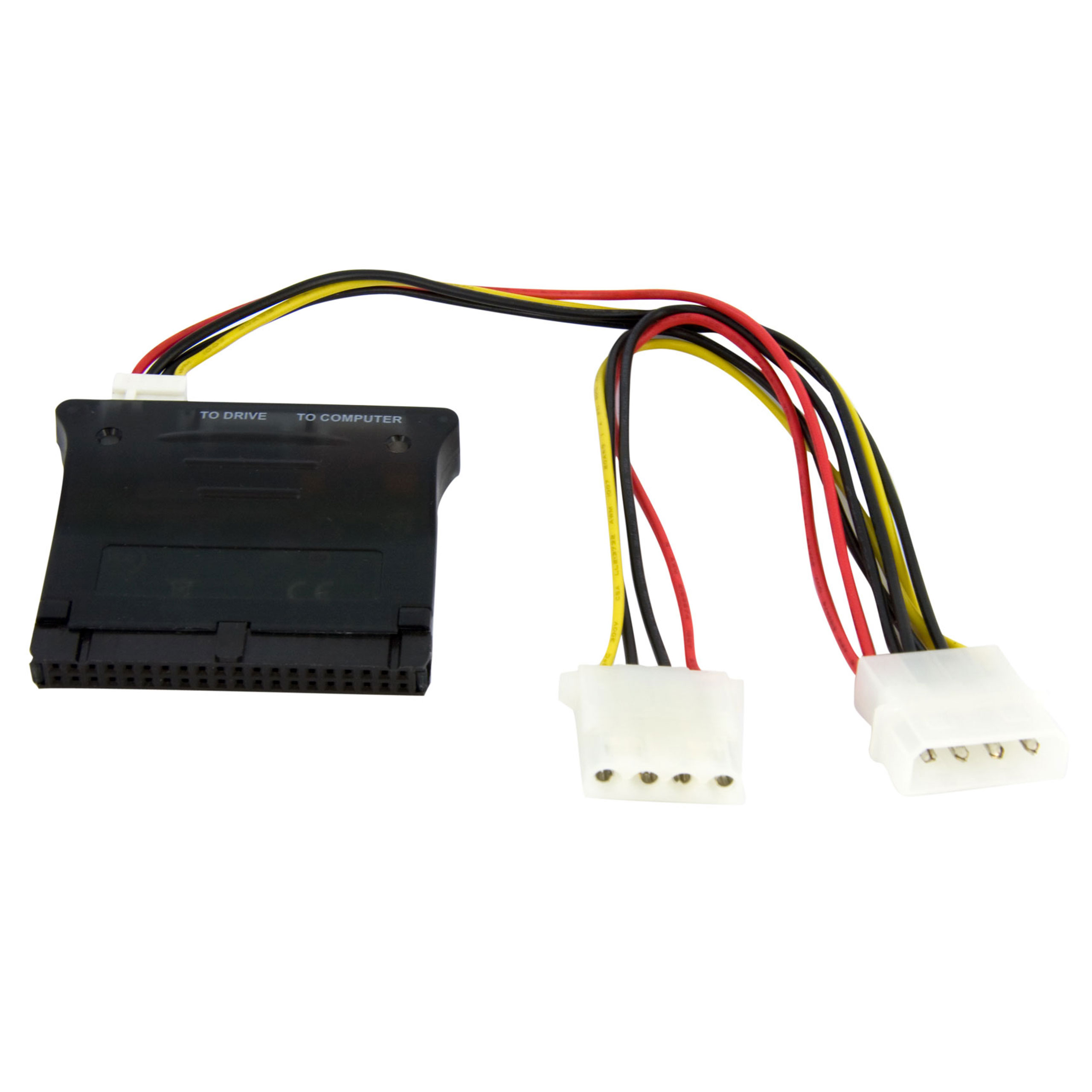

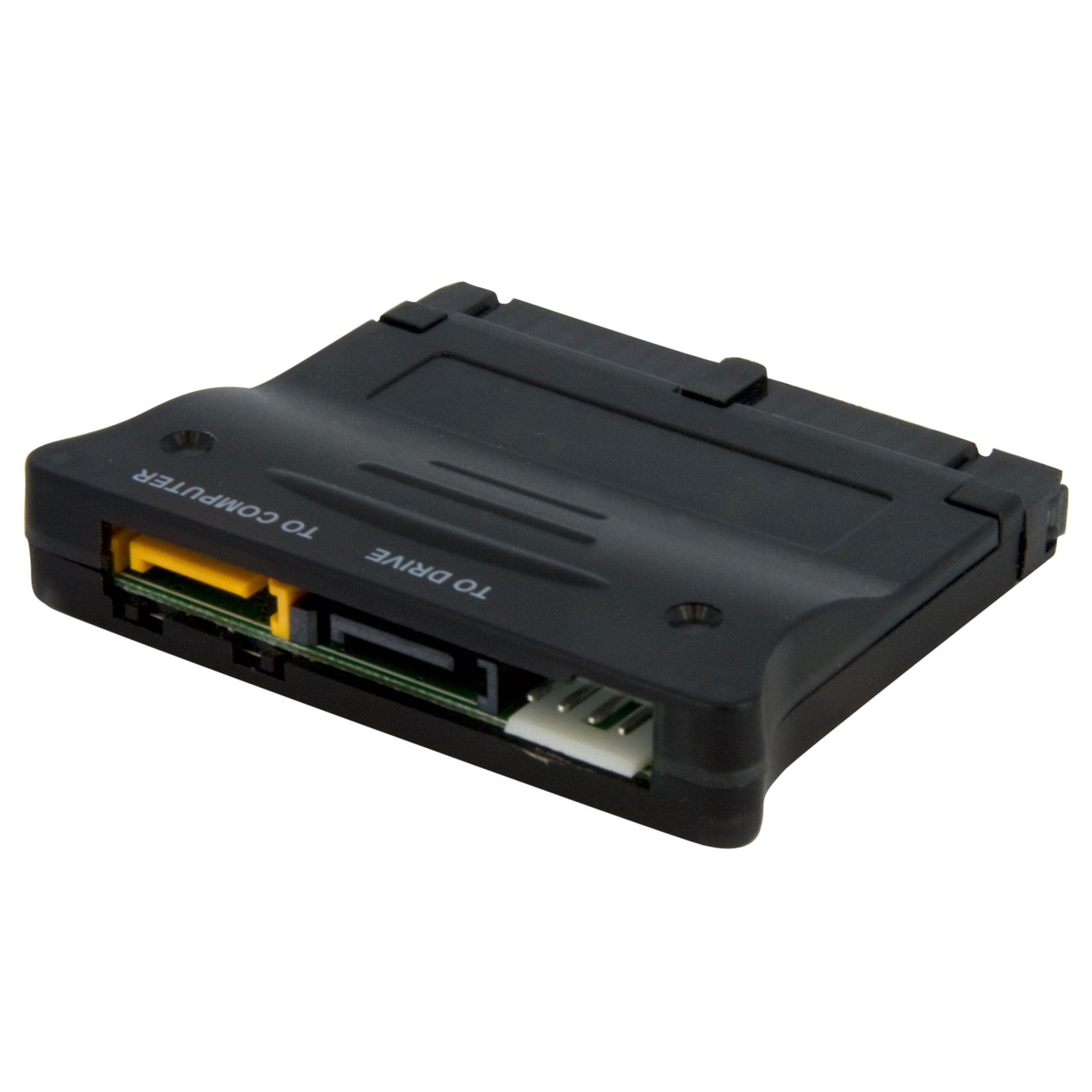

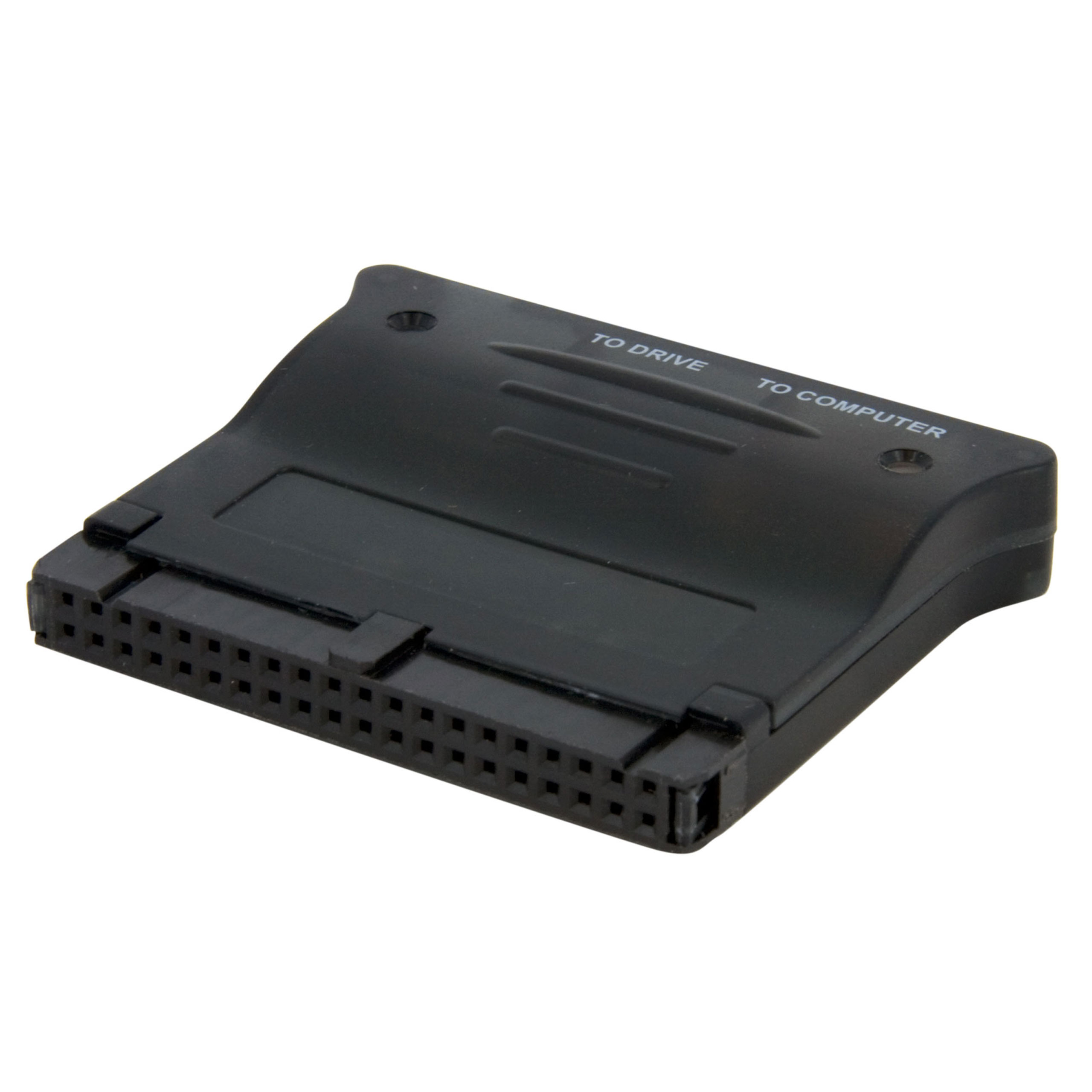

IDE to SATA Converter Adapter - two way
Bi-directional adapter converts IDE to SATA or SATA to IDE
Main Image
Product Images
Product Images
BOM Image
Product Name IDE to SATA Converter Adapter - two way Product Number PATA2SATA3 UPC 065030836982 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Adapter Enclosures/Converters Family SATA IDE Adapter Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Short) Bi-Directional SATA IDE Adapter Product Title (Medium) x Product Title (Standard) Bi-Directional SATA IDE Adapter Converter Product Title (Long) Bi-Directional SATA IDE Adapter Converter Product Title (AMZ) SATA IDE Adapter - SATA IDE Adapter - Bi-Directional - IDE to SATA Adapter (PATA2SATA3) Title Ingram (Part 1) Bi-Directional SATA IDE Adapter Title Ingram (Part 2) Converter Website Product Headline Bi-directional adapter converts IDE to SATA or SATA to IDE Bullet 1 BI-DIRECTIONAL SUPPORT: This SATA IDE adapter enables bi-directional connectivity between a SATA drive to a legacy IDE port, or an IDE drive to a SATA motherboard port Bullet 2 ADD SATA CONNECTIVITY: This IDE SATA converter is a cost-effective solution for connecting SATA hard drives or optical drives to legacy IDE systems, with no additional controller cards required Bullet 3 WIDE COMPATIBILITY: Compliant with SATA version 1.0a (1.5 Gbps) and supports SATA I/II/III revisions; Compatible with PATA (IDE) 100/133 MBps and SATA/IDE ATAPI devices, such as CD/DVD optical drives; Supports any operating system; Power and Activity LEDs Bullet 4 CONVENIENT SETUP: This SATA IDE adapter connects internally between your motherboard and SATA / IDE drive, and includes one SATA cable and one SP4 to Dual LP4 Y power adapter; No additional software or drivers required Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this IDE SATA adapter is backed for 2 years, including free lifetime 24/5 multi-lingual assistance Bullets (Consolidated) Bi-directional adapter converts IDE to SATA or SATA to IDE - Bi-Directional SATA IDE Adapter Converter - Compatible with PATA (IDE) 100/133 MBps hard devices - SATA IDE Adapter Converter C Hard Drive Adapter Marketing Copy Applications - Connect newer SATA drives to an older motherboard with only IDE support
- Connect an old IDE drive to a new SATA only motherboard to recover the data
- Technicians who regularly need to work with both types of drives across different types of systems
Website Search Keyword - IDE SATA
- SATA IDE
- bidirectional
- bi-directional
- bi directional
- SATA to IDE Converter
- IDE to SATA Converter
- Interface converter
- Parallel ATA converter
- Serial ATA converter
- PATA2SATA
- P936-000
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Accessory Products - SATA18
- SATA18POW
- SATA18RA1
- SATA24
- SATA24BLEL
- SATA24BLUV
- SATA24GNEL
- SATA24GNUV
- SATA24RA1
- SATA24RDEL
- SATA24RDUV
- SATA36
- SATA36RA1
- SATAPLATE1
- SATAPOWADAP
- SATARA24
- SATARA36
Related Products - IDE2SAT25
- OPT2SATA
- SATA2ATA133
- IDE2SAT
- PATA2SATA
- PATA2SATA2
Input Voltage 5V DC / 12V DC Output Voltage (V) 5 DC Color Black Humidity 90% RH Material Plastic Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Plastic Product Length (mm) 61 Product Width (mm) 50 Product Height (mm) 11 Product Weight (g) 20 Storage Temperature -40°C to 150°C (-40°F to 302°F) TAA Compliant No OS Compatibility OS Independent RAID No SATA Type and Rate SATA I (1.5 Gbps) Chipset ID SunplusIT - SPIF223A Compatible Drive Types SATA & IDE LED Indicators - 1 - Power - Red
- 1 - HDD Activity - Green

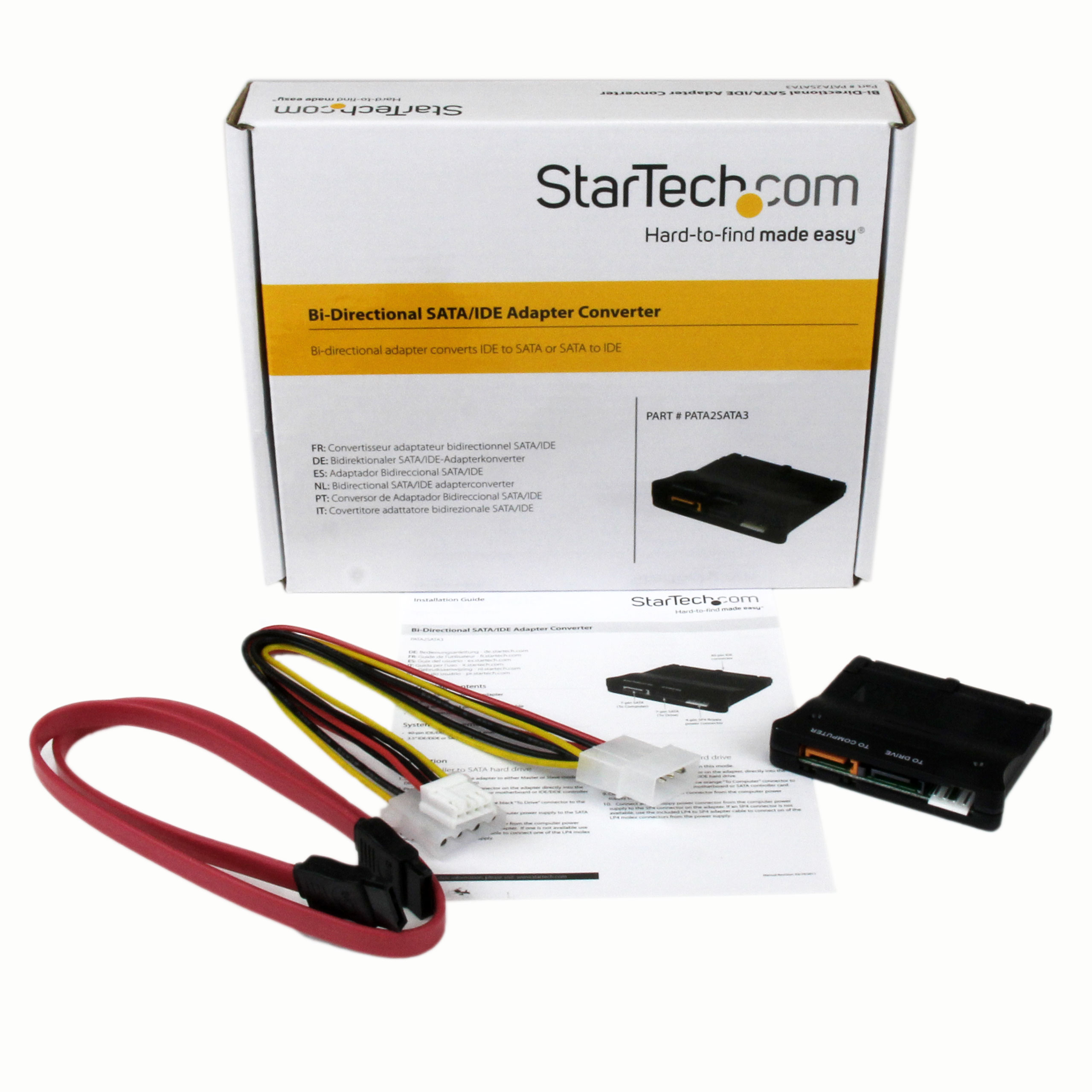

Number of Drives 1 Carton Depth (mm) 268 Carton Height (mm) 370 Carton Quantity 50 Carton Weight Gross (g) 5728 Included in Package - 1 - Bi-Directional SATA IDE Converter
- 1 - SP4 to Dual LP4 Y Power Adapter
- 1 - SATA Cable
- 1 - Instruction Manual
Included In Package for Label - 1 - Instruction Manual
- 1 - SATA Cable
- 1 - Bi-Directional SATA Ide Converter
- 1 - Sp4 To Dual LP4 Y DC Converter
Package Depth (mm) 143 Package Height (mm) 33 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 102 Packaging Description Bi-Directional SATA/IDE Adapter Converter Packaging Description India Bi-Directional SATA/IDE Converter Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 2 Connector 2 IDE / PATA (ATA/133) Connector 2 (Quantity) 1 Connector 3 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
