PAX2235-WIFI-6E-CARD
Wi Fi 6e Tri Band and Bluetooth 5 3 PCIe Card 5374 Mbps

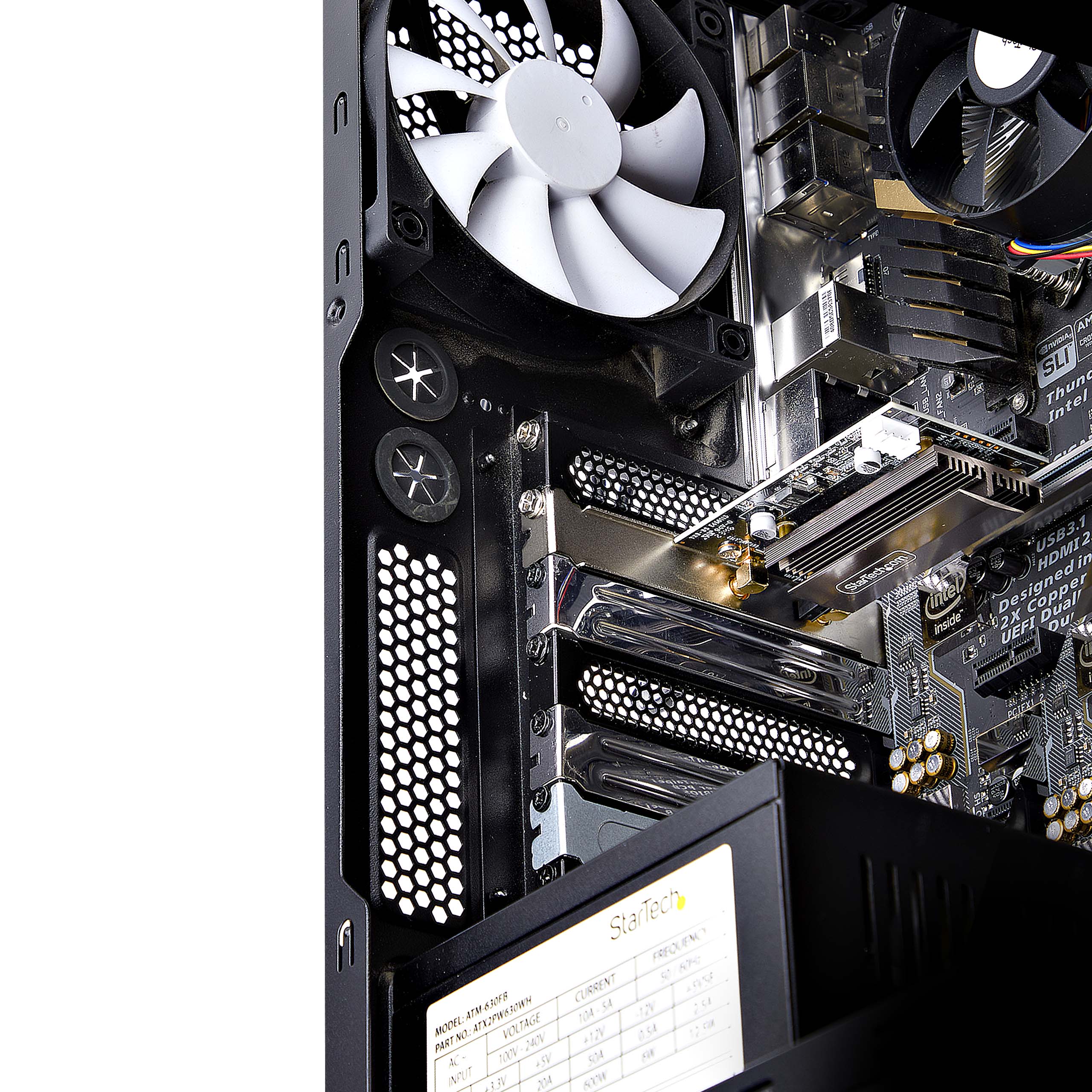

Add 802.11ax Wi-Fi connectivity to a computer or server through a PCI Express slot - with tri-band 6/5/2.4GHz frequencies
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name Wi Fi 6e Tri Band and Bluetooth 5 3 PCIe Card 5374 Mbps Product Number PAX2235-WIFI-6E-CARD UPC 065030902595 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Wireless Cards Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX089X Product Title (Ultra-Short) WiFi 6E PCIe Card Product Title (Short) Wi-Fi 6E PCIe Network Card, 802.11ax Product Title (Medium) Wi-Fi 6E PCIe Network Card, Tri-Band 802.11ax, AX5400 WiFi NIC, Windows/Linux Product Title (Standard) Wi-Fi 6E PCIe Network Card, Bluetooth 5.3, Magnetic Antenna Base, Tri-Band 802.11ax, AX5400 WiFi NIC, Windows/Linux Product Title (Long) Wi-Fi 6E PCIe Network Card with Bluetooth 5.3, Magnetic Antenna Base with 3.6ft Cables, Tri-Band 802.11ax, AX5400 WiFi NIC, Windows/Linux - PCI Express Wi-Fi Card for PC Product Title (AMZ) Wi-Fi 6E PCIe Network Card, Bluetooth 5.3, Magnetic Antenna Base, Tri-Band 802.11ax, AX5400 NIC, Windows/Linux Title Ingram (Part 1) WiFi 6E PCIe Network Card - Title Ingram (Part 2) Tri-Band Wireless Ethernet Adapter Website Product Headline Add 802.11ax Wi-Fi connectivity to a computer or server through a PCI Express slot - with tri-band 6/5/2.4GHz frequencies Bullet 1 WIFI 6E NETWORK CARD: Add Wi-Fi 6E capability to a desktop, enabling high-speed low-latency wireless communication with reduced interference and less congestion in the 6GHz band (up to 2400Mbps) Bullet 2 COMPATIBILITY: PCIe 3.0 Wi-Fi Card is backwards compatible with 802.11a/b/g/n/ac standards on 5Ghz (2402Mbps) and 2.4Ghz (574Mbps) bands; Low-profile bracket included for small form-factor systems; NOTE: Windows 10 does not support the 6Ghz band Bullet 3 ANTENNA BASE: Included freestanding magnetic base with 3.6ft attached cable enables flexible placement of the antennas, allowing for optimal signal reception and reduced interference; Features a rubber base for grip when used on non-metallic surfaces Bullet 4 BLUETOOTH 5.3: Enables fast data transfer (2Mbps) with extended range, improved connection stability, and lower power consumption; Included USB header cable must connect to an available 9-Pin USB 2.0 header on the motherboard for Bluetooth functionality Bullet 5 SECURE & RELIABLE: OFDMA and MU-MIMO boost network performance by reducing latency and enhancing data transfer efficiency; WPA3/WPA2 enhance the security of personal password protection; Metal heatsink aids heat dissipation for optimal performance Bullets (Compact) Add Wi-Fi 6E to a desktop for high-speed low-latency wireless with reduced interference in the 6GHz band (2400Mbps); 802.11a/b/g/n/ac/ax compatible on 2.4/5/6Ghz bands; Includes magnetic antenna base; USB header cable for Bluetooth 5.3; Windows/Linux Bullets (Consolidated) - Add Wi-Fi 6E to a desktop enabling high-speed low-latency wireless with reduced interference and less congestion in the 6GHz band (2402Mbps) - Compatible with 802.11a/b/g/n/ac/ax on 6Ghz/5Ghz/2.4Ghz bands; Supports WPA3/WPA2 - Included magnetic antenna base with 3.6ft attached cable; Rubber base for use on smooth non-metallic surfaces - Connect the included USB header cable for Bluetooth 5.3 - Windows/Linux Compatible; Windows 10 does not support 6Ghz; Low-profile bracket incl. Marketing Copy Marketing Copy (No HTML) Applications - Add, replace, or upgrade the wireless capabilities of a desktop system to the latest standard
- Connect to the less congested 6GHz WiFi band to avoid interference from common wireless devices
- Video conference, transfer files, or stream videos without lag through faster wireless performance
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- FCC - IR - Wireless - Canada / United States - DO NOT USE - FCC & ISED RF Channel and Frequency Statement 5GHz
- FCC - IR - Wireless - United States - FCC Part 15, Subpart C
- FCC - IR - Wireless - United States - FCC Part 15, Subpart D
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes Windows 10 does not support the 6Ghz wireless band Accessory Products - RPSMA10MF
- 2TBT3-PCIE-ENCLOSURE
- TB31PCIEX16
Related Products - PEX867WAC22
- PEX433WAC11
- USB867WAC22
Power Source Bus Powered Cable Length (mm) 1097 Color Black Humidity 10% ~ 90% RH (non-condensing) Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 120.000 Product Width (mm) 62.000 Product Height (mm) 18.000 Product Weight (g) 200.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No ESD Protection - +/-8kV (Contact)
- +/-15kV (Air)
Frequency 2.4~6Ghz Full Duplex Support Yes Maximum Data Transfer Rate MTBF (hours) 50,000 Hours OS Compatibility - Windows 10
- Windows 11
- Linux
Promiscuous Mode Yes Security Features - WPA3 personal and enterprise including WPA2 transition mode
- AES

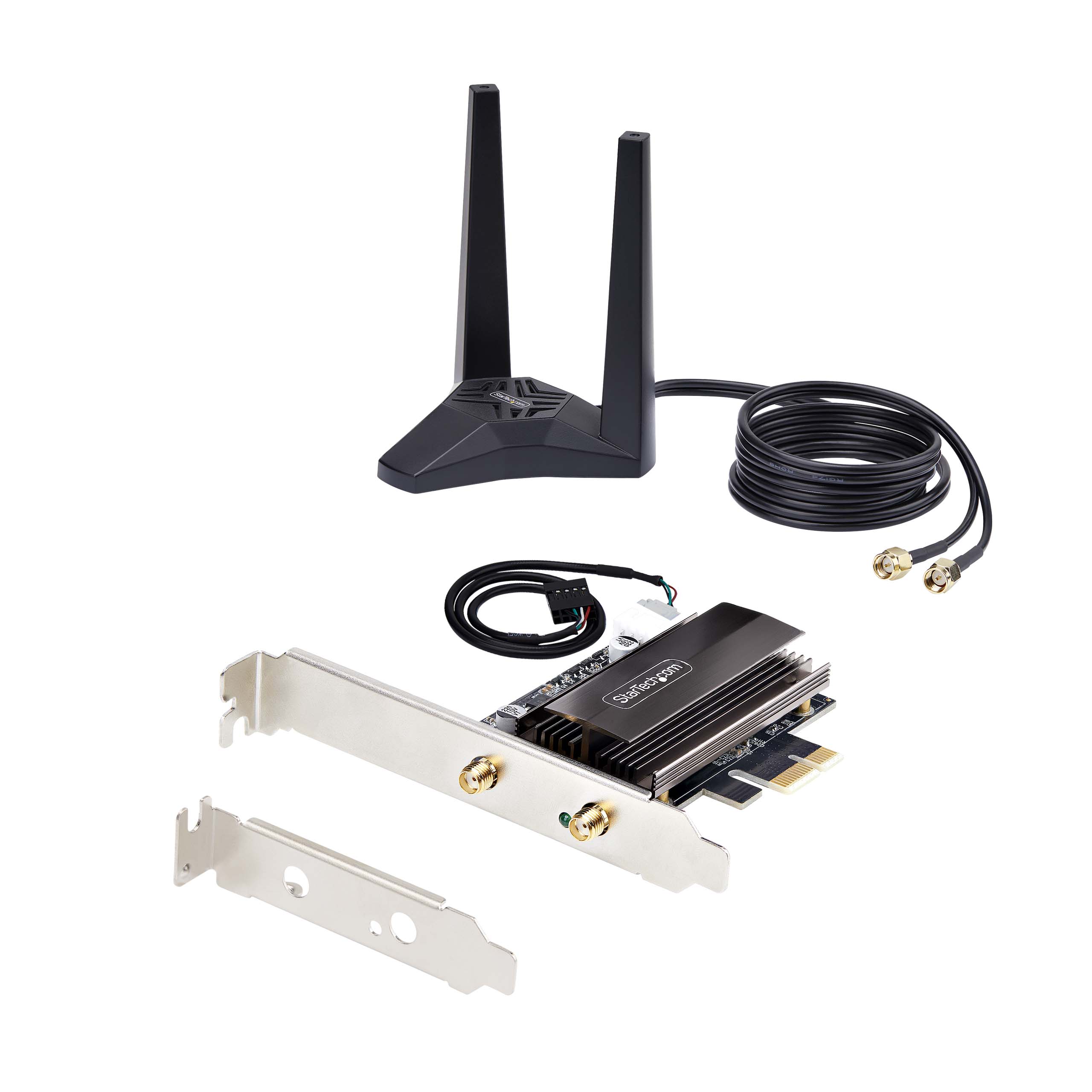

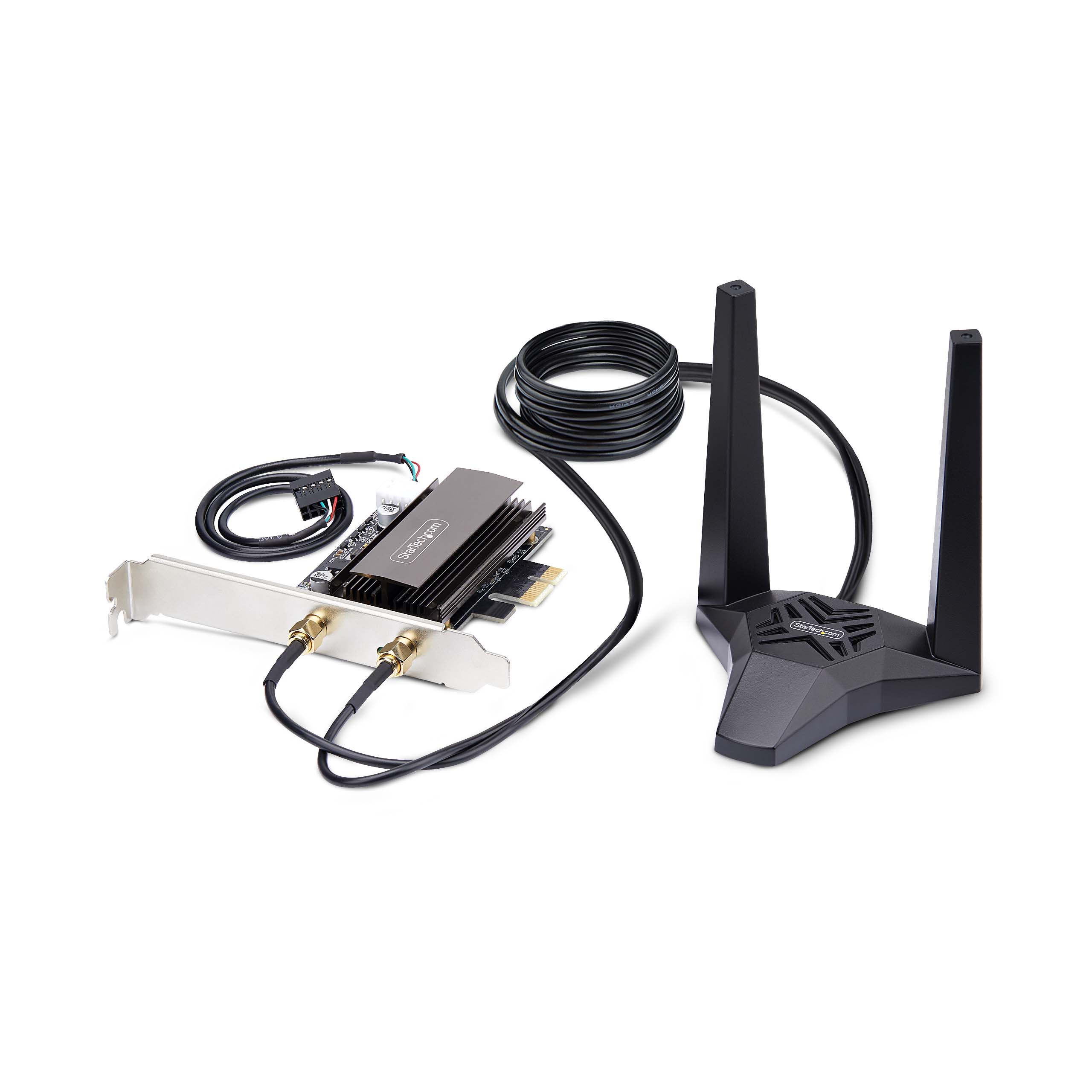

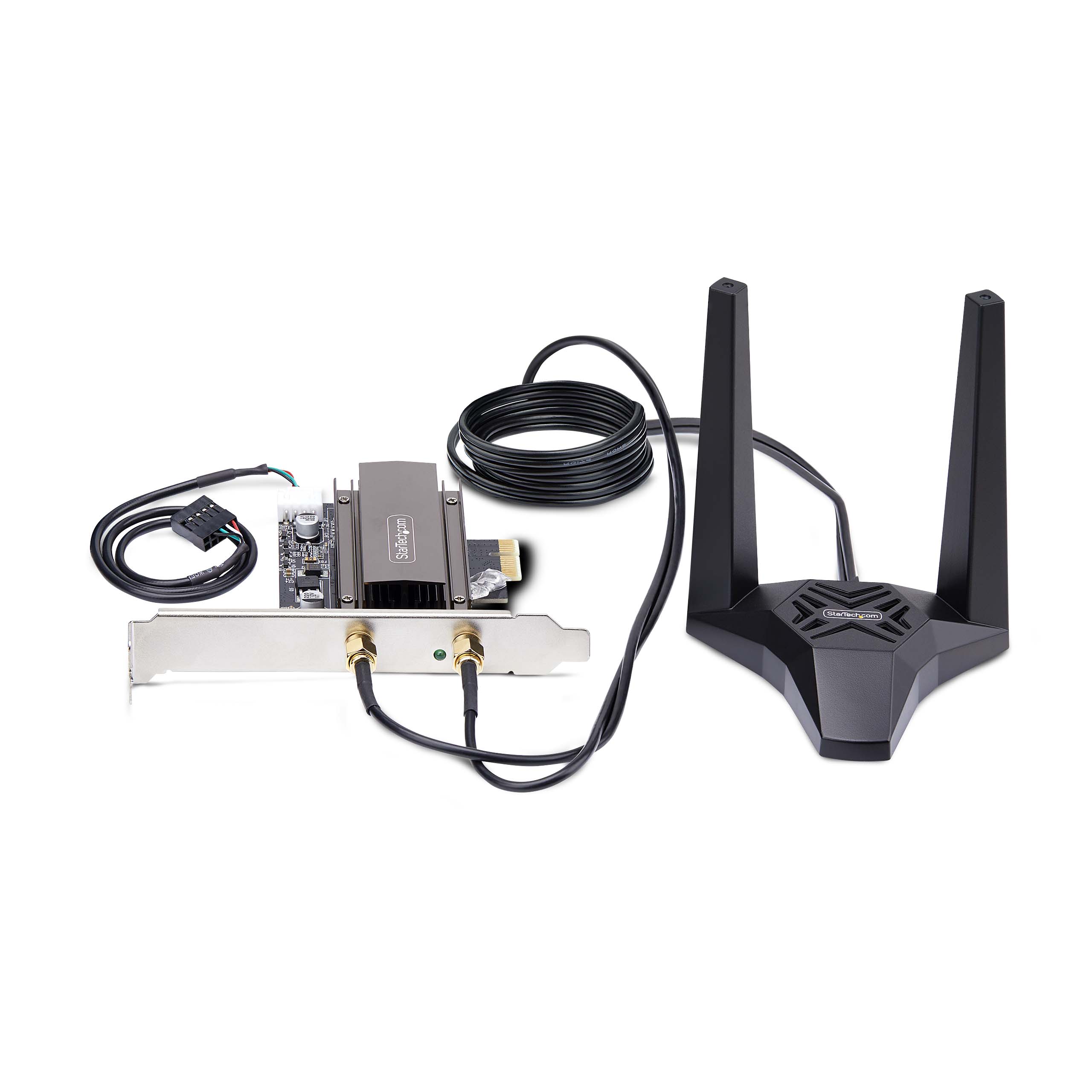

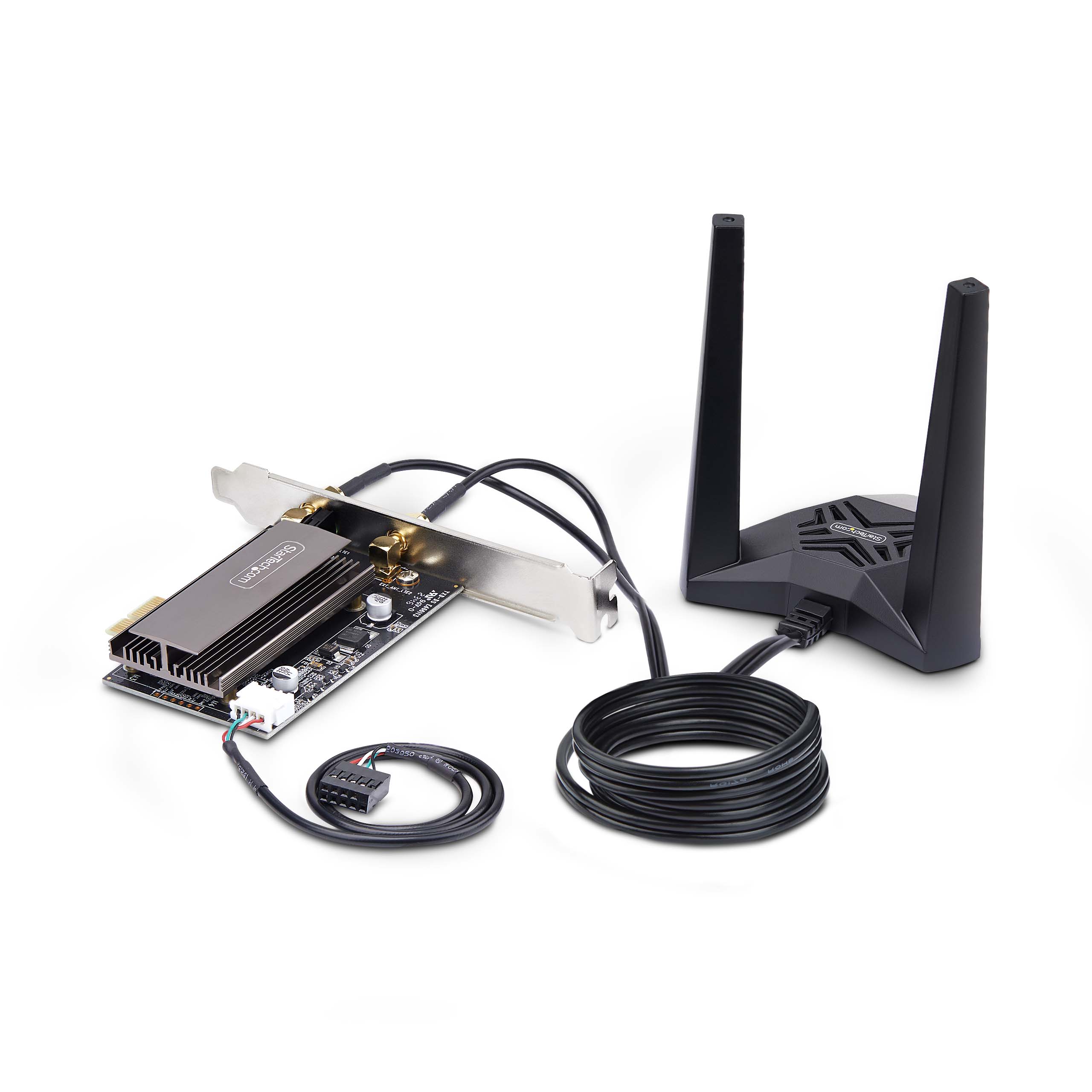

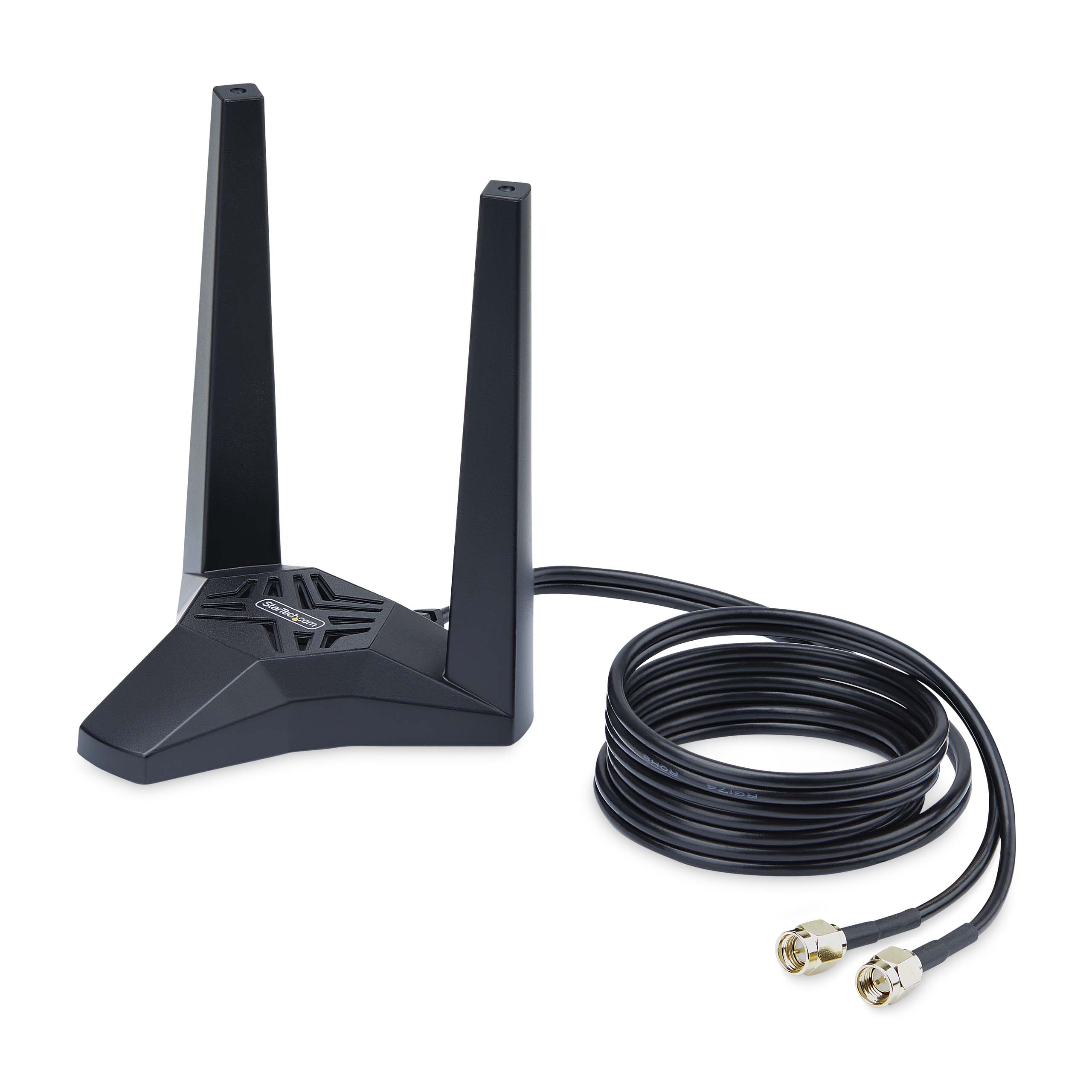

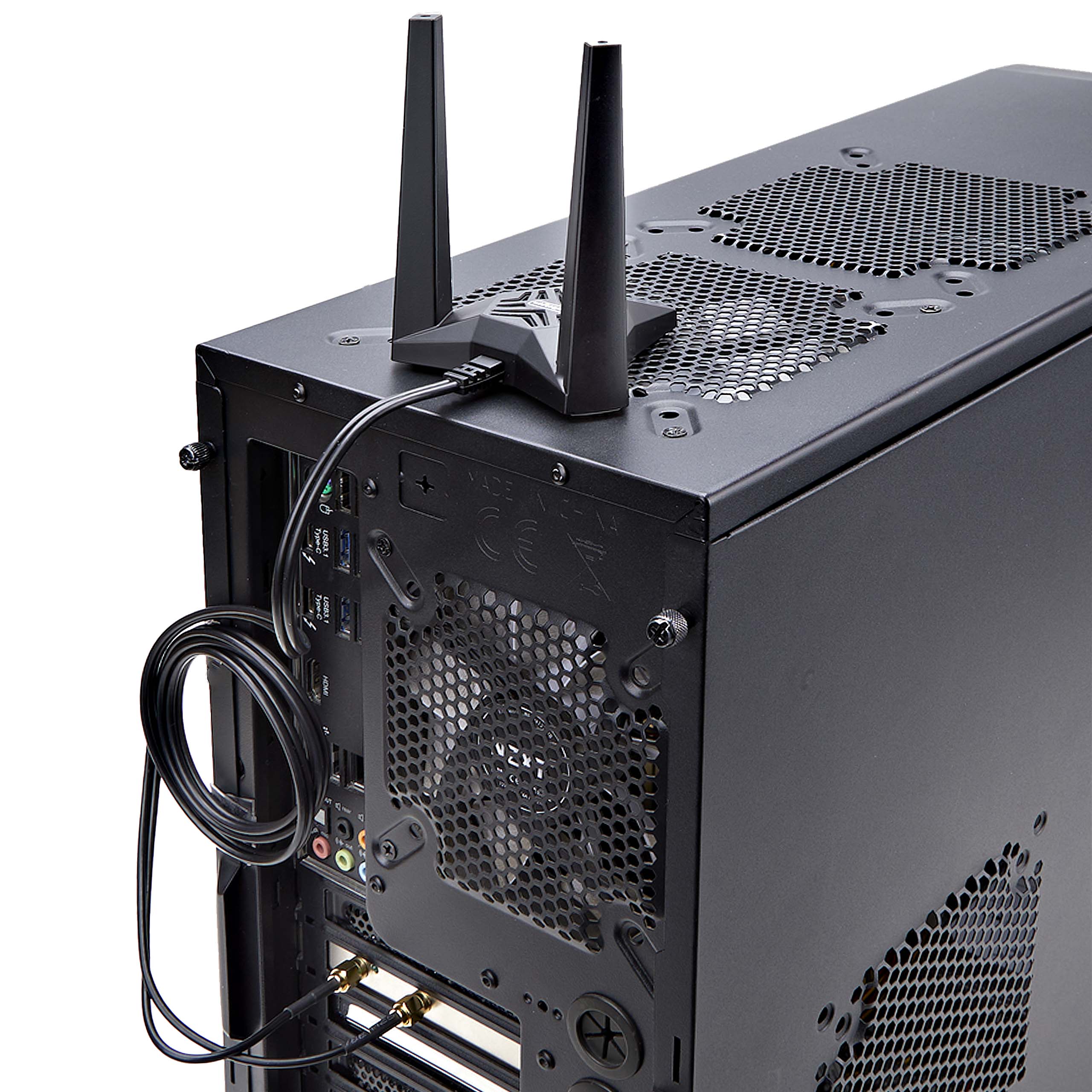

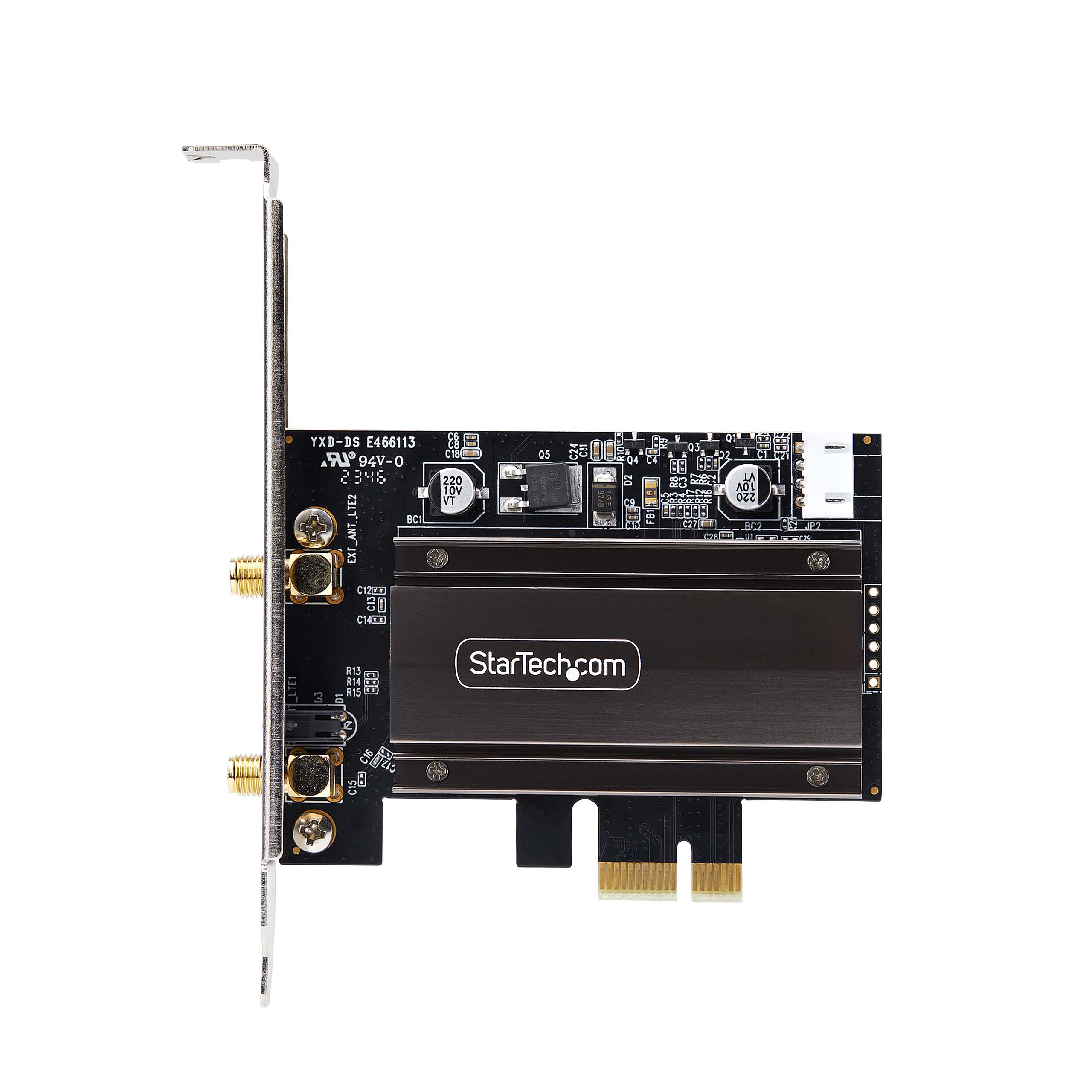

Supported Protocols Antenna Configuration External Magnetic Base w/2x 5dBi Wi-Fi 6E Tri-Band Antennas Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Intel - AX210 Industry Standards Interface/Bridge Wireless Ethernet LED Indicators Carton Depth (mm) 573 Carton Height (mm) 307 Carton Quantity 30 Carton Weight Gross (g) 11582 Included in Package - 1 - PCIe Wi-Fi Card
- 1 - Magnetic Antenna Stand
- 1 - Bluetooth Cable
- 1 - Low-Profile Bracket with 2 x Screws
- 1 - Quick-Start Guide
Package Depth (mm) 152 Package Height (mm) 112 Package Width (mm) 141 Package Weight (g) 358 Packaging Description PCIe Wi-Fi 6/6E Network Adapter Card - 802.11ax Packaging Description India PCIe Wi-Fi 6/6E Network Adapter Card - 802.11ax Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RP-SMA (50 Ohm) Connector 1 (Quantity) 2 Connector 2 IDC (4-Pin) Connector 2 (Quantity) 1 Host Connector 1 PCI Express x1 Host Connector 1 (Quantity) 1 A+ Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2023-08-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment WiFi 5 802.11 AC1200 card Comparable SKU 2 Comment WiFi 5 802.11 AC600 card, T12 sales $120K, YTD Growth -12.9% (Nov 2022) Digital Content Due Date 2023-12-22 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) US Primary Technology - Bluetooth
- Wireless Ax / WiFi 6
Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2023-08-18 Target Production Release 2023-09-30 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle None Video Not Required
