PCI100MMSC

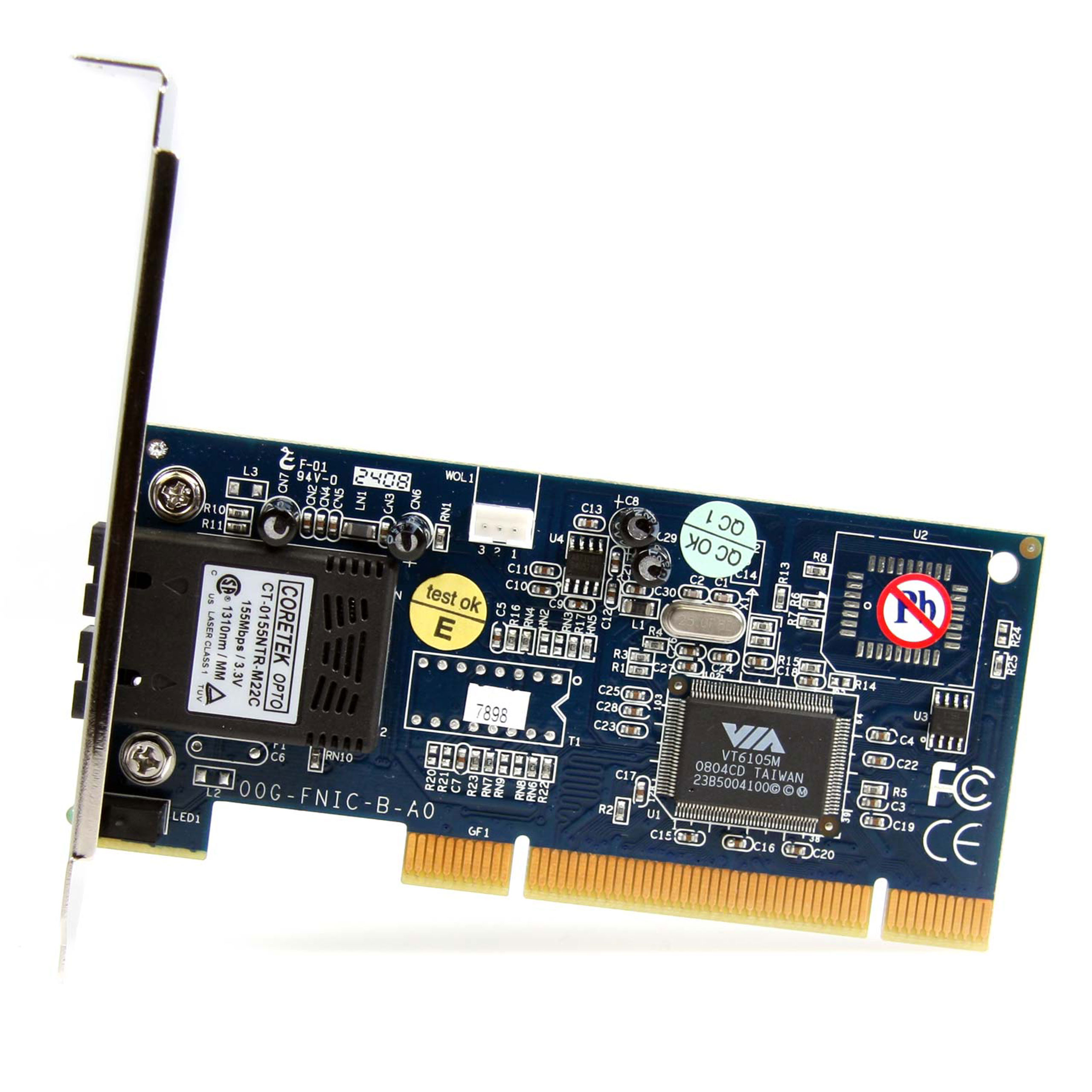

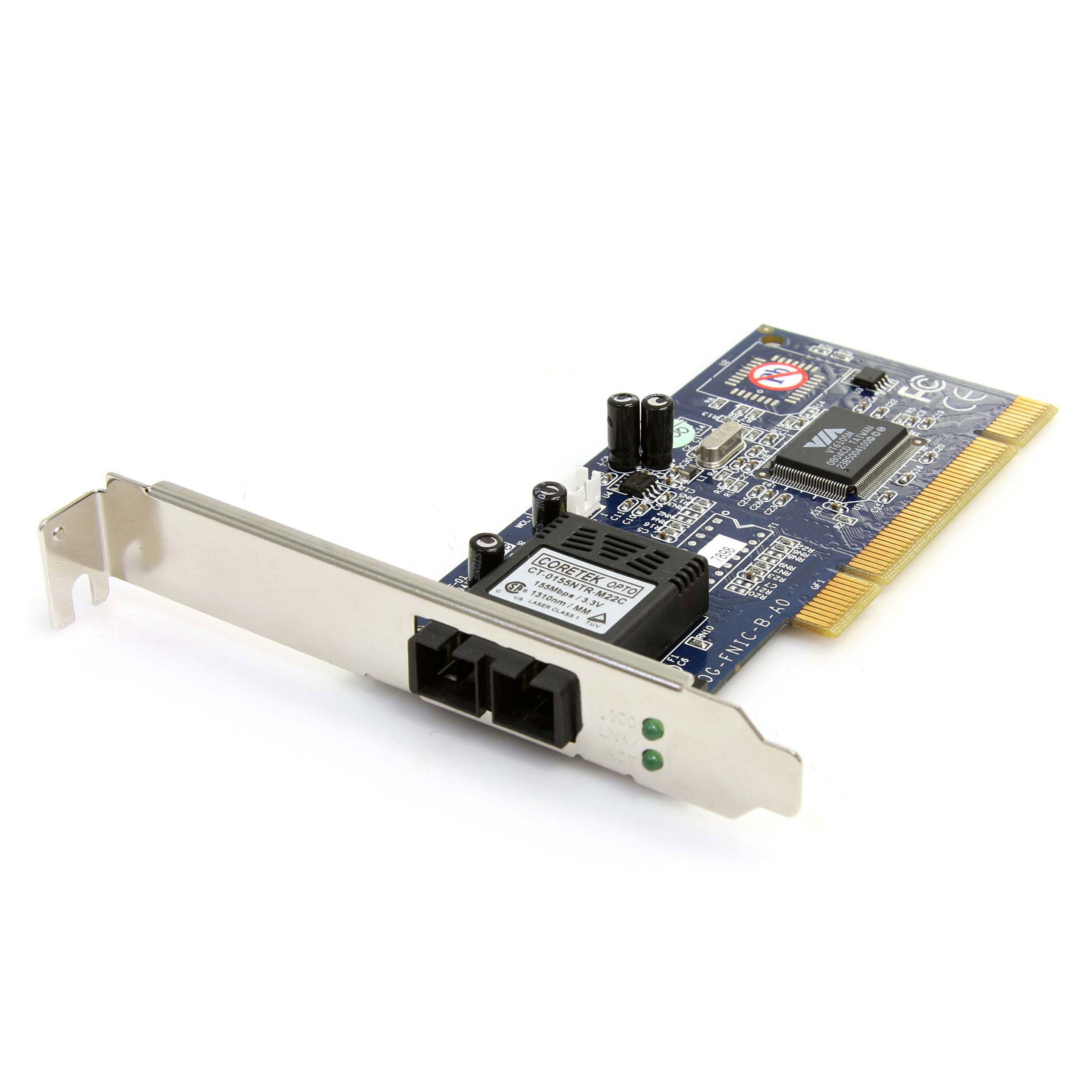

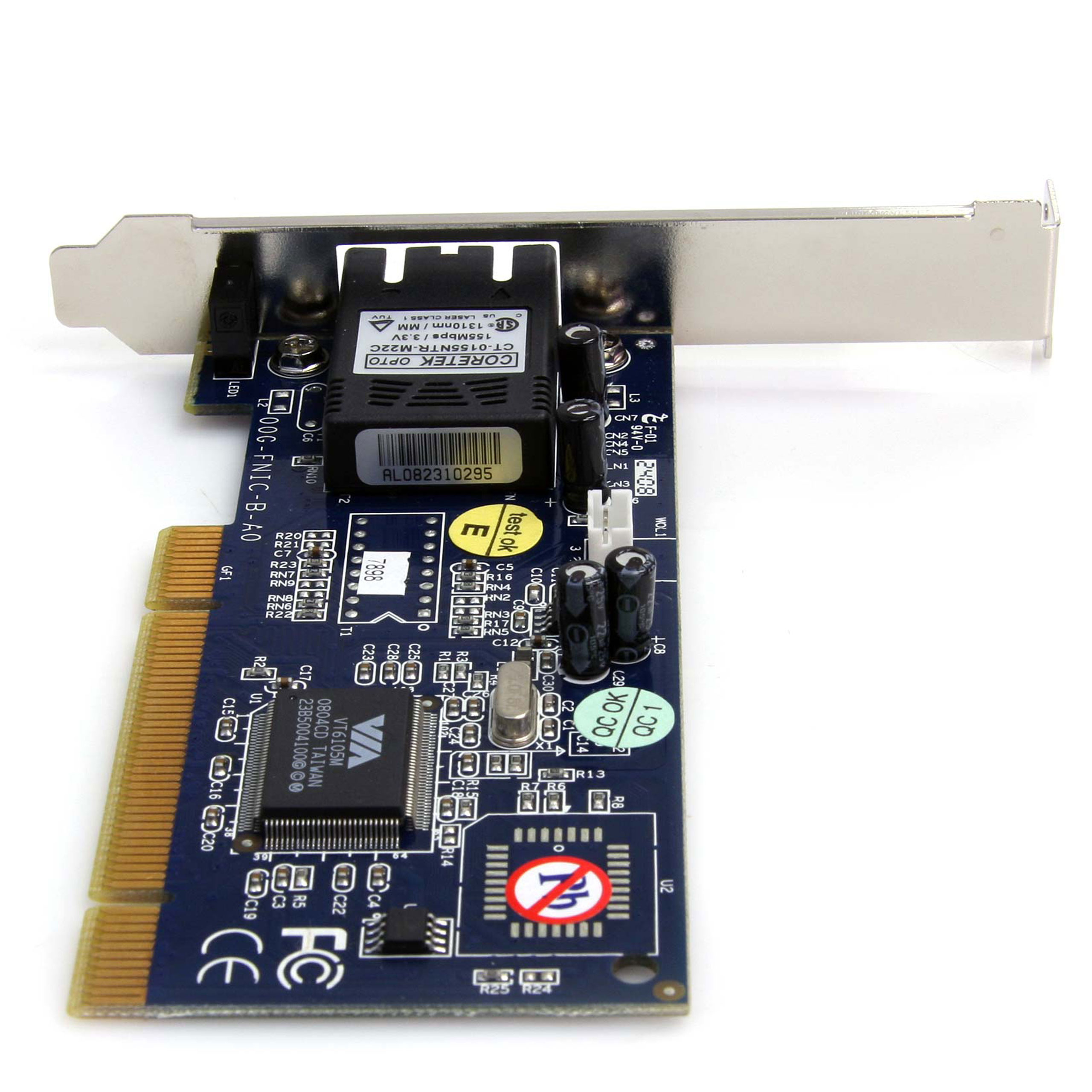

Fiber MM SC PCI Ethernet Network Adapter Card
Connect a PC directly to a multimode SC fiber network through an available PCI slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Fiber MM SC PCI Ethernet Network Adapter Card Product Number PCI100MMSC UPC 065030839969 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Fiber Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX026X Product Title (Short) 100Mbps MM SC Fiber PCI NIC Card 2km Product Title (Standard) 100 Mbps Full/Low Profile MM SC Fiber PCI NIC Card Product Title (Long) 100Mbps Full/Low Profile Ethernet Multi Mode SC Fiber PCI NIC Card 2km Product Title (AMZ) 100Mbps Full/Low Profile Ethernet Multi Mode SC Fiber PCI NIC Card 2km (PCI100MMSC) Title Ingram (Part 1) 100Mbps Full/Low Profile Etherne Title Ingram (Part 2) t MM SC Fiber PCI NIC Card Website Product Headline Connect a PC directly to a multimode SC fiber network through an available PCI slot Bullet 1 Advanced Configuration Power Management Interface (ACPI) 1.0 Bullet 2 Connection diagnostic utilities Bullet 3 Compliant with PCI rev. 2.1 standards Bullet 4 Supports PC99, PC2001, and NET PC requirements Bullet 5 Supports PCI Bus Power Managements Interface Ver. 1.0/1.1 and Network Device Class Power Managements Ver. 1.0a Bullets (Consolidated) Network adapter - PCI-X low profile - 10/100 Ethernet x 2 Marketing Copy Applications - Add a 10/100 Mbps SC Fiber connection to a PCI compatible PC
- Add network connectivity to a PC up to 2km Away
- Create a secure connection between the PC and a fiber switch
- Perfect for remote embedded industrial monitoring systems, and high speed video surveillance
Website Search Keyword - 100 base
- Fiber Converter
- 10/100
- fiber adapter
- Multi mode fiber
- Fiber Transceiver
- Optical network
- low EMI network
- fiber card
- SC NIC
- fiber NIC
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - FIBSCSC10
- FIBSCSC15
- FIBSCSC5
Related Products - PEX1000MMSC
- ST1000BT32
- ST1000SPEX
- ST1000SPEXDP
- ST100S
- ST100SLP
- ST1000SPEX4
- PCI100MMST
Power Consumption (In Watts) 1W Humidity 5~95% RH Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 121 Product Width (mm) 56 Product Height (mm) 18 Product Weight (g) 80 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Buffer Size 2 KB Compatible Networks 100 Mbps Full Duplex Support Yes OS Compatibility - Linux
- Windows 7
- Windows Server 2012
- Windows 8
- Windows 10
- Windows 11

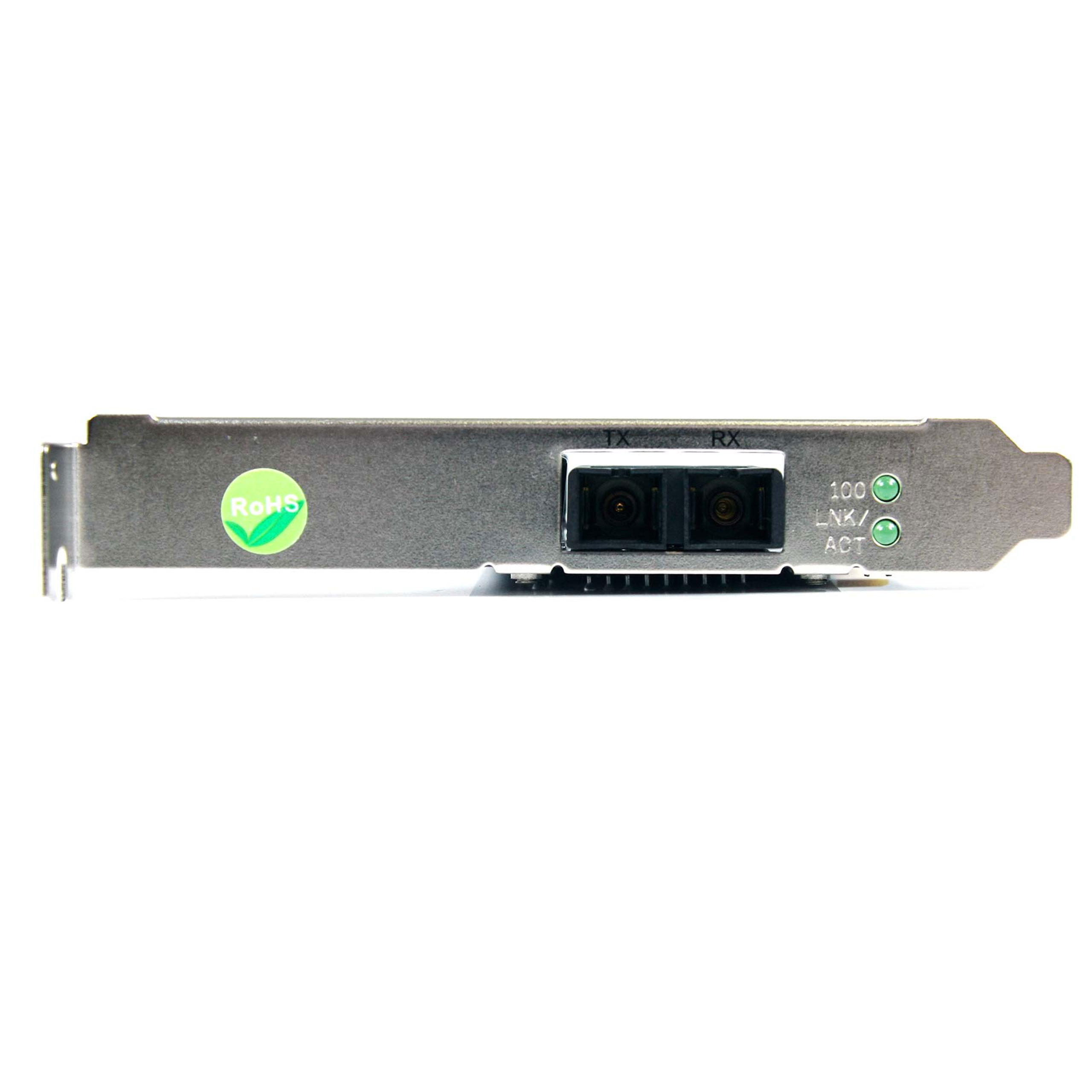

Wake-On-LAN (WOL) Yes Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID VIA/VLI - VT6105M Industry Standards IEEE802.3u, 100Base-FX, IEEE802.3x, IEEE802.1Q, IEEE802.1p Interface/Bridge Fiber Ethernet LED Indicators - 1 - Green - Link
- 1 - Green - Activity

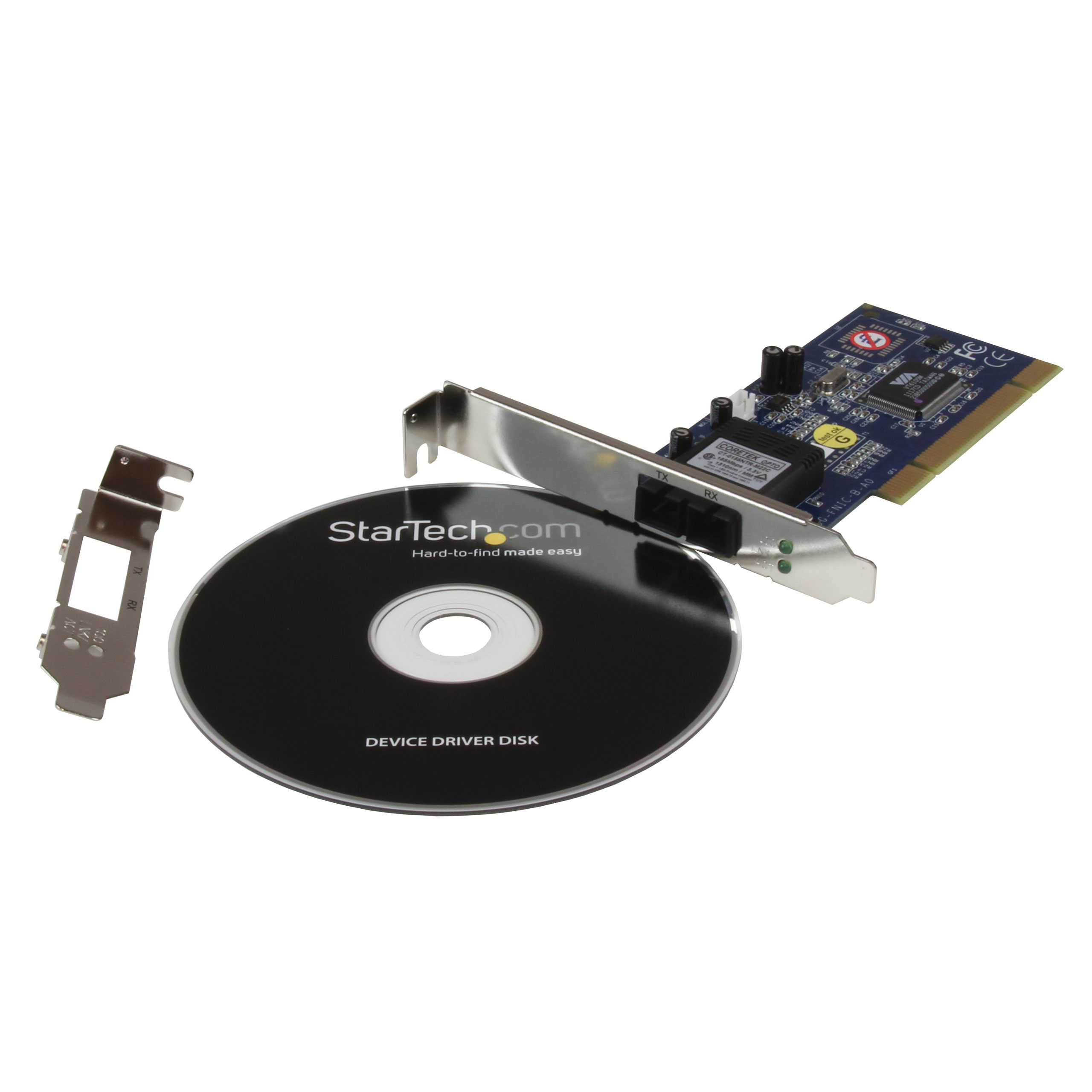

Carton Depth (mm) 590 Carton Height (mm) 360 Carton Quantity 50 Carton Weight Gross (g) 11200 Included in Package - 1 - Driver CD
- 1 - Instruction Manual
- 1 - PCI to SC 10/100 Fiber NIC
- 1 - Low profile bracket
Package Depth (mm) 50 Package Height (mm) 175 Package Width (mm) 213 Package Quantity 1 Package Weight (g) 200 Packaging Description 100Mbps PCI MM SC Fiber Network Card 2km Packaging Description India 100Mbps PCI MM SC Fiber Network Card 2km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 SC Duplex Fiber Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
