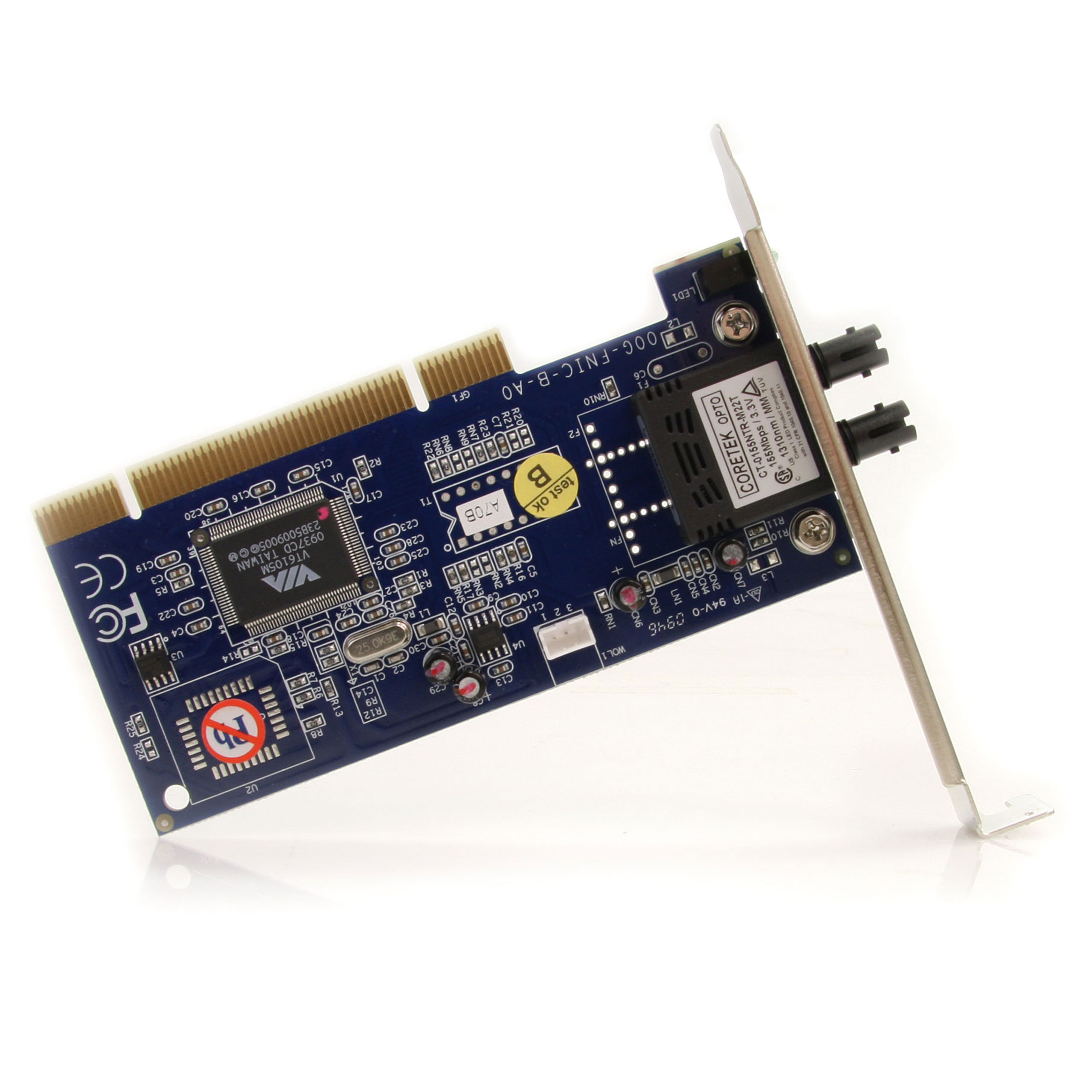

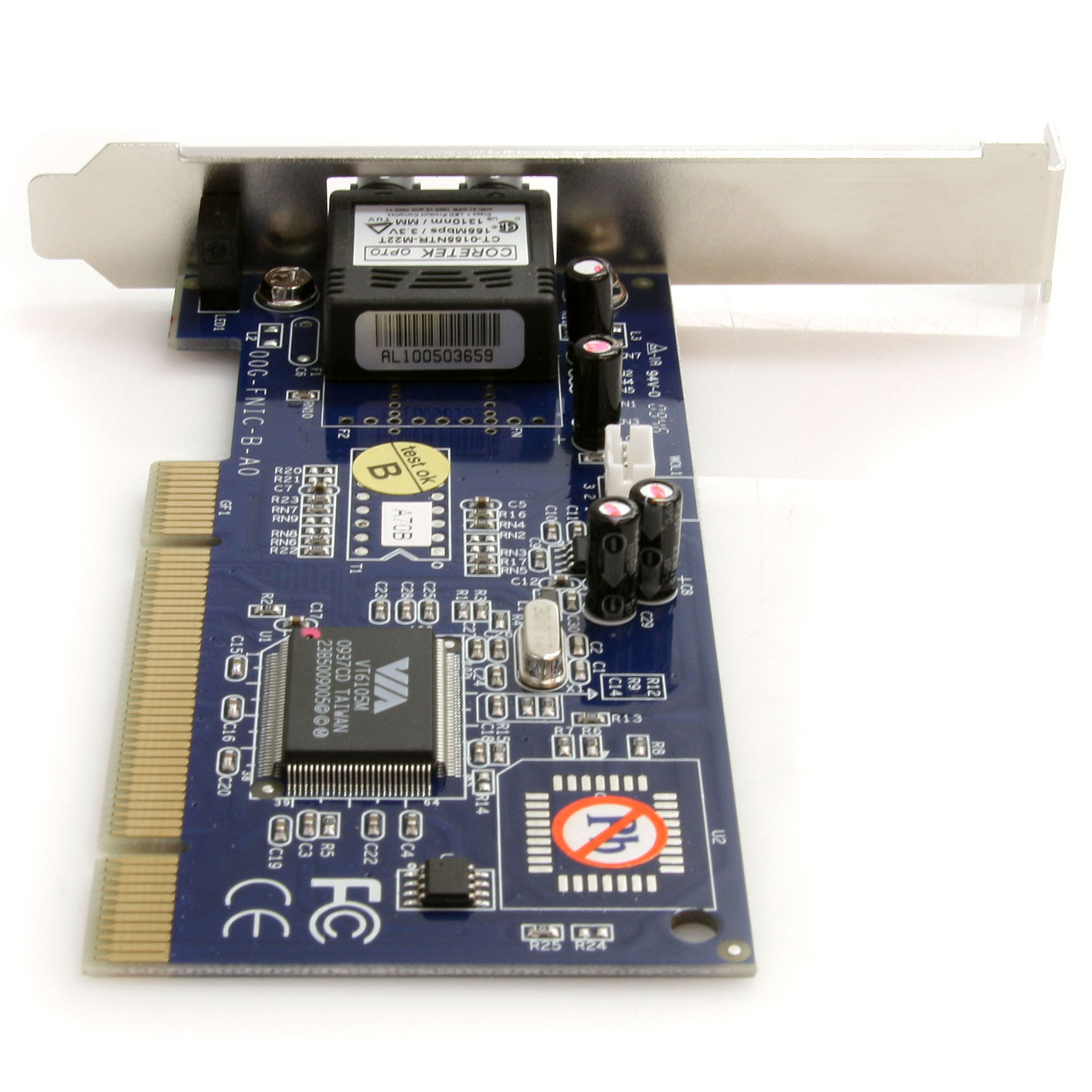

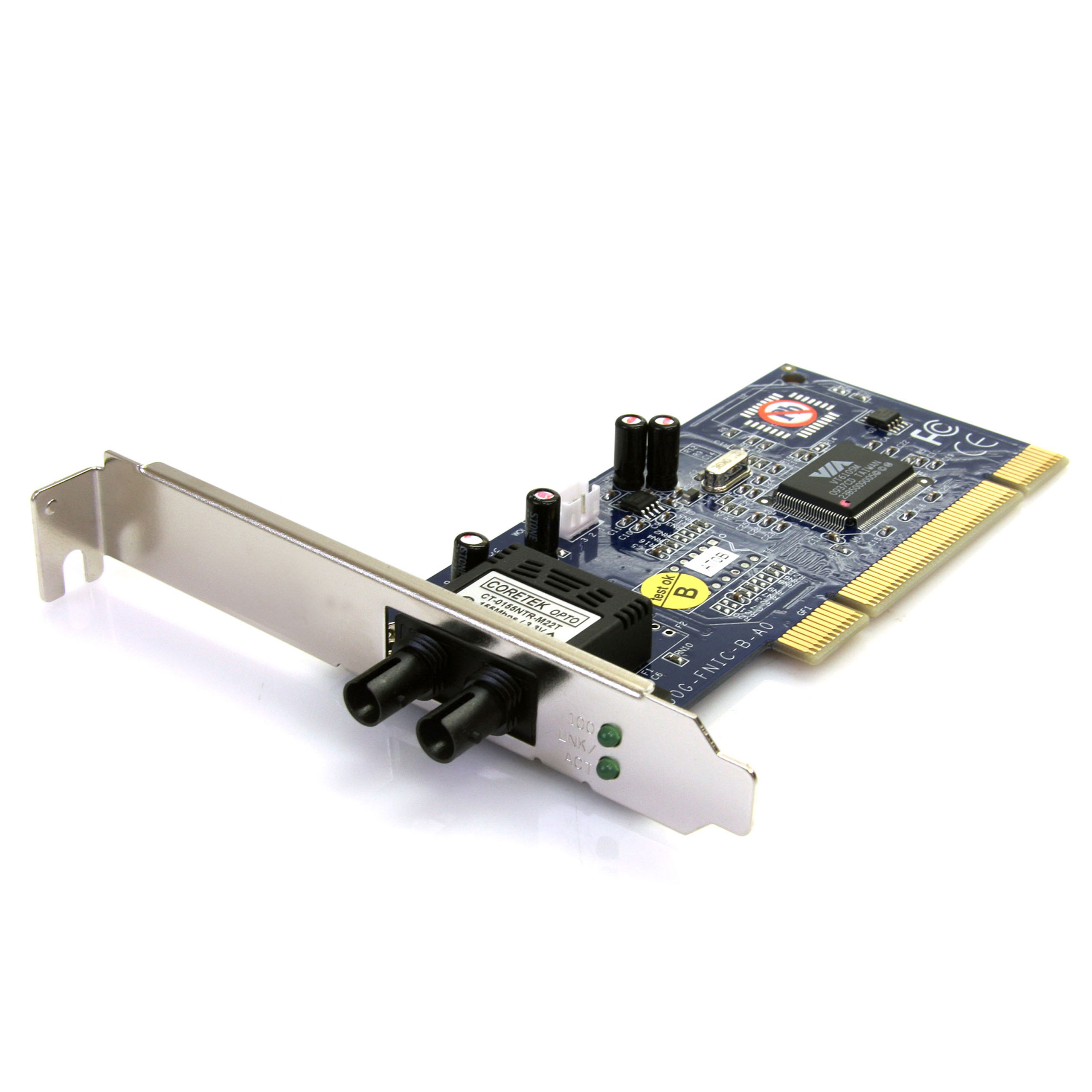

PCI100MMST
100 Mbps Ethernet MM ST Fiber Optic PCI Card
Connect a PC directly to a multimode ST fiber network through an available PCI slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 100 Mbps Ethernet MM ST Fiber Optic PCI Card Product Number PCI100MMST UPC 065030840712 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Fiber Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX026X Product Title (Short) PCI ST Fiber NIC Network Adapter Card Product Title (Standard) 100Mbps PCI Multi Mode ST Fiber Ethernet NIC Network Adapter Card Product Title (Long) 100Mbps PCI Multi Mode ST Fiber Ethernet NIC Network Adapter 2km Product Title (AMZ) 100Mbps PCI Multi Mode ST Fiber Ethernet NIC Network Adapter 2km (PCI100MMST) Title Ingram (Part 1) 100Mbps PCI MM ST Fiber Ethernet Title Ingram (Part 2) NIC Network Adapter Card Website Product Headline Connect a PC directly to a multimode ST fiber network through an available PCI slot Bullet 1 Advanced Configuration Power Management Interface (ACPI) 1.0 Bullet 2 Compliant with PCI rev. 2.1 standards Bullet 3 Connection diagnostic utilities Bullet 4 Maximum fiber distance up to 2km Bullet 5 Optical Wavelength of 1310nm Bullets (Consolidated) Network adapter - PCI-X low profile - 10/100 Ethernet Marketing Copy Applications - Add a 10/100 Mbps ST Fiber connection to a PCI compatible PC
- Add network connectivity to a PC up to 2km Away
- Create a secure connection between the PC and a fiber switch
- Perfect for remote embedded industrial monitoring systems, and high speed video surveillance
Website Search Keyword - 10/100
- 100 base
- fiber adapter
- fiber card
- Fiber Converter
- fiber NIC
- Fiber Transceiver
- low EMI network
- Multi mode fiber
- Optical network
- ST NIC
- PCI fiber
- fiber desk
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - FIBSCSC10
- FIBSCSC15
- FIBSCSC5
Related Products - PEX1000MMSC
- ST1000BT32
- ST1000SPEX
- ST1000SPEX4
- ST1000SPEXDP
- ST100S
- ST100SLP
- PCI100MMSC
Power Consumption (In Watts) 1W Humidity 5~95% RH Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 121 Product Width (mm) 56 Product Height (mm) 18 Product Weight (g) 80 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Buffer Size 2 KB Compatible Networks 100 Mbps Full Duplex Support Yes OS Compatibility - Linux
- Windows 7
- Windows Server 2012
- Windows 8

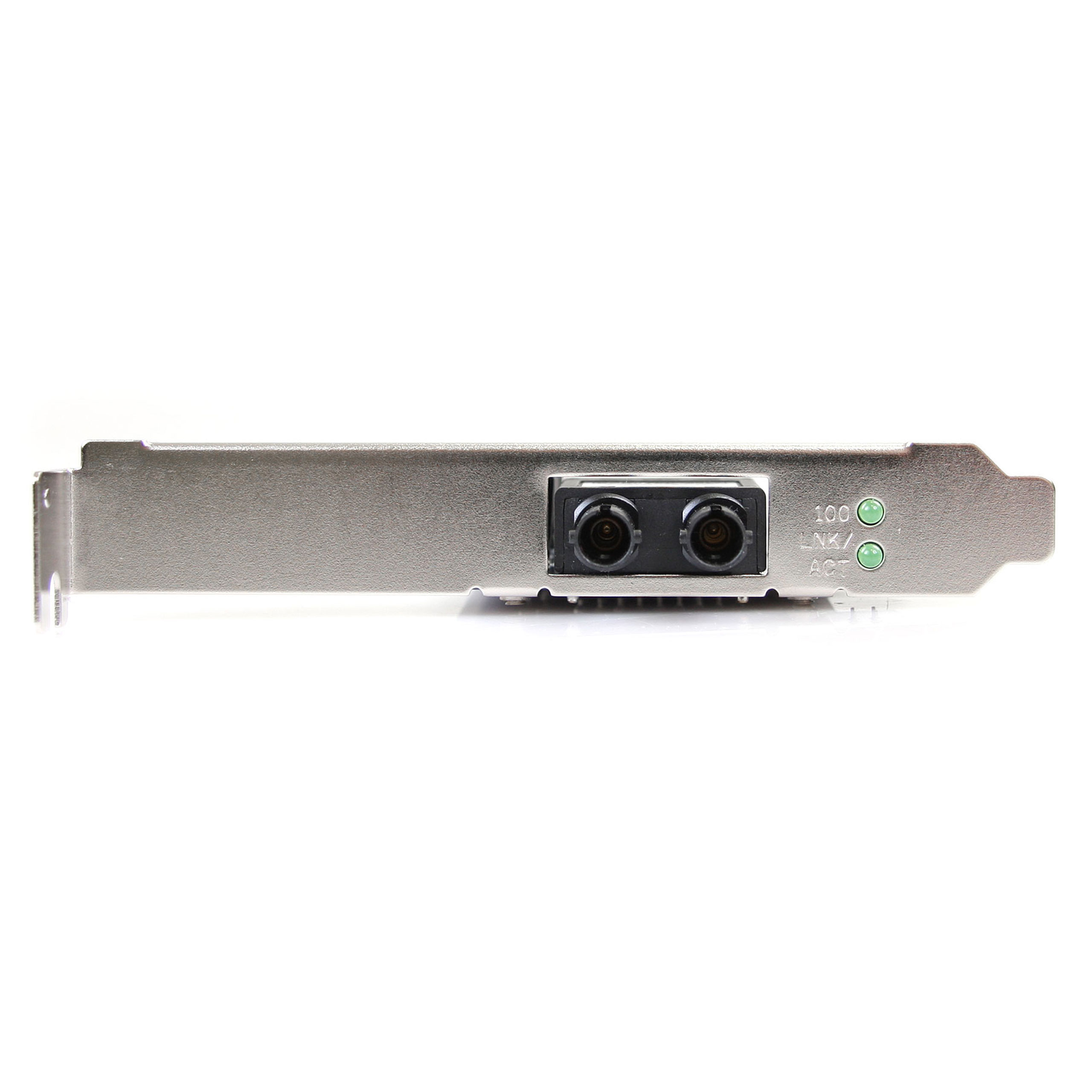

Wake-On-LAN (WOL) Yes Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID VIA/VLI - VT6105M Industry Standards IEEE802.3u 100Base-FX, IEEE802.3x, IEEE802.1Q, IEEE802.1p Interface/Bridge Fiber Ethernet LED Indicators - 1 - Green - Link
- 1 - Green - Activity

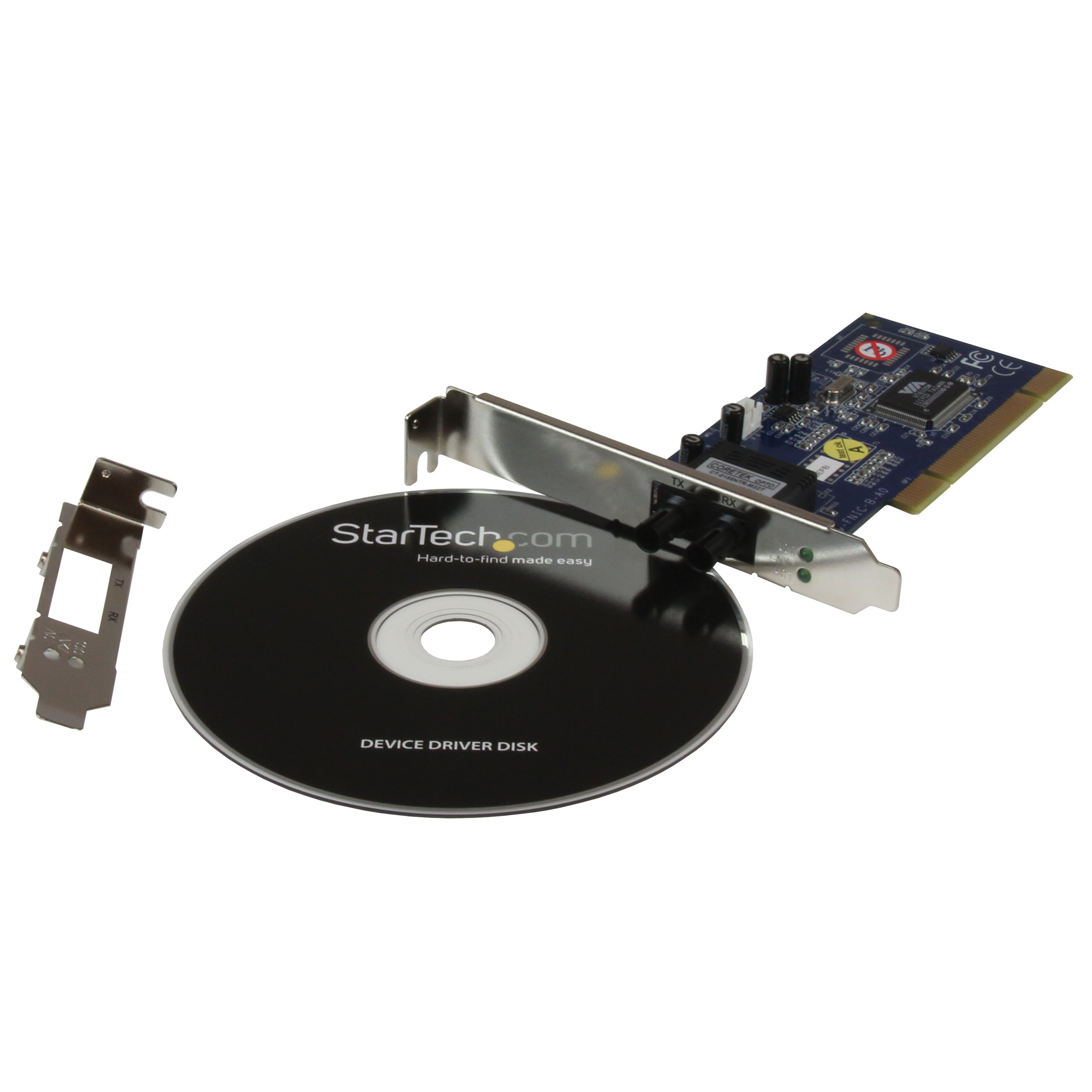

Carton Depth (mm) 590 Carton Height (mm) 350 Carton Quantity 50 Carton Weight Gross (g) 12200 Included in Package - 1 - Driver / Instruction Manual CD
- 1 - Low profile bracket
- 1 - PCI to ST 10/100 Fiber NIC
Package Depth (mm) 50 Package Height (mm) 170 Package Width (mm) 270 Package Quantity 1 Package Weight (g) 220 Packaging Description 100Mbps PCI MM ST Fiber Network Card 2km Packaging Description India 100Mbps PCI MM ST Fiber Network Card 2km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 ST Duplex Fiber Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
