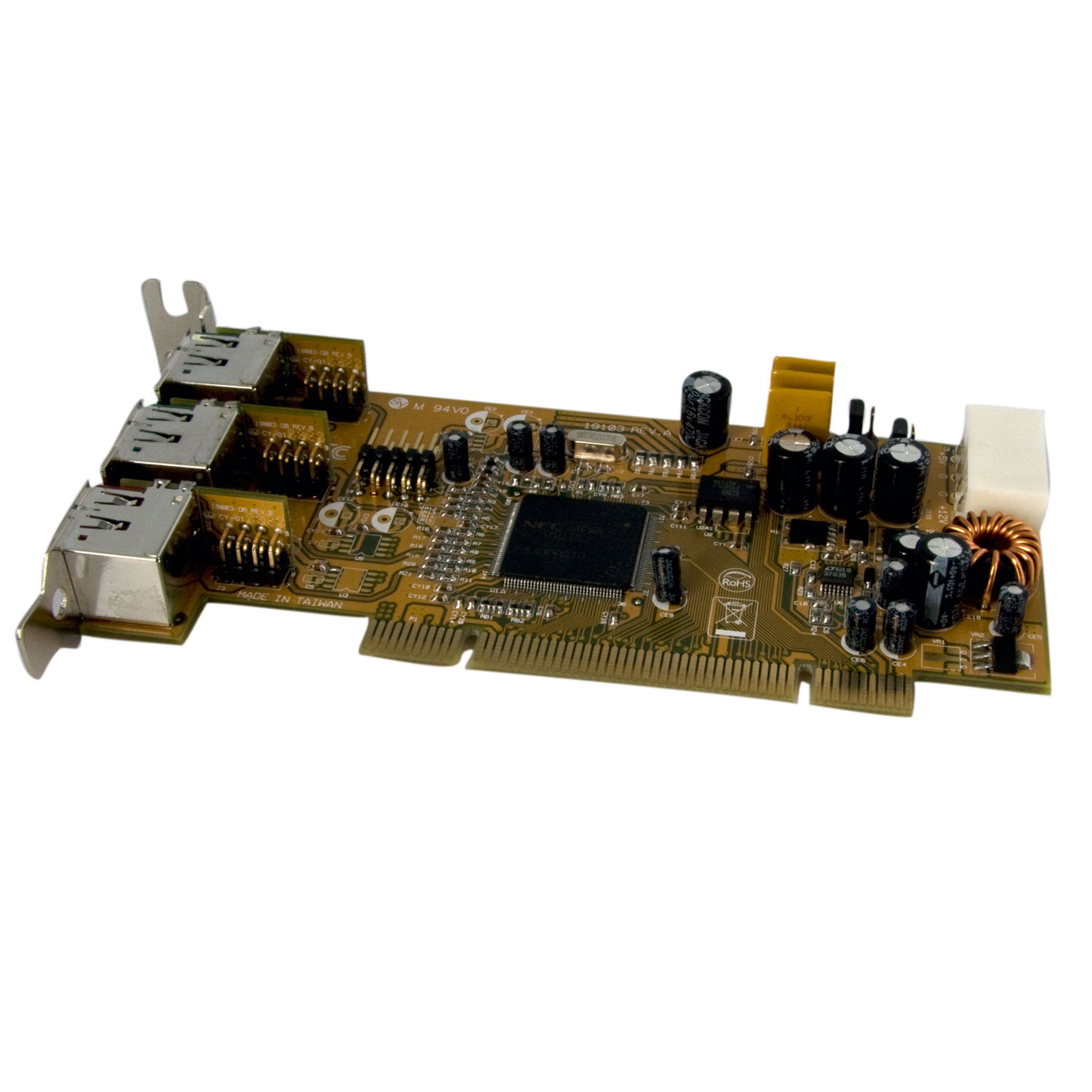

Main Image
PCI1224PUSB
PCI Adapter Card Powered USB Card - USB PlusPower
Add two 12 volt and one 24 volt PoweredUSB ports to any PC with a PCI slot
Main Image

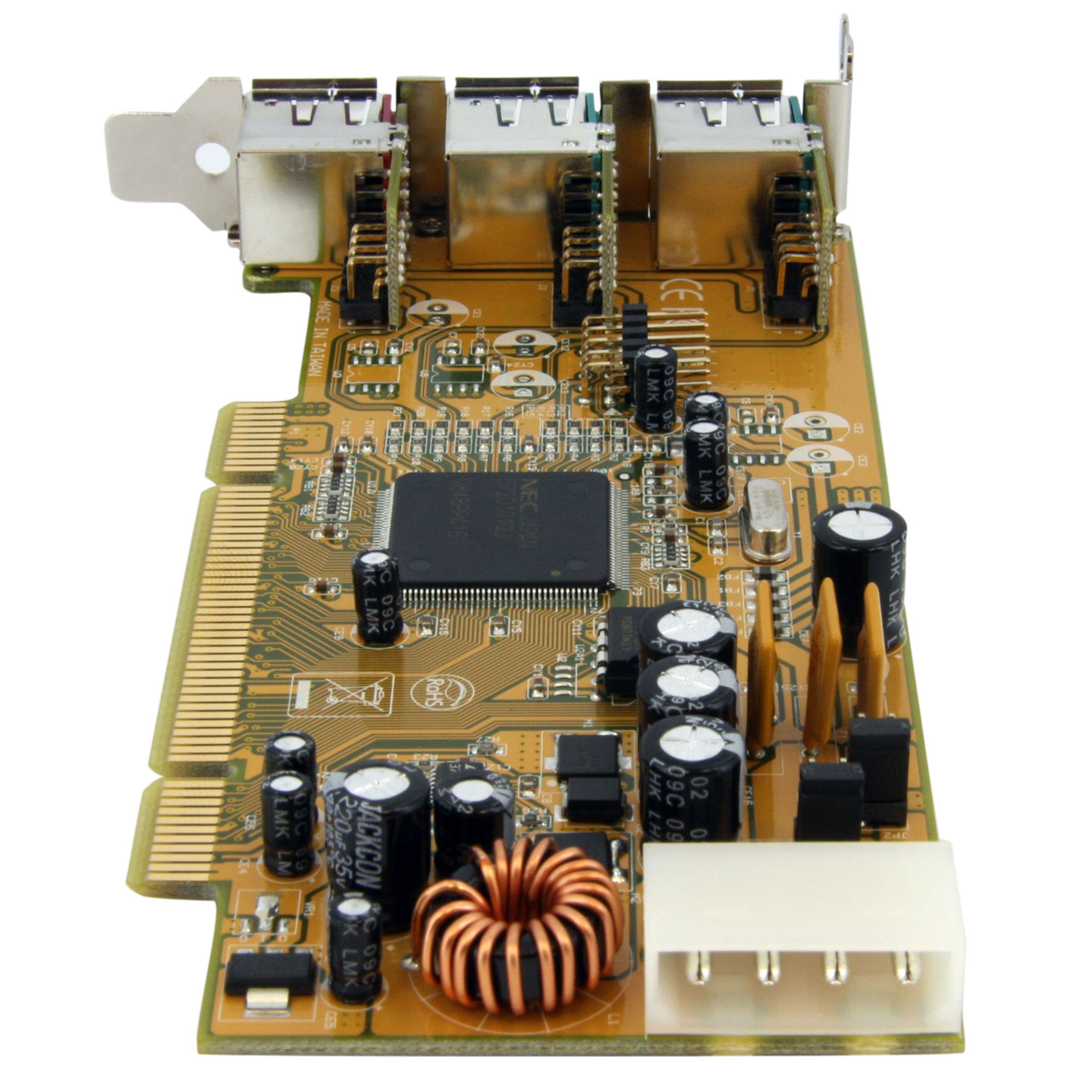

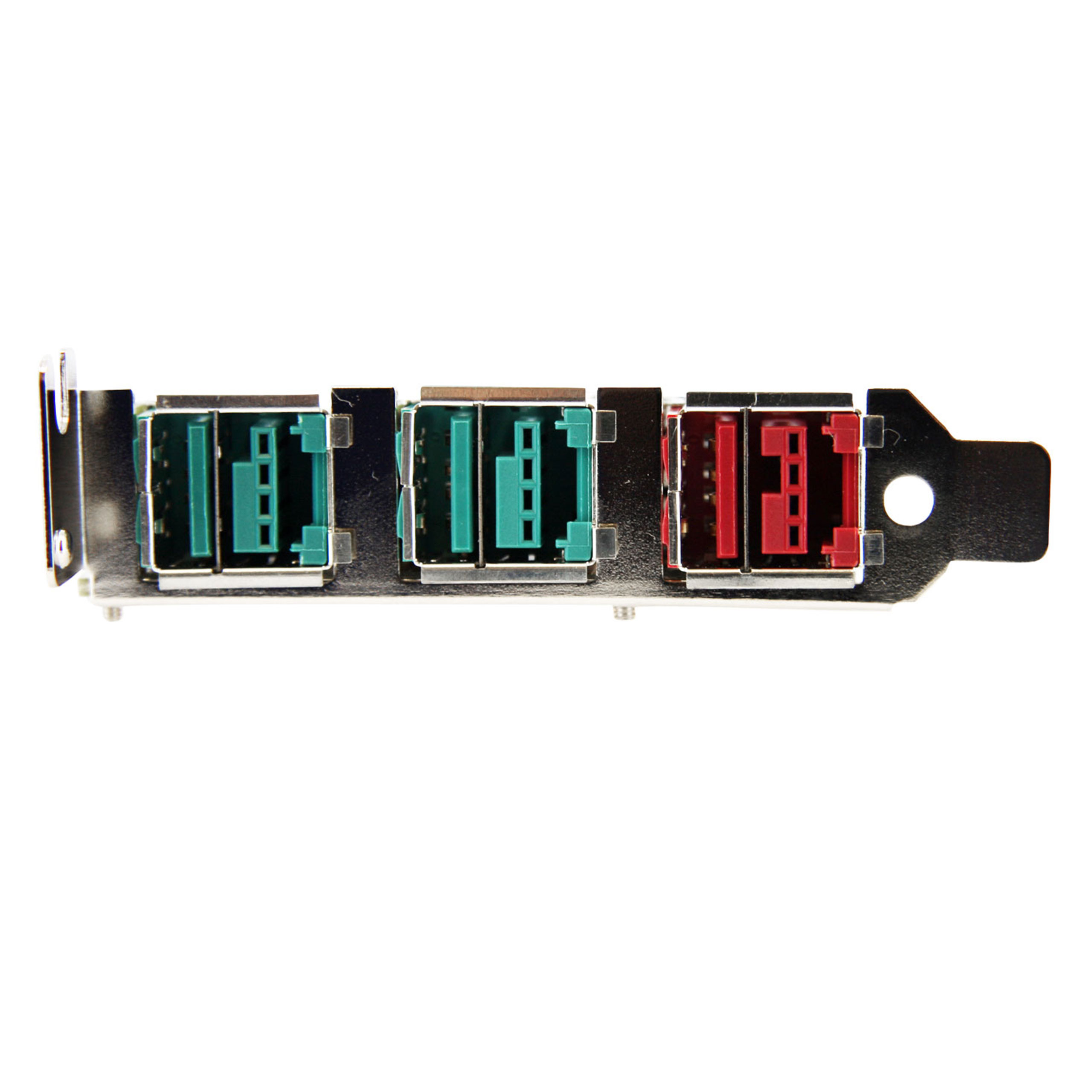

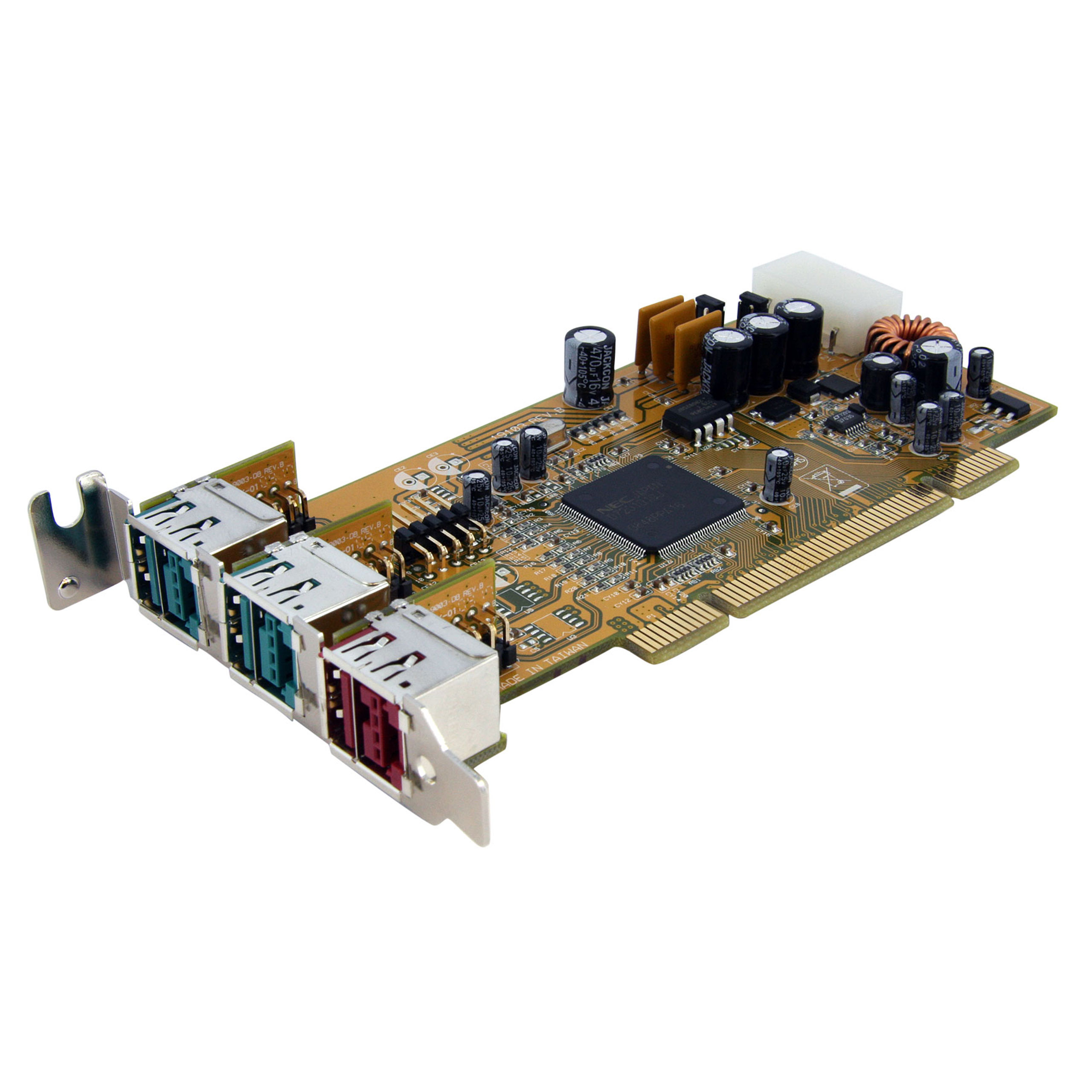

Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name PCI Adapter Card Powered USB Card - USB PlusPower Product Number PCI1224PUSB UPC 065030835756 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) 2x 12V 1x 24V PCI Powered USB Card Product Title (Standard) 2x 12V 1x 24V PCI Powered USB Card Product Title (Long) 2 Port 12V 1 Port 24V Dual Profile PCI Powered USB Card Title Ingram (Part 1) 2 Port 12V 1 Port 24V Dual Profi Title Ingram (Part 2) le PCI Powered USB Card Website Product Headline Add two 12 volt and one 24 volt PoweredUSB ports to any PC with a PCI slot Bullet 1 2 external 12V and 1 external 24V Powered USB Connectors Bullet 2 Backwards compatible with USB 2.0, 1.1 and 1.0 standards and allow for hot-plugging Bullet 3 Cable locking mechanism Bullet 4 Can be linked to a daughter board using 9 pin internal USB connection, or stand alone Bullet 5 Maximum data transfer rate of 480 Mbps Marketing Copy Applications - External CD-ROM, DVD drive and Hard drives that require more than 500mA current
- Gaming industry (joysticks with feedback mechanisms)
- Upgrade Mobile Computing systems such as delivery services/overland transportation vehicles
- Ideal for adding portable scanners, receipt printers, and digital scales to new Retail Point-of-Sale (POS), or Point-of-Care (POC) PCs
- Install into integrated Kiosks to provide power to Parking Garage/Gas Station receipt printers
- Provide power and data connection to remote surveillance cameras
Website Search Keyword - poc pci card
- point of care
- point of sale
- pos pci card
- pos usb
- powered usb
- powered usb 2.0
- powered usb card
- powered usb devices
- poweredusb card
- usb plus power
- usb power specification
- Dual Profile powered usb
- 12V usb
- 24V usb
- PCI-X powered usb
- usb pluspower

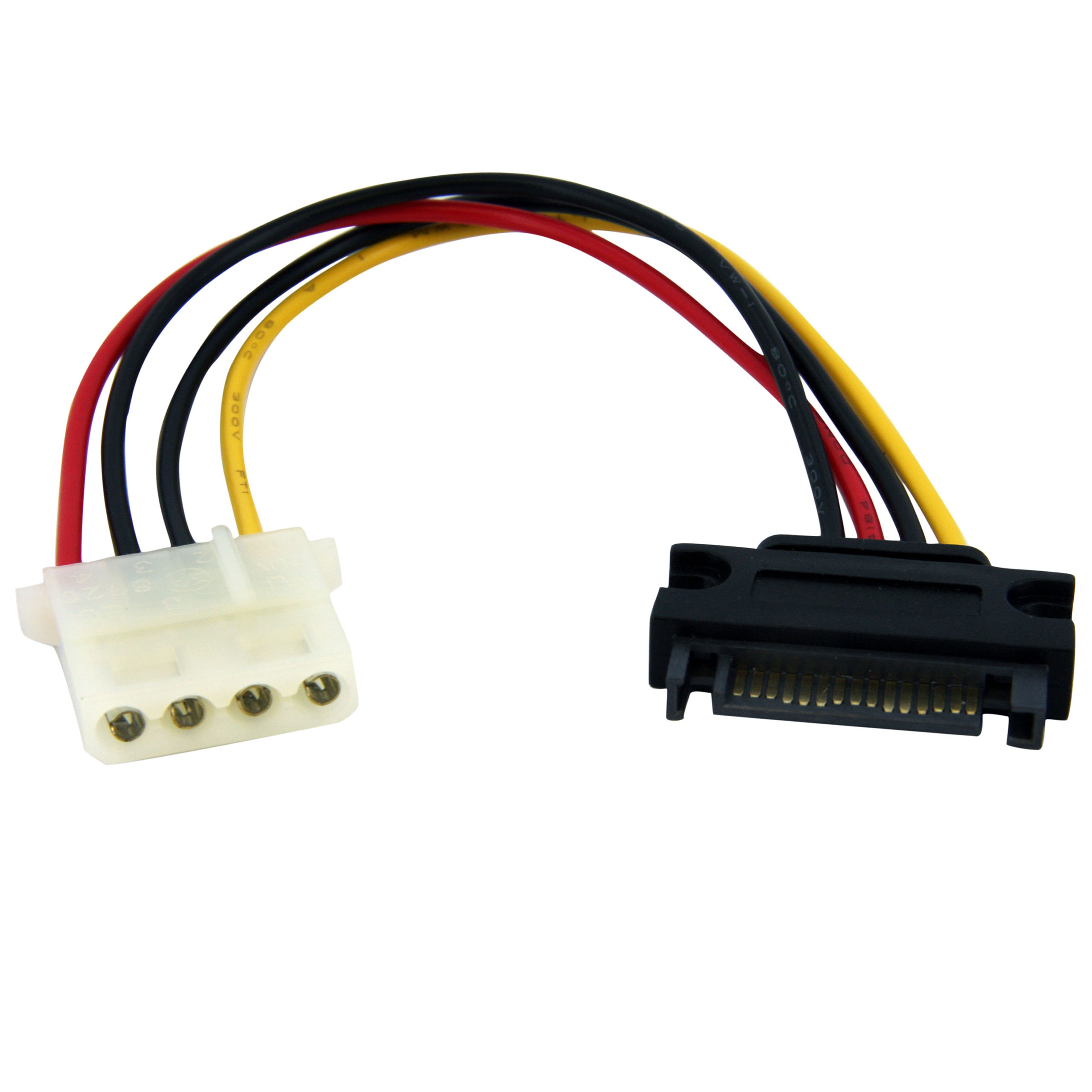

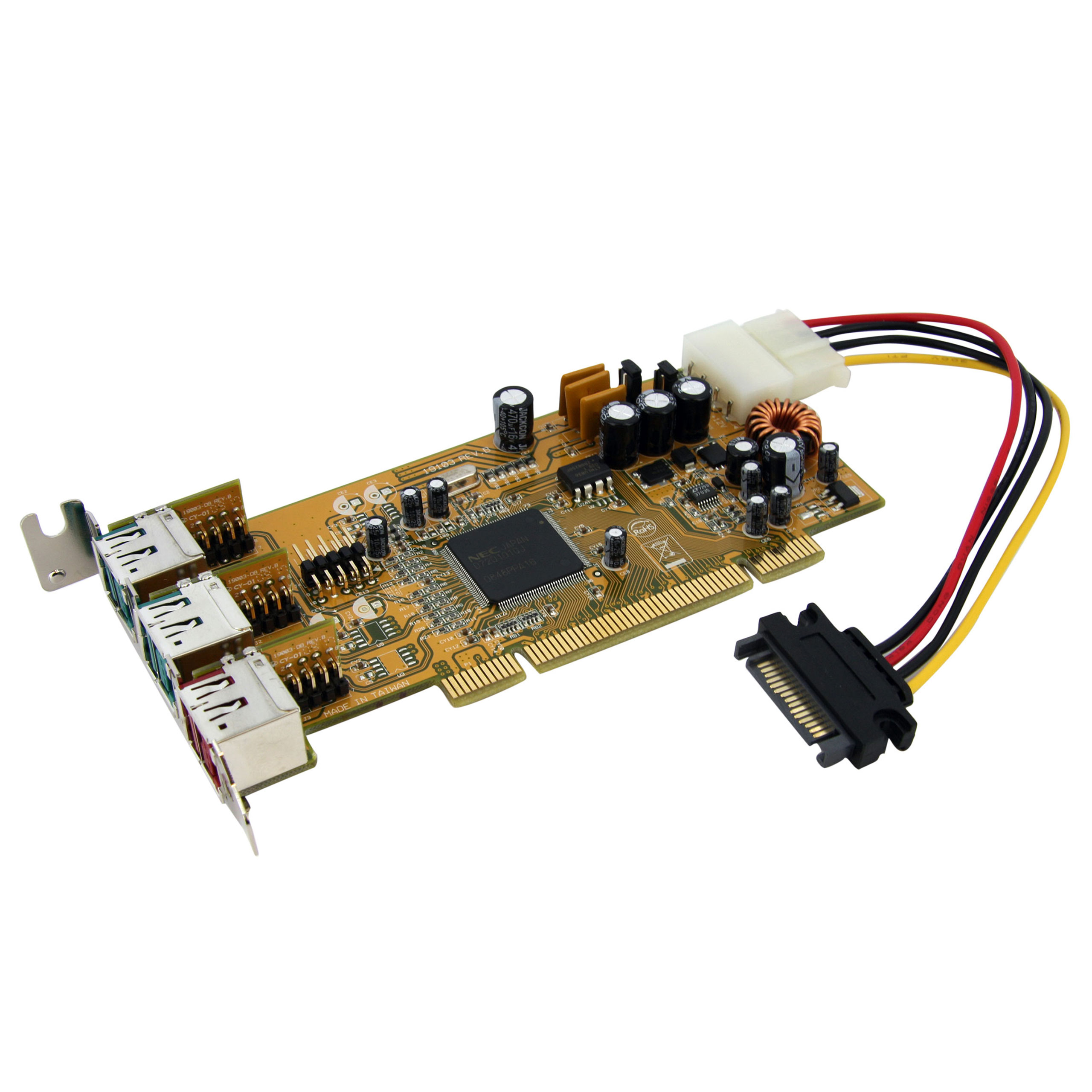

Special Notes Card can be powered by either an LP4 or 7-pin SATA Power connection (dongle included) Accessory Products - LP4SATAFM
- PUSB1X824V03
- PUSB1X824V06
- PUSB2X424V03
- PUSB2X424V06
- PUSBDYB24V03
- PUSBMYB12V06
Related Products - PCI312PUSB
- PCI312PUSBLP
- PEX312PUSB
- PEX312PUSBLP
Humidity 95% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 145 Product Width (mm) 65 Product Height (mm) 20 Product Weight (g) 90.71 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No Maximum Data Transfer Rate 480 Mbps MTBF (hours) 175,362.8 Hours OS Compatibility - Windows 8
- Windows 7
- Linux

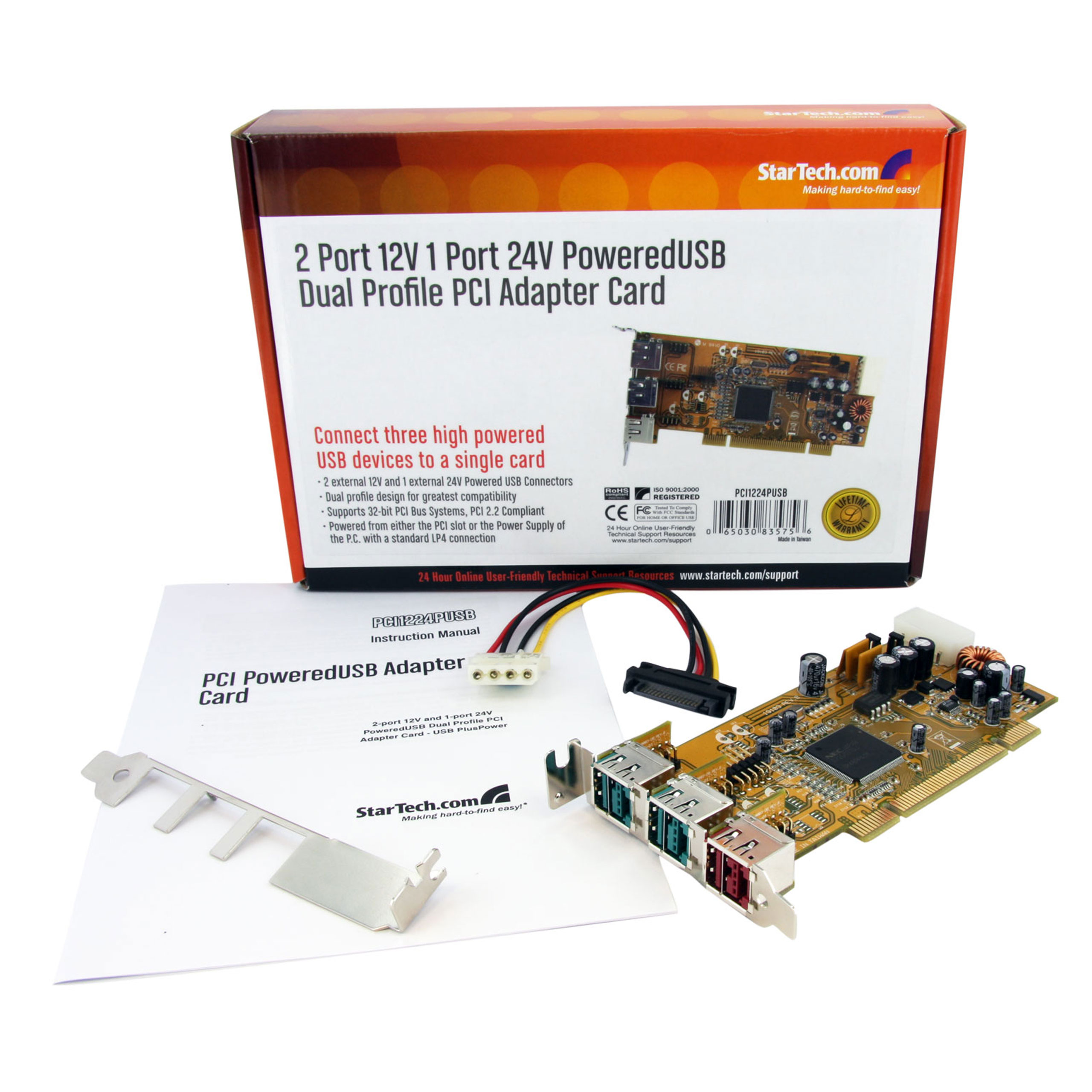

Bus Type PCI / PCI-X (5 / 3.3V) Card Type Low Profile (SP bracket incl.) Chipset ID Renesas/NEC - D720101GJ Carton Depth (mm) 510 Carton Height (mm) 410 Carton Quantity 50 Carton Weight Gross (g) 12500 Included in Package - 1 - Instruction Manual
- 1 - Powered USB Card
- 1 - LP4 to SATA adapter
- 1 - Driver CD
Package Depth (mm) 40 Package Height (mm) 160 Package Width (mm) 230 Package Weight (g) 230 Packaging Description 2 Port 12V, 1 Port 24V PoweredUSB PCI Card Packaging Description India 2 Port 12V, 1 Port 24V PoweredUSB PCI Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 Powered USB Host (480Mbps, 12W) Connector 2 (Quantity) 2 Connector 3 Powered USB Host (480Mbps, 12W) Connector 3 (Quantity) 1 Connector 4 IDC (10-Pin) Connector 4 (Quantity) 1 Connector 5 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 5 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
