Main Image
PCI1394B_3

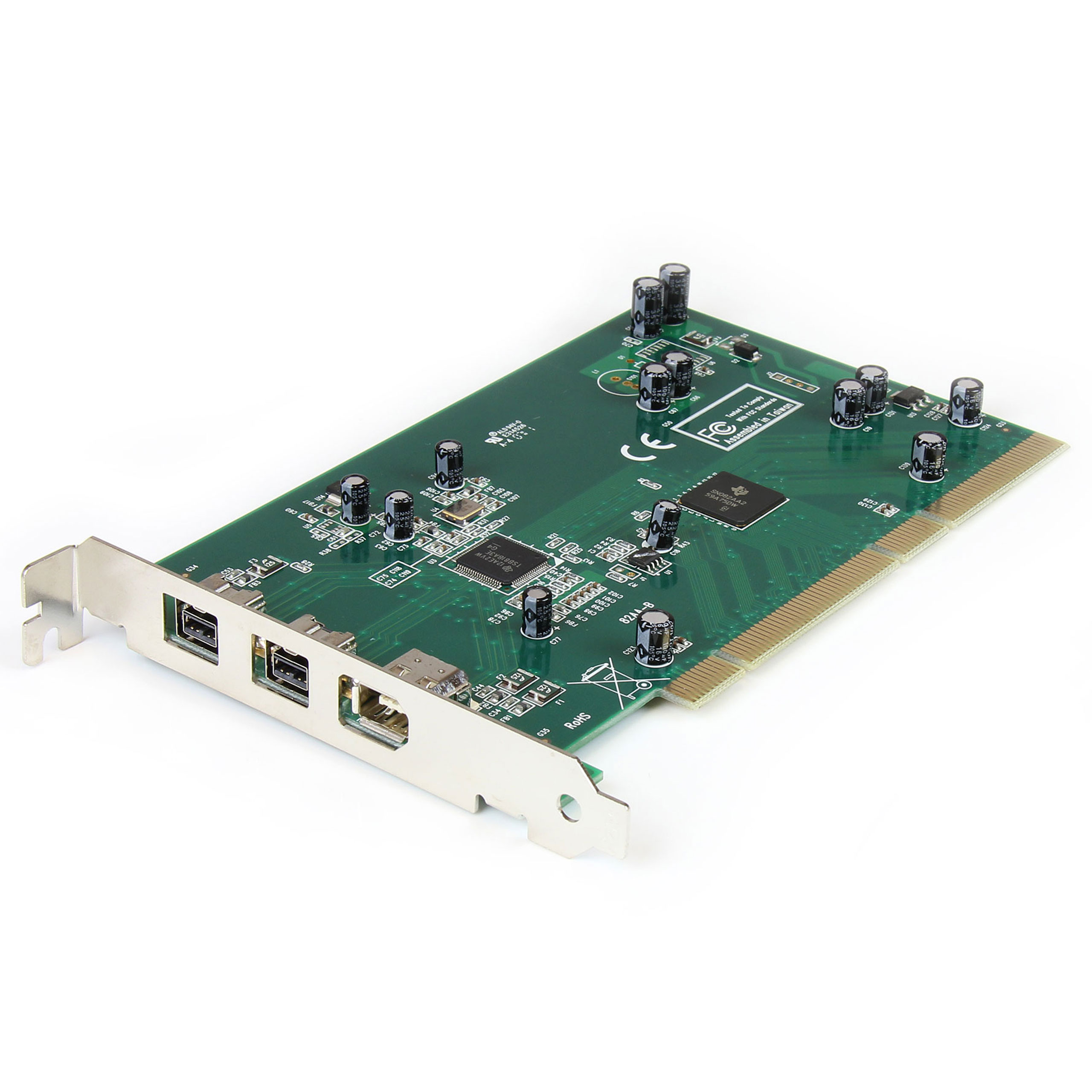

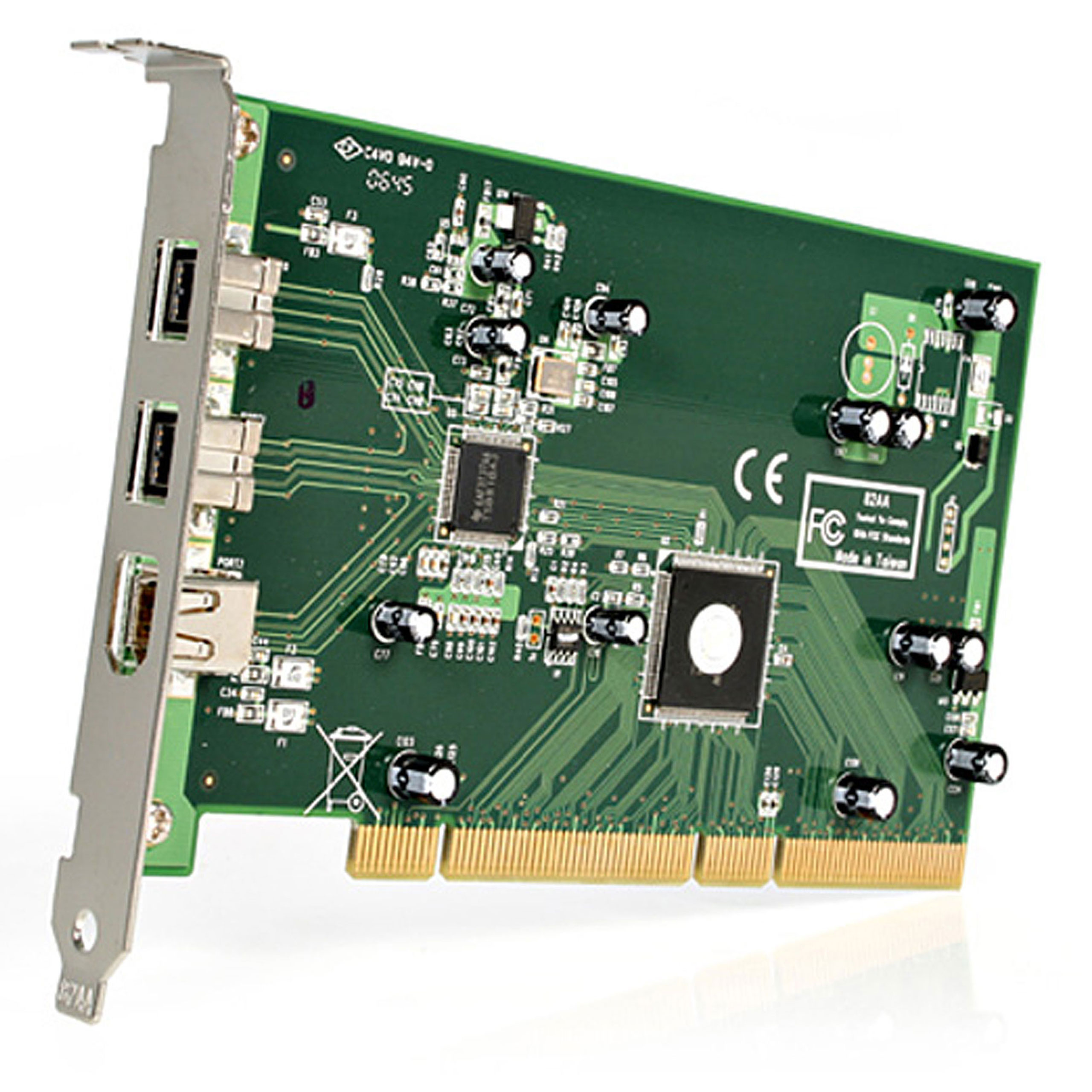

3 Port PCI 1394b Firewire 800 Card
Add 2 FireWire-800 and 1 FireWire-400 to your desktop computer through a PCI slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 3 Port PCI 1394b Firewire 800 Card Product Number PCI1394B_3 UPC 065030802116 Lifecycle status End of Life Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 Firewire Cards Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 3 Port PCI 1394b FireWire Adapter Card Product Title (Standard) 3 Port 2b 1a PCI 1394b FireWire Adapter Card with DV Editing Kit Product Title (Long) 3 Port 2b 1a PCI 1394b FireWire Adapter Card with DV Editing Kit - TAA Product Title (AMZ) 3 Port 2b 1a PCI 1394b FireWire Adapter Card (PCI1394B_3) Title Ingram (Part 1) 3 Port 2b 1a PCI 1394b FireWire Title Ingram (Part 2) Adapter Card Website Product Headline Add 2 FireWire-800 and 1 FireWire-400 to your desktop computer through a PCI slot Bullet 1 Two FireWire 800 ports with support for data transfer rates up to 800 Mbps Bullet 2 One FireWire 400 port with support for transfer rates up to 400 Mbps Bullet 3 Complaint with IEEE 1394-1995, 2000, 1394b and OHCI 1.1 standards Bullet 4 Compliant with PCI revision 2.2 specifications Bullet 5 Compatible with 3.3V/5V, 32/64-bit PCI or PCI-X slots Bullets (Consolidated) Two FireWire 800 ports with support for data transfer rates up to 800 Mbps - One FireWire 400 port with support for transfer rates up to 400 Mbps - Complaint with IEEE 1394-1995, 2000, 1394b and OHCI 1.1 standards - Compliant with PCI revision 2.2 specifications - Compatible with 3.3V/5V, 32/64-bit PCI or PCI-X slots - Plug-and-Play and Hot-Swap compatible - Includes Video Editing kit: Ulead Video Studio SE and FireWire cable Marketing Copy Marketing Copy (No HTML) The PCI1394B_3 3-Port PCI FireWire Adapter Card turns a PCI slot into 2 FireWire 800 (IEEE 1394b) ports and 1 FireWire 400 (IEEE 1394a) port - a cost-effective solution that lets you connect FireWire 800 devices, as well as older FireWire 400 devices to your desktop computer. A versatile FireWire solution, the adapter card works in both 5v and 3.3v PCI slots and in 64-bit and 32-bit operating environments, making it easy to create a high-speed laptop digital media center, or connect demanding FireWire peripheral devices such as portable hard drives, DV camcorders, digital cameras and CD-RW/DVD-RW drives. This high quality adapter card is designed to provide reliable FireWire 800 and FireWire 400 connections, delivering 800 Mbps and 400 Mbps data transfer rates respectively (a 64-bit PCI slot is required to achieve 800 Mbps data transfer rates). The PCI1394B_3 is backed by a StarTech.com lifetime warranty and free lifetime technical support. Applications - Add a high-speed FireWire port to a desktop without any FireWire ports
- Connect a digital camera to a PCI/PCI-X enabled desktop to download photos and video
- Connect a high-speed external hard drive to an PCI/PCI-X enabled system
Website Search Keyword Firewire card 800 400 1394a 1394b pci host Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements - Unused PCI slot
- The PCI1394B_3 must be installed in a 64-bit PCI slot to achieve 800 Mbps data transfer rates. In a 32-bit PCI slot, the card defaults to 400 Mbps as the data transfer speed for all attached peripherals, including FireWire 800 devices
Accessory Products - 1394_94_10
- 1394_94_6
- 1394_96_10
- 1394_96_6
- 1394_99_10
- 1394_99_6
Related Products IDECASEU2FB Replacement Product PCI1394MP Color Green Material Steel Primary Material Steel Product Length (mm) 167 Product Width (mm) 18 Product Height (mm) 99 Product Weight (g) 89 TAA Compliant Yes Maximum Data Transfer Rate 800 Mbps OS Compatibility - Linux
- Windows 7
- Windows 8
- Windows 10
- Windows 11
Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile Chipset ID Texas Instruments - 3AA651W Industry Standards PCI 2.2, OHCI, IEEE-1394B, IEEE-1394A, IEEE-1394 Interface/Bridge - FireWire 400 (1394a)
- FireWire 800 (1394b)

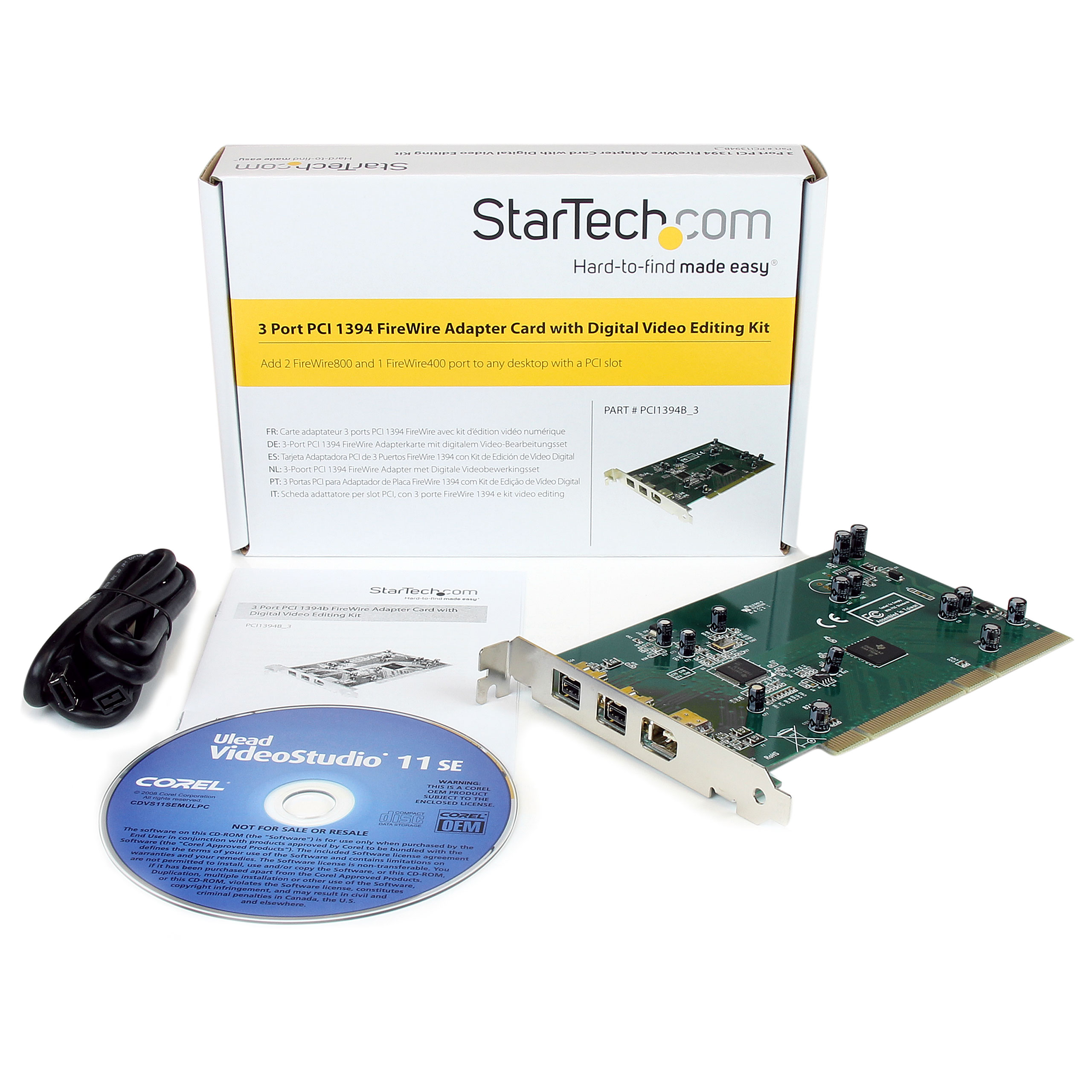

Carton Depth (mm) 760 Carton Height (mm) 246 Carton Quantity 50 Carton Weight Gross (g) 15700 Included in Package - 1 - PCI FireWire Card
- 1 - Instruction Manual
- 1 - FireWire Cable
- 1 - Software CD
Package Depth (mm) 146 Package Height (mm) 40 Package Width (mm) 206 Package Quantity 1 Package Weight (g) 240 Packaging Description 3 Port PCI 1394b FireWire Card Packaging Description India 3 Port PCI 1394b FireWire Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 FireWire 800 (9-Pin, 800Mbps, Bus Power) Connector 2 (Quantity) 2 Connector 3 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
