PCI1394MP

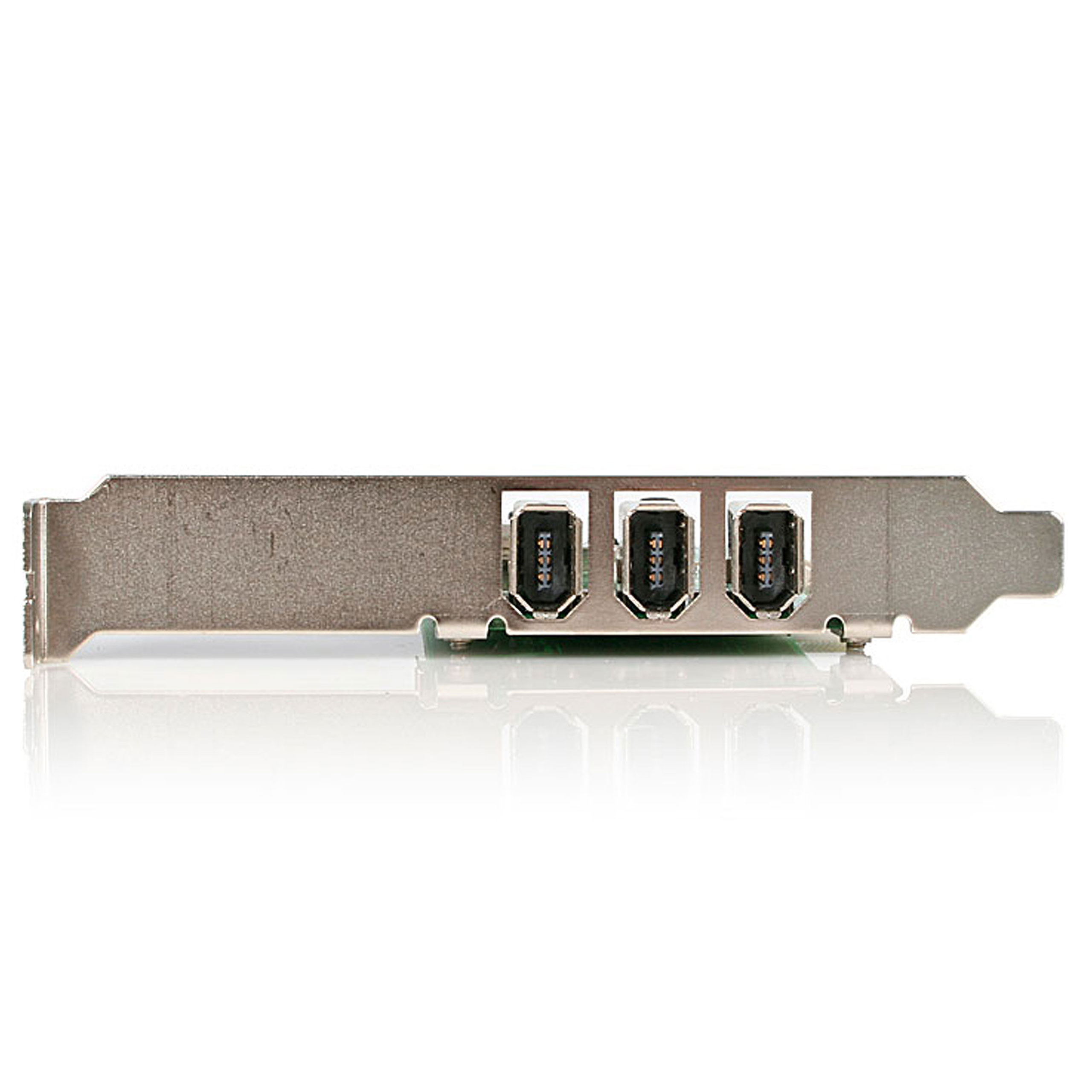

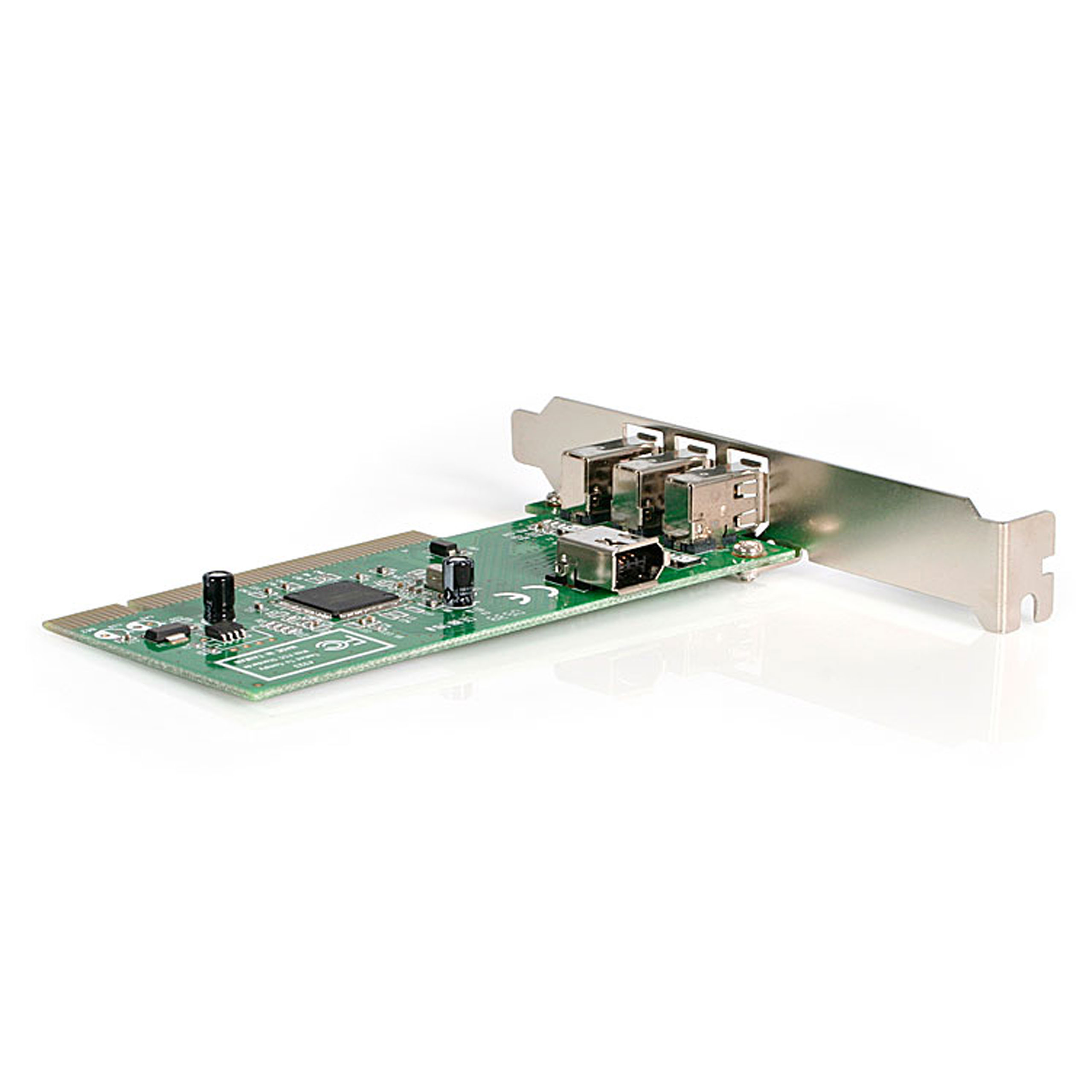

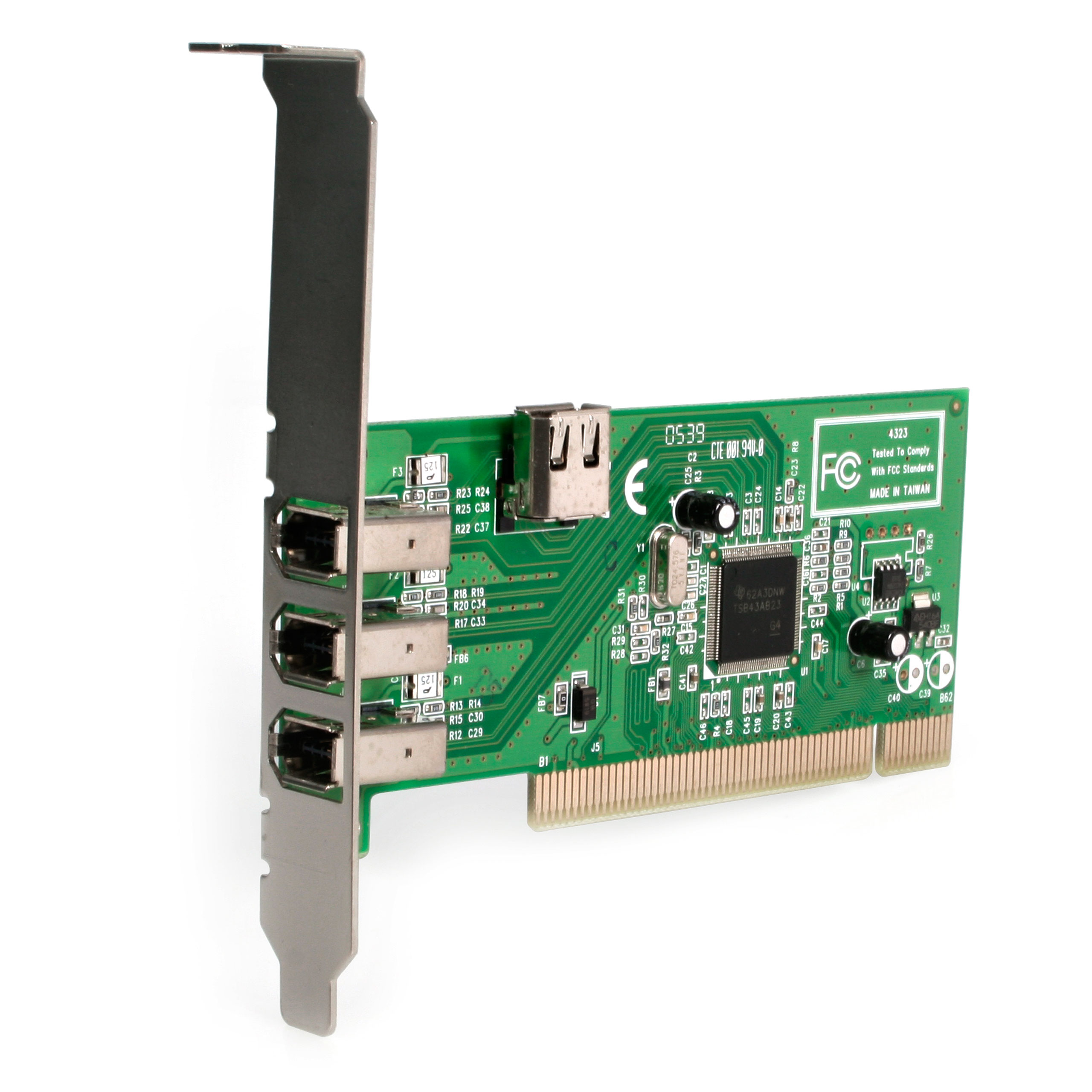

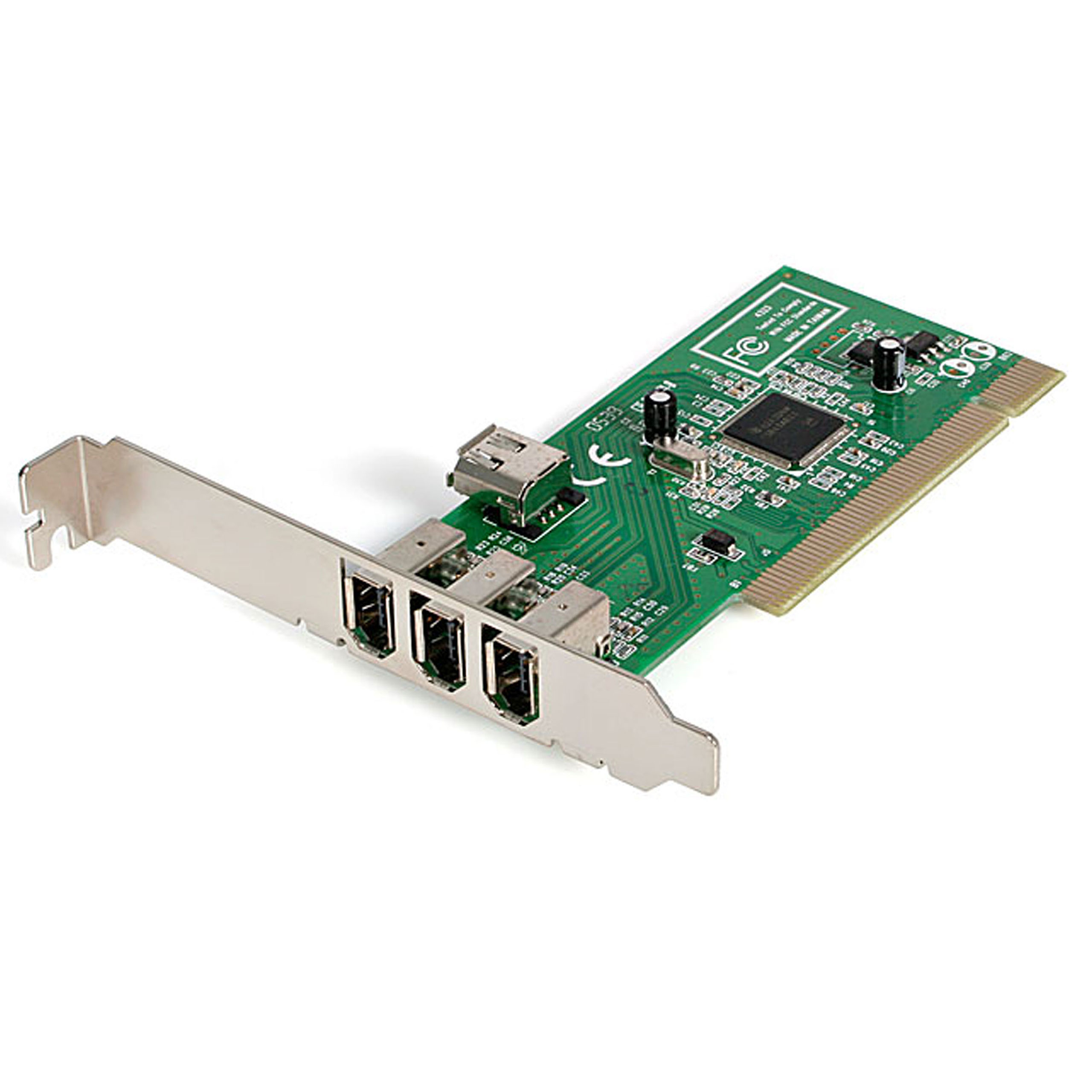

4 Port PCI 1394a FireWire Adapter Card
Add 4 FireWire ports to a desktop computer through a PCI slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port PCI 1394a FireWire Adapter Card Product Number PCI1394MP UPC 065030789950 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 Firewire Cards Family Firewire Cards - PCI Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 4 Port PCI 1394a FireWire Adapter Card Product Title (Standard) 4 Port IEEE-1394 FireWire PCI Card, TAA Product Title (Long) 4 port PCI 1394a FireWire Adapter Card - 3 External 1 Internal - TAA Product Title (AMZ) 4 port PCI 1394a FireWire Adapter Card - 3 External 1 Internal FireWire PCI Card , TAA (PCI1394MP) Title Ingram (Part 1) 4 Port PCI 1394a FireWire Adapte Title Ingram (Part 2) r Card Website Product Headline Add 4 FireWire ports to a desktop computer through a PCI slot Bullet 1 3 external, 1 shared internal FireWire400 port, with supported data transfer rates up to 400 Mbps Bullet 2 Compliant with IEEE 1394a - 2000 as well as 1394-1995 standards Bullet 3 Includes Low Profile installation bracket Bullet 4 Plug-and-Play and hot-swap compatible Bullets (Consolidated) Add 3 FireWire ports to a desktop computer through a PCI slot - PCI FireWire Card - 1394 PCI FireWire Card - PCI FireWire 400 - 4 Port FireWire Card - FW 1394a PCI Card - 6 Pin to 6 Pin FireWire Card - Up to 400 Mbps - Low Profile Bracket is also included Marketing Copy Applications - Add a high-speed FireWire port to a full or small form factor desktop without any FireWire ports
- Connect a digital camera to a desktop with a PCI slot to download photos and video
- Connect a external FireWire hard drive or optical drive to a PCI-enabled system
Website Search Keyword iPod Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - 1394_6
- 1394_10
- 1394_15
- 1394_46_6
- 1394_46_10
- 1394_46_15
- 1394_6FLBG
- 1394_6FLRY
- 1394_6LEDBL
- 1394_6LEDRD
- FIRE46FM
Related Products - PCI1394_4
- PCI1394_2
- PCI1394_2LP
- PCI1394B_3
Constrained SKU Alternatives (Limited Stock) PCI1394B_3 Color Green Material Steel Primary Material Steel Product Length (mm) 123.000 Product Width (mm) 18.5 Product Height (mm) 100 Product Weight (g) 53.000 TAA Compliant Yes Maximum Data Transfer Rate 400 Mbps OS Compatibility - Windows 7
- Linux
- Windows 8
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
Bus Type PCI (5 Volt) Card Type Standard Profile (LP bracket incl.) Chipset ID Texas Instruments - TSB12LV26 Industry Standards - PCI 2.1
- IEEE 1394a
- OHCI

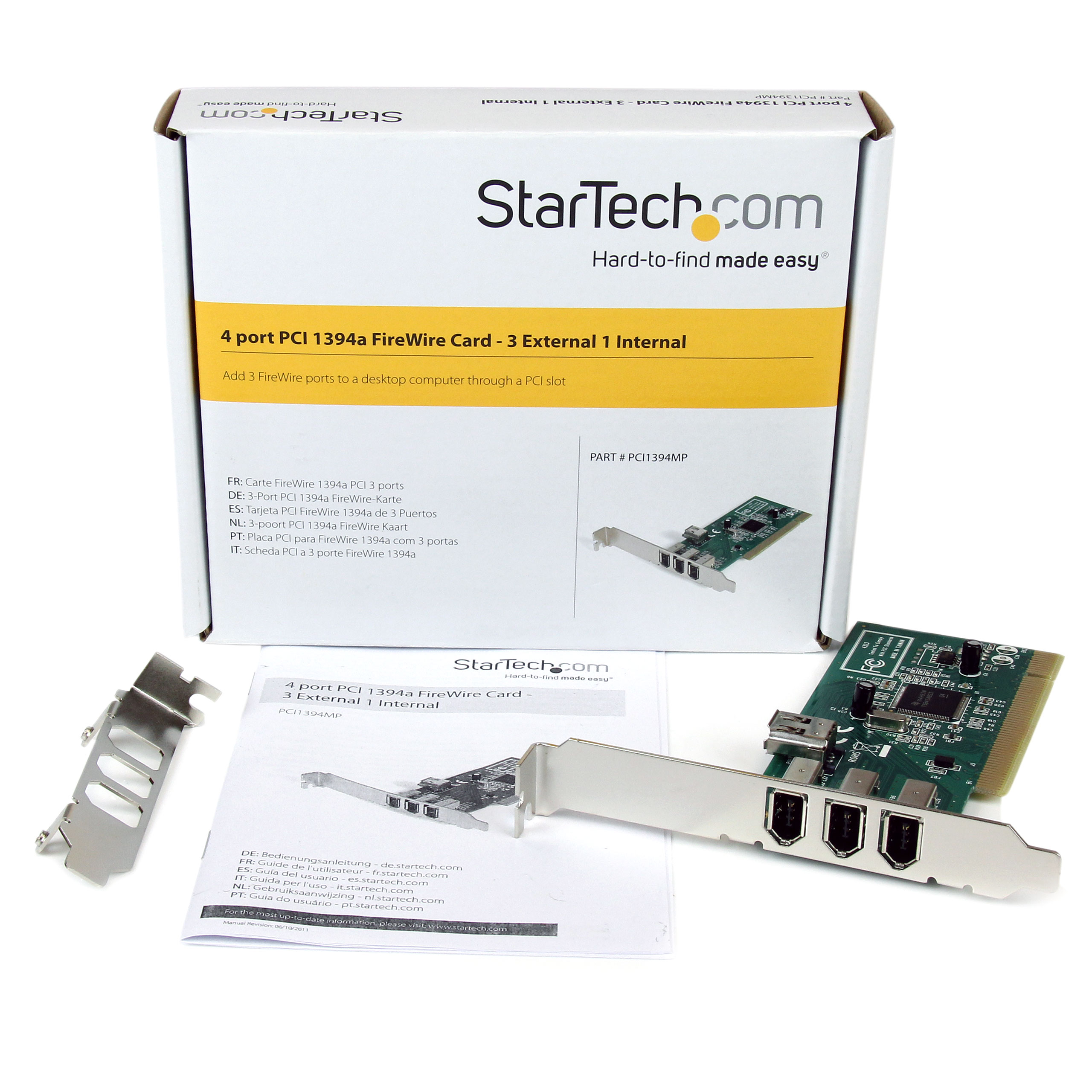

Interface/Bridge FireWire 400 (1394a) Carton Depth (mm) 352 Carton Height (mm) 318 Carton Quantity 75 Carton Weight Gross (g) 10140 Included in Package - 1 - PCI FireWire Card
- 1 - Instruction Manual
- 1 - Low Profile Bracket
Included In Package for Label - 1 - Low Profile Bracket
- 1 - PCI Firewire Card
- 1 - Instruction Manual
Package Depth (mm) 143 Package Height (mm) 32 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 128 Packaging Description 4 Port PCI 1394a FireWire Card Packaging Description India 4 Port PCI 1394a FireWire Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 2 (Quantity) 3 Connector 3 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,NL,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
