2 Port PCI 1394/Firewire DV Editing Kit
Add 2 external and 1 internal FireWire400 port to any computer through a single PCI slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 2 Port PCI 1394/Firewire DV Editing Kit Product Number PCI1394_2 UPC 065030799119 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) 3 Port PCI 1394a FireWire Adapter Card Product Title (Standard) StarTech.com 2 Port IEEE-1394 FireWire PCI adapter Card with Digital Video Editing Kit - Video input adapter - PCI Product Title (Long) 3 Port PCI 1394a FireWire Adapter Card with Digital Video Editing Kit Title Ingram (Part 1) 3 Port PCI 1394a FireWire 400 Ad Title Ingram (Part 2) apter Card Website Product Headline Add 2 external and 1 internal FireWire400 port to any computer through a single PCI slot Bullet 1 Includes everything needed to edit your own home movies, add scene transitions and other effects with the included ULEAD® VideoStudio® SE software Bullet 2 High speed data transfer rates of up to 400 Mbits/sec. Bullet 3 Hot swap capabilities allows you to connect or disconnect devices without turning off your computer Bullet 4 An internal connector allows for the easy connection of internal FireWire® peripherals Marketing Copy Applications - iPods/MP3 players
- Portable hard drives
- External CDR-CDRW drives
- DVD drives
- Digital cameras
- Digital camcorders
- Scanners
- Printers
Website Search Keyword iPod Microsoft WHQL Certified Yes Special Notes The internal port and the top external port share the same connection, meaning that only one of these two ports can be used at a time. Configured with standard bracket and low profile bracket included System and Cable Requirements Unused PCI slot Accessory Products - 1394_6
- 1394_10
- 1394_15
- 1394_46_6
- 1394_46_10
- 1394_46_15
- FIRE46FM
- 1394_6FLBG
- 1394_6LEDRD
Related Products - PCI1394MP
- PCI1394_4
- PCI1394_2LP
- PCI1394B_3
Product Length (mm) 120 Product Height (mm) 61 TAA Compliant No Maximum Data Transfer Rate 400 Mbps OS Compatibility - Windows 98SE
- Windows 2000
- Windows ME
- Windows Vista
- Linux
- Mac OS X
- Windows 2003
- Windows XP
- Windows 7
- Windows 8
Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID VIA/VLI - VT6307 Industry Standards - PCI 2.1
- IEEE 1394
- IEEE 1394a
- OHCI

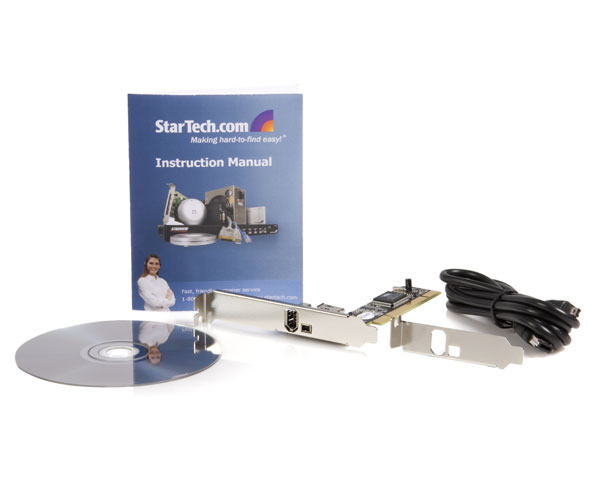

Interface/Bridge FireWire 400 (1394a) Carton Depth (mm) 760 Carton Height (mm) 246 Carton Quantity 50 Carton Weight Gross (g) 11100 Included in Package - 1 - 2 Port Firewire Card
- 1 - Firewire Cable
- 1 - Video Editing Software Kit
- 1 - Standard Bracket
- 1 - Low Profile Bracket
- 1 - Instruction Manual
Package Depth (mm) 32 Package Height (mm) 132 Package Width (mm) 178 Package Weight (g) 220 Packaging Description 3 Port PCI Low Profile 1394a FireWire Adapter Card Packaging Description India 3 Port PCI Low Profile 1394a FireWire Adapter Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 2 (Quantity) 1 Connector 3 FireWire 400 (4-Pin, 400Mbps, No Bus Power) Connector 3 (Quantity) 1 Connector 4 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager Carey Cline
