Main Image
PCI1394_2LP

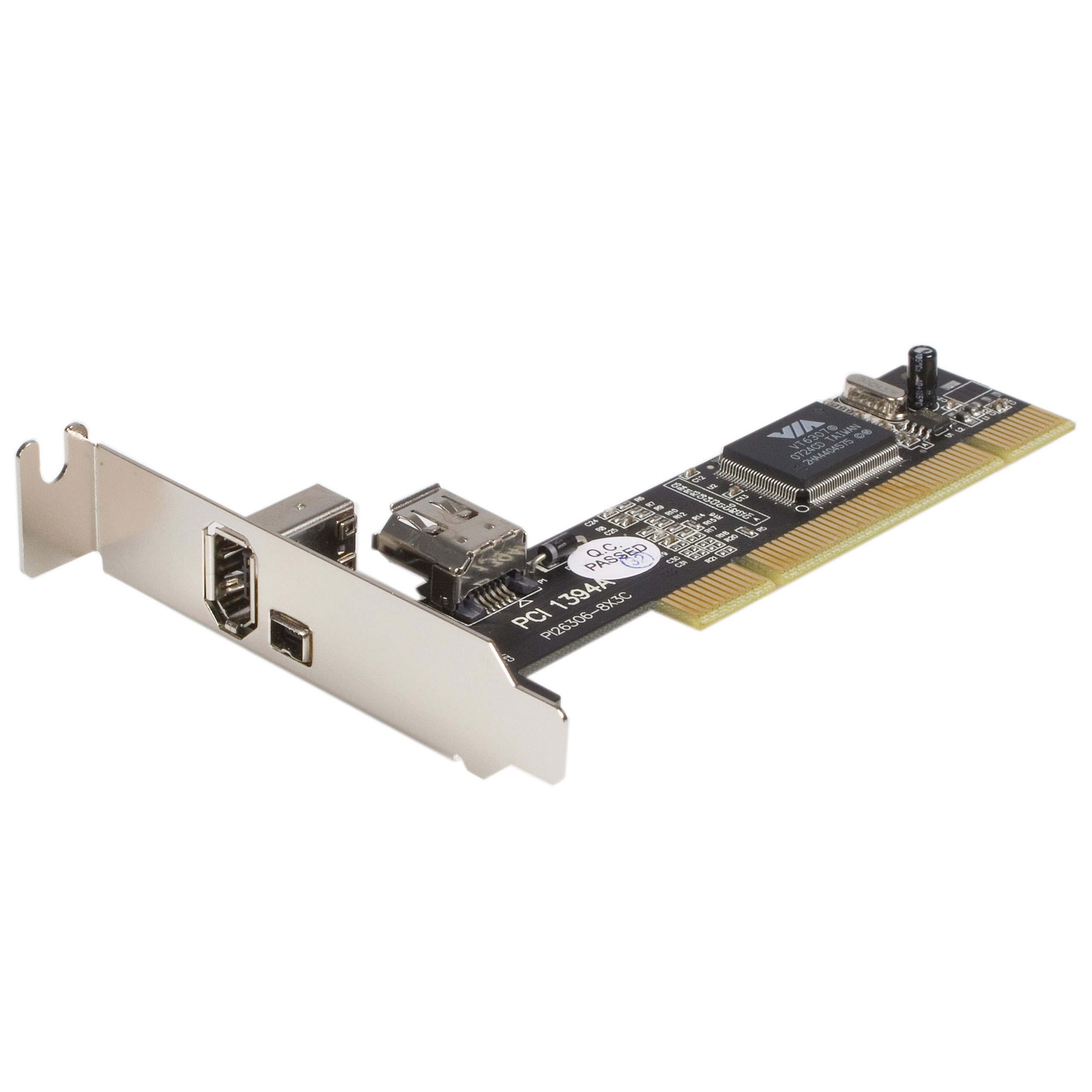

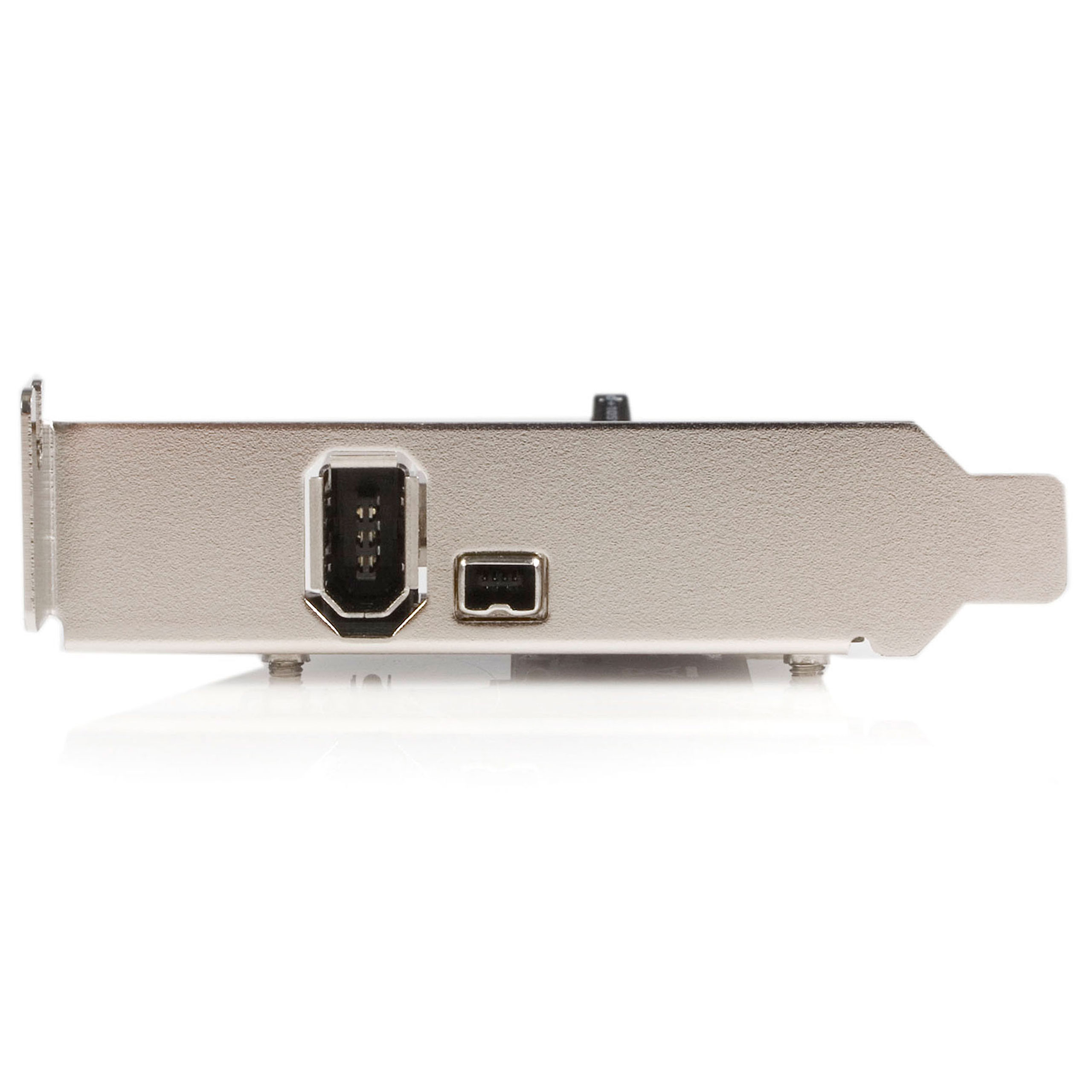

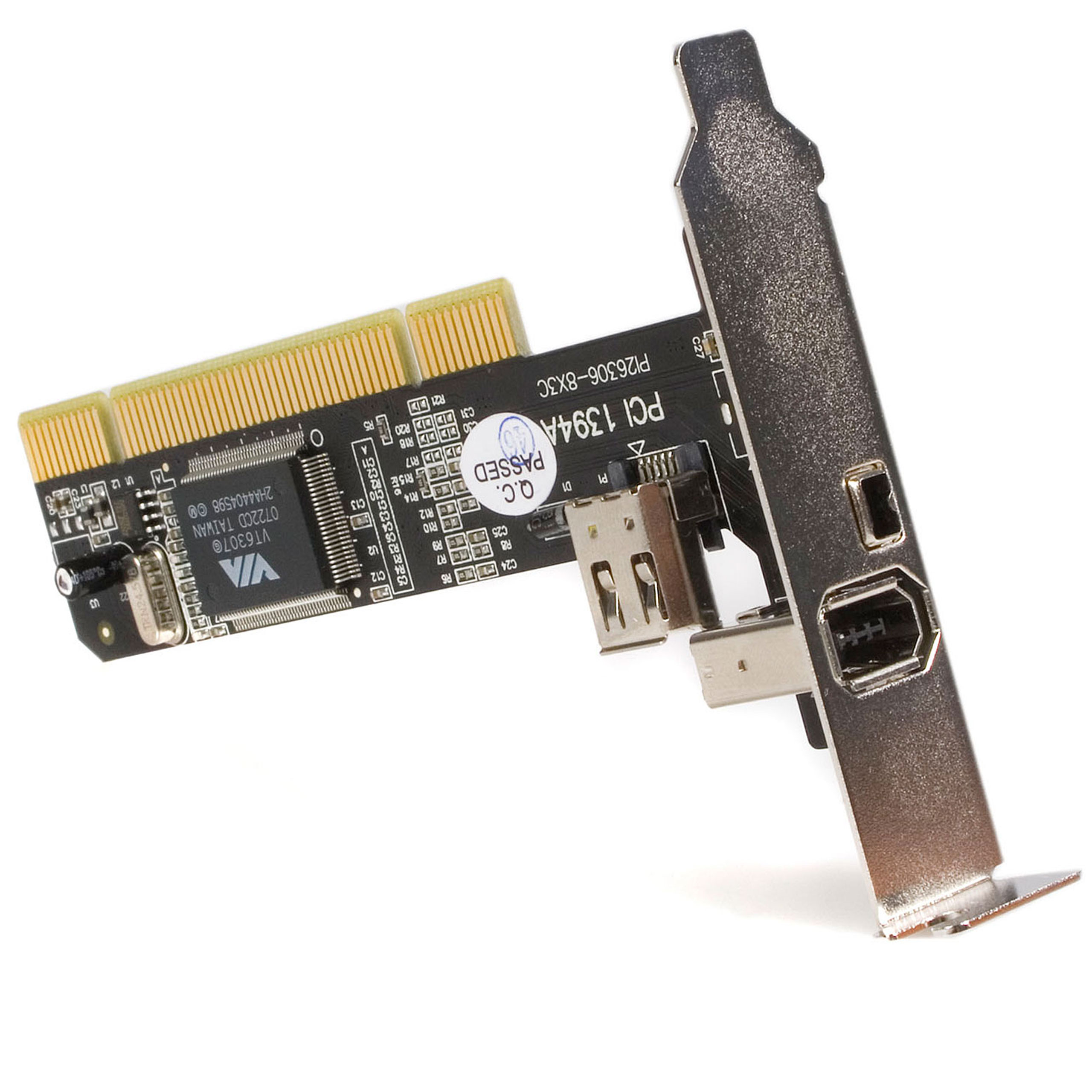

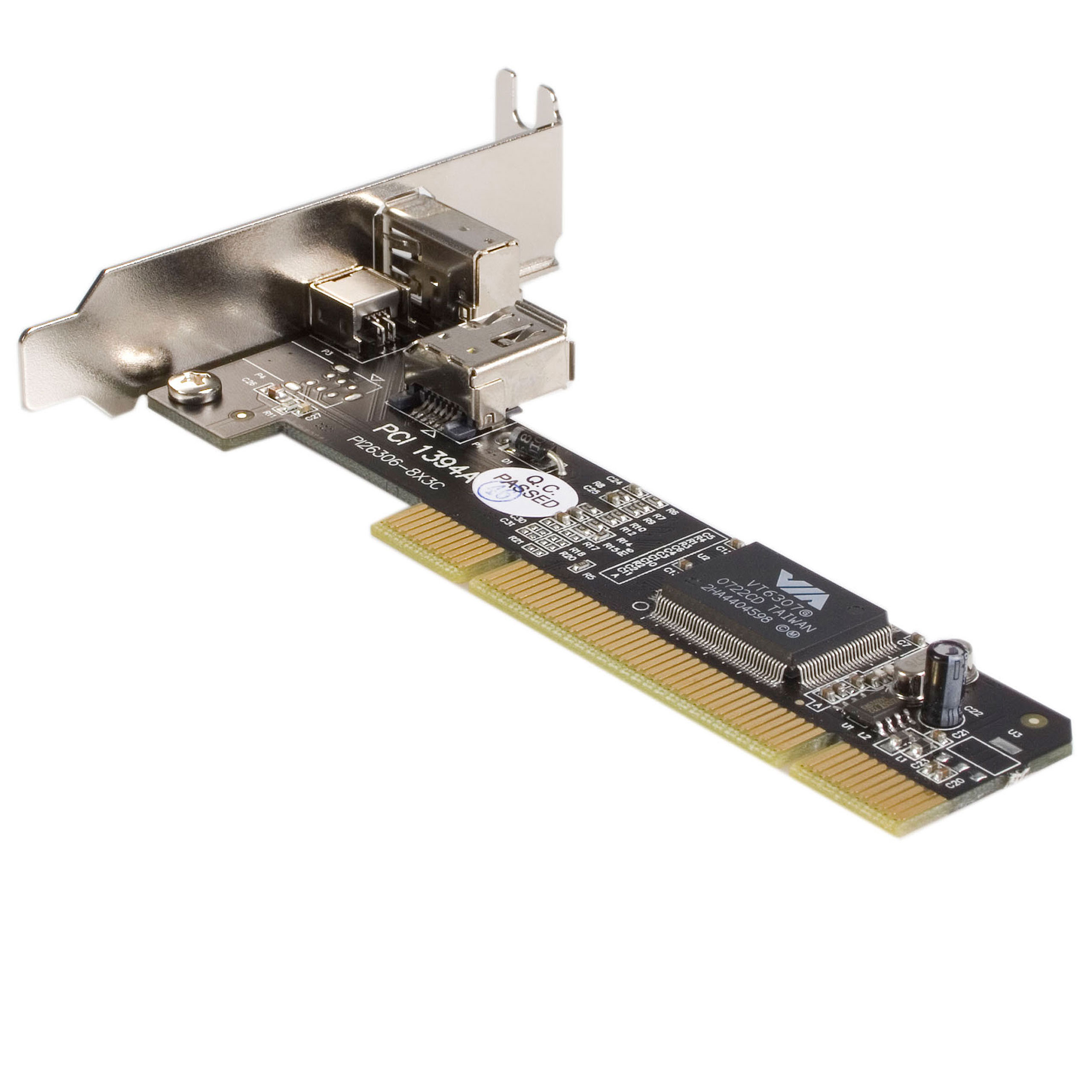

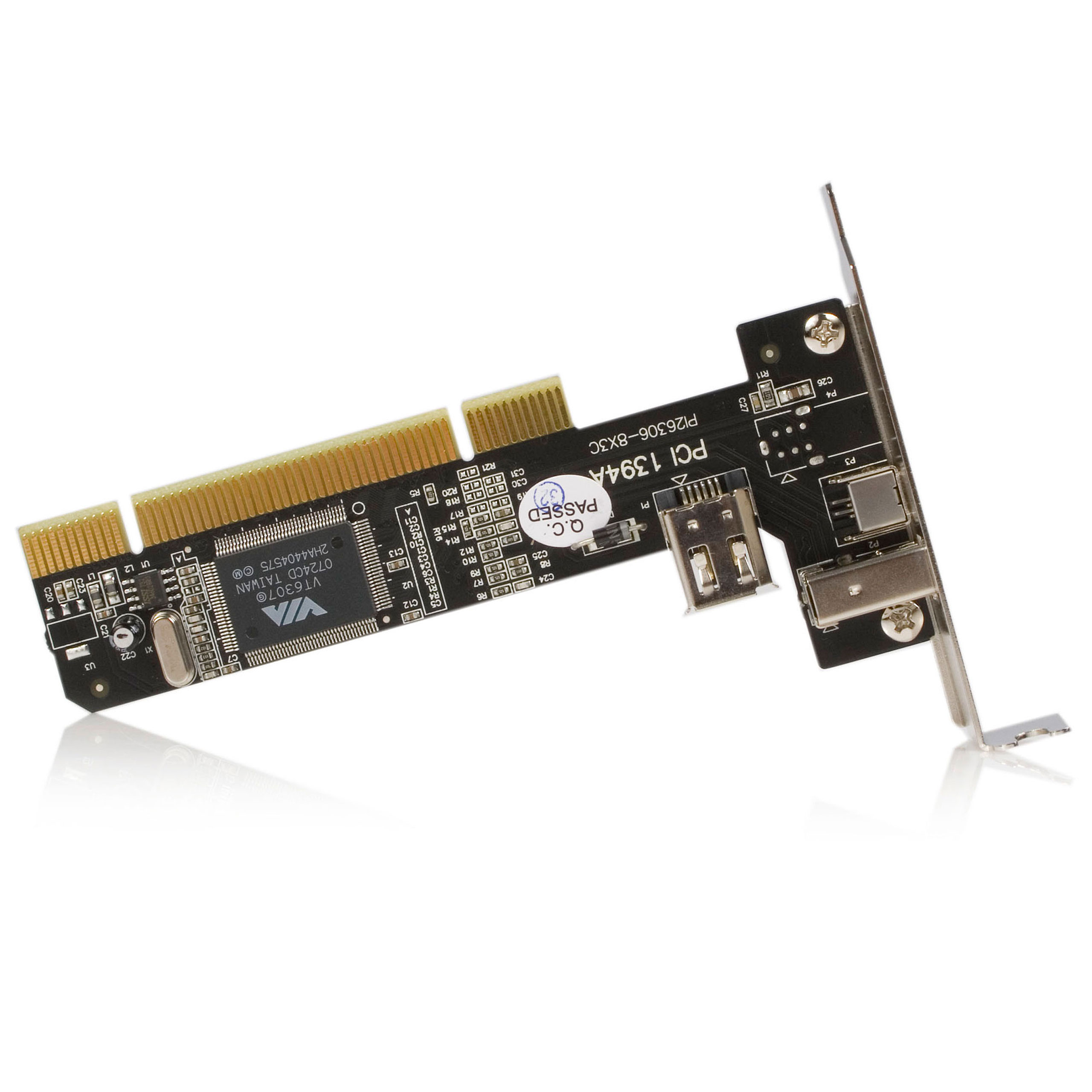

Low Profile PCI 2 Port Firewire Card
Add 2 external and 1 internal FireWire400 port to any computer with a low profile PCI slot
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Low Profile PCI 2 Port Firewire Card Product Number PCI1394_2LP UPC 065030809931 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 Firewire Cards Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) 3 Port PCI LP 1394a FW Adapter Card Product Title (Standard) 3 Port PCI Low Profile 1394a FireWire Adapter Card Product Title (Long) 3 Port PCI Low Profile 1394a FireWire Adapter Card Product Title (AMZ) 3 Port PCI Low Profile 1394a FireWire Adapter Card - 1394a FW PCI FireWire 400 Card (PCI1394_2LP) Title Ingram (Part 1) 3 Port PCI Low Profile 1394a Fir Title Ingram (Part 2) eWire Adapter Card Website Product Headline Add 2 external and 1 internal FireWire400 port to any computer with a low profile PCI slot Bullet 1 Two external FireWire400 ports and one shared internal port with support for transfer rates up to 400 Mbps Bullet 2 Complaint with IEEE 1394-1995, 2000 and OHCI 1.1 standards Bullet 3 Compliant with PCI revision 2.2 specifications Bullet 4 Plug-and-Play and Hot-Swap compatible Bullet 5 Full/Low Profile installation brackets included Bullets (Consolidated) Add 2 external and 1 internal FireWire400 port to any computer with a low profile PCI slot - PCI FireWire Card - 1394 PCI FireWire Card - PCI FireWire 400 - 2 Port FireWire Card - Dual Port FW 1394a PCI Card - up to 400Mbps - Standard Bracket is also included Marketing Copy Applications - Add a high-speed FireWire port to a desktop or small form factor system without any FireWire ports
- Connect a digital camera to a PCI enabled desktop to download photos and video
- Connect a high-speed external hard drive to an PCI enabled system
Website Search Keyword iPod Special Notes The internal port and the top external port share the same connection, meaning that only one of these two ports can be used at a time. Configured with low bracket and standard bracket included System and Cable Requirements 1 x Free PCI slot Accessory Products - 1394_6
- 1394_10
- 1394_15
- 1394_46_6
- 1394_46_10
- 1394_46_15
- FIRE46FM
- 1394_6FLBG
- 1394_6FLRY
- 1394_6LEDBL
- 1394_6LEDRD
Related Products - PCI1394B_3
- PCI1394MP
- PCI1394_4
- PCI1394_2
- PEX1394A2
- PEX1394B3LP
- PEX1394A2DV
- PEX13943
Replacement Product PCI1394MP Product Weight (g) 140 TAA Compliant No Maximum Data Transfer Rate 400 Mbps OS Compatibility - Windows 7
- Windows 8
- Linux
- Windows Server 2012
Bus Type PCI / PCI-X (5 / 3.3V) Card Type Low Profile (SP bracket incl.) Chipset ID VIA/VLI - VT6307 Industry Standards - PCI 2.1
- IEEE 1394
- IEEE 1394a
- OHCI

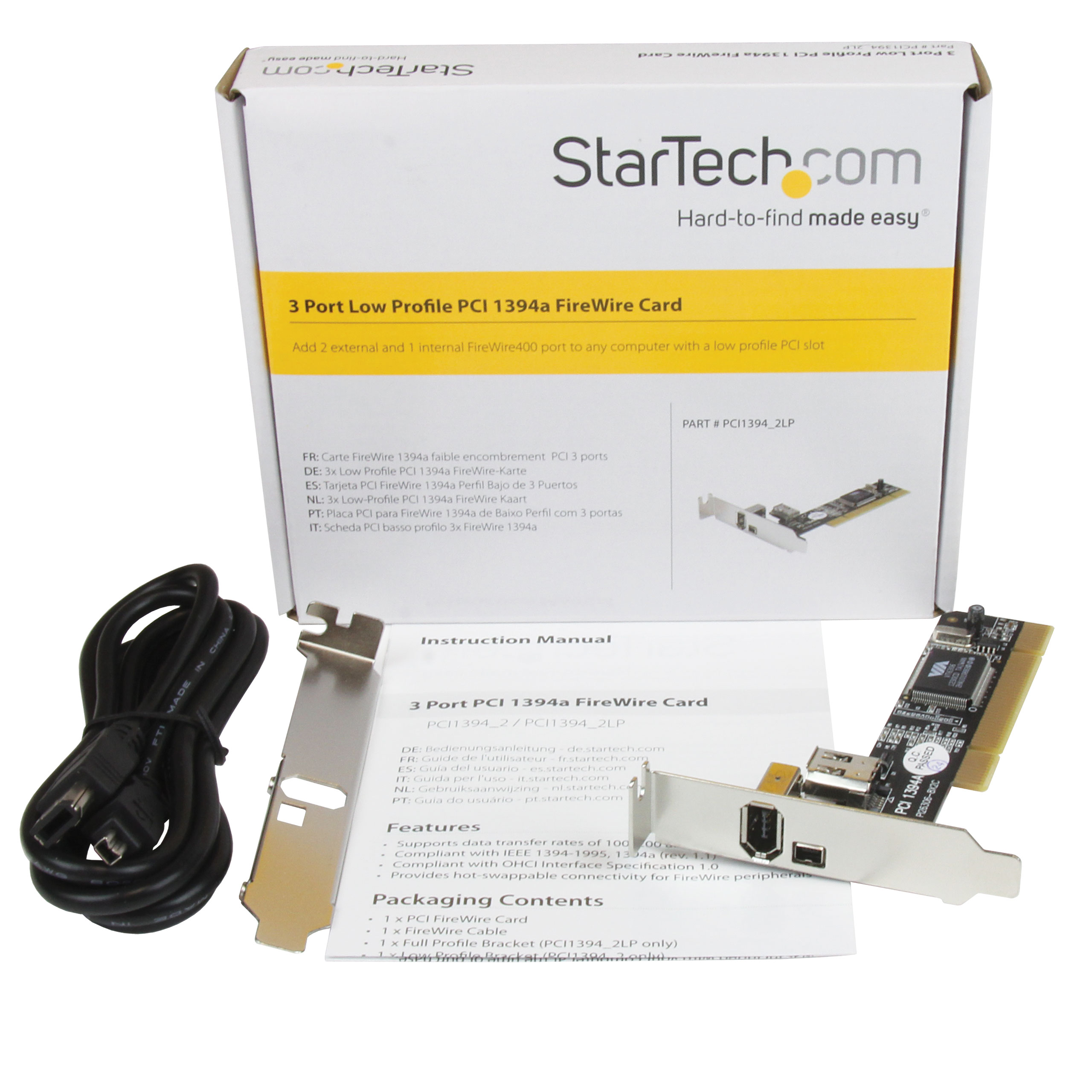

Interface/Bridge FireWire 400 (1394a) Carton Depth (mm) 760 Carton Height (mm) 246 Carton Quantity 50 Carton Weight Gross (g) 12200 Included in Package - 1 - 2 Port Low Profile Firewire Card
- 1 - 4-pin to 6-pin Firewire Cable
- 1 - Instruction Manual
- 1 - Full Profile Bracket
Package Depth (mm) 36 Package Height (mm) 130 Package Width (mm) 180 Package Quantity 1 Package Weight (g) 220 Packaging Description 3x Low Profile PCI 1394a FireWire Card Packaging Description India 3x Low Profile PCI 1394a FireWire Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 2 (Quantity) 1 Connector 3 FireWire 400 (4-Pin, 400Mbps, No Bus Power) Connector 3 (Quantity) 1 Connector 4 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
