PCI1394_4

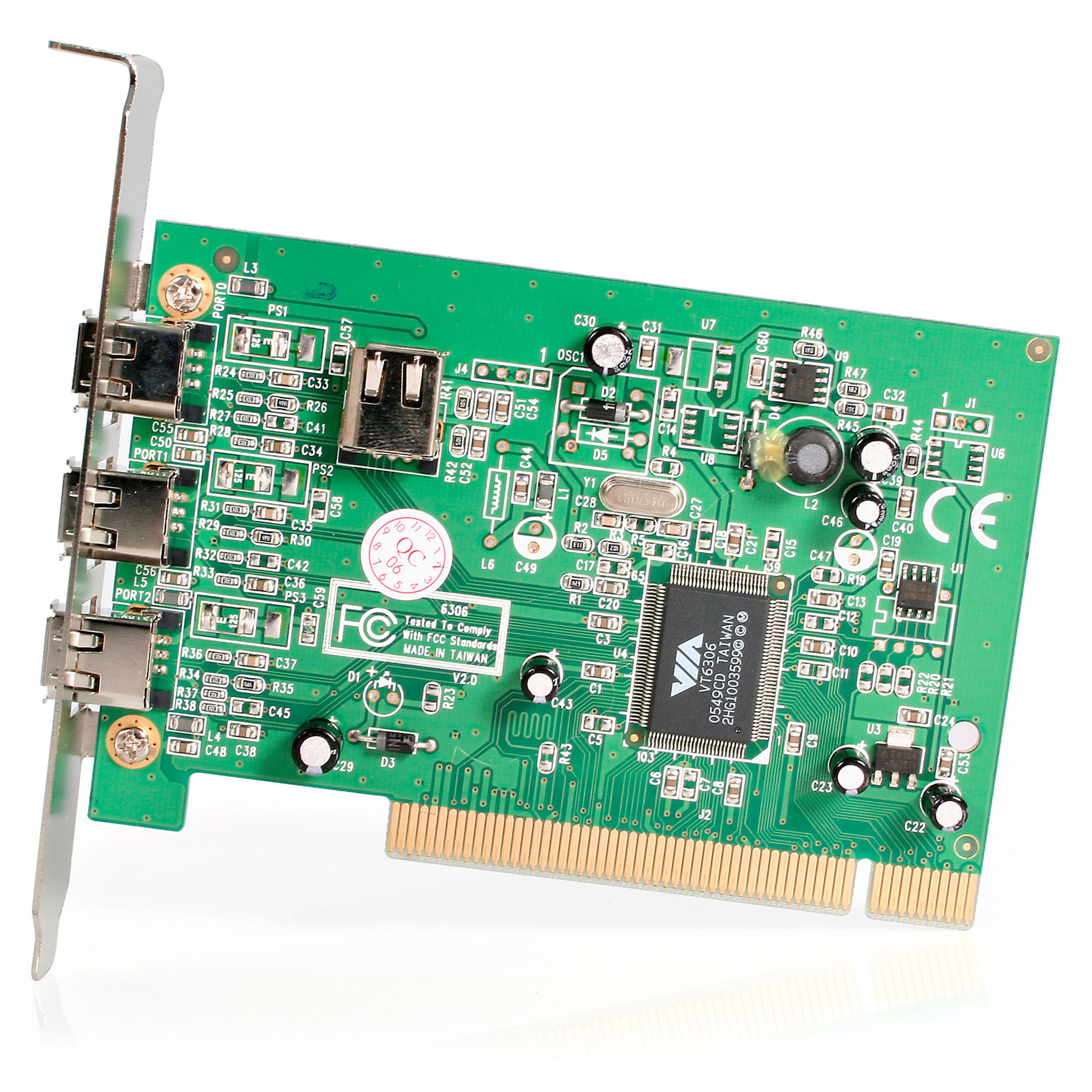

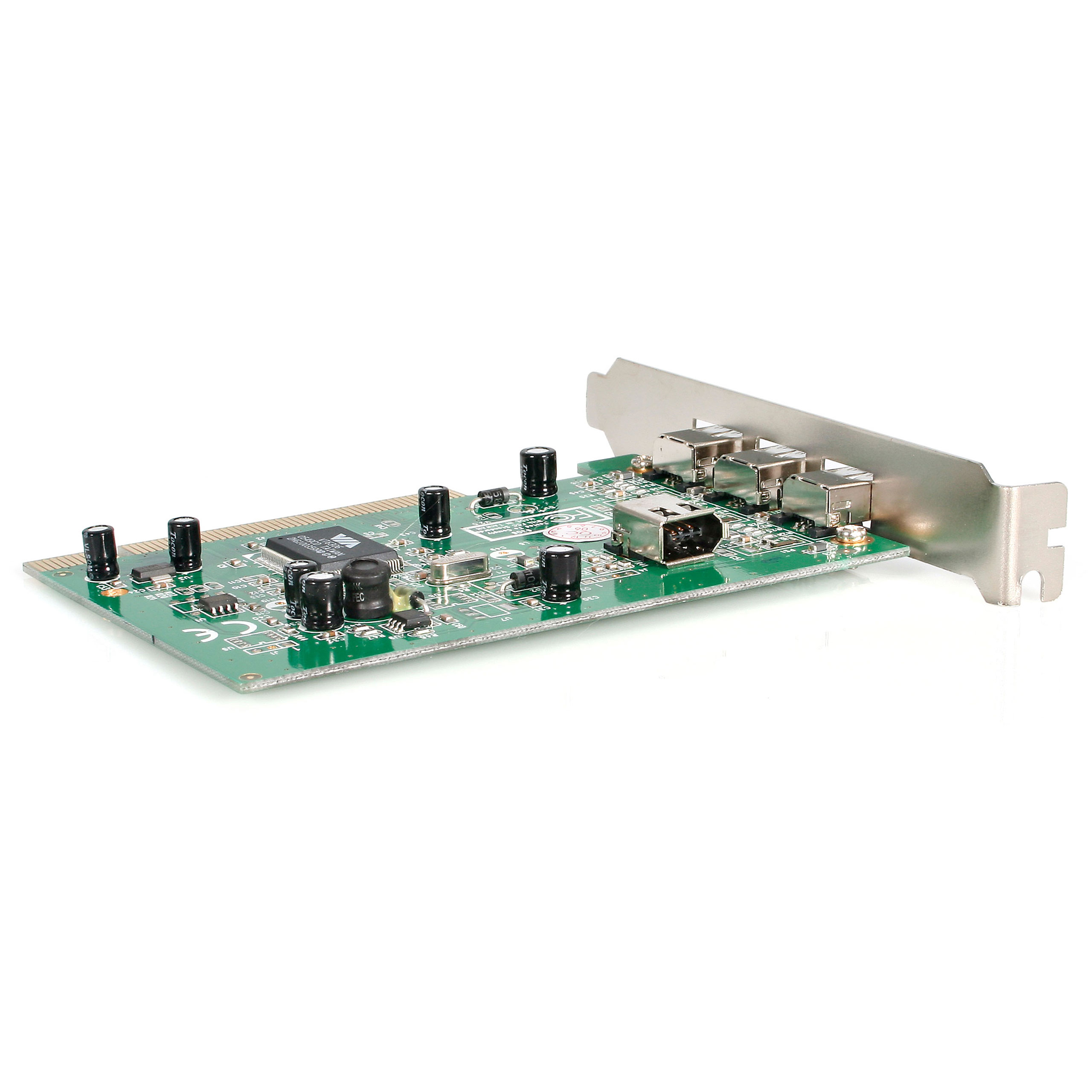

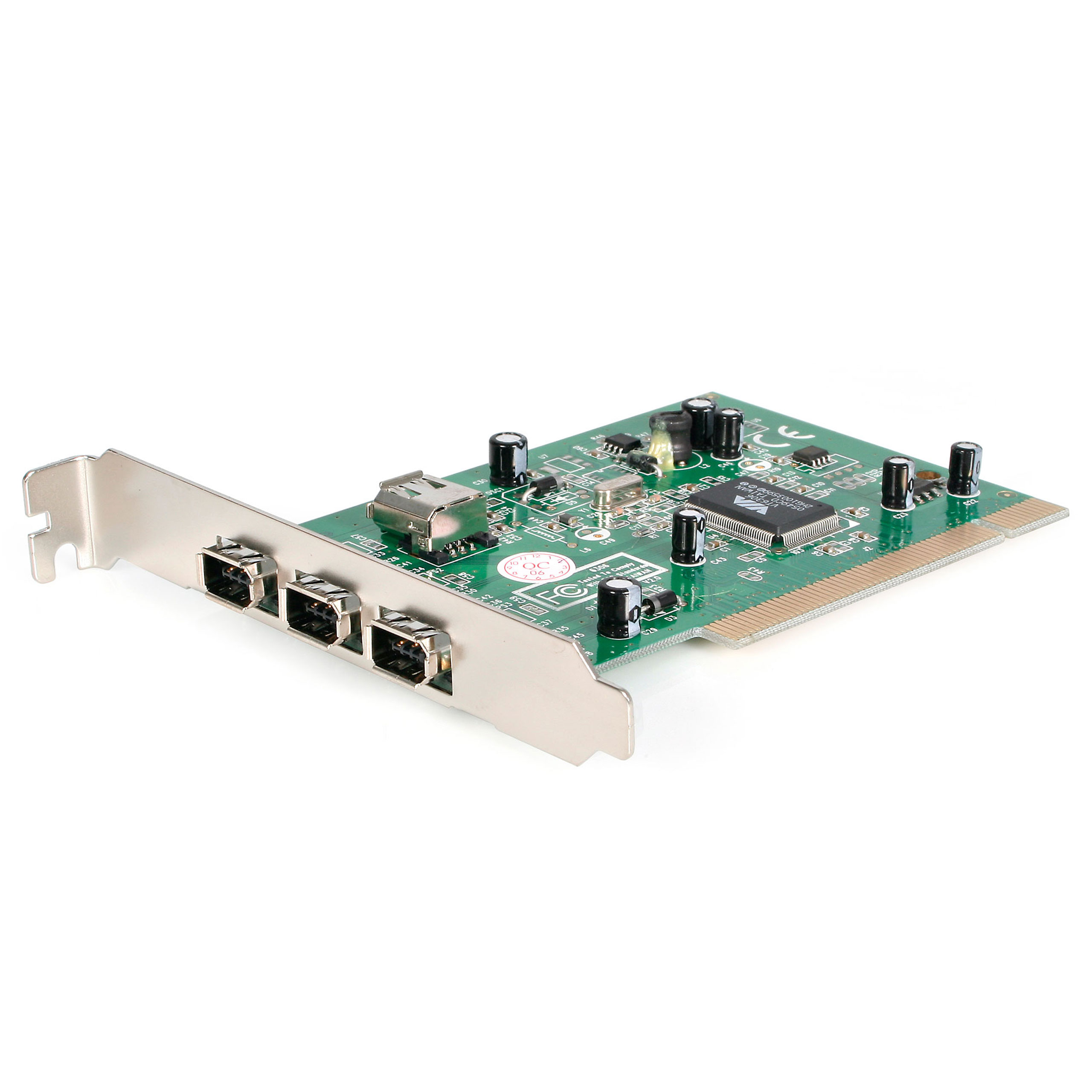

4 Port IEEE-1394 PCI Firewire Card

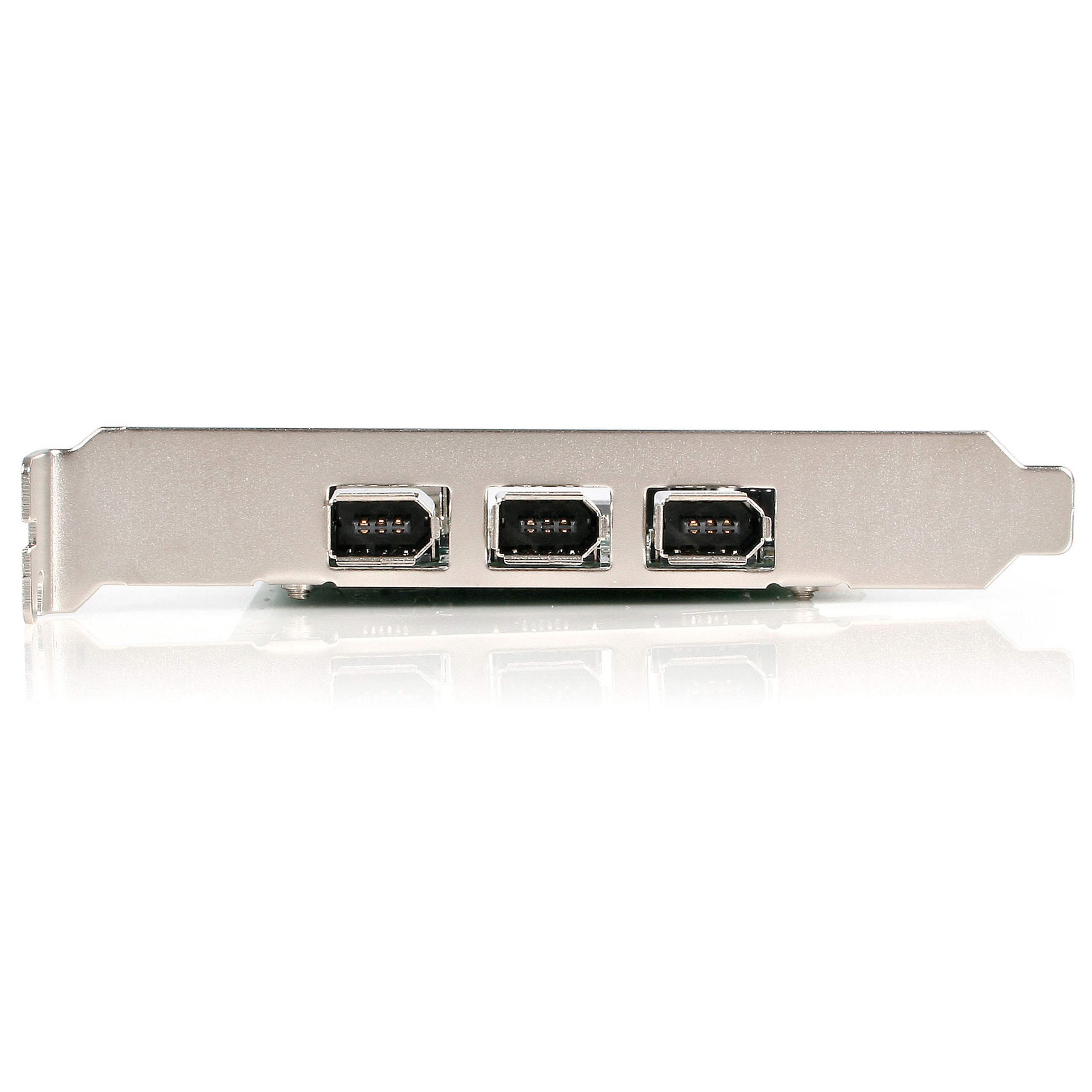

Add 3 external and 1 shared internal FireWire400 ports through a PCI slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port IEEE-1394 PCI Firewire Card Product Number PCI1394_4 UPC 065030785341 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 Firewire Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 4 Port PCI 1394a FireWire Adapter Card Product Title (Standard) StarTech.com 4 Port IEEE 1394 FireWire PCI Card - FireWire adapter - PCI - Firewire - 4 ports Product Title (Long) 4 Port PCI 1394a FireWire Adapter Card with Digital Video Editing Kit Product Title (AMZ) 4 Port PCI 1394a FireWire Adapter Card with Digital Video Editing Kit - PCI FireWire 400 - 1394 Card (PCI1394_4) Title Ingram (Part 1) 4 Port PCI 1394a FireWire 400 Ad Title Ingram (Part 2) apter Card Website Product Headline Add 3 external and 1 shared internal FireWire400 ports through a PCI slot Bullet 1 Plug-and-Play and hot-swap compatible Bullet 2 3 external, 1 shared internal FireWire400 port, with supported data transfer rates up to 400 Mbps Bullet 3 Compliant with IEEE 1394a - 2000 as well as 1394-1995 standards Bullet 4 Includes Video Editing kit: Ulead Video Studio SE and FireWire cable Bullets (Consolidated) FireWire adapter - PCI - Firewire - 4 ports Marketing Copy Applications - Add a high-speed FireWire port to a desktop without any FireWire ports
- Connect a digital camera to a desktop with a PCI slot to download photos and video
- Connect a external FireWire hard drive or optical drive to a PCI-enabled system
Website Search Keyword - iPod
- PCI1394_2LP
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes The internal port and the top external port cannot be used at the same time. Only one or the other is active at a time. System and Cable Requirements Unused PCI slot Accessory Products - 1394_6
- 1394_10
- 1394_15
- 1394_46_6
- 1394_46_10
- 1394_46_15
- FIRE46FM
- 1394_6FLBG
- 1394_6FLRY
- 1394_6LEDBL
- 1394_6LEDRD
Related Products - PCI1394MP
- PCI1394_2
- PCI1394_2LP
- PCI1394B_3
Product Length (mm) 120 Product Width (mm) 18 Product Height (mm) 80 Product Weight (g) 70 TAA Compliant Yes Maximum Data Transfer Rate 400 Mbps OS Compatibility - Linux
- Windows 7
- Windows 8
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows 11
Bus Type PCI (5 Volt) Card Type Standard Profile Chipset ID VIA/VLI - VT6306 Industry Standards - IEEE 1394-1995
- IEEE 1394a
- OHCI
- PCI 2.1

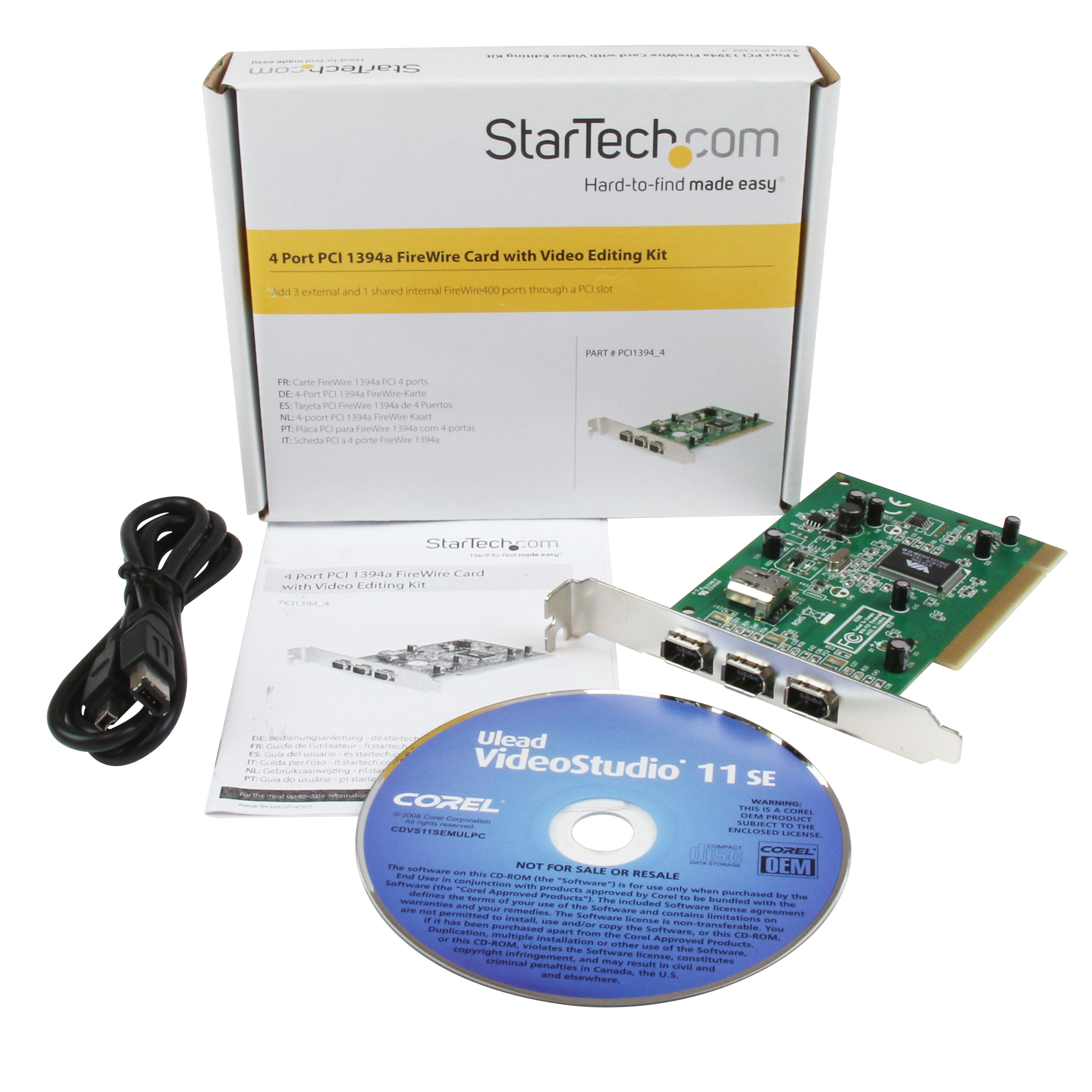

Interface/Bridge FireWire 400 (1394a) Carton Depth (mm) 760 Carton Height (mm) 246 Carton Quantity 50 Carton Weight Gross (g) 15200 Included in Package - 1 - PCI Firewire Card
- 1 - Firewire cable 4pin-6pin
- 1 - Instruction Manual
- 1 - Driver and Software CD
Package Depth (mm) 141 Package Height (mm) 30 Package Width (mm) 166 Package Quantity 1 Package Weight (g) 189 Packaging Description 4 Port PCI 1394a FireWire Card Packaging Description India 4 Port PCI 1394a FireWire Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 2 (Quantity) 3 Connector 3 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
