PCI150WN1X1
PCI Wireless N Adapter 150Mbps 802.11b/g/n - 1T1R
Add Wireless-N connectivity to a desktop PC through a PCI slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name PCI Wireless N Adapter 150Mbps 802.11b/g/n - 1T1R Product Number PCI150WN1X1 UPC 065030852494 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Wireless Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX049X Product Title (Ultra-Short) PCI Wireless N Card Product Title (Short) PCI Wireless N Card - 150Mbps 1T1R Product Title (Standard) PCI Wireless N Card - 150Mbps 802.11b/g/n Network Adapter Card – 1T1R 2dBi Product Title (Long) PCI Wireless N Card - 150Mbps 802.11b/g/n Network Adapter Card – 1T1R 2dBi Product Title (AMZ) PCI Wireless N Card - 150Mbps 802.11b/g/n Network Adapter Card – 1T1R 2dBi WiFi N PCI Card - 802.11n PCI - Wireless NIC (PCI150WN1X1) Title Ingram (Part 1) PCI 802.11n Wireless Network Title Ingram (Part 2) Adapter 150Mbps WiFi 1T1R Website Product Headline Add Wireless-N connectivity to a desktop PC through a PCI slot Bullet 1 Backward compatible with IEEE 802.11b/g standards for up to 11/54Mbps connections respectively with Wireless-B and Wireless-G networks Bullet 2 Support for WMM/WMM-PS Quality of Service (QoS) Bullet 3 Includes Low Profile/Half-Height installation bracket Bullet 4 1 Transmitter/ 1 Receiver (1x1:1) antenna configuration Bullet 5 IEEE 802.11n compliant, with support for wireless data rates of up to 150Mbps Bullets (Consolidated) Add Wireless-N connectivity to a desktop PC through a PCI slot - Compatible with PCI equipped computers such as HP Compaq Desktops - PCI Network Card/PCI NIC/Wireless PCI card - Supports Wireless 802.11 N/G (150 Mbps) for high speed wireless Internet applications such as online gaming and Video Streaming - Upgrade your internal PCI Wireless NIC - Increase WiFi range and speed by adding Wireless G compatible card and#8212; PCI Wireless N Card/PCI Wireless Network Adapter Card Marketing Copy Applications - Connect a remote workstation PC to a wireless-N network, in environments where running network cables is not feasible
- Replace or upgrade the wireless capabilities of a desktop computer
Required Regulatory Compliance Marks ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID System and Cable Requirements Available PCI expansion card slot Accessory Products - RPSMA10MF
- NRPSMA1FM
- RPSMASMA10MM
- NRPSMA1MM
Related Products - PCI300WN2X2
- USB300WN2X2
- PEX300WN2X2
- PEX300WN2X3
- USB150WN1X1
Humidity 10~90% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 129 Product Width (mm) 18 Product Height (mm) 99 Product Weight (g) 45 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Bandwidth 20/40 MHz Maximum Data Transfer Rate 150 Mbps OS Compatibility - Windows 8
- Linux
- Windows 7
Security Features - WEP Data Encryption
- WPA Data Encryption
- TKIP/AES

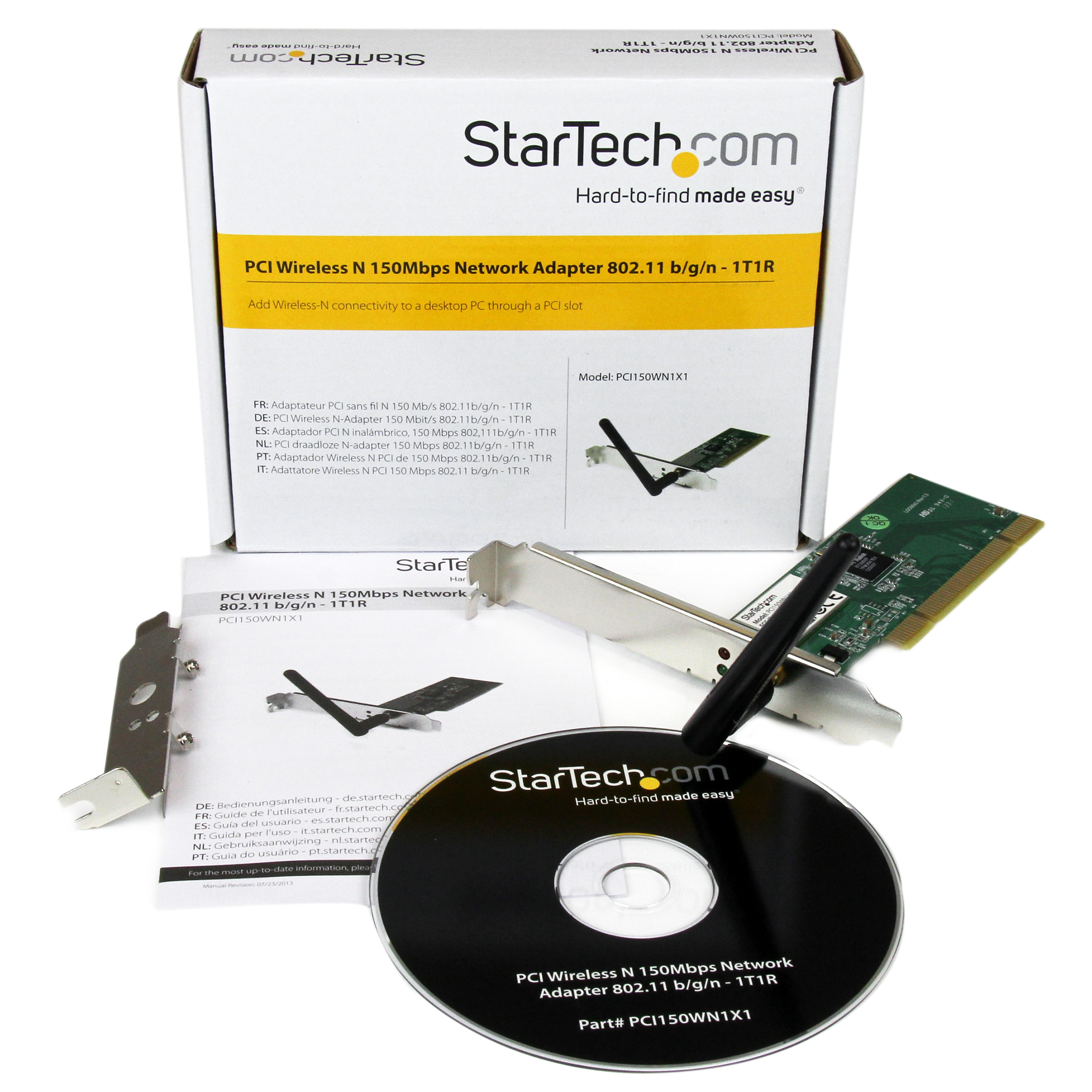

Supported Protocols CSMA/CA Antenna Configuration 1x1:1(TxR:S) Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID Ralink - RT3060F Interface/Bridge Wireless Ethernet Carton Depth (mm) 360 Carton Height (mm) 350 Carton Quantity 100 Carton Weight Gross (g) 16680 Included in Package - 1 - PCI Wireless Card
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - Low Profile Bracket
- 1 - 2dBi Antenna
Package Depth (mm) 136 Package Height (mm) 32 Package Width (mm) 163 Package Quantity 1 Package Weight (g) 150 Packaging Description PCI Wireless N Adapter 150Mbps 802.11b/g/n - 1T1R Packaging Description India PCI Wireless N Adapter 150Mbps 802.11b/g/n - 1T1R Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 RP-SMA (50 Ohm) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-07-04 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
