PCI1P2
Value 1 Port PCI Parallel Adapter Card
Add an IEEE 1284 parallel port to any PC through a PCI expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Value 1 Port PCI Parallel Adapter Card Product Number PCI1P2 UPC 065030843683 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Parallel Cards and Adapters Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 1 Port PCI Parallel Adapter Card Product Title (Standard) 1 Port PCI Parallel Adapter Card Product Title (Long) 1 Port PCI Parallel Adapter Card Product Title (AMZ) 1 Port PCI Parallel Adapter Card (PCI1P2) Title Ingram (Part 1) 1 Port PCI Parallel Adapter Card Title Ingram (Part 2) . Website Product Headline Add an IEEE 1284 parallel port to any PC through a PCI expansion slot Bullet 1 Data transfer rates of up to 1.8Mbps Bullet 2 Easy plug and play installation with I/O address and IRQ assigned by system Bullet 3 Supports both 64-bit PCI-X & 32-bit PCI slots Bullet 4 Supports EPP, ECP, SPP and BPP Bullet 5 Support for Microsoft Windows®, Linux, and DOS Bullets (Consolidated) Parallel adapter - PCI-X - IEEE 1284 Marketing Copy Applications Connecting any parallel peripheral including printers, scanners, CD-R/RWs, Zip® drives, and memory card readers to a computer, through PCI/PCI-X Website Search Keyword - EPP
- ECP
- PCI-X Parallel
- SPP
- BPP
- db25 card
- parallel card
- paralel card
- printer card
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements PC with an available PCI/PCI-X slot Accessory Products - PB10
- PB6_
- PC20
- PC30
- PC50
- PTXFER15
- PTXFER6
- SC10FF
- SC10MF
- SC20MF
- SC20MM
- SC50MM
- SC6MF
- SC6MM
Related Products - PCI1P_LP
- PCI1PECP
- PCI2PECP
- PCI1PM
- PEX1P
- PEX1PLP
Humidity 5~95% RH Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 121 Product Width (mm) 14 Product Height (mm) 63 Product Weight (g) 48 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No FIFO 16 Byte Maximum Data Transfer Rate 1.8Mbps OS Compatibility - Linux
- Windows 7
- Windows Server 2012
- Windows 8

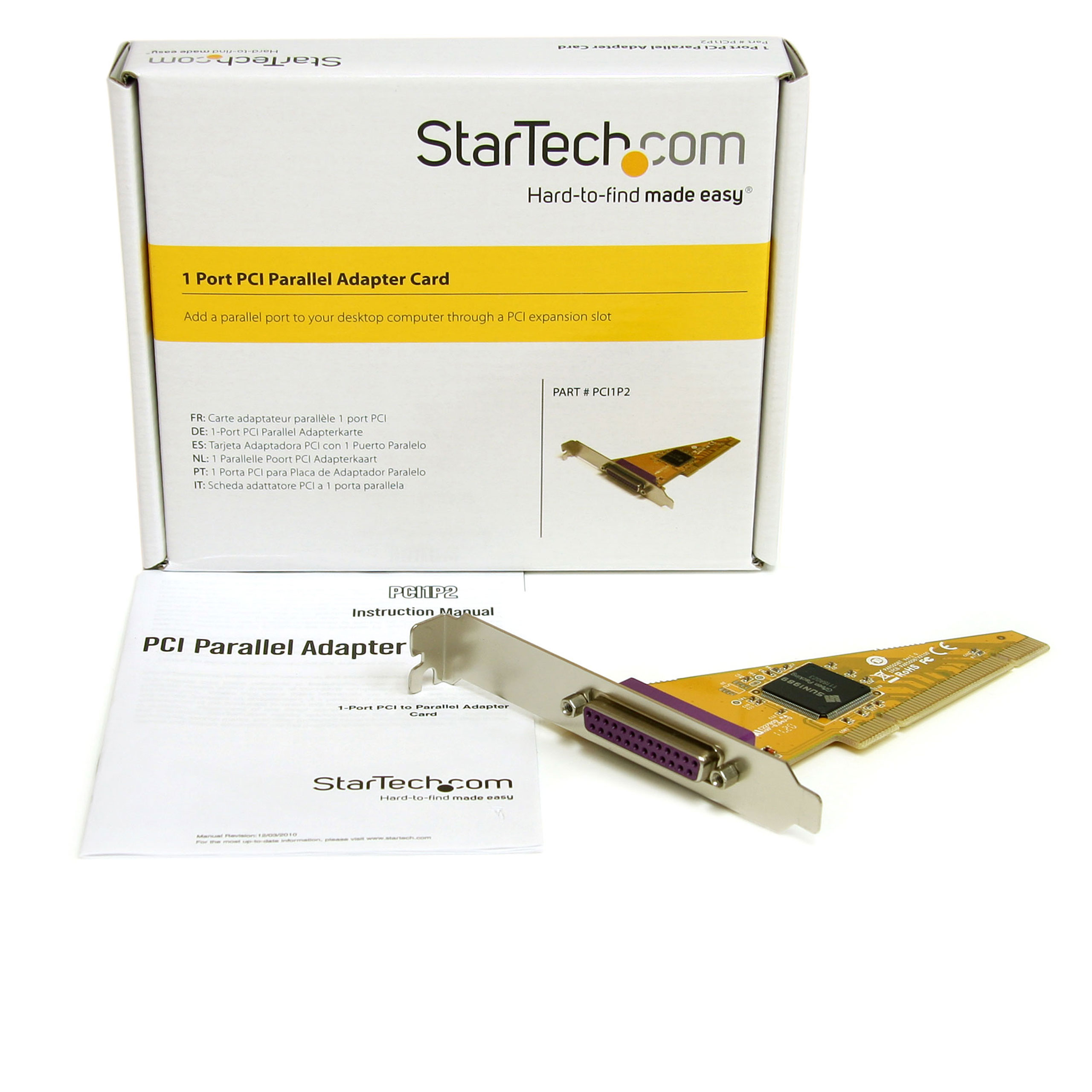

Supported Protocols BPP, ECP, EPP, SPP Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile Chipset ID Sunix - SUN1989 Industry Standards IEEE-1284, PCI Ver 3.0, 2.3, 2.2, 2.1 Interface/Bridge Parallel IO Card Port Style Integrated on Card Regulatory Approvals EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, RoHS Carton Depth (mm) 430 Carton Height (mm) 190 Carton Quantity 60 Carton Weight Gross (g) 9700 Included in Package - 1 - Driver CD
- 1 - PCI Parallel Card
- 1 - User Manual
Package Depth (mm) 140 Package Height (mm) 32 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 140 Packaging Description 1 Port PCI IEEE 1284 Parallel Card Packaging Description India 1 Port PCI IEEE 1284 Parallel Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-25 Parallel / Serial Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
