PCI1PECPDV

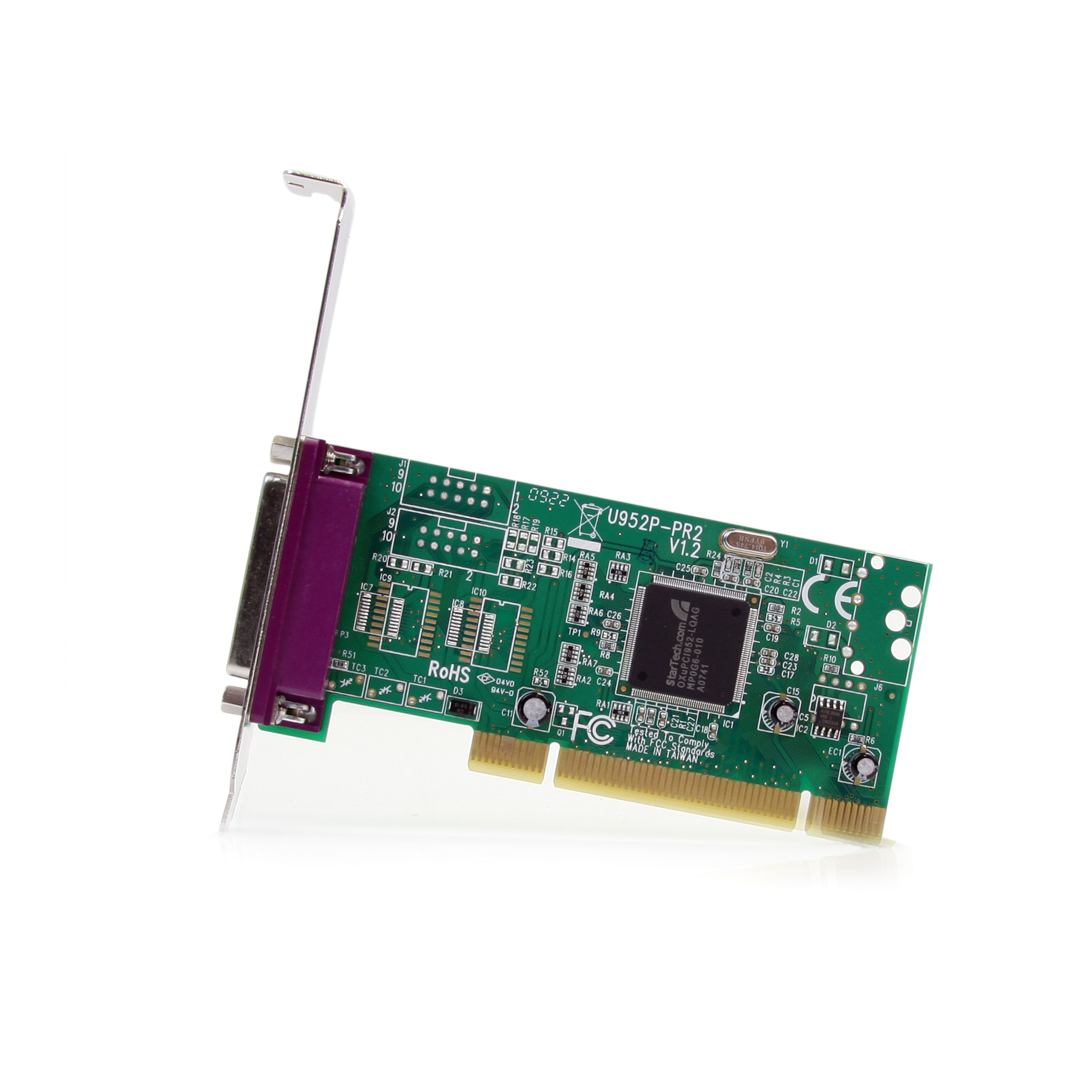

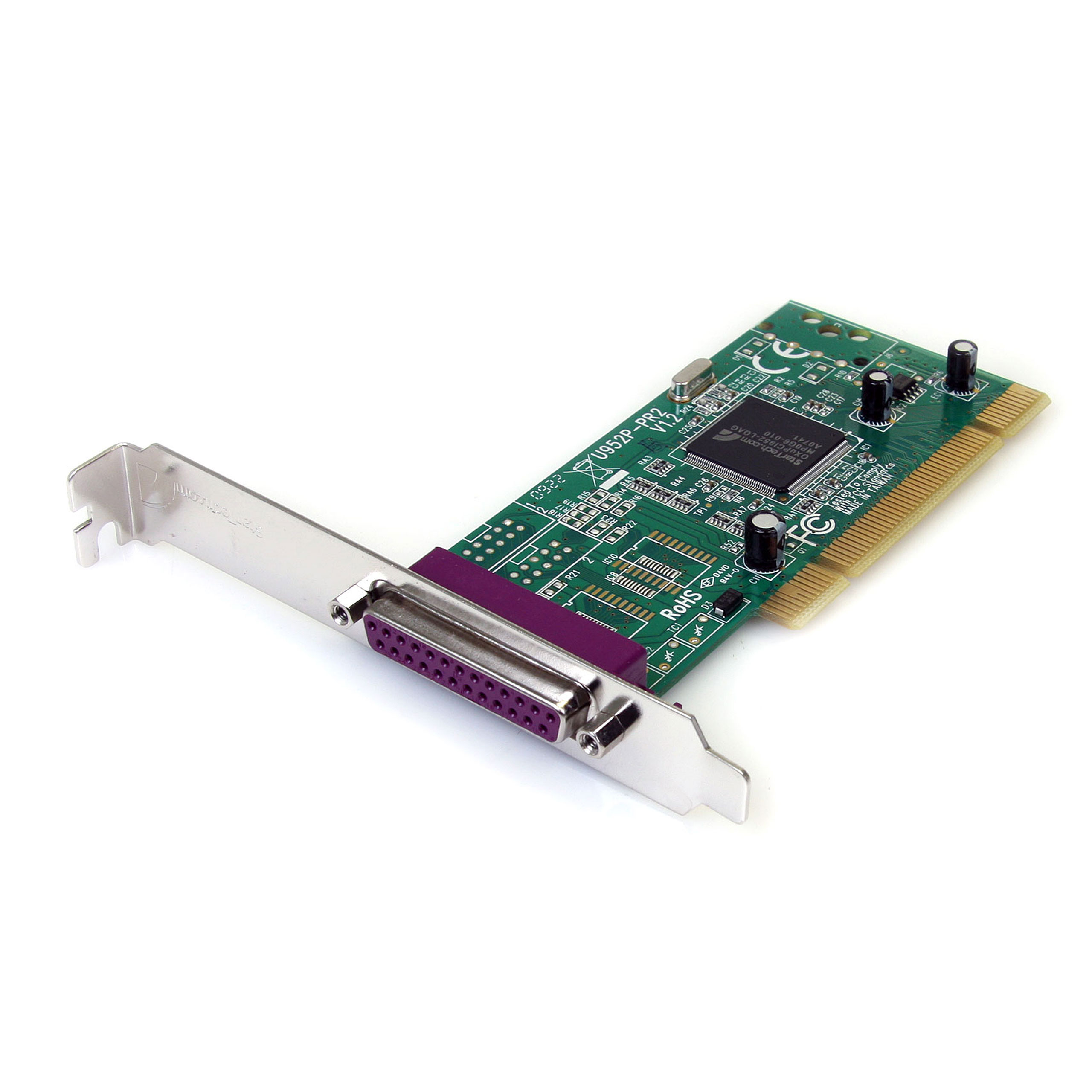

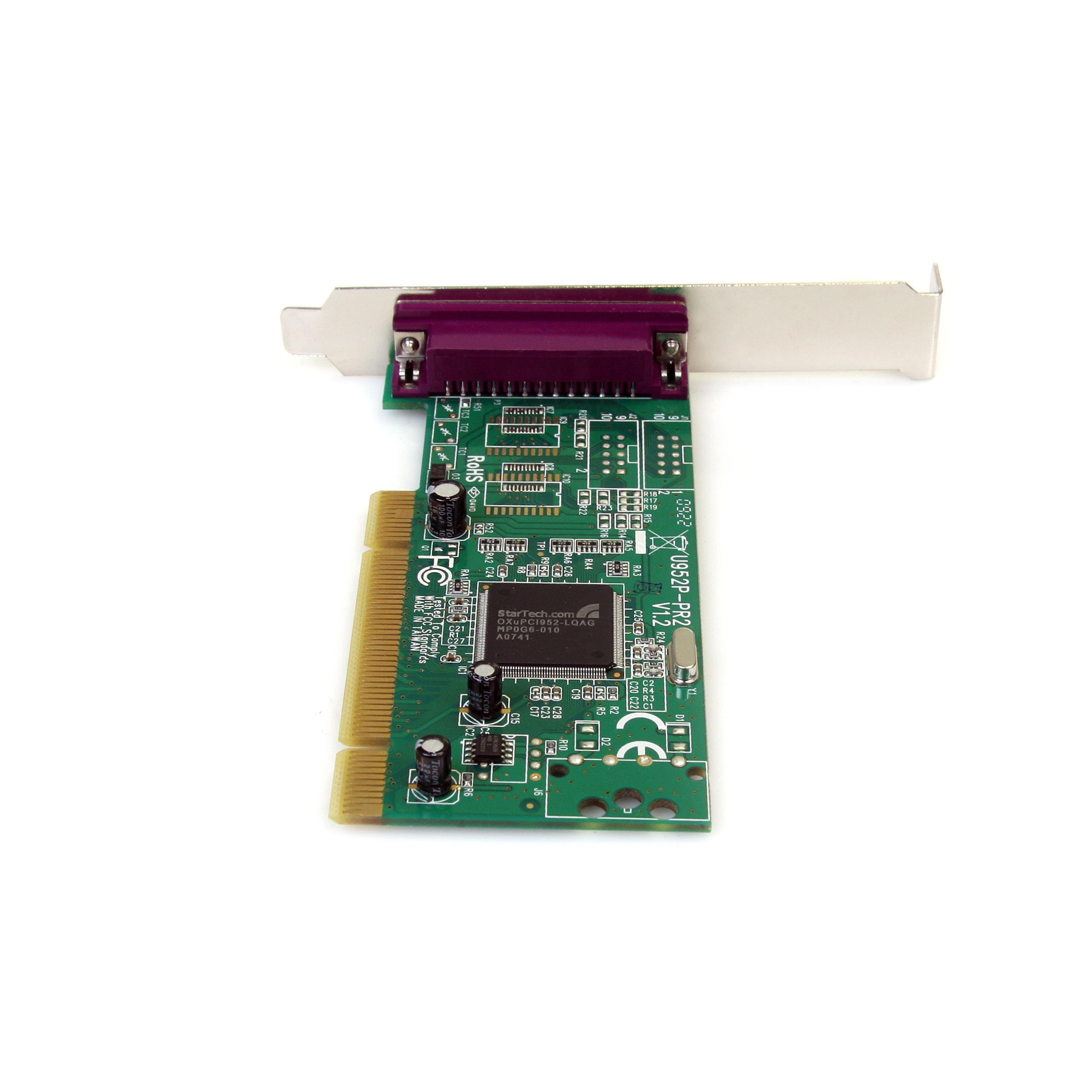

1 Port EPP/ECP Parallel Card
Add a dual voltage high-speed parallel port (EPP/ECP) to your desktop computer through a PCI expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 1 Port EPP/ECP Parallel Card Product Number PCI1PECPDV UPC 065030821766 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 1 Port PCI Dual Voltage Parallel Adapter Product Title (Standard) StarTech.com 1 Port PCI Dual Voltage Parallel Adapter Card Product Title (Long) 1 Port PCI Dual Voltage Parallel Adapter Card Product Title (AMZ) 1 Port PCI Dual Voltage Parallel Adapter Card - PCI DB25 Card - IEEE 1284 Card - PCI Parallel Card (PCI1PECPDV) Title Ingram (Part 1) 1 Port PCI Dual Voltage Parallel Title Ingram (Part 2) Adapter Card Website Product Headline Add a dual voltage high-speed parallel port (EPP/ECP) to your desktop computer through a PCI expansion slot Bullet 1 Supports 3.3 and 5V PCI slots Bullet 2 Maximum data transfer rate of 1.5 Mbps Bullet 3 Standard and low-profile bracket included Bullet 4 IRQ sharing eliminates conflicts between multiple cards Bullet 5 PCI 2.2 and PCI Power Management 1.0 compliant Marketing Copy Applications Connects any parallel peripheral including printers, scanners, CD-R/RWs, Zip® drives, and memory card readers Website Search Keyword - 3.3v or 5.0v
- Low Profile
- Paralell
Accessory Products - MC3MF
- MC6MF
- MXT100
- AT925FF
- AT925FM
- SCNM9FF
- SCNM9FM
- MXT100FF
Product Length (mm) 120 Product Width (mm) 20 Product Height (mm) 120 Product Weight (g) 60 TAA Compliant No Maximum Data Transfer Rate 1.5 Mbps OS Compatibility - Linux
- Windows 7
- Windows 8
- Windows Server 2012

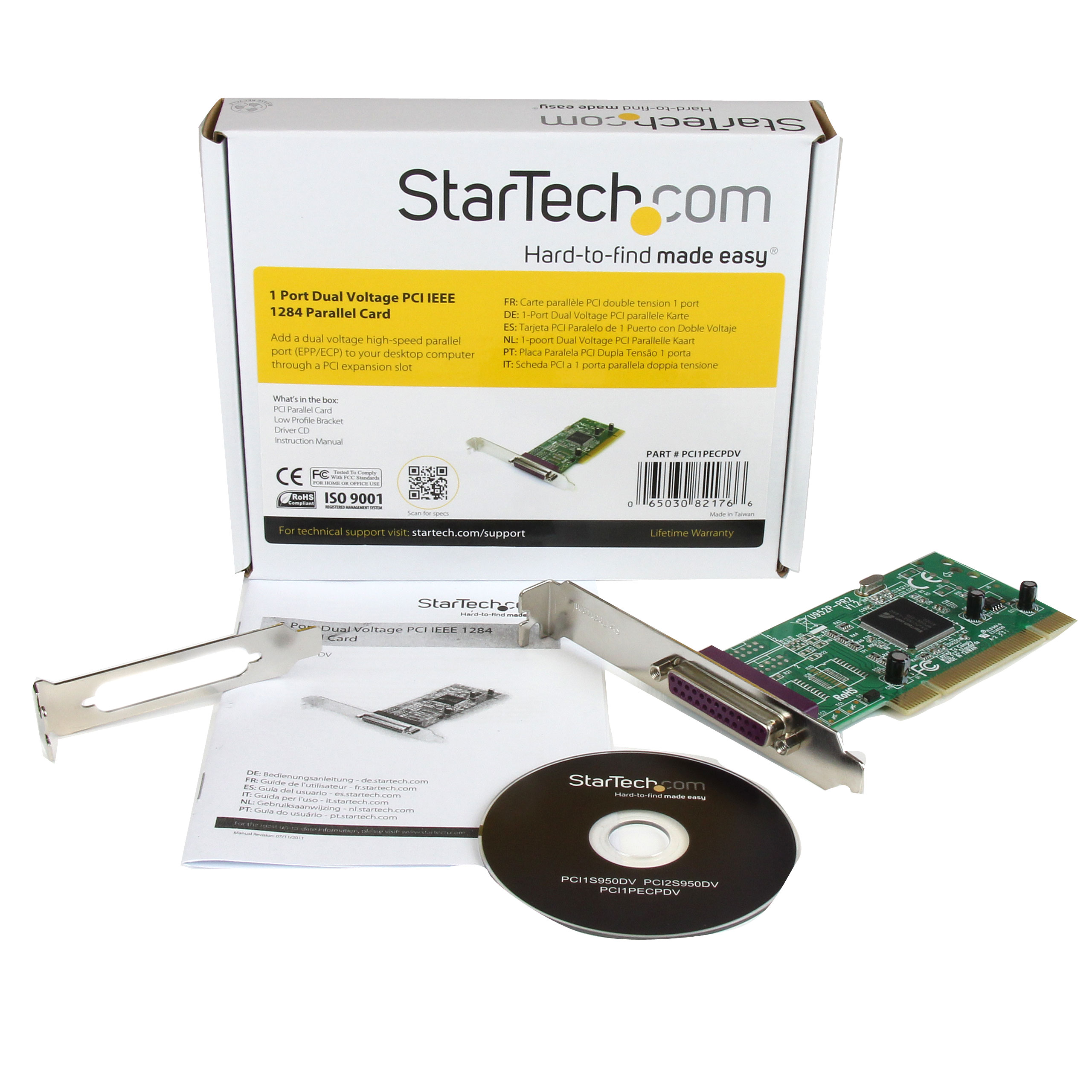

Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID PLX/Oxford - OX16PCI952 Interface/Bridge Parallel IO Card Port Style Integrated on Card Carton Depth (mm) 510 Carton Height (mm) 310 Carton Quantity 48 Carton Weight Gross (g) 7920 Included in Package - 1 - PCI Parallel Card

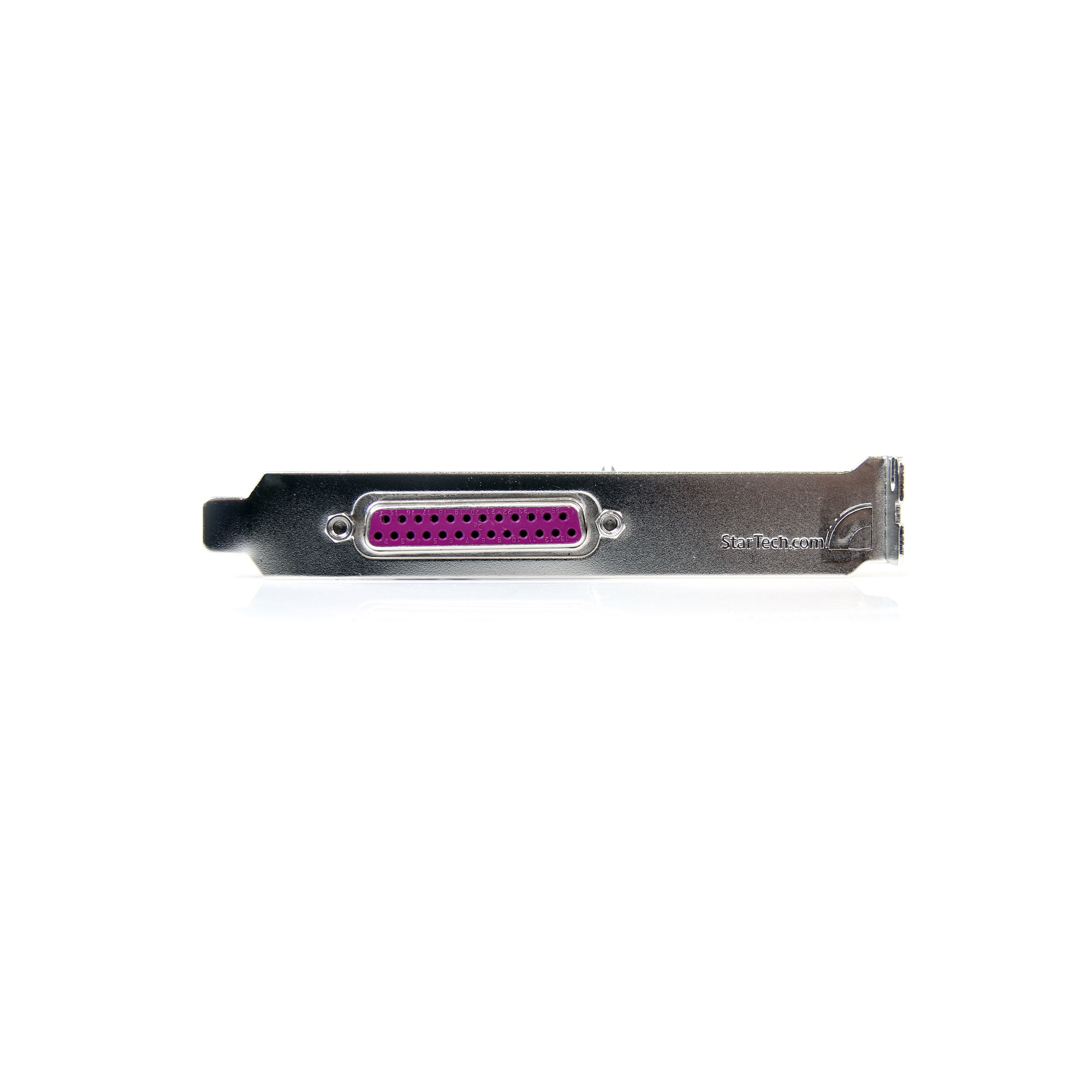

- 1 - Low Profile Bracket
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 58 Package Height (mm) 195 Package Width (mm) 148 Package Weight (g) 140 Packaging Description 1 Port Dual Voltage PCI Parallel Card Packaging Description India 1 Port Dual Voltage PCI Parallel Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-25 Parallel / Serial Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
