PCI1PEX1

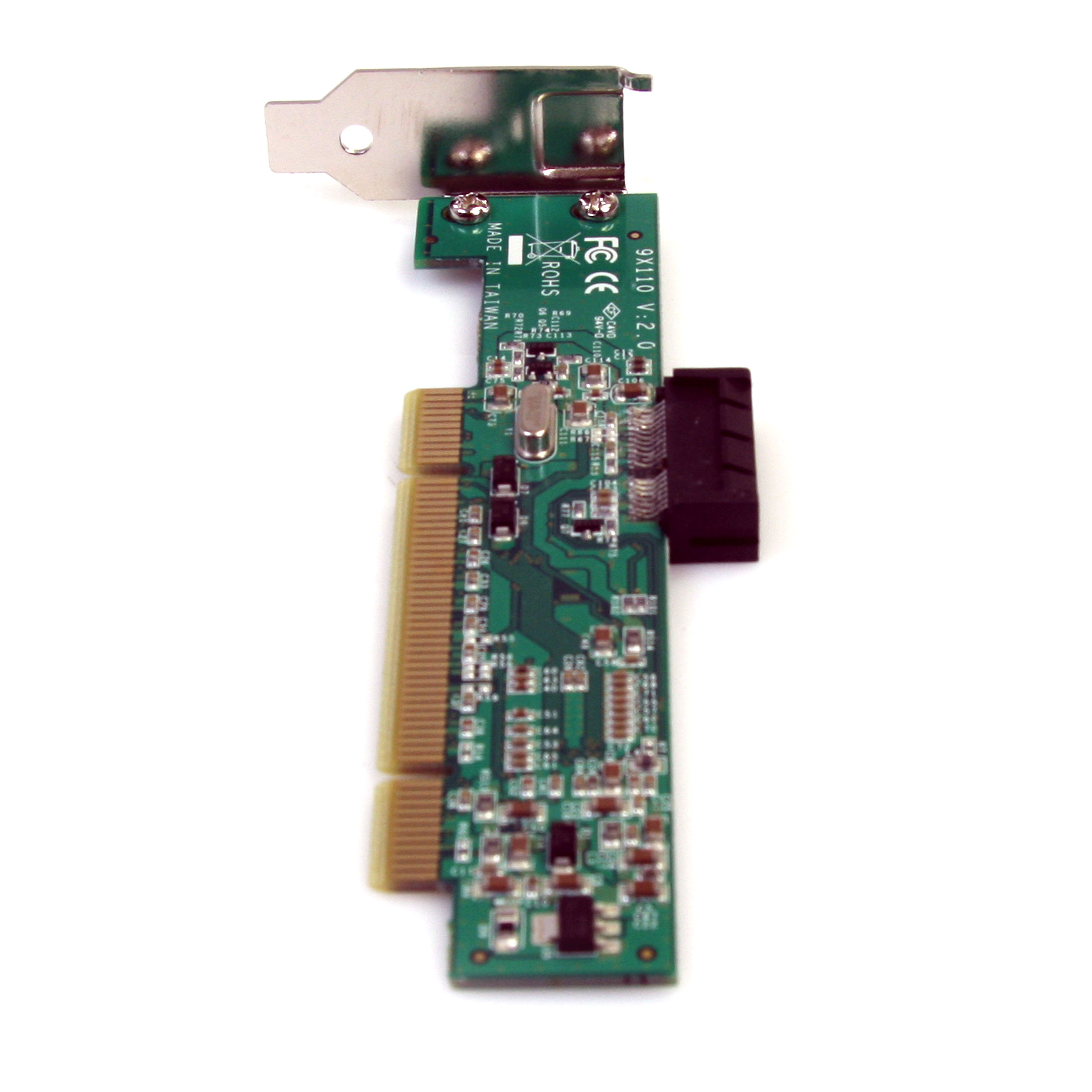

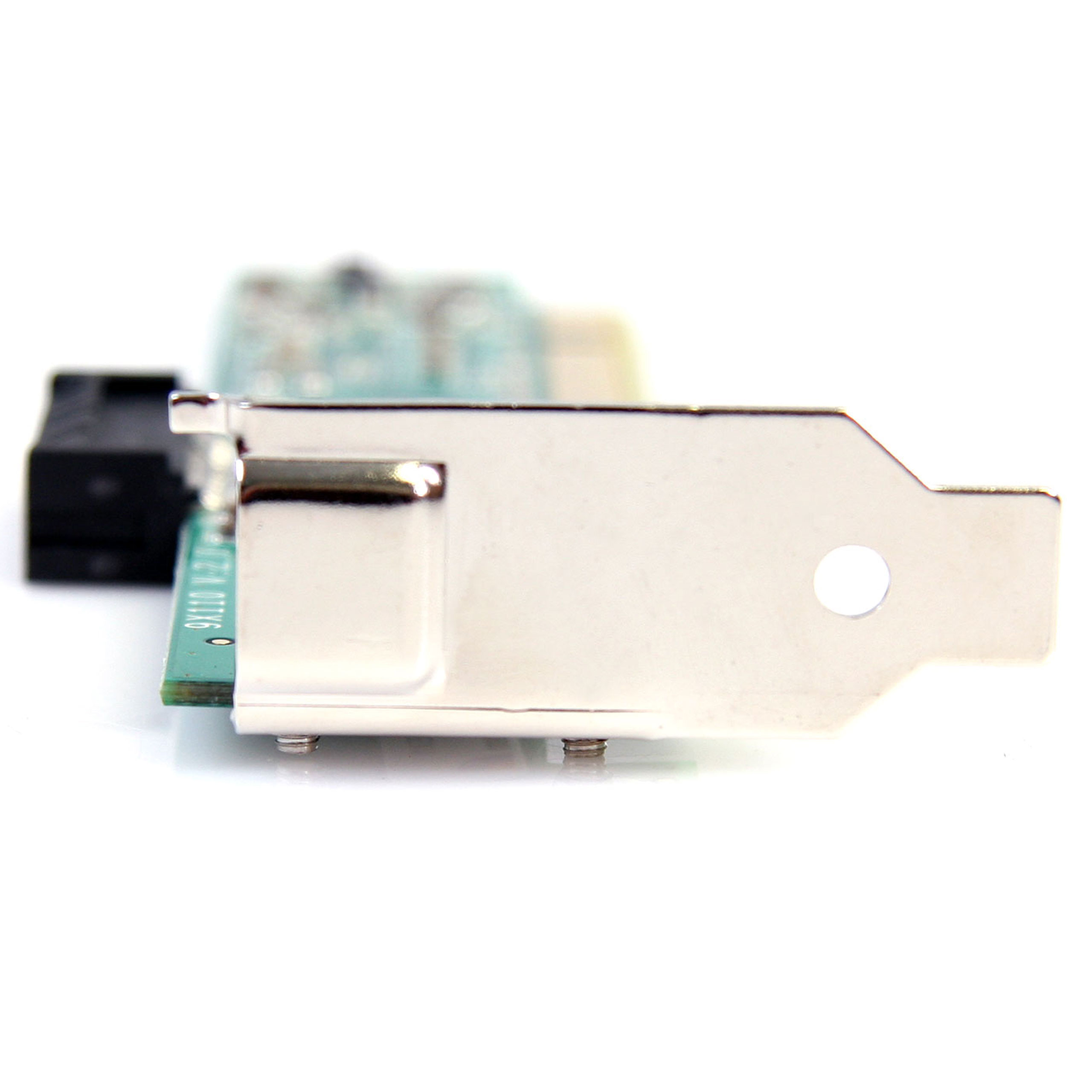

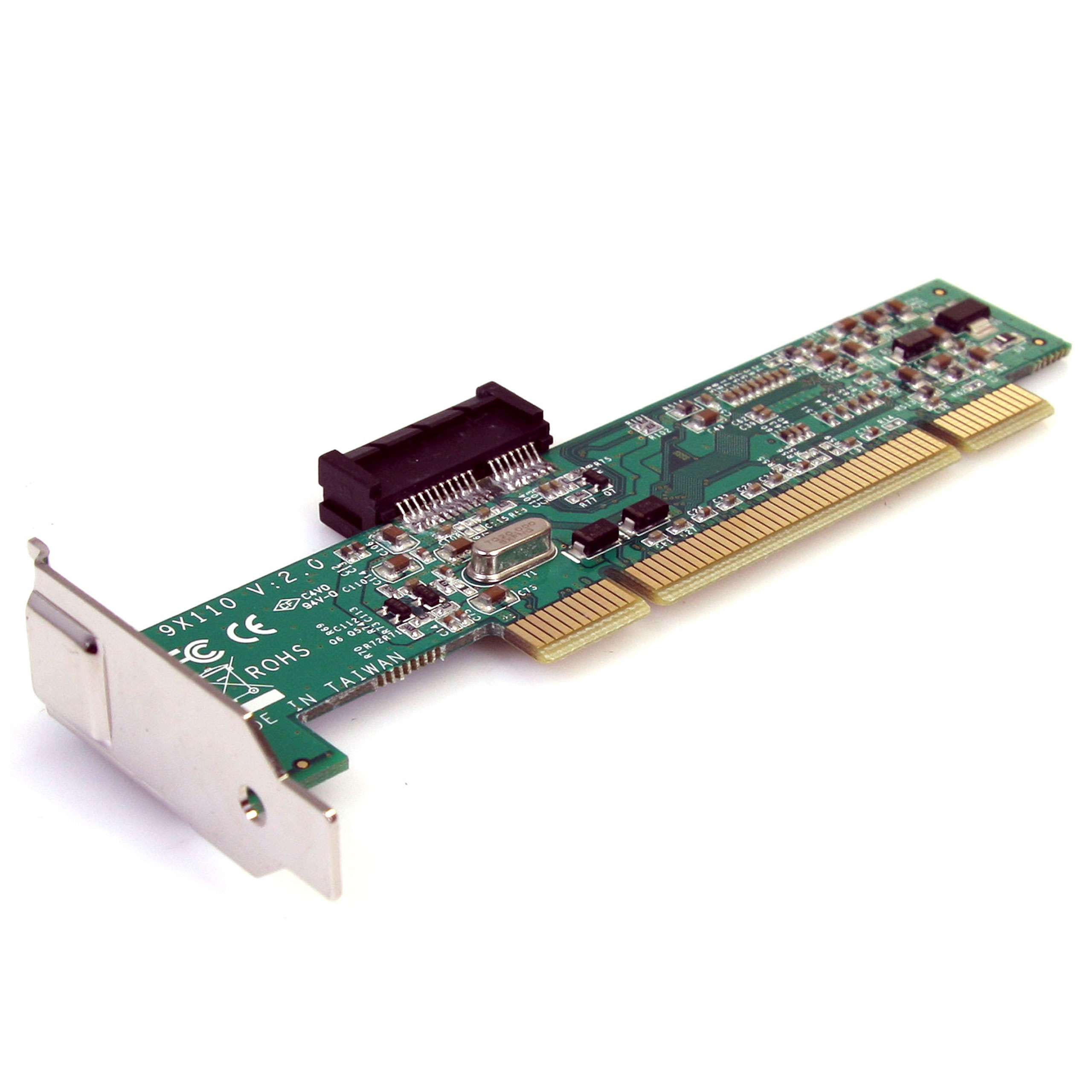

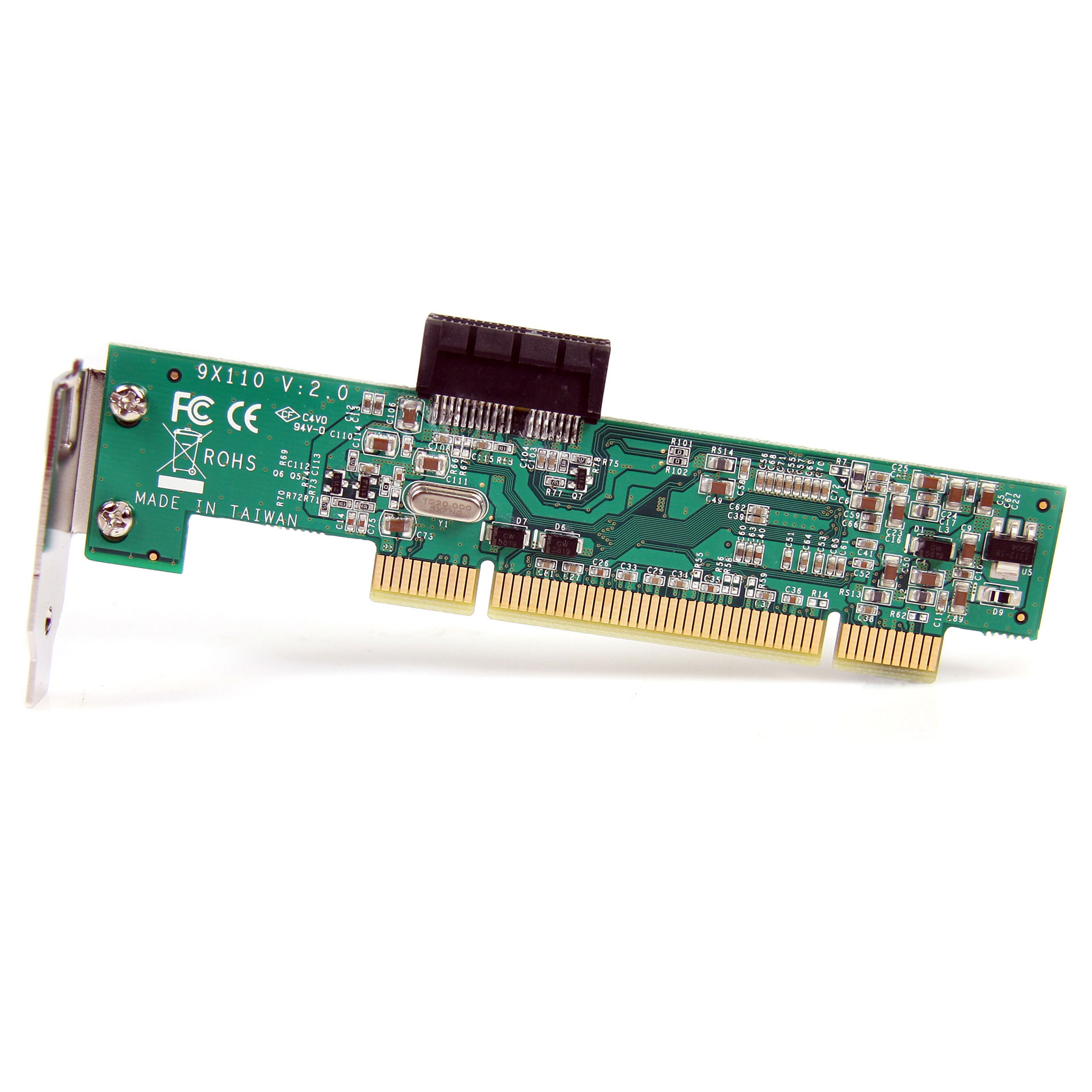

PCI to PCI Express Adapter Card
Install half-height/low profile x1 PCI Express interface cards in a standard PCI expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name PCI to PCI Express Adapter Card Product Number PCI1PEX1 UPC 065030837835 Lifecycle status Active Warranty 2 Years Taxonomy Product > Other > Unclassifiables Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Expansion Slot Conversion and Extension Family PCI Adapter Card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) PCI to PCIe Adapter Product Title (Short) PCI to PCI Express Adapter Card Product Title (Medium) . Product Title (Standard) PCI to PCI Express Adapter Card, TAA Product Title (Long) PCI to PCI Express Adapter Card - TAA Product Title (AMZ) PCI to PCI Express Adapter Card - PCIe x1 (5V) to PCI (5V & 3.3V) slot adapter - Low Profile , TAA (PCI1PEX1) Title Ingram (Part 1) PCI to PCI Express Adapter Card Website Product Headline Install half-height/low profile x1 PCI Express interface cards in a standard PCI expansion slot Bullet 1 Works with Universal Voltage PCI Slots (5V and 3.3V & 5V) Bullet 2 Compliant with PCI-to-PCIe Bridge Architecture Spec Revision 1.2 Bullet 3 PCI revision 2.3 compliant with up to 133MBps of available bandwidth Bullet 4 Innovative bracket design adapts and secures the existing low profile/half-height bracket of the PCI Card Bullet 5 No driver or software installation Bullets (Consolidated) Install half-height/low profile x1 PCI Express interface cards in a standard PCI expansion slot - PCI to PCI Express Adapter Card - PCI to PCIe Adapter Card - Use low profile PCIe expansion cards in a server/desktop motherboard PCI slot - Innovative bracket design adapts and secures the existing low profile/half-height bracket of the PCI Card Marketing Copy Applications - Use newer PCI Express cards on an older PCI-only system
- Install a low profile/half-height, PCI Express card into a full profile PCI system
- Upgrade expansion cards without having to upgrade the system
Website Search Keyword - Low Profile
- 32bit PCI
- 32bit PCI-X
- 32-bit
- 32 bit
- PCI/PCI-X
- PCI Express Single Lane
- PCIe x1
- Expansion Slot
- Bridge Adapter
- Converter
- Adapter card
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes The PCI1PEX1 combined with a low profile PCIe card bracket may not fit in some computer cases. In some cases an alternative bracket (provided by the PCIe card manufacturer) may be required to install the low profile card into the case. The included spare full profile bracket could be used as necessary as well. Related Products - PEX2ECDP
- PEX2PCI4
- PEX1PCI1
- PEX16RISER
- PCIE1RIS
- MICROAGPRIS
- MICROPCI7RIS
- PEX2PCIE4L

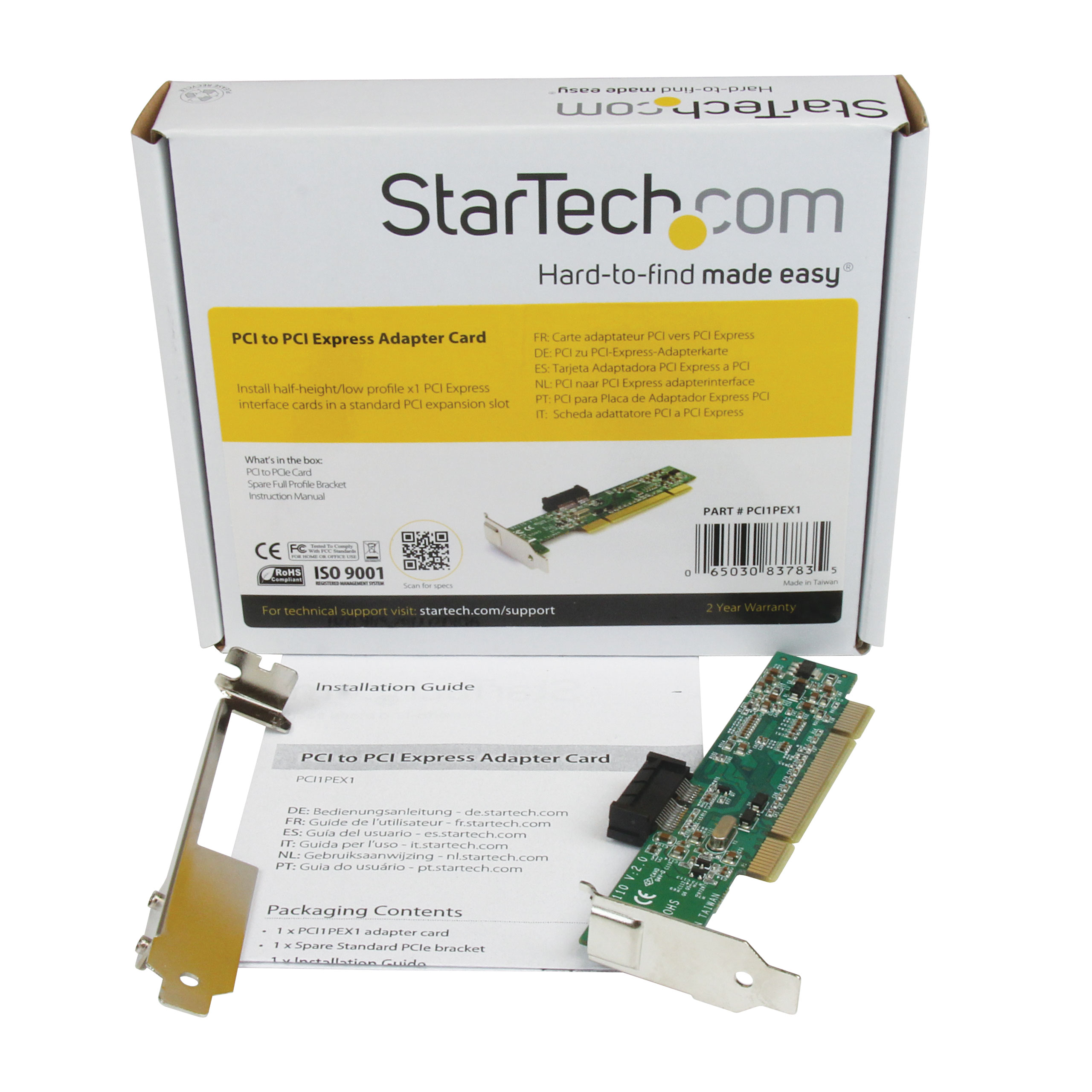

Color Green Humidity 0~95% RH Material Steel Operating Temperature 0°C to 85°C(32°F to 185°F) Primary Material Steel Product Length (mm) 135 Product Width (mm) 60 Product Height (mm) 20 Product Weight (g) 32 Storage Temperature -10°C to 95°C(14°F to 203°F) TAA Compliant Yes MTBF (hours) 139,125 hours OS Compatibility OS Independent Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile Chipset ID Pericom - PI7C9X111SL Interface/Bridge PCI Express Carton Depth (mm) 352 Carton Height (mm) 314 Carton Quantity 75 Carton Weight Gross (g) 8372 Included in Package - 1 - PCI to PCIe Card
- 1 - Instruction Manual
- 1 - Spare Full Profile Bracket
Included In Package for Label - 1 - PCI To PCIe Card
- 1 - Instruction Manual
- 1 - Spare Full Profile Bracket
Package Depth (mm) 143 Package Height (mm) 33 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 98 Packaging Description PCI to PCI Express Adapter Card Packaging Description India PCI to PCI Express Converter Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 PCI Express x1 Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
