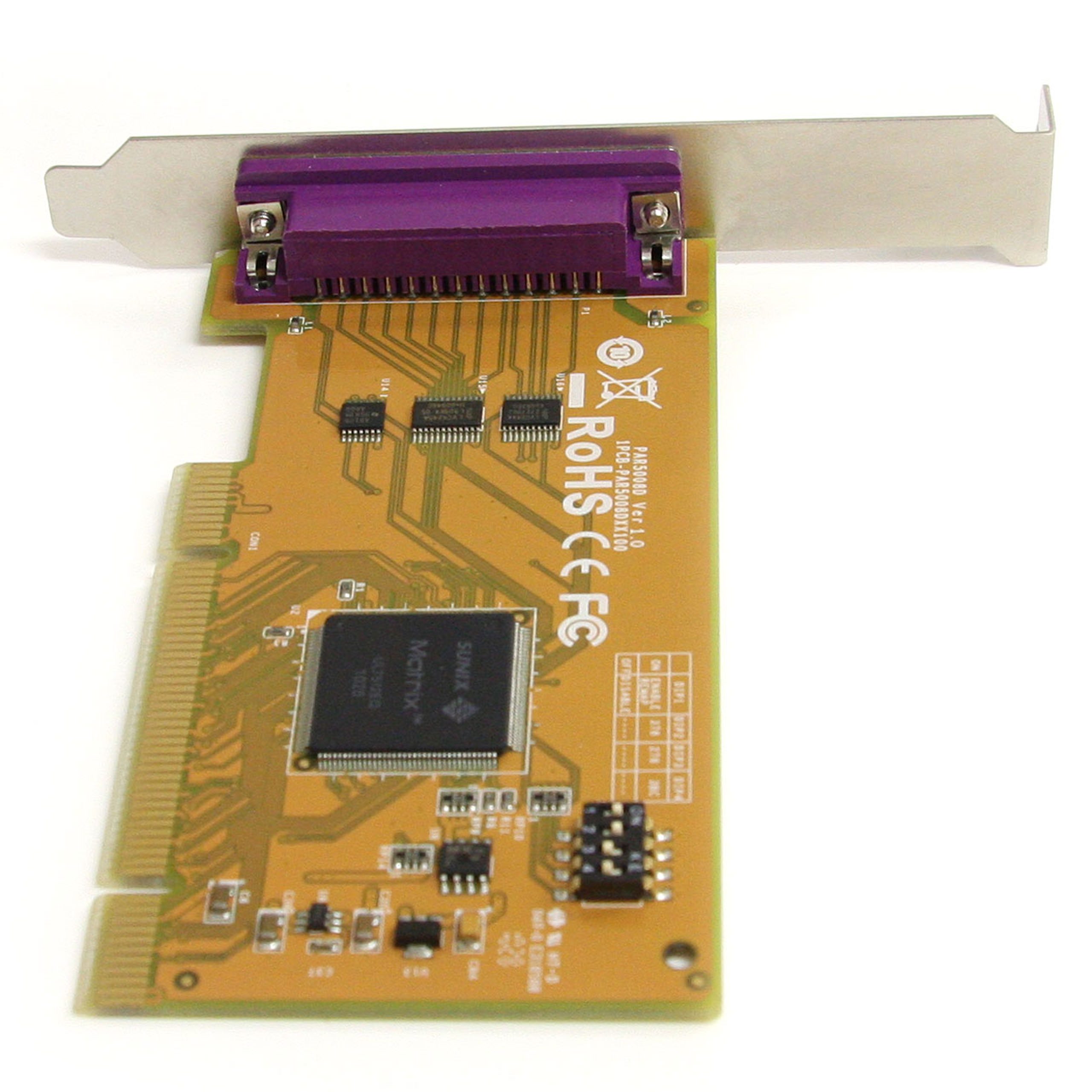

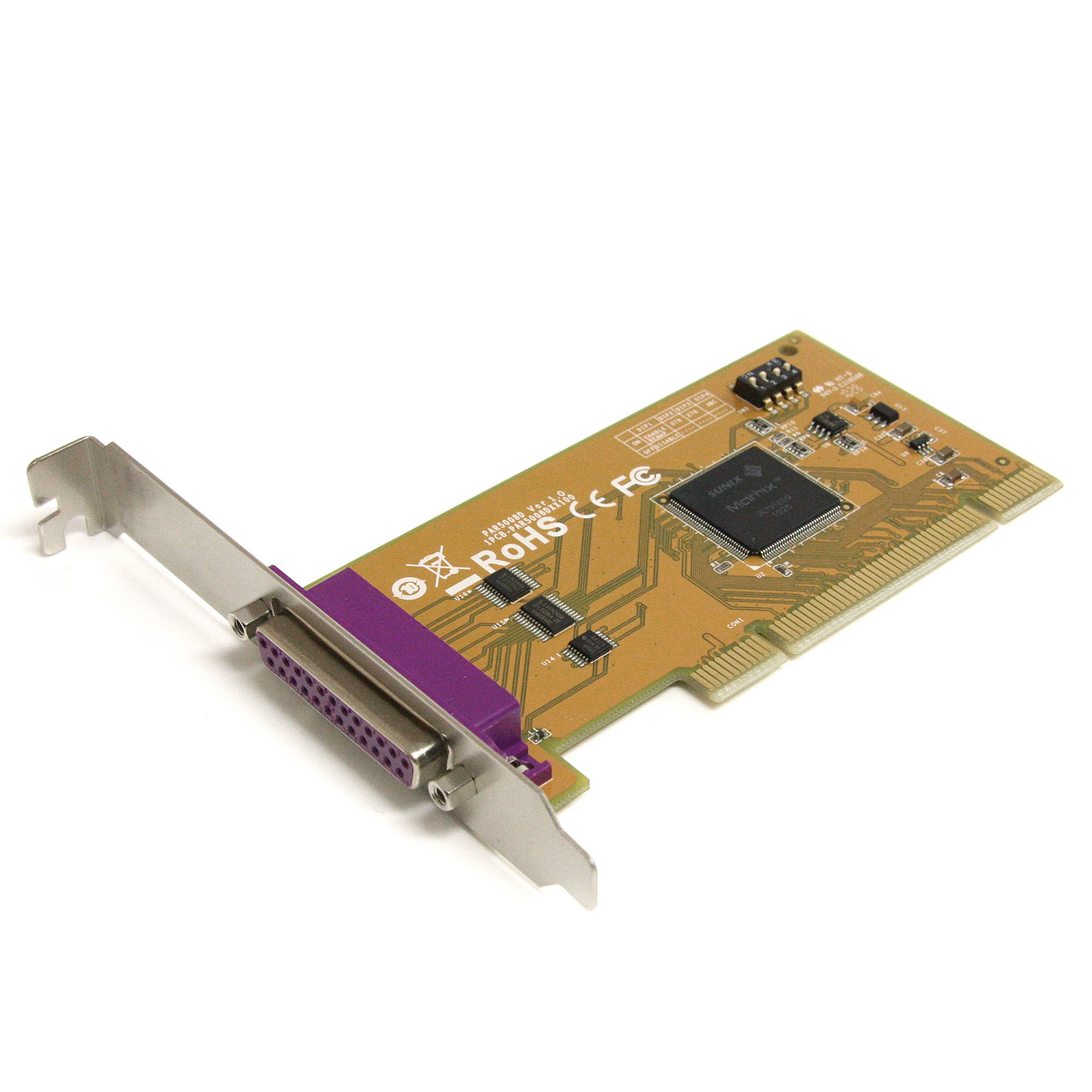

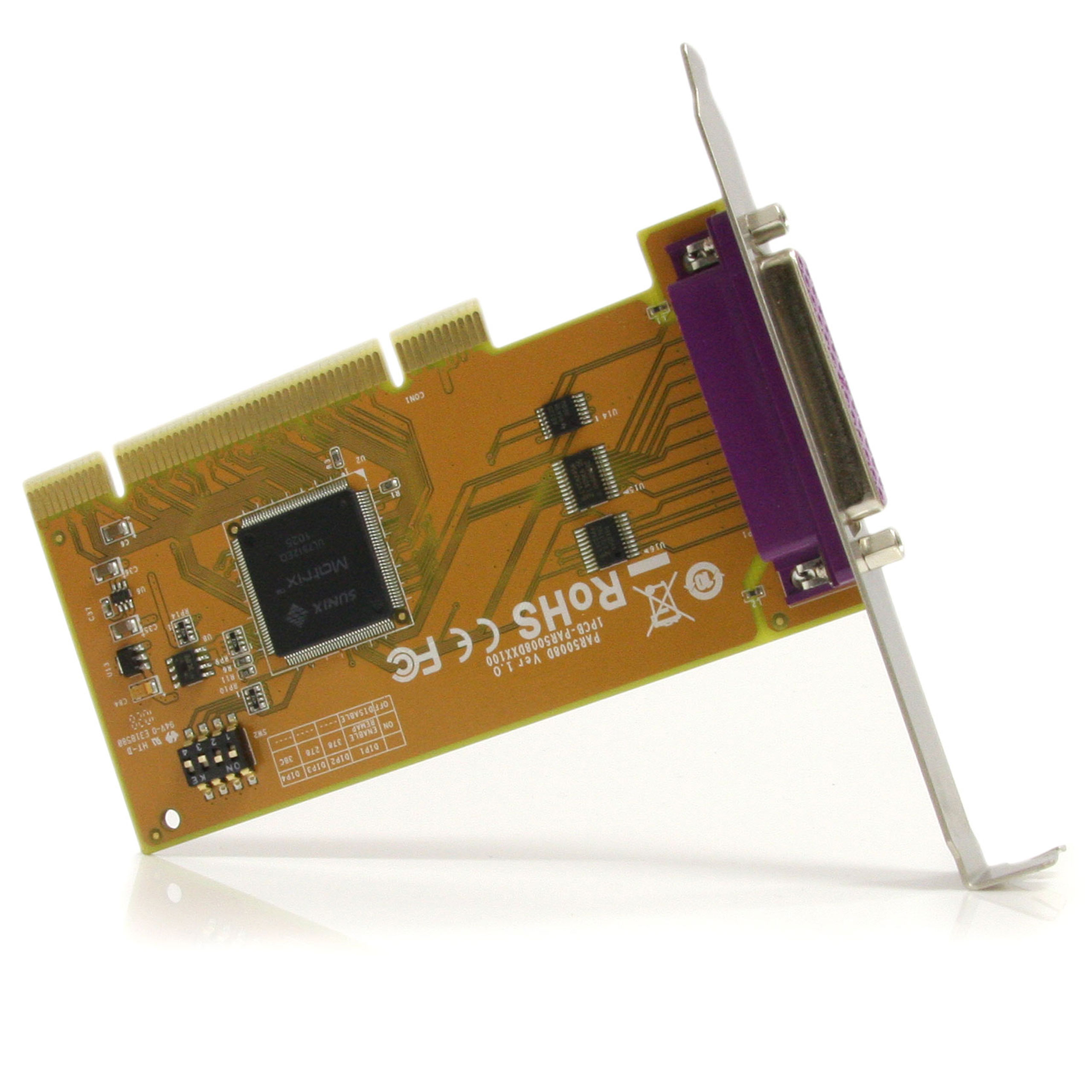

PCI1PM
Remappable 1 Port PCI Parallel Adapter Card
Add a fully featured, re-mappable I/O parallel port to your PC using a PCI expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Remappable 1 Port PCI Parallel Adapter Card Product Number PCI1PM UPC 065030842938 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Parallel Cards and Adapters Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 1 Port PCI Parallel Adapter Card Re-map Product Title (Standard) 1 Port PCI Parallel Adapter Card with Re-mappable Address Product Title (Long) 1 Port PCI Parallel Adapter Card with Re-mappable Address Product Title (AMZ) 1 Port PCI Parallel Adapter Card with Re-mappable Address - 1 Port PCI Parallel Card - 1 Port IEEE 1284 Card (PCI1PM) Title Ingram (Part 1) 1 Port PCI Parallel Adapter Card Title Ingram (Part 2) with Re-mappable Address Website Product Headline Add a fully featured, re-mappable I/O parallel port to your PC using a PCI expansion slot Bullet 1 Auto-switching between EPP, ECP, SPP and BPP modes Bullet 2 Data transfer rates of up to 1.8Mbps Bullet 3 Supports re-mapping of memory I/O ranges for legacy peripherals (278, 378, and 3BC legacy ISA addresses) Bullet 4 Ultra-low power consumption Bullet 5 Universal PCI card supports 32/64-bit, PCI/PCI-X, 3.3/5V slots Marketing Copy Applications - Connects any parallel peripheral including printers, scanners, CD-R/RWs, Zip® drives, and memory card readers
- Install legacy peripherals such as software protection dongles, JTAG chip programmers, data acquisition, machine process control and scientific measurement systems requiring specific I/O ranges specified
Website Search Keyword - 0378
- 037F
- CF78
- expansion card
- I/O
- memory address
- parallel adapter
- re-map
- remap
- remappable
- compatible parallel
- compatible paralel
- legacy parallel
- legacy paralel
Microsoft WHQL Certified Yes Special Notes Supports re-mapping I/O to 278, 378, and 3BC legacy ISA addresses System and Cable Requirements Unused PCI slot Accessory Products - PB10
- PB6_
- PC20
- PC30
- PC50
- PTXFER15
- PTXFER6
- SC10FF
- SC10MF
- SC20MF
- SC20MM
- SC50MM
- SC6MF
- SC6MM
Related Products - PCI1P
- PCI1P_LP
- PCI1PECP
- PCI2PECP
- PCI2S1P
- PCI2S1PDV
- PCI2S1PVA
Power Consumption (In Watts) 0.033W Color Yellow Humidity 5~95% RH Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 121 Product Width (mm) 61 Product Height (mm) 13 Product Weight (g) 75 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No FIFO 16 byte Maximum Data Transfer Rate 1.8Mbps OS Compatibility - Linux
- Windows 7
- Windows Server 2012
- Windows 8
- Windows 10
- Windows 11

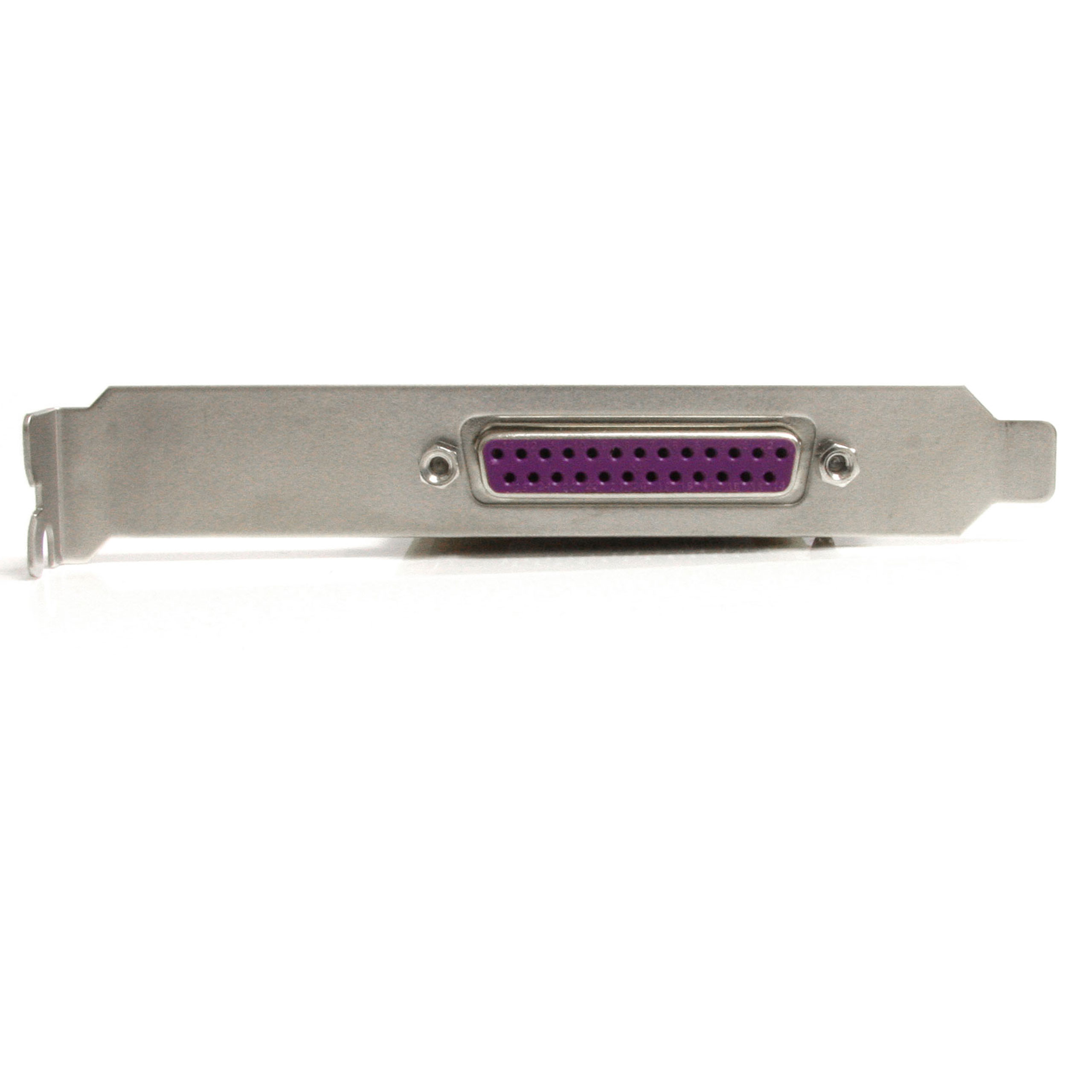

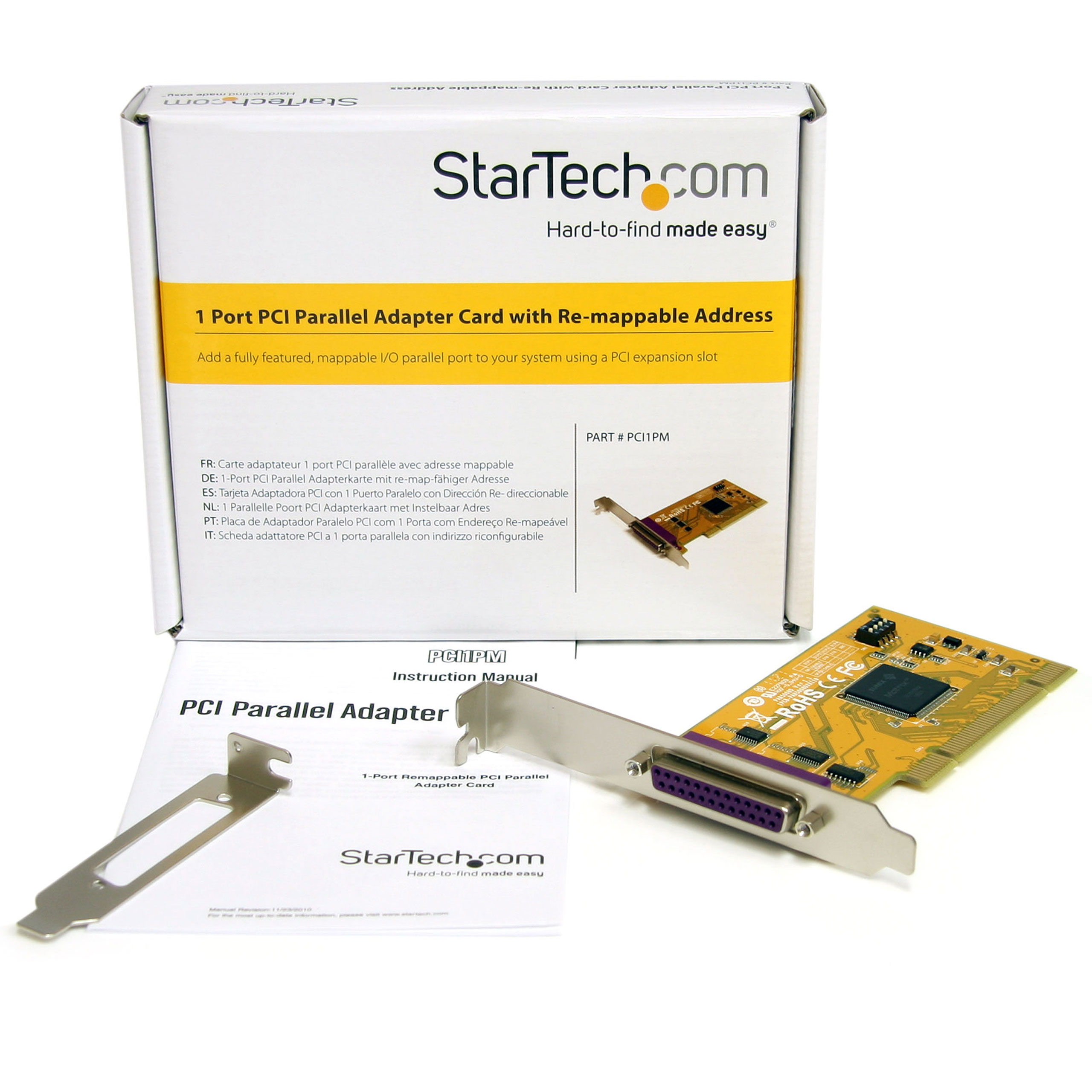

Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID Sunix - UL7512EQ Industry Standards Interface/Bridge Parallel IO Card Port Style Integrated on Card Carton Depth (mm) 440 Carton Height (mm) 240 Carton Quantity 60 Carton Weight Gross (g) 10400 Included in Package - 1 - Driver CD
- 1 - PCI Parallel Card
- 1 - User Manual
- 1 - Low-Profile bracket
Package Depth (mm) 147 Package Height (mm) 41 Package Width (mm) 203 Package Quantity 1 Package Weight (g) 180 Packaging Description 1 Port PCI Parallel Card Re-mappable I/O Packaging Description India 1 Port PCI Parallel Card Re-mappable I/O Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-25 Parallel / Serial Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
