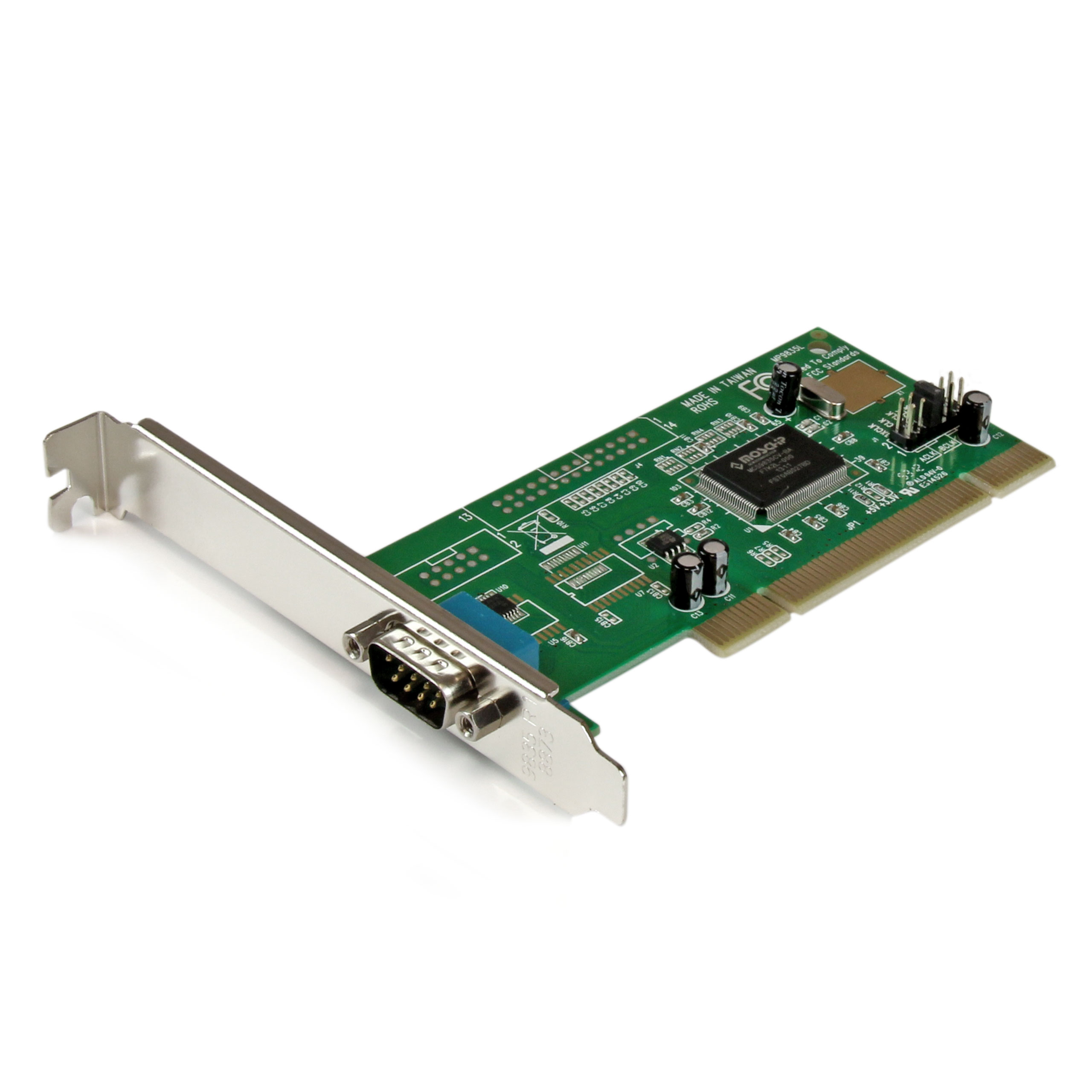

Main Image
PCI1S550
1 Port 16550 PCI Serial Card
Add an RS-232 serial port to your PC through a PCI expansion slot
Main Image

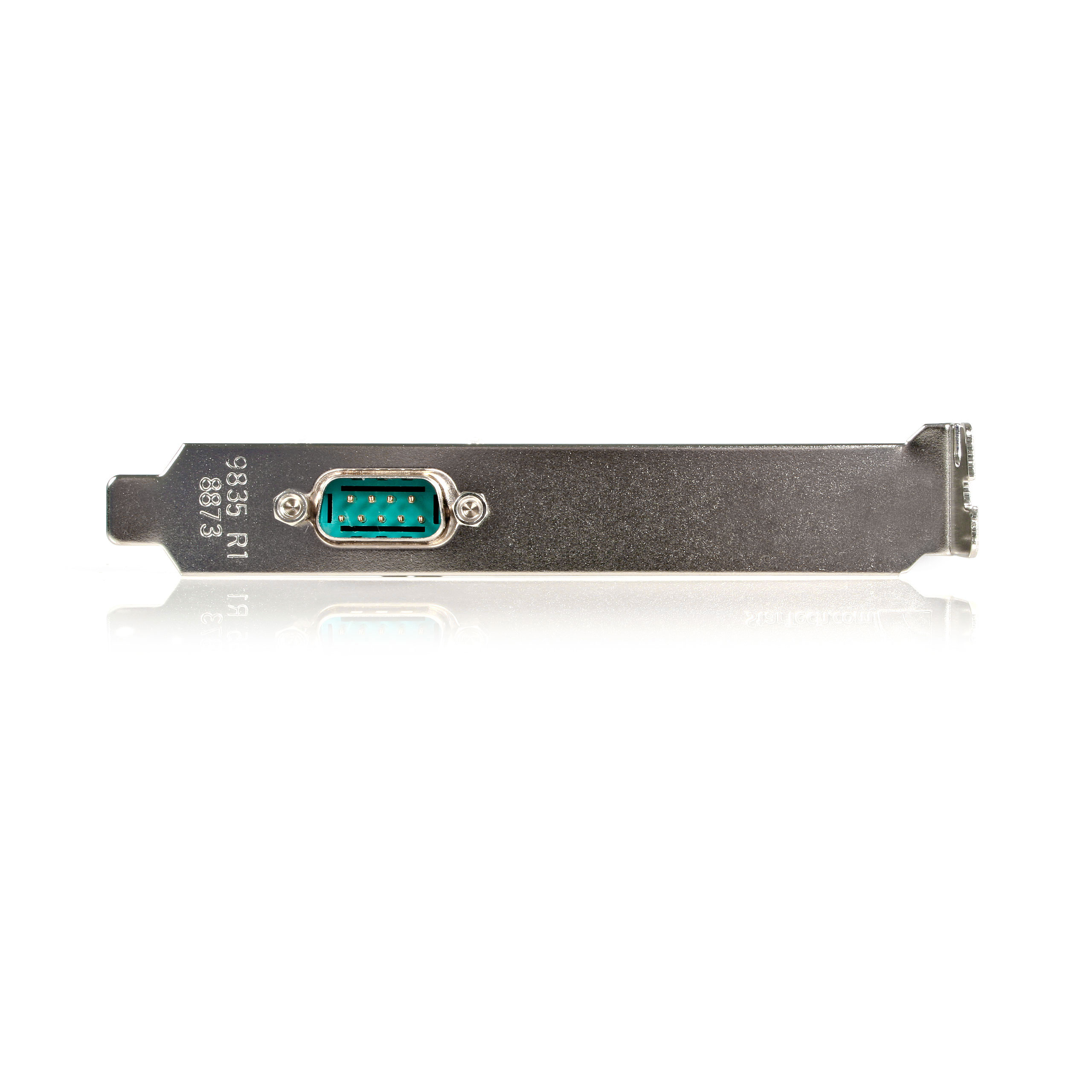

Product Images

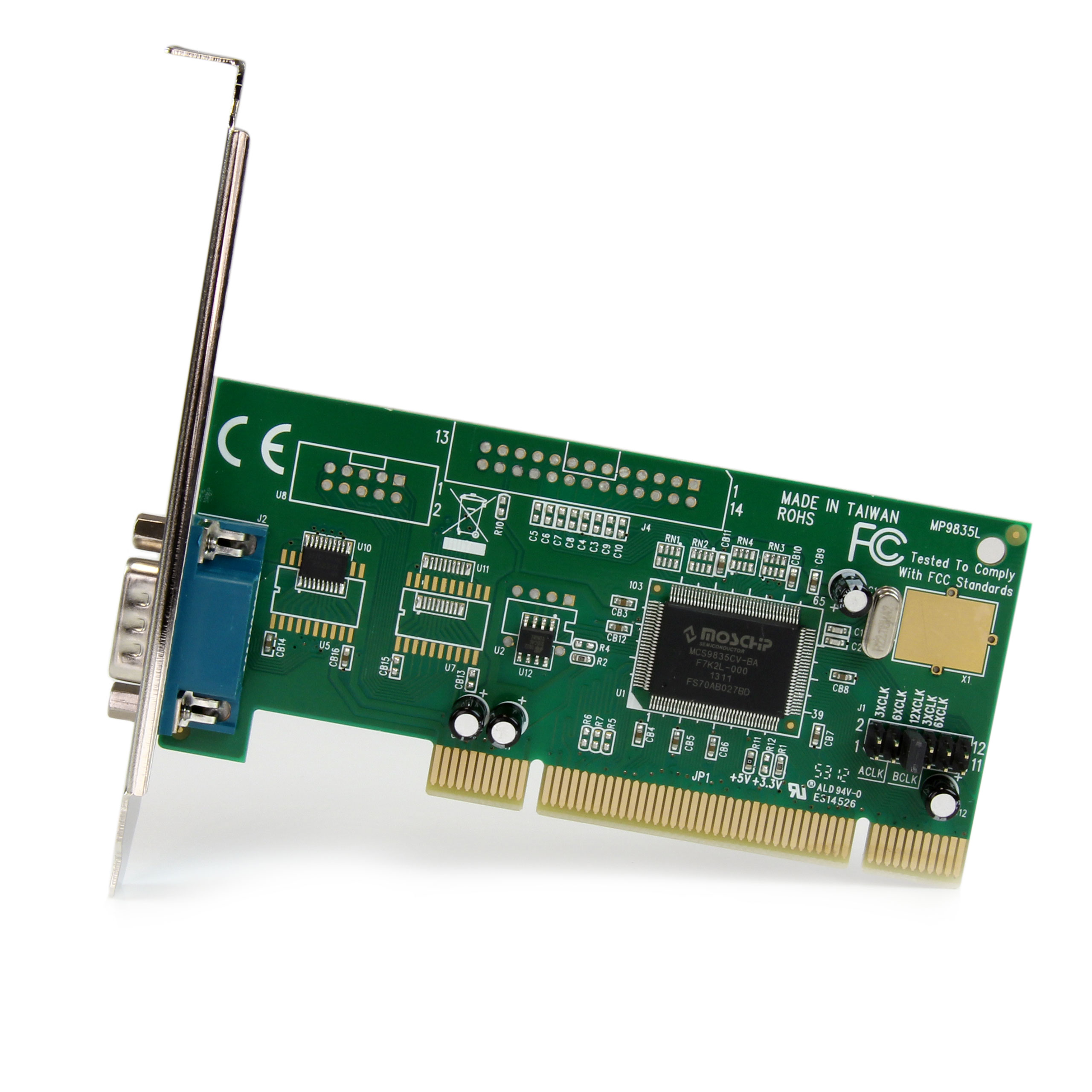

Product Images

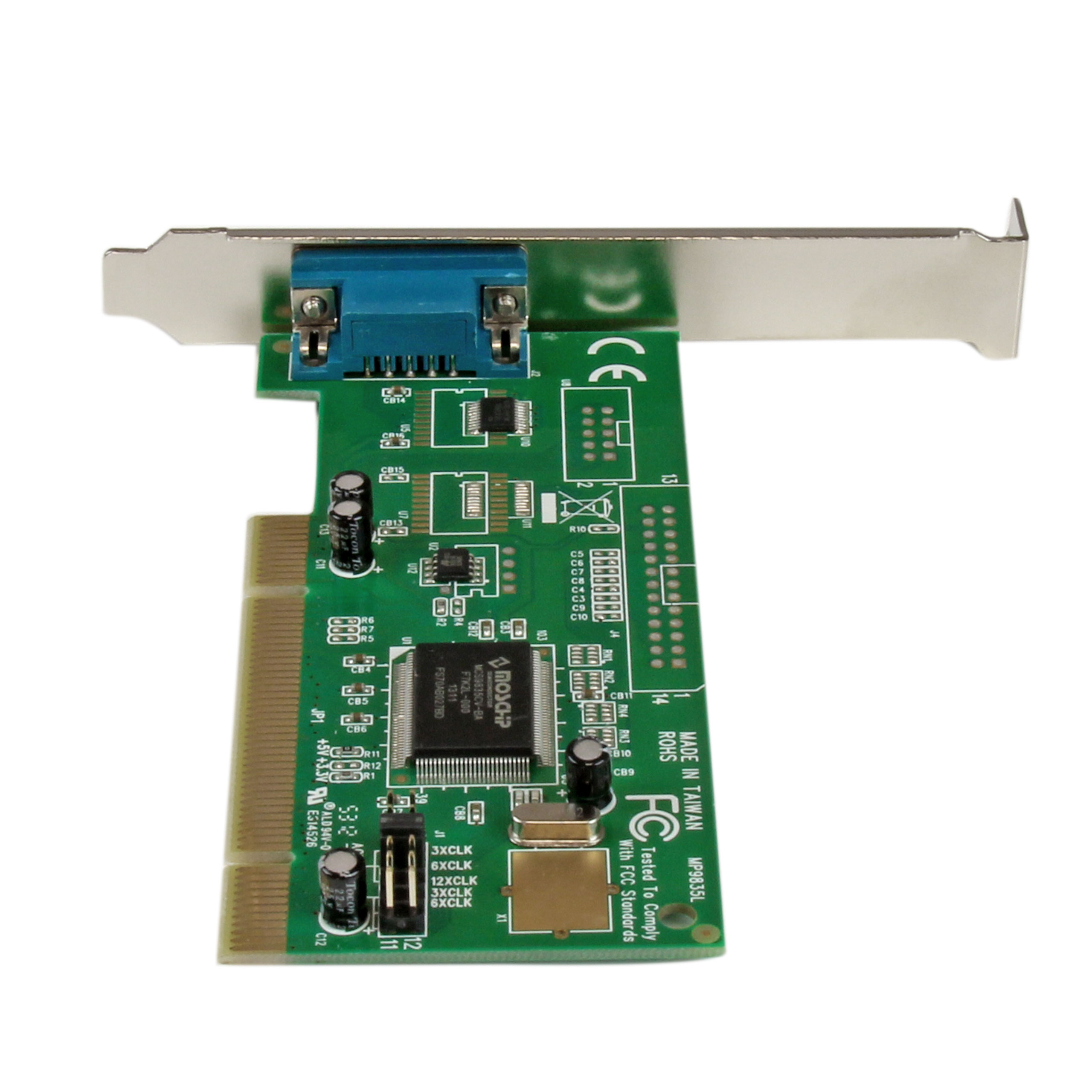

Product Images
BOM Image
Product Name 1 Port 16550 PCI Serial Card Product Number PCI1S550 UPC 065030785396 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 1 Port PCI RS232 Serial Adapter Card Product Title (Medium) x Product Title (Standard) StarTech.com 1 Port PCI RS232 Serial Adapter Card - PCI1S550 - Serial adapter - PCI - RS-232 - V.24 Product Title (Long) 1 Port PCI RS232 Serial Adapter Card with 16550 UART Product Title (AMZ) 1 Port PCI RS232 Serial Adapter Card with 16550 UART - PCI Serial Adapter - PCI rs232 - PCI Serial Card (PCI1S550) Title Ingram (Part 1) 1 Port PCI RS232 Serial Adapter Title Ingram (Part 2) Card with 16550 UART Website Product Headline Add an RS-232 serial port to your PC through a PCI expansion slot Bullet 1 IRQ sharing saves resources and eliminates conflicts Bullet 2 Supports the RS-232 serial interface Bullet 3 16 byte FIFO buffer ensures fast data transfer while multitasking Bullet 4 5, 6, 7, 8-bit Serial format support Bullet 5 Even, Odd, None, Space & Mark parity supported Bullets (Consolidated) Add 1 high-speed RS-232 serial ports to your PC through a PCI expansion slot - Serial Adapter - RS232 Card - PCI Serial Card - PCI RS232 - PCI Serial Adapter - 1 Port Serial Card Marketing Copy Applications Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - MC3MF
- MC6MF
- MXT100
- MXT100_25
- AT925FF
- AT925FM
- AT925SFM
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
- MXT100FF
Related Products - PCI1S550_LP
- 10PKPCI1S550
- PCI2S550
- PCI4S550
- PCI4S550N
Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 120.000 Product Width (mm) 20.000 Product Height (mm) 120.000 Product Weight (g) 52.000 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes Max Baud Rate 115.2 Kbps MTBF (hours) 6,548,788 Hours OS Compatibility - Windows 8
- Linux
- Windows Server 2012
- Windows 7
- Windows 10
- Windows 11

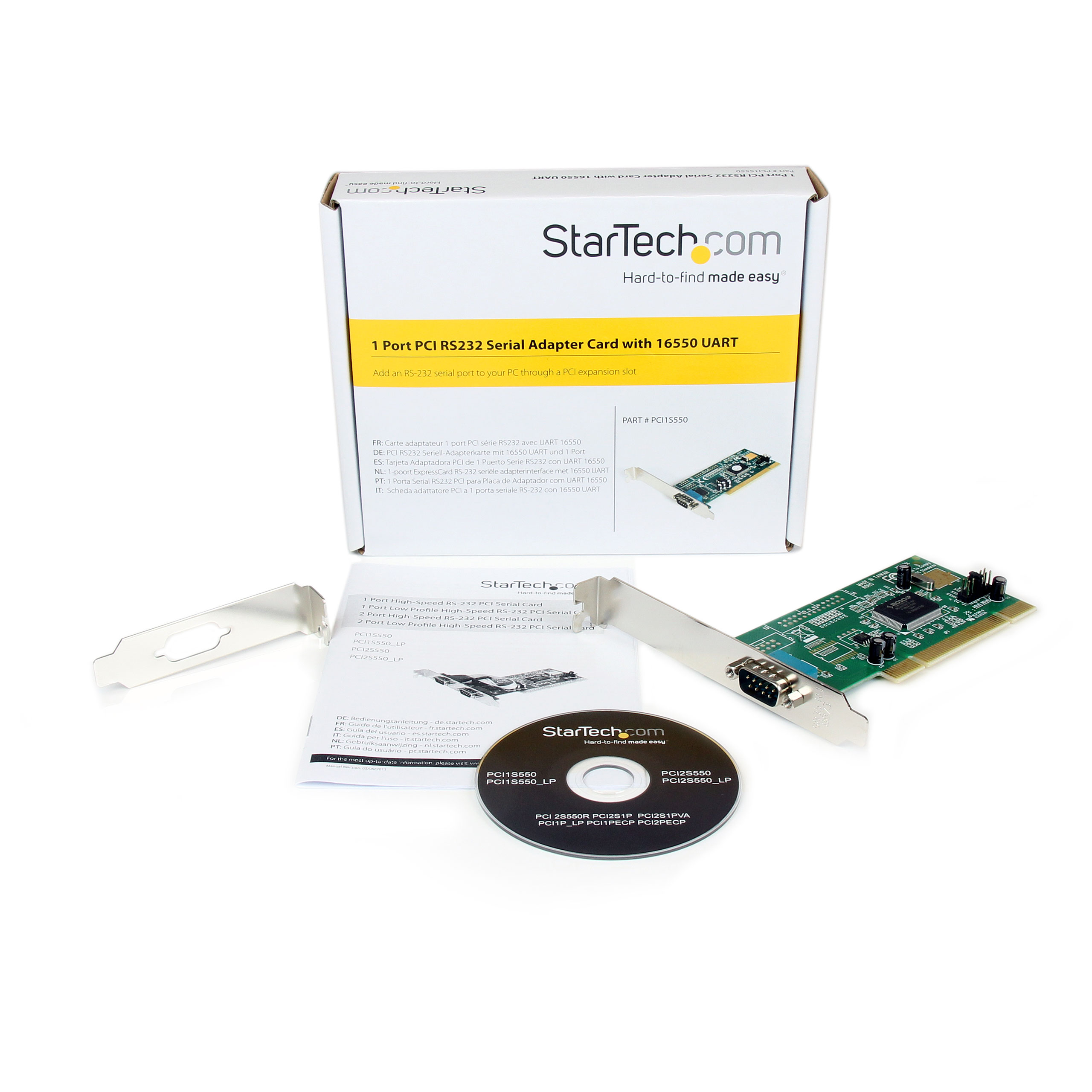

Supported Serial Protocol RS-232 Bus Type PCI (5 Volt) Card Type Standard Profile (LP bracket incl.) Chipset ID ASIX - MCS9820CV Industry Standards PCI 2.1 Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 354 Carton Height (mm) 318 Carton Quantity 75 Carton Weight Gross (g) 10690 Included in Package - 1 - 1 Port PCI Serial Card
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - Low Profile PCI Bracket
Package Depth (mm) 174 Package Height (mm) 32 Package Width (mm) 143 Package Quantity 1 Package Weight (g) 130 Packaging Description 1 Port PCI RS232 Serial Adapter Card with 16550 UART Packaging Description India 1 Port PCI RS232 Serial Adapter Card with 16550 UART Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,EU,JP,NZ,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
