PCI1S550_LP

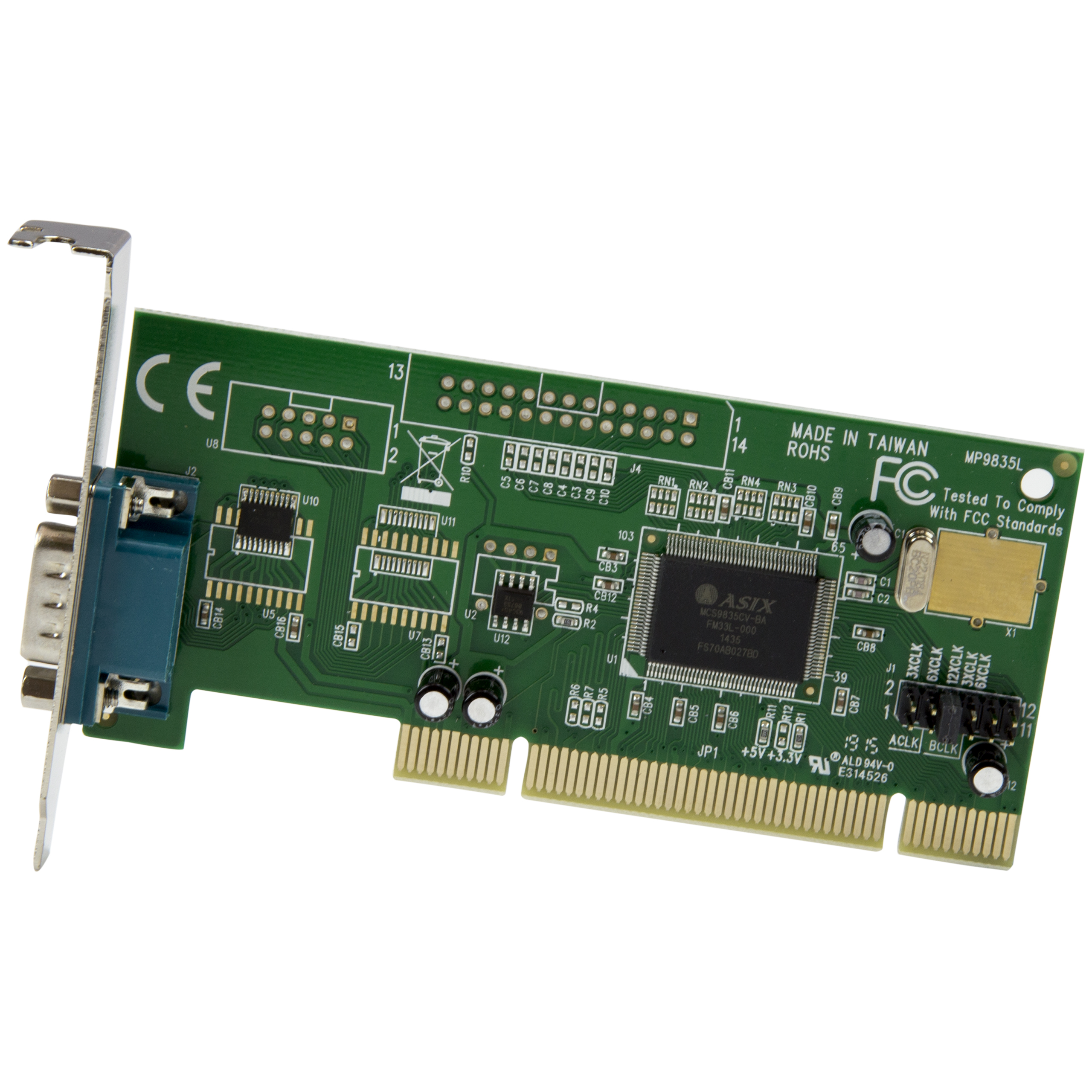

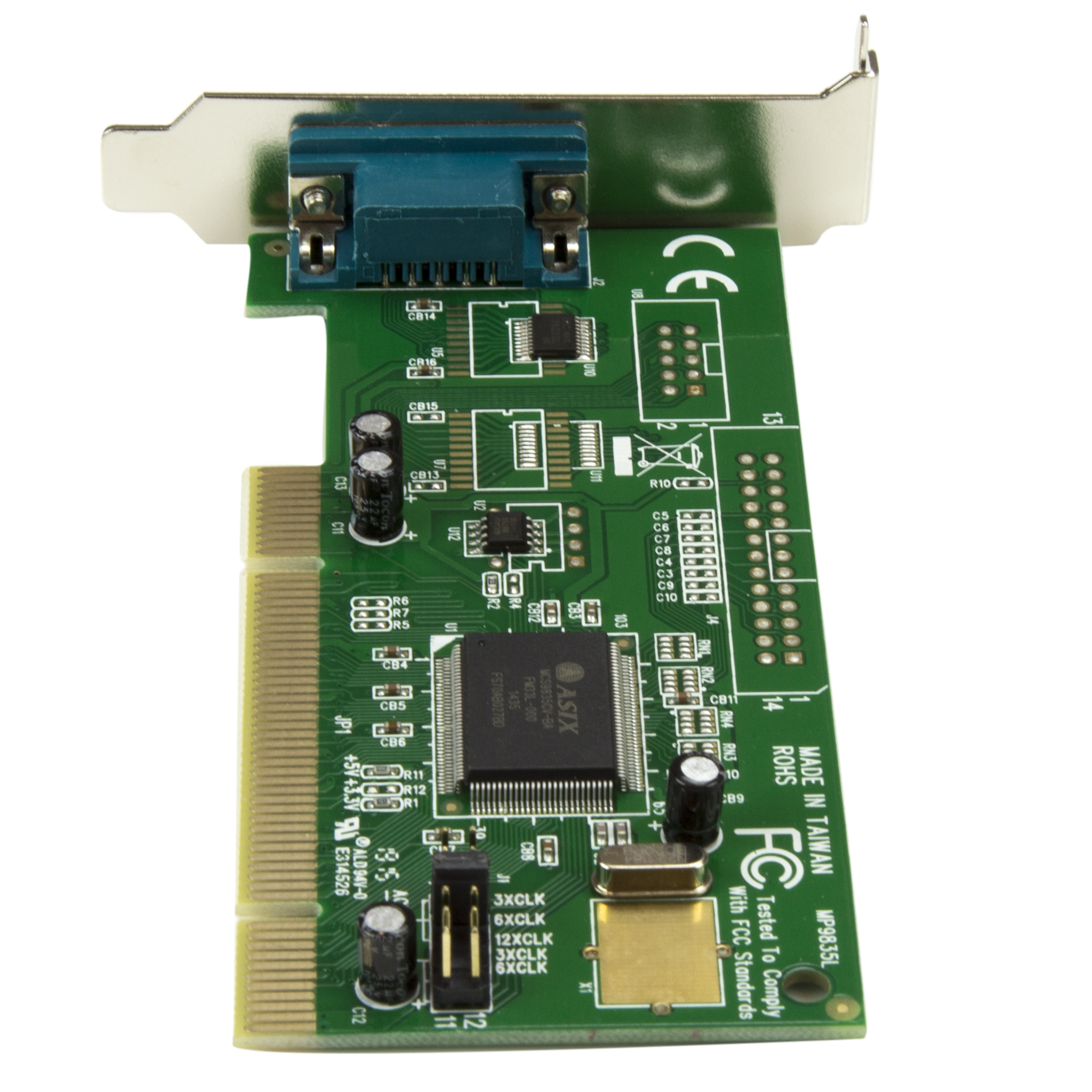

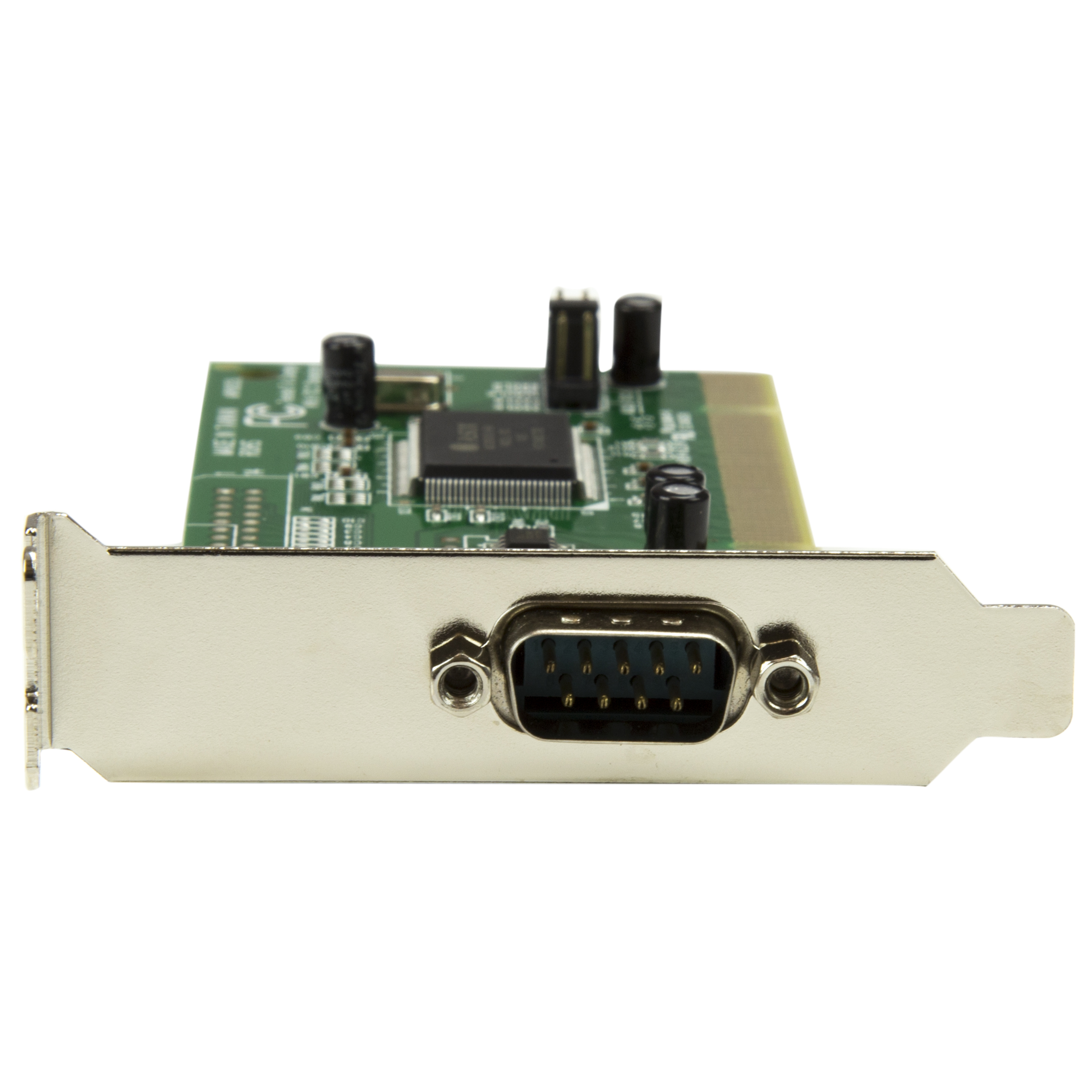

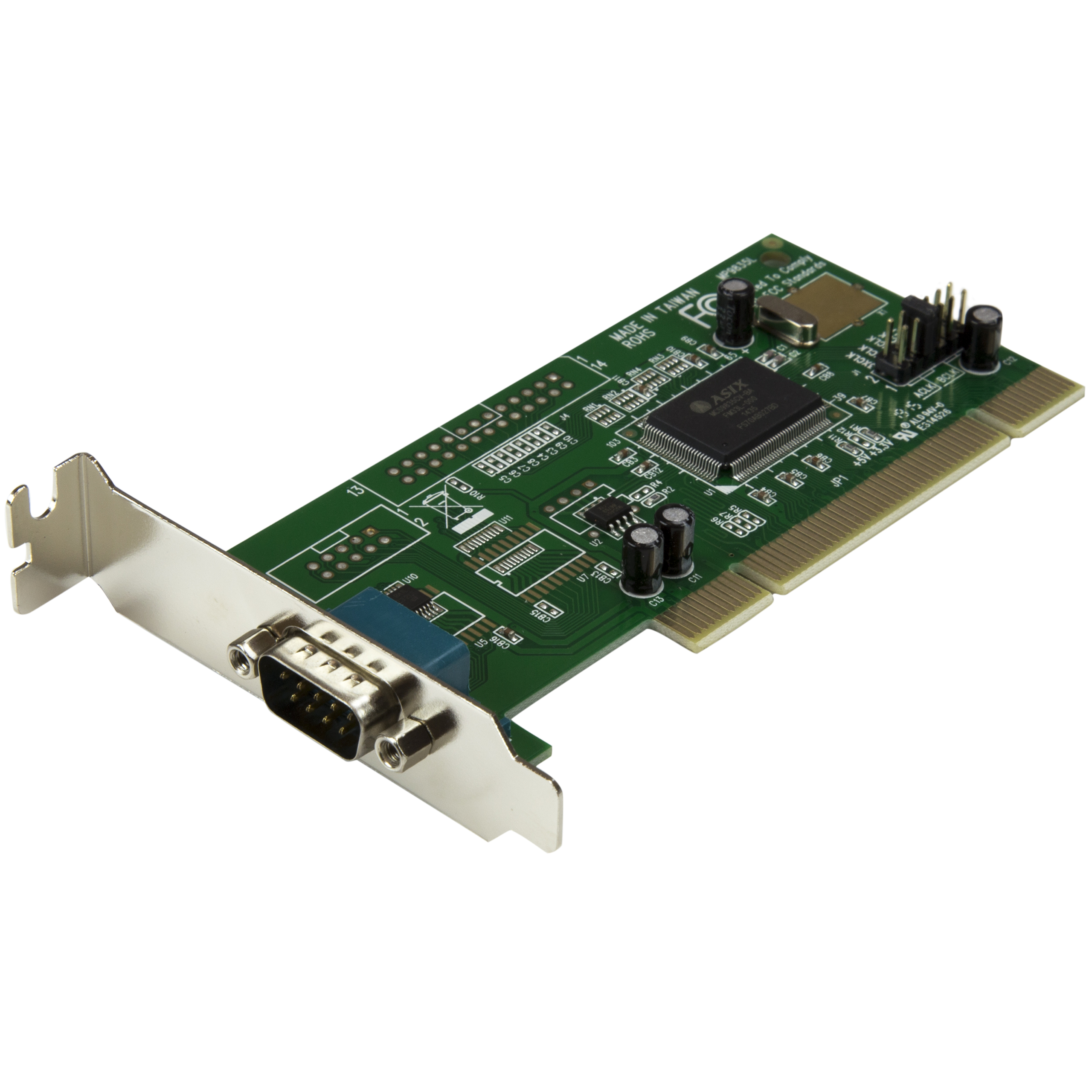

Low Profile PCI 1 Port 16550 Serial Card
Add 1 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Low Profile PCI 1 Port 16550 Serial Card Product Number PCI1S550_LP UPC 065030793759 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 1 Port LP PCI Serial Adapter Card Product Title (Standard) StarTech.com 1 Port Low Profile PCI RS232 Serial Adapter Card - Serial adapter - PCI low profile - RS-232 Product Title (Long) 1 Port PCI Low Profile RS232 Serial Adapter Card with 16550 UART Product Title (AMZ) 1 Port PCI Low Profile RS232 Serial Adapter Card with 16550 UART (PCI1S550_LP) Title Ingram (Part 1) 1 Port PCI Low Profile Serial Ad Title Ingram (Part 2) apter Card w/ 16550 UART Website Product Headline Add 1 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI expansion slot Bullet 1 Supports the RS-232 serial interface Bullet 2 16 byte FIFO buffer ensures fast data transfer while multitasking Bullet 3 IRQ sharing saves resources and eliminates conflicts Bullets (Consolidated) Add 1 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI expansion slot - PCI Serial Card - PCI Serial Adapter - PCI RS232 - RS232 Card - 16550 UART - 1 Port Low Profile PCI RS232 Serial Adapter Card Marketing Copy Applications Accessory Products - AT925FF
- AT925FM
- AT925SFM
- MC3MF
- MC6MF
- MXT100
- MXT100_25
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
Related Products - PCI2S550_LP
- PCI1S550
- 10PKPCI2S550
- PCI2S550
- PCI4S550
- PCI4S550N
Replacement Product PCI1S550 Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 120 Product Width (mm) 20 Product Height (mm) 55 Product Weight (g) 55 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant No Max Baud Rate 115.2 Kbps MTBF (hours) 6,548,788 Hours OS Compatibility - Linux
- Windows 8
- Windows Server 2012
- Windows 7
- Windows 10
- Windows 11

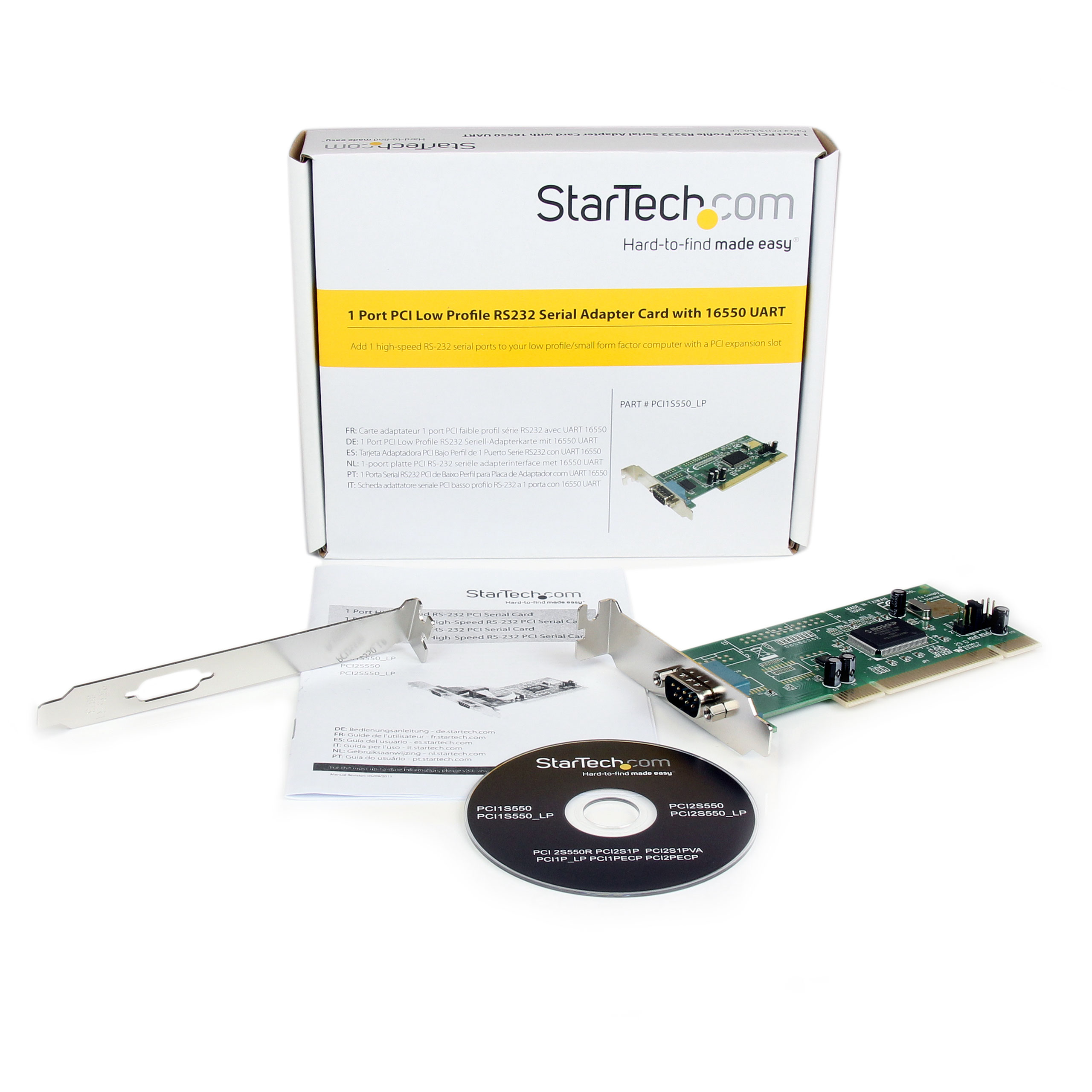

Supported Serial Protocol RS-232 Bus Type PCI / PCI-X (5 / 3.3V) Card Type Low Profile (SP bracket incl.) Chipset ID ASIX - MCS9820CV Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 13200 Included in Package - 1 - PCI Serial Card
- 1 - Instruction Manual
- 1 - Driver CD
- 1 - Full Profile Bracket
Package Depth (mm) 23 Package Height (mm) 136 Package Width (mm) 152 Package Quantity 1 Package Weight (g) 120 Packaging Description 1 Port Low Profile PCI RS232 Serial Card Packaging Description India 1 Port Low Profile PCI RS232 Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
