PCI1S650PW
1 Port 3.3V/5V Serial Card with Power
Add a powered RS232 Serial port through a PCI expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 1 Port 3.3V/5V Serial Card with Power Product Number PCI1S650PW UPC 065030812726 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 1 Port PCI Powered Serial Adapter Card Product Title (Standard) StarTech.com 1 Port PCI RS232 Powered Serial Adapter Card Product Title (Long) 1 Port PCI RS232 Powered Serial Adapter Card Title Ingram (Part 1) 1 Port PCI RS232 Powered Serial Title Ingram (Part 2) Adapter Card Website Product Headline Add a powered RS232 Serial port through a PCI expansion slot Bullet 1 Configurable in 5V, 12V, and RI (non-powered) modes Bullet 2 Works in both 3.3 and 5V PCI/PCI-X slots Bullet 3 Broad operating system compatibility, including DOS®, CE/Embedded, and 32/64-bit editions of Microsoft Windows® Bullet 4 Adds 1 RS-232 Powered serial port Bullet 5 Adds 1 RS-232 Powered serial port Marketing Copy Applications - Reduce clutter and the need for extra power connections by using self-powered serial devices.
- Perfect for adding barcode scanners, card readers, and other similar devices to POS, manufacturing, and industrial solutions.
Microsoft WHQL Certified Yes System and Cable Requirements - IBM-compatible computer
- Available PCI or PCI-X slot (full size or low profile)
Accessory Products - MC3MF
- MC6MF
- MXT100_25
- AT925FF
- AT925FM
- SCNM9FF25
- SCNM9FF
- MXT100FF
Related Products - PCI2S650PW
- PCI4S650PW
Humidity 5~95% RH Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 120 Product Width (mm) 17 Product Height (mm) 50 Product Weight (g) 50 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No FIFO 32 Bytes Max Baud Rate 115.2 Kbps OS Compatibility - Linux
- Windows Server 2012
- Windows 7
- Windows 8

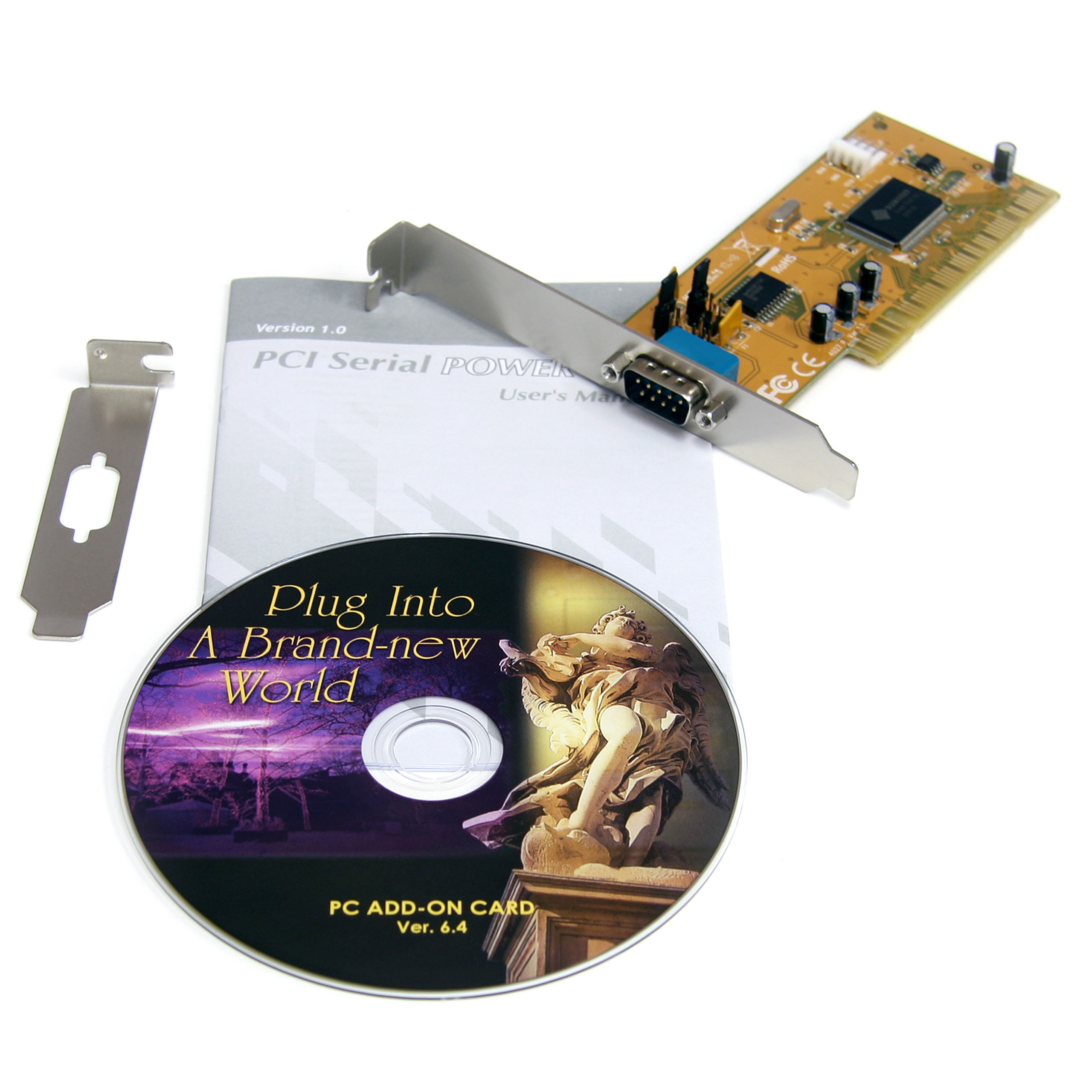

Supported Serial Protocol RS-232 Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID Sunix - SUN1889 Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 9700 Included in Package - 1 - PCI1S650PW serial card
- 1 - Low-profile backet
- 1 - Installation CD
- 1 - Instruction Manual
Package Depth (mm) 40 Package Height (mm) 142 Package Width (mm) 210 Package Weight (g) 170 Packaging Description 1 Port PCI Powered RS232 Serial Card Packaging Description India 1 Port PCI Powered RS232 Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Connector 3 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
