PCI220USBLP
Low Profile PCI 2 Port USB Card
Add 2 external and 1 internal USB2.0 ports to any desktop with a low profile PCI slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Low Profile PCI 2 Port USB Card Product Number PCI220USBLP UPC 065030822916 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - USB 2.0 Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Short) 3 Port PCI LP USB 2.0 Adapter Card Product Title (Standard) StarTech.com 3 Port PCI Low Profile High Speed USB 2.0 adapter card - PCI - low profile - Hi-Speed USB - 4 ports Product Title (Long) 3 Port PCI Low Profile High Speed USB 2.0 Adapter Card Product Title (AMZ) 3 Port PCI Low Profile High Speed USB 2.0 Adapter Card (PCI220USBLP) Title Ingram (Part 1) 3 Port PCI Low Profile High Spee Title Ingram (Part 2) d USB 2.0 Adapter Card Website Product Headline Add 2 external and 1 internal USB2.0 ports to any desktop with a low profile PCI slot Bullet 1 Provides two external USB 2.0 ports and one shared internal port Bullet 2 Fully compliant with USB 2.0 specifications, with support for transfer rates up to 480 Mbps Bullet 3 Backwards compatible with USB 1.0/1.1 devices Bullet 4 Compliant with PCI revision 2.2 specification Bullet 5 Supports up to 127 USB devices per port (requires additional USB hubs) Bullets (Consolidated) Low Profile 2-Port PCI USB 2.0 Card (2+1 internal ports) Marketing Copy Applications - Expand a low profile/small form factor PCI-based system's USB capabilities with two additional external USB ports
- Add additional USB bandwidth to a system that already uses many USB devices/hubs
- Connect additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc. to a computer system
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes PCI220USBLP allows for all ports including internal to be used simultaneously Accessory Products - ST4200USB
- ST7200USB
- ST4205USB
- ST4205MINI
- ST4205READ
- USB2HAB6
- USB2HAB10
- USB2HAB15
- USB2HAB6T
- USB2HAB10T
- USB2HAB15T
Related Products PCI220USB Product Length (mm) 127 Product Width (mm) 20 Product Height (mm) 80 Product Weight (g) 100 TAA Compliant No Maximum Data Transfer Rate 480 Mbps OS Compatibility - Linux
- Windows XP

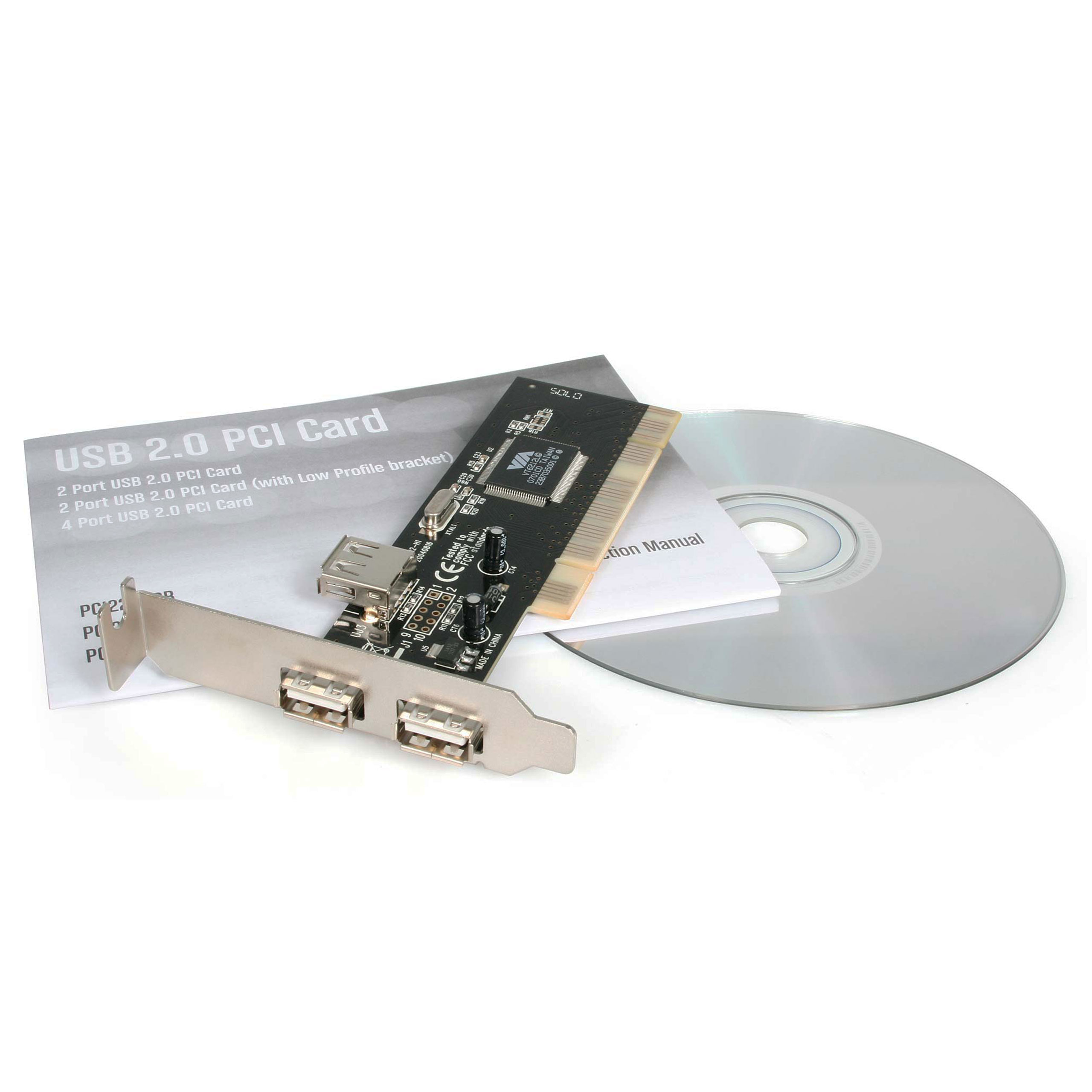

Bus Type PCI / PCI-X (5 / 3.3V) Card Type Low Profile Chipset ID VIA/VLI - VT6212 Interface/Bridge USB 2.0 Carton Depth (mm) 550 Carton Height (mm) 380 Carton Quantity 50 Carton Weight Gross (g) 6700 Included in Package - 1 - Low Profile PCI USB Card
- 1 - Instruction Manual
Package Depth (mm) 68 Package Height (mm) 180 Package Width (mm) 172 Package Quantity 1 Package Weight (g) 110 Packaging Description 3 Port Low Profile PCI USB 2.0 Card Packaging Description India 3 Port Low Profile PCI USB 2.0 Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
