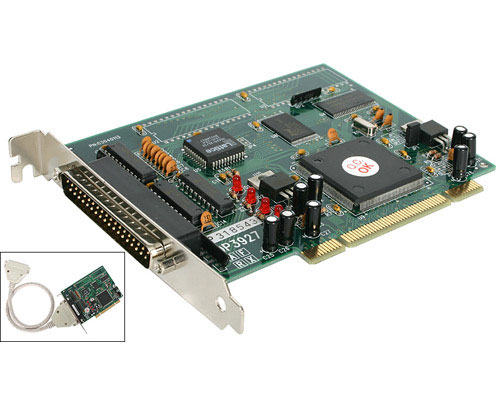

Main Image
PCI232INTE
Main Image
Product Name Intelligent PCI 3.3/5V High Speed Serial Product Number PCI232INTE UPC 065030804387 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Long) 8 Port RS232 PCI Serial Card Adapter - Requires INTEBOX8 Bullet 1 High-speed 133 MHz RISC-style processor manages the data flow between the main CPU and external serial devices Bullet 2 Compatible with 5 volt and 3.3 volt PCI and PCI-X slots Bullet 3 Built-in 16 MBytes of SDRAM enables each port to have a 1 MByte receive buffer and a 512 KByte transmit buffer Bullet 4 Hardware/software handshaking support Marketing Copy Applications - Ideal for commercial and industrial applications such as POS networks, ATMs, and bank teller stations
- Also used in environments using serial networking devices, high speed modems, monitoring equipment, long distance communication devices and printers
- Industrial process control
- Factory automation
System and Cable Requirements Requires a StarTech.com INTEBOX8 Accessory Products INTEBOX8 Product Length (mm) 137 Product Width (mm) 107 TAA Compliant No General Specifications - Onboard Processing Unit: 133 MHz RISC style processor
- Onboard Memory: 16 MBytes SDRAM
- I/O Buffer: 512 KBytes
- Power Consumption: 680mA @ 5V
- Connectivity: Up to 64 ports using 8 RS-232 external box connectors
- Flow Control: Xon/Xoff or CTS/RTS
- Slot Type: 3.3V PCI-X and 5V PCI slot support
- Connector Cable Length: 2 feet (0.6 meters)
- System Support: Up to two cards per computer
- OS Support: Windows NT 4/2000/XP/Server 2003, Linux and Unix SCO Open Server
Maximum Data Transfer Rate 230400 Kbits/Sec OS Compatibility - Windows 2000
- Windows NT
- Windows XP
- Linux
Supported Serial Protocol RS-232 Bus Type PCI (5 Volt) Card Type Standard Profile IO Card Port Style Dongle (Included) Carton Depth (mm) 210 Carton Height (mm) 350 Carton Weight Gross (g) 7121.3944 Included in Package - 1 - PCI232INTE serial card
- 1 - 37-pin Serial Break-out Cable
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 23 Package Height (mm) 60 Package Width (mm) 87 Package Weight (g) 500 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-37 Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Carey Cline
