Main Image
PCI2IDE100
Main Image

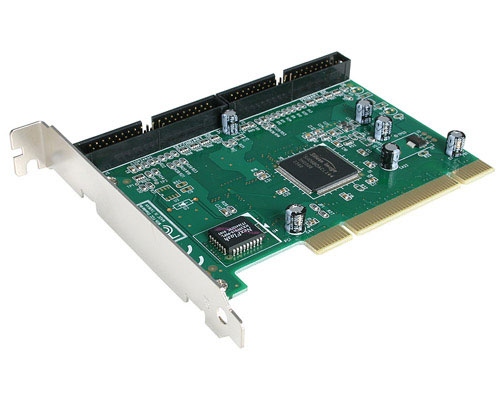

Product Name Dual Channel PCI Ultra ATA/100 IDE Card Product Number PCI2IDE100 UPC 065030786683 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Long) Dual Channel Ultra ATA/100 IDE PCI Card Bullet 1 Supports burst data transfer rates of up to 100 MBytes/sec Bullet 2 Two IDE channels support up to four drives Bullet 3 Includes Bus-Master drivers for Windows 95, 98, 2000 and NT 4 and functions with native Windows XP drivers Bullet 4 CRC Error checking verifies data integrity Marketing Copy Applications - Replace IDE ports that have failed
- Add faster drive connectivity to older systems
- Connect hard drives, CD-ROMs, CD-RWs, DVD-ROMs, Zip Drives, and other ATAPI peripherals to your system
Accessory Products - IDE100RND18
- IDE100RND24
- IDE100RND36
- IDE100TPO18
- IDERND24ELBL
- IDERND24UV
Related Products - PCI2IDE133
- PCIIDE100R
- PCISATA2A133
Replacement Product PCIIDE2 TAA Compliant No General Specifications - Connectors: 2 x IDE 40-pin (male)
- Hard Drive Compatibility: ATA IDE 100/66/33 hard drives up to 132 GBytes
- Dimensions: 4.84 x 4.72 x 0.87 inches (123 x 120 x 22 mm)
- OS Support: DOS, Windows 95/98/ME/NT 4/2000/XP and up
Bus Type PCI (5 Volt) Carton Depth (mm) 760 Carton Height (mm) 250 Carton Quantity 50 Carton Weight Gross (g) 12700 Included in Package - 1 - Dual Channel PCI Ultra ATA/100 IDE Card
- 1 - IDE cable
- 1 - Driver disk
- 1 - Instruction manual
Package Depth (mm) 40 Package Height (mm) 144 Package Width (mm) 211 Package Weight (g) 230 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IDE / PATA (ATA/133) Connector 1 (Quantity) 2 en-US Content Approved Yes Product Manager Carey Cline
