PCI2PECP

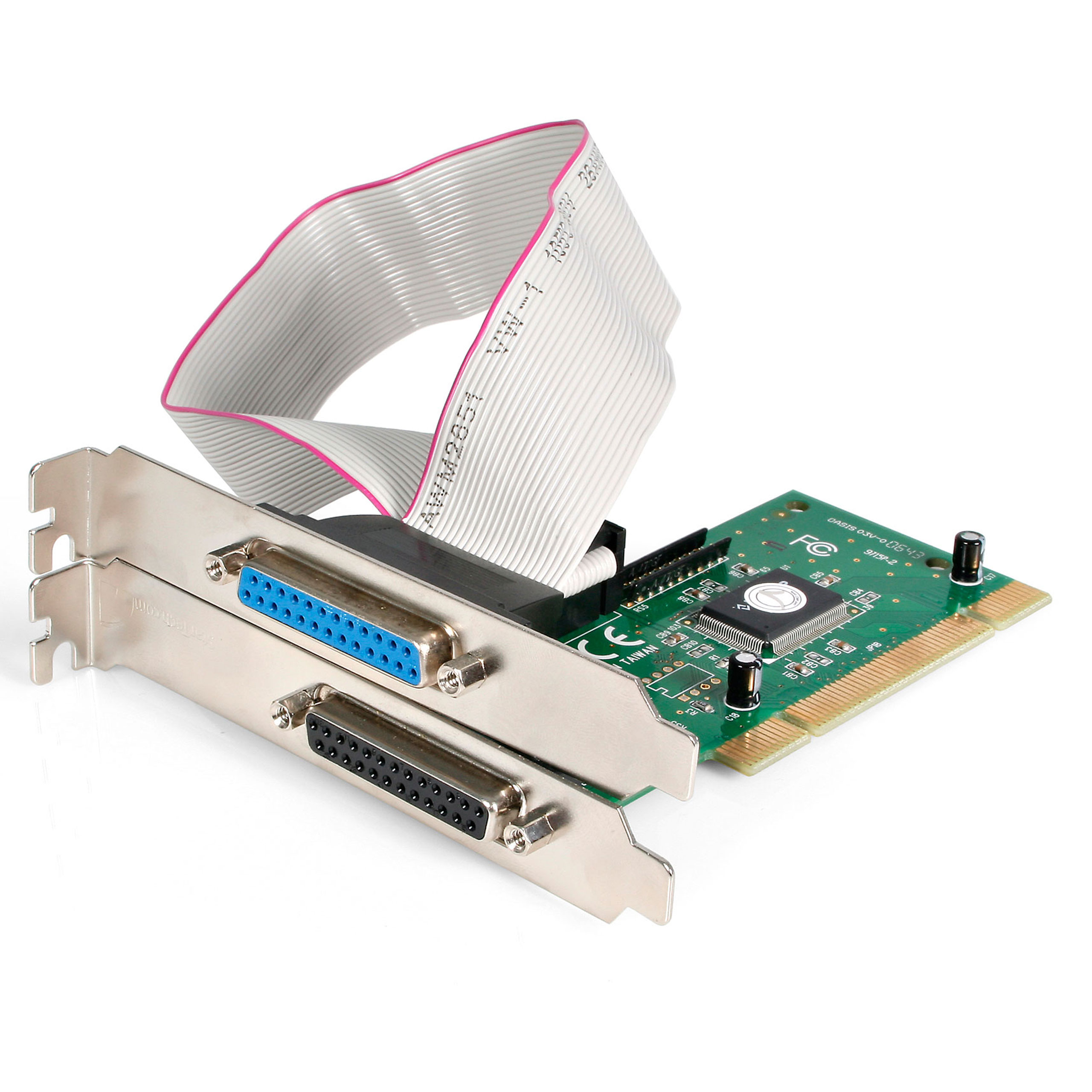

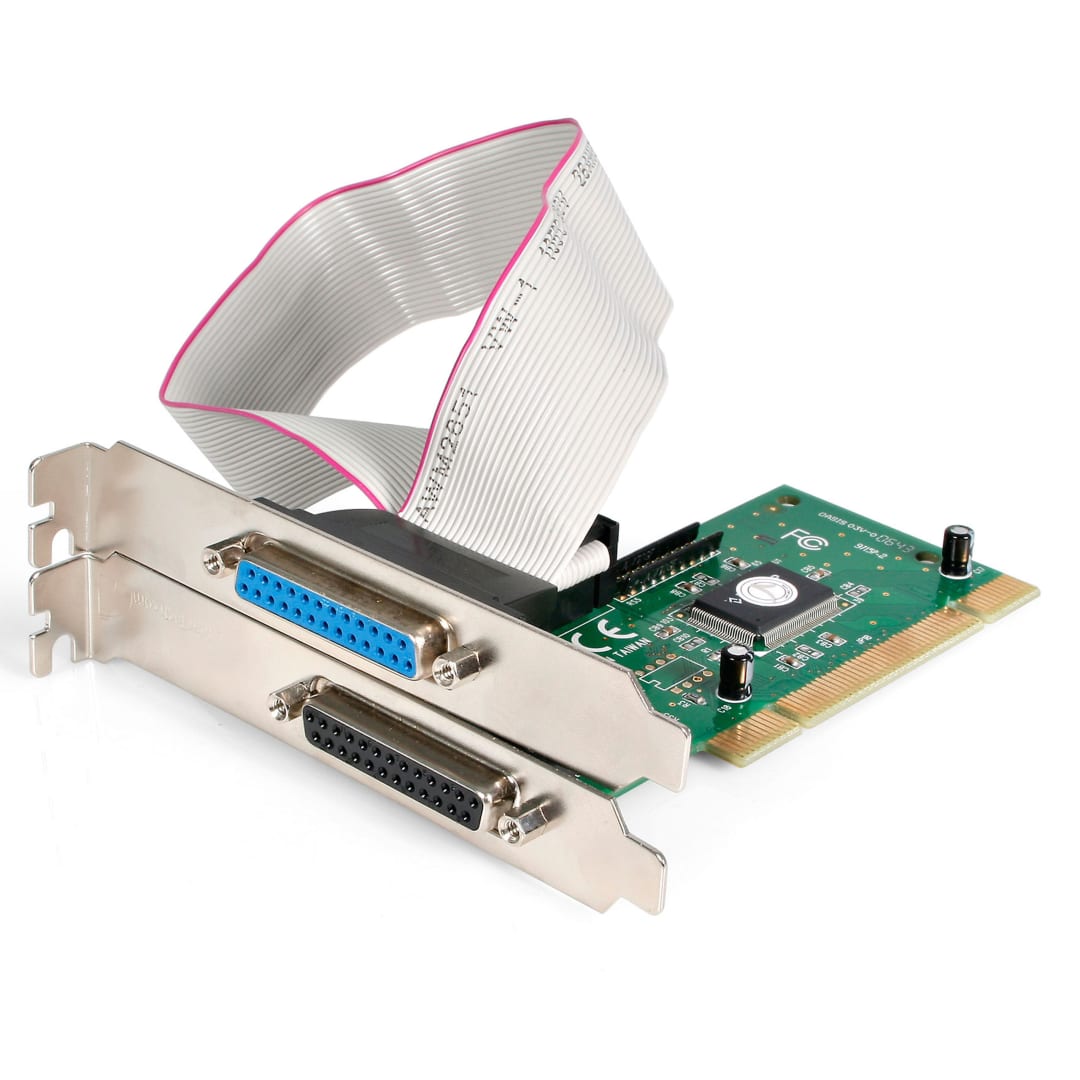

2 Port EPP/ECP PCI Parallel Card
Add 2 high-speed parallel ports (EPP/ECP/SPP) to your desktop computer through a PCI expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port EPP/ECP PCI Parallel Card Product Number PCI2PECP UPC 065030785402 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Parallel Cards and Adapters Family PCIe Parallel Card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2 Port PCI Parallel Adapter Card Product Title (Standard) StarTech.com 2 Port PCI Parallel EPP/ECP Adapter Card Product Title (Long) 2 Port PCI Parallel Adapter Card - EPP/ECP Product Title (AMZ) 2 Port PCI Parallel Adapter Card - EPP/ECP - PCI DB25 Card - IEEE 1284 Card - PCI Parallel Card (PCI2PECP) Title Ingram (Part 1) 2 Port PCI Parallel Adapter Card Website Product Headline Add 2 high-speed parallel ports (EPP/ECP/SPP) to your desktop computer through a PCI expansion slot Bullet 1 Easy plug and play installation Bullet 2 Data transfer rates of up to 1.5 Mbps Bullet 3 Compatible with Linux and all versions of Windows® including Windows® XP Bullet 4 IRQ sharing eliminates conflicts between multiple cards Bullet 5 Supports EPP, ECP, SPP and BPP Bullets (Consolidated) Includes half-height/low profile mounting bracket - Easy plug and play installation - Data transfer rates of up to 1.5 Mbps - Compatible with Linux and all versions of Windows® including Windows® XP IRQ sharing eliminates conflicts between multiple cards - Supports EPP, ECP, SPP and BPP - Installation scripts available for Linux RedHat 7.2, SuSE 7.3 and Mandrake 8.2 Marketing Copy Applications Connects any parallel peripheral including printers, scanners, CD-R/RWs, Zip® drives, and memory card readers Website Search Keyword RoHS Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements Unused PCI slot Accessory Products - SC6MF
- SC6MM
- SC10MF
- SC10FF
- SC20MF
- SC20MM
- SC50MM
- PB6_
- PB10
- PC20
- PC30
- PC50
- PTXFER6
- PTXFER15
Related Products PCI1PECP Color Green Material Steel Primary Material Steel Product Length (mm) 120.000 Product Width (mm) 20.000 Product Height (mm) 120.000 Product Weight (g) 70.000 TAA Compliant Yes Maximum Data Transfer Rate 1.5 Mbps OS Compatibility - Windows Server 2012
- Linux
- Windows 7
- Windows 8
- Windows 10
- Windows 11

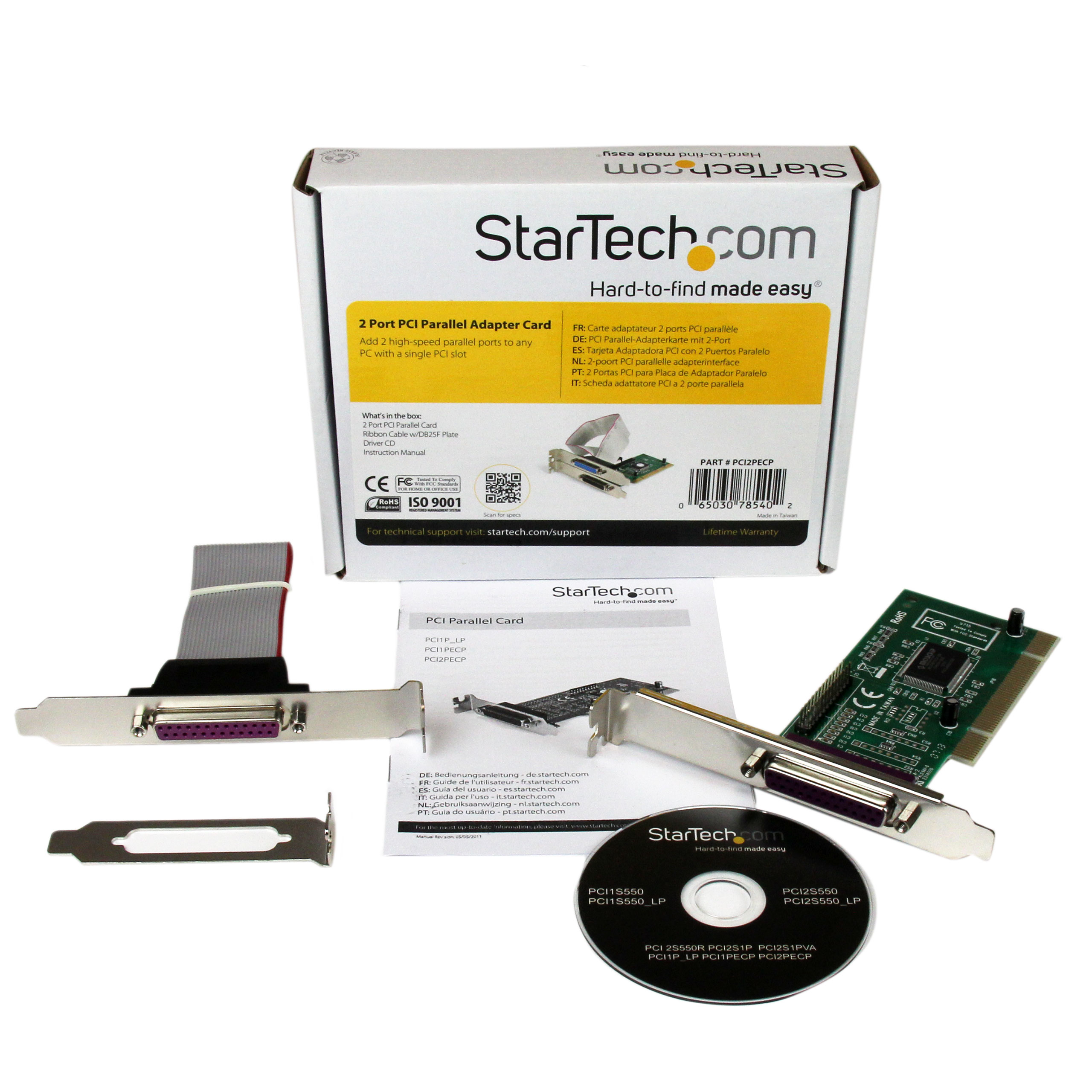

Supported Protocols EPP, ECP, SPP, BPP, PS2 Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID ASIX - MCS9815CV Industry Standards IEEE-1284 Interface/Bridge Parallel IO Card Port Style Integrated on Card Carton Depth (mm) 500 Carton Height (mm) 350 Carton Quantity 40 Carton Weight Gross (g) 10440 Included in Package - 1 - 2 Port PCI Parallel Card

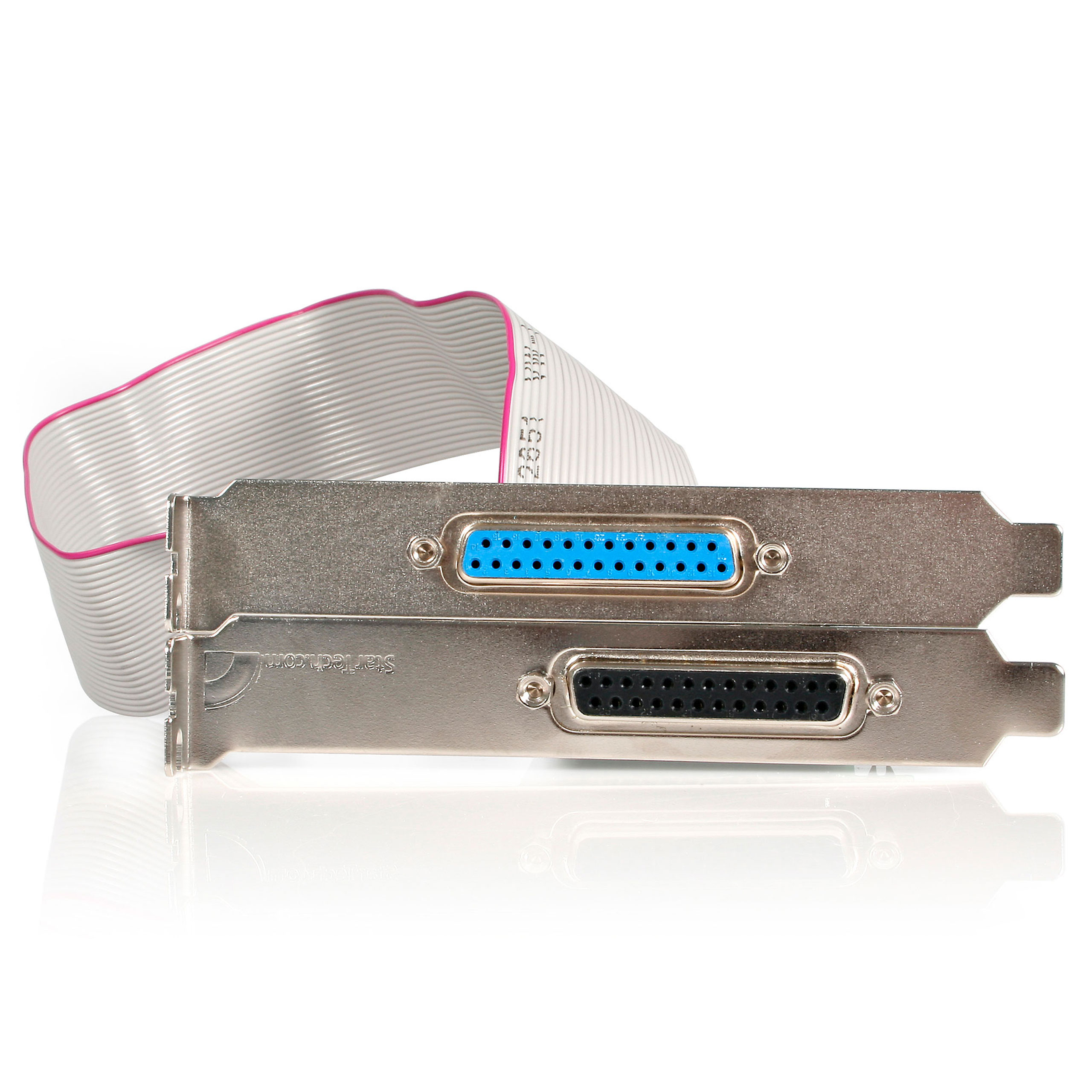

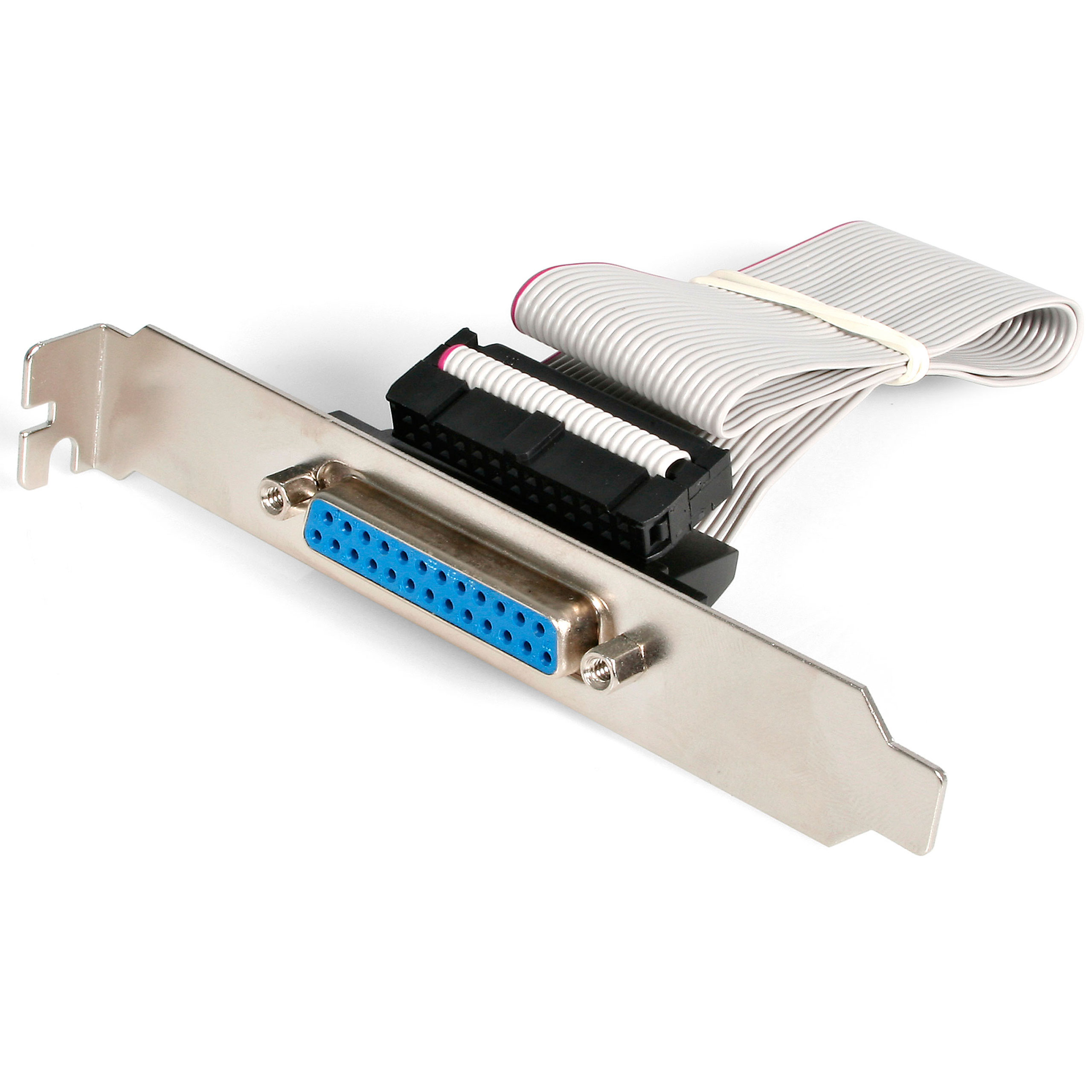

- 1 - Ribbon Cable w/DB25F Plate
- 1 - Driver CD
- 1 - Instruction Manual
- 2 - Low Profile Brackets
Package Depth (mm) 144 Package Height (mm) 30 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 192 Packaging Description 2 Port PCI Parallel Adapter Card Packaging Description India 2 Port PCI Parallel Adapter Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-25 Parallel / Serial Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
