PCI2S1P

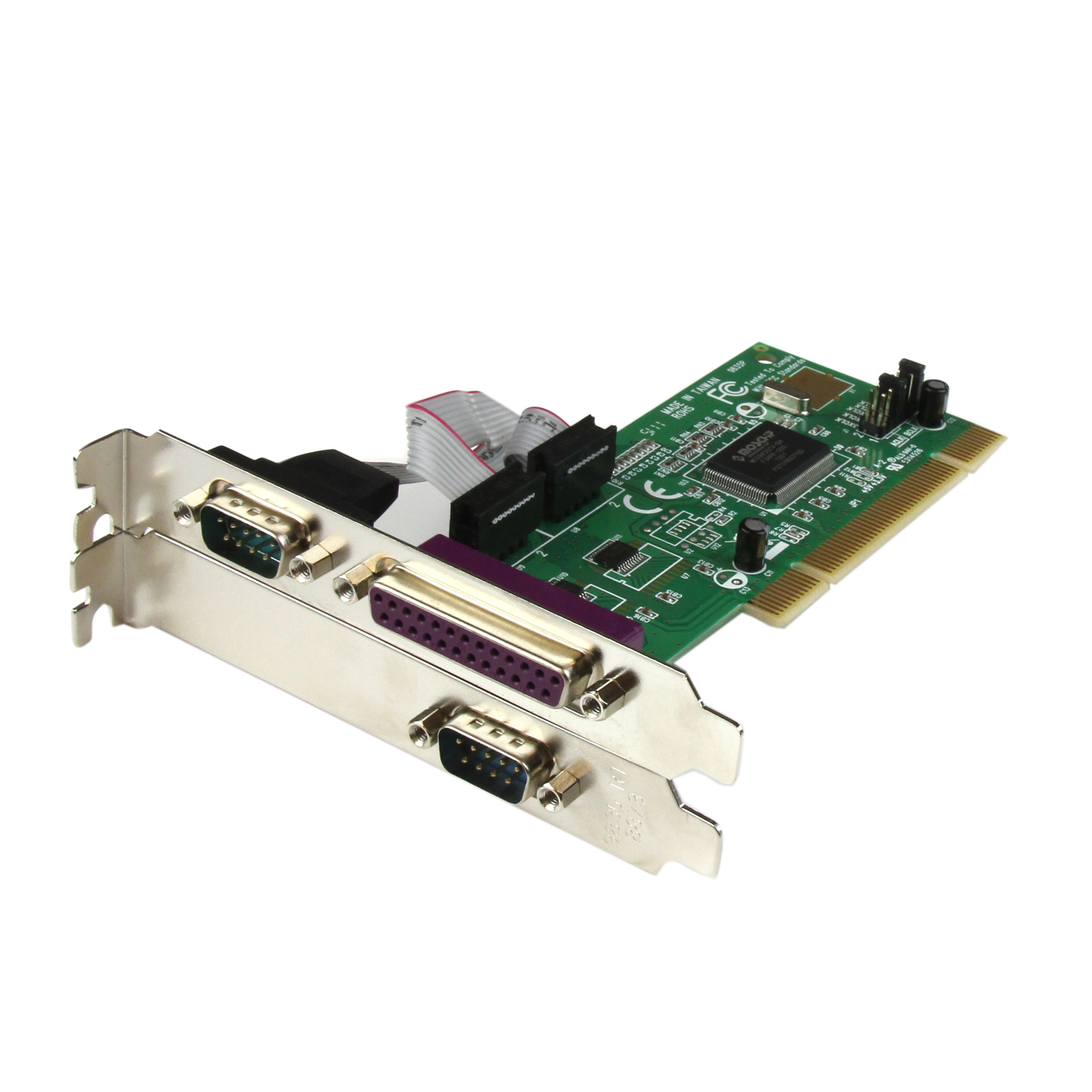

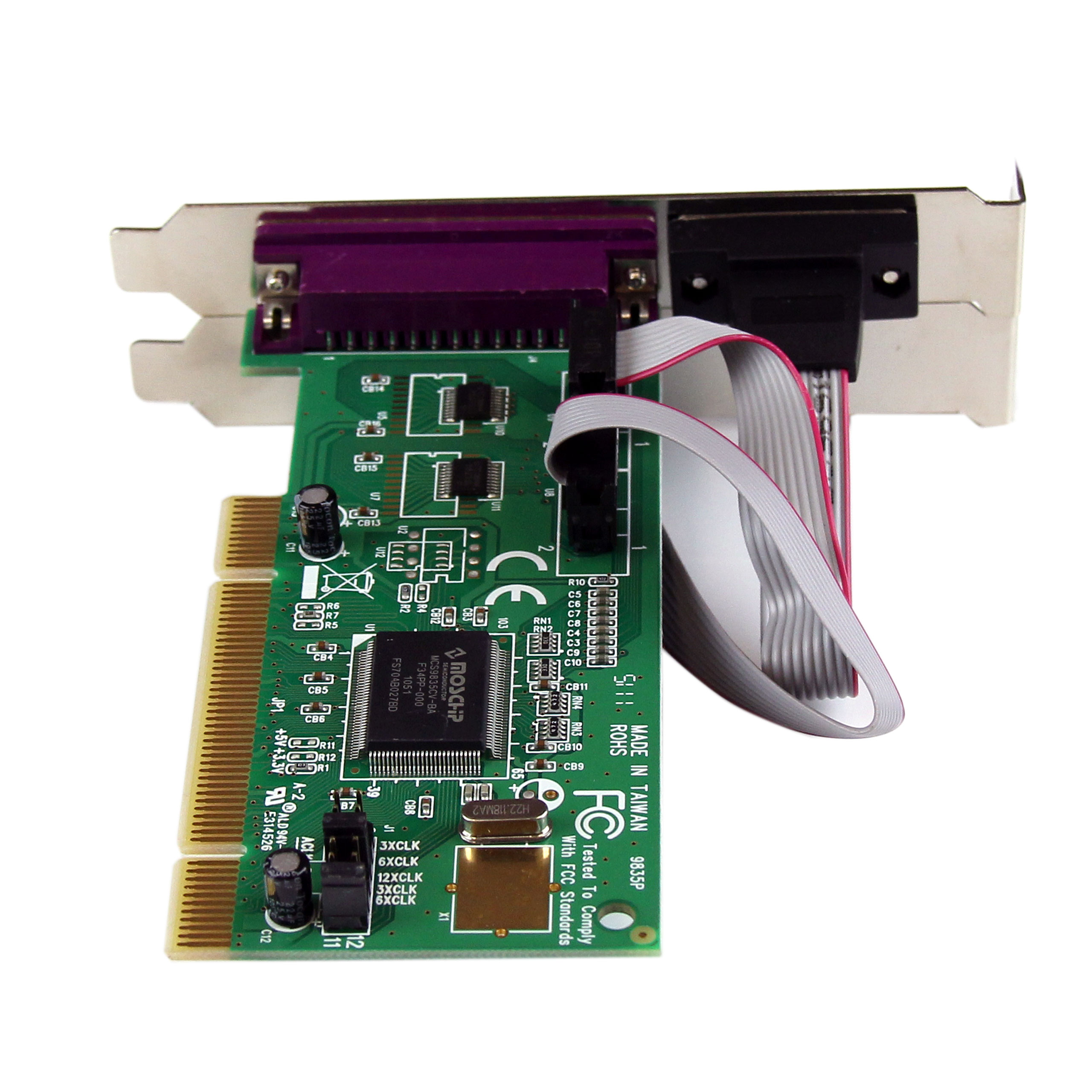

2 16C550 SERIAL 1 PARALLEL PORT PCI CARD
Add a parallel port and two RS-232 serial ports to your PC through a PCI expansion slot
Main Image
Product Images
Product Images
BOM Image
Product Name 2 16C550 SERIAL 1 PARALLEL PORT PCI CARD Product Number PCI2S1P UPC 065030781022 Lifecycle status End of Life Warranty Lifetime Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Family Serial Host Adapter Cards - PCI - Serial/Parallel Combo Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2S1P PCI Serial Parallel Combo Card Product Title (Medium) x Product Title (Standard) Parallel/serial combo card - PCI - parallel, serial - 3 ports Product Title (Long) 2S1P PCI Serial Parallel Combo Card with 16550 UART - TAA Product Title (AMZ) 2S1P PCI Serial Parallel Combo Card with 16550 UART - IEEE 1284 Card - Serial Parallel PCI - PCI Serial Adapter (PCI2S1P) Title Ingram (Part 1) 2S1P PCI Serial Parallel Combo C Title Ingram (Part 2) ard with 16550 UART Website Product Headline Add a parallel port and two RS-232 serial ports to your PC through a PCI expansion slot Bullet 1 Two 16C550 serial ports with data transfer up to 115.2 Kbits/sec Bullet 2 One EPP/ECP parallel port with data transfer up to 1.5 Mbits/sec Bullet 3 IRQ sharing eliminates conflicts between multiple cards Bullet 4 Parallel port supports EPP, ECP, SPP and BPP Bullet 5 Includes optional low profile/half-height mounting bracket Bullets (Compact) Add a parallel port and two RS-232 serial ports to your PC through a PCI expansion slot - Dual serial parallel PCI card - 2S1P PCI serial parallel combo card w/ 16550 UART - PCI serial card - Serial port PCI card - PCI parallel port card - PCI RS232 Bullets (Consolidated) Replacement PCI2S1P2 available - Add a parallel port and two RS-232 serial ports to your PC through a PCI expansion slot - 2S1P PCI Serial Parallel Combo Card with 16550 UART - PCI RS232 Serial Card plus Parallel Port - 2x Serial and 1x Parallel Adapter Card/PCI Serial/Serial RS232 Adapter Card with Parallel Port - All three ports share only one IRQ which minimizes the system resources required to operate the card - Includes standard and low-profile mounting brackets - Wide OS support Marketing Copy Applications - Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - SC6MF
- SC6MM
- SC10MF
- SC10FF
- SC20MF
- SC20MM
- SC50MM
- PB6_
- PB10
- PC20
- PC30
- PC50
- PTXFER6
- PTXFER15
- MC3MF
- MC6MF
- MXT100
- MXT100_25
- AT925FF
- AT925FM
- AT925SFM
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
- MXT100FF
Related Products - PCI2S550
- PCI1PECP
Constrained SKU Alternatives (Limited Stock) PCI2S1P2 Color Black Humidity 5~85% RH Material Steel Operating Temperature -10°C to 80°C (14°F to 176°F) Primary Material Steel Product Length (mm) 120.000 Product Width (mm) 20.000 Product Height (mm) 120.000 Product Weight (g) 66.000 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes FIFO Max Baud Rate 115.2 Kbps Maximum Data Transfer Rate Up to 1.5 Mbits/sec. OS Compatibility - Linux
- Windows 8
- Windows Server 2012
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
Supported Serial Protocol RS-232 Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID ASIX - MCS9835CV Interface/Bridge - Serial
- Parallel

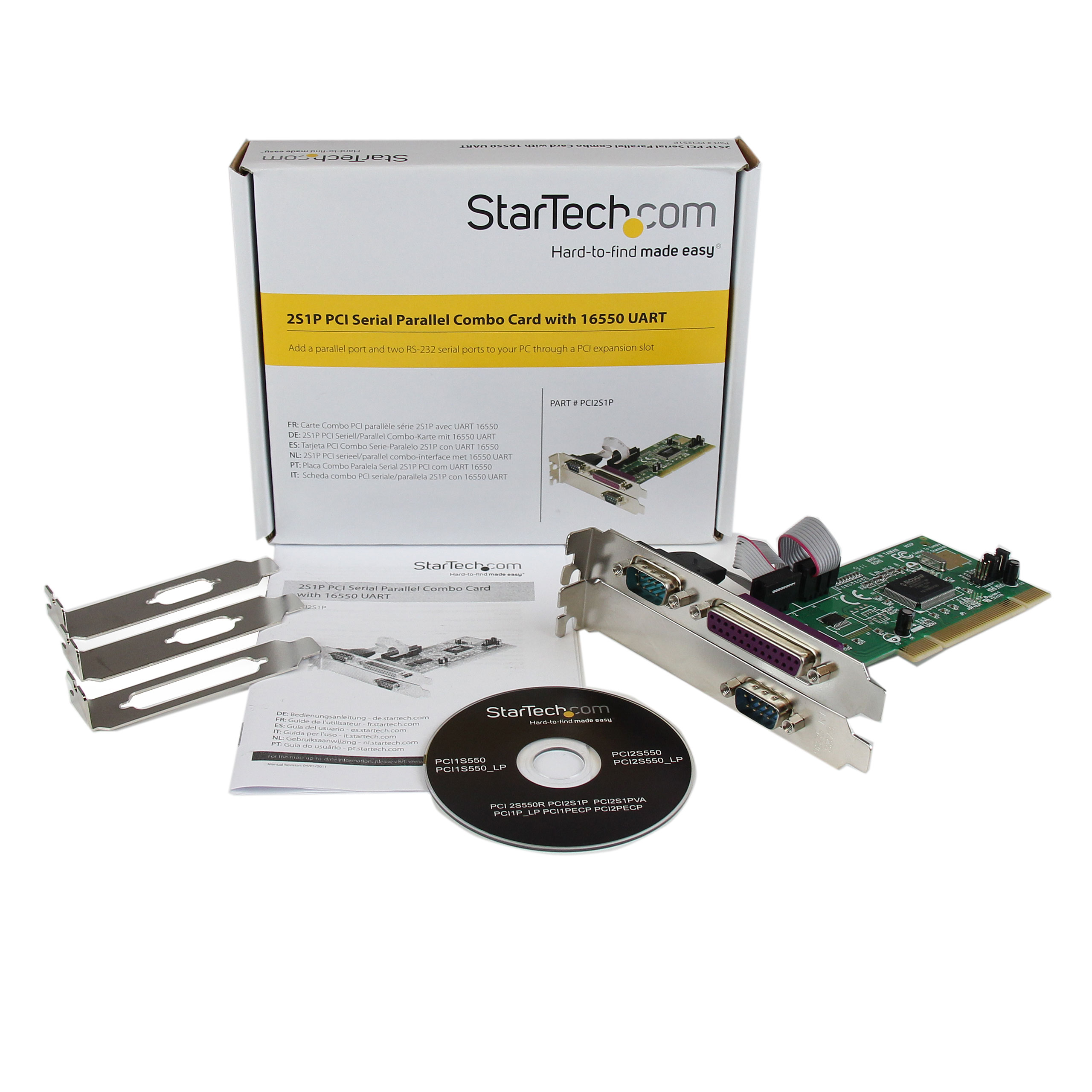

IO Card Port Style Integrated on Card Carton Depth (mm) 362 Carton Height (mm) 314 Carton Quantity 75 Carton Weight Gross (g) 15654 Included in Package - 1 - PCI 2S1P Card
- 1 - DB9 Ribbon Cable
- 1 - Driver CD
- 1 - Instruction Manual
- 3 - Low Profile Brackets

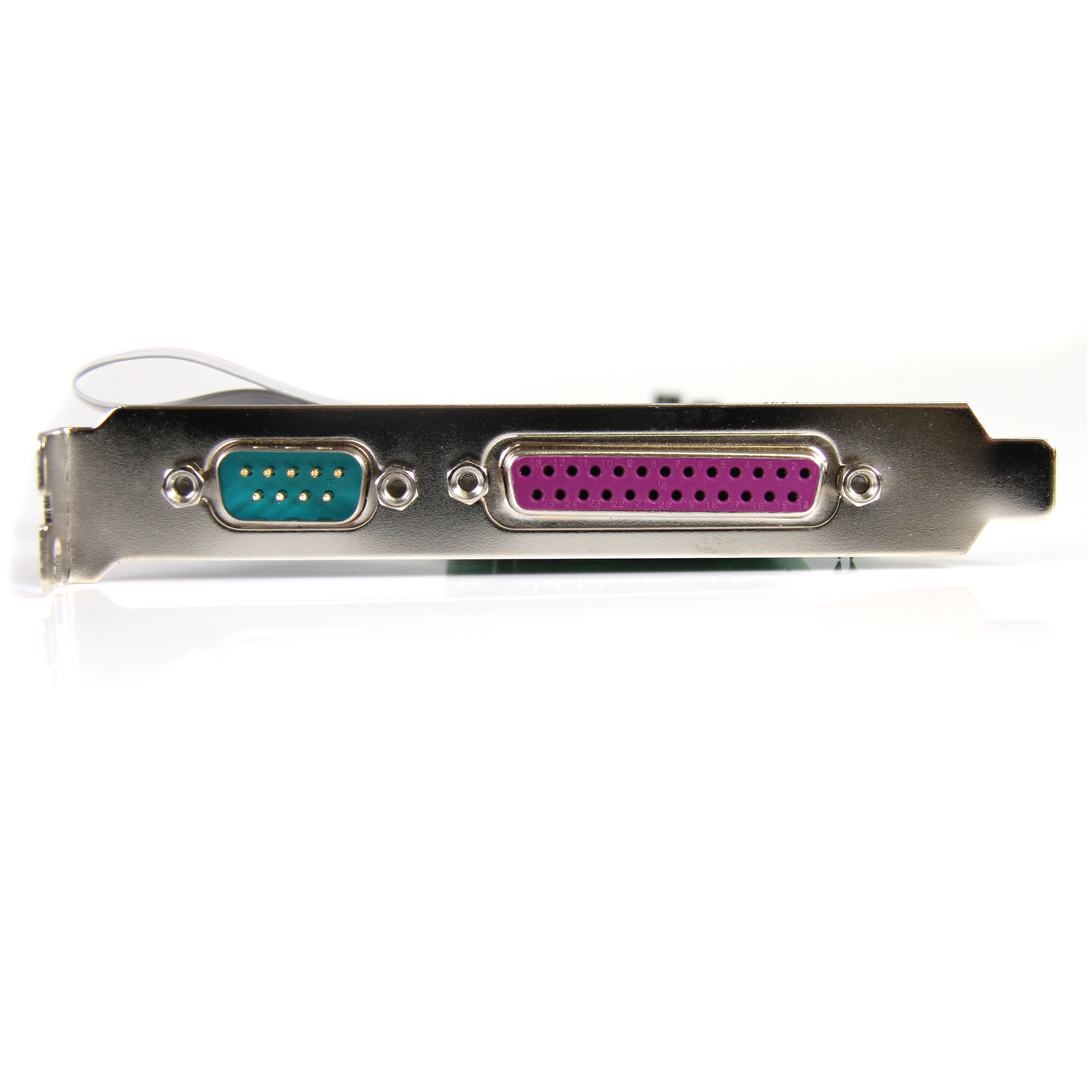

Package Depth (mm) 143 Package Height (mm) 32 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 190 Packaging Description 2S1P PCI Serial Parallel Combo Card with 16550 UART Packaging Description India 2S1P PCI Serial Parallel Combo Card with 16550 UART Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Connector 3 DB-25 Parallel / Serial Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
