2 16C550 Serial 1 Parallel Port PCI Card

Main Image

PCI2S1P2

2 16C550 Serial 1 Parallel Port PCI Card

PCI | RS-232 Serial | IEEE 1284 Parallel | Lifetime Warranty

Main Image

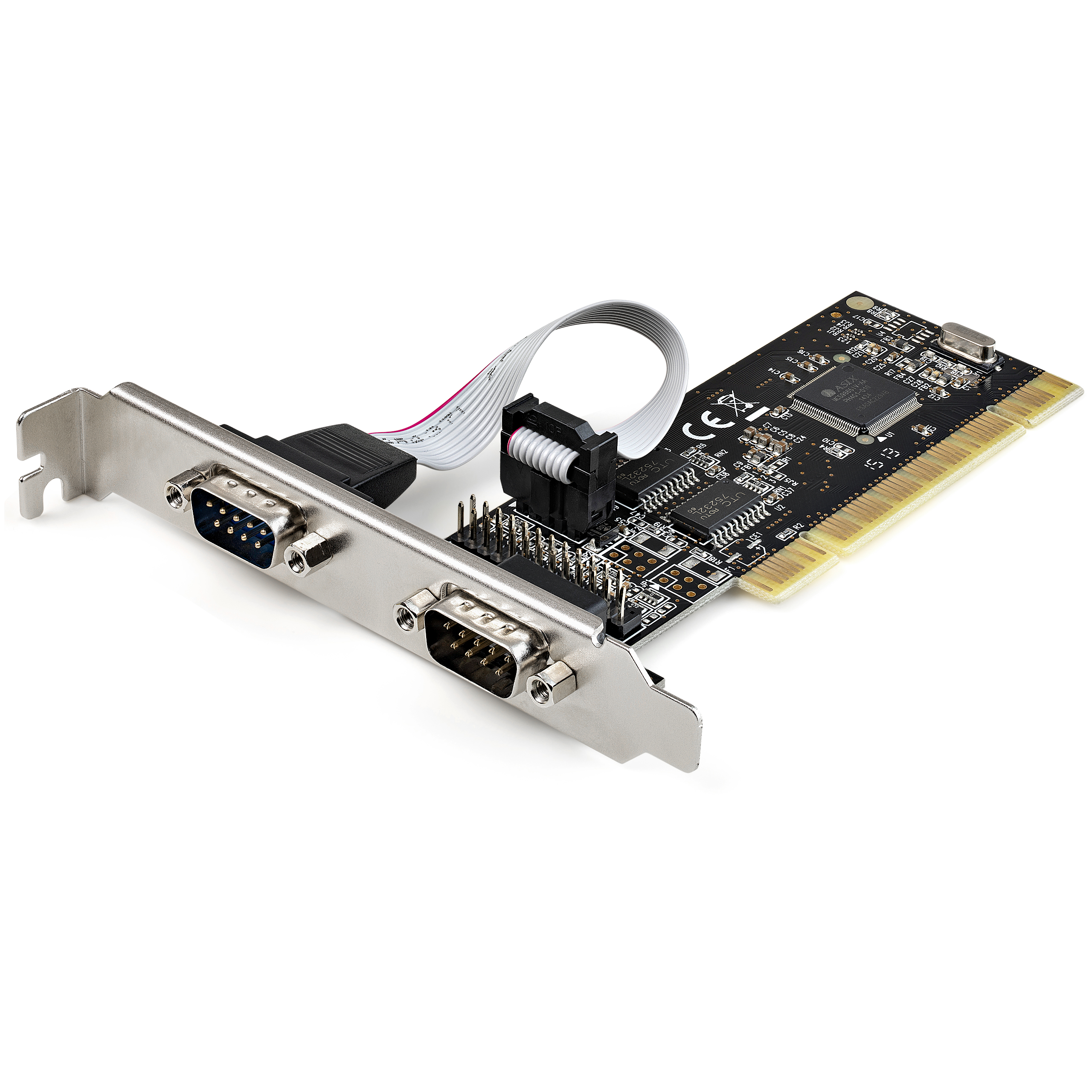

Product Images

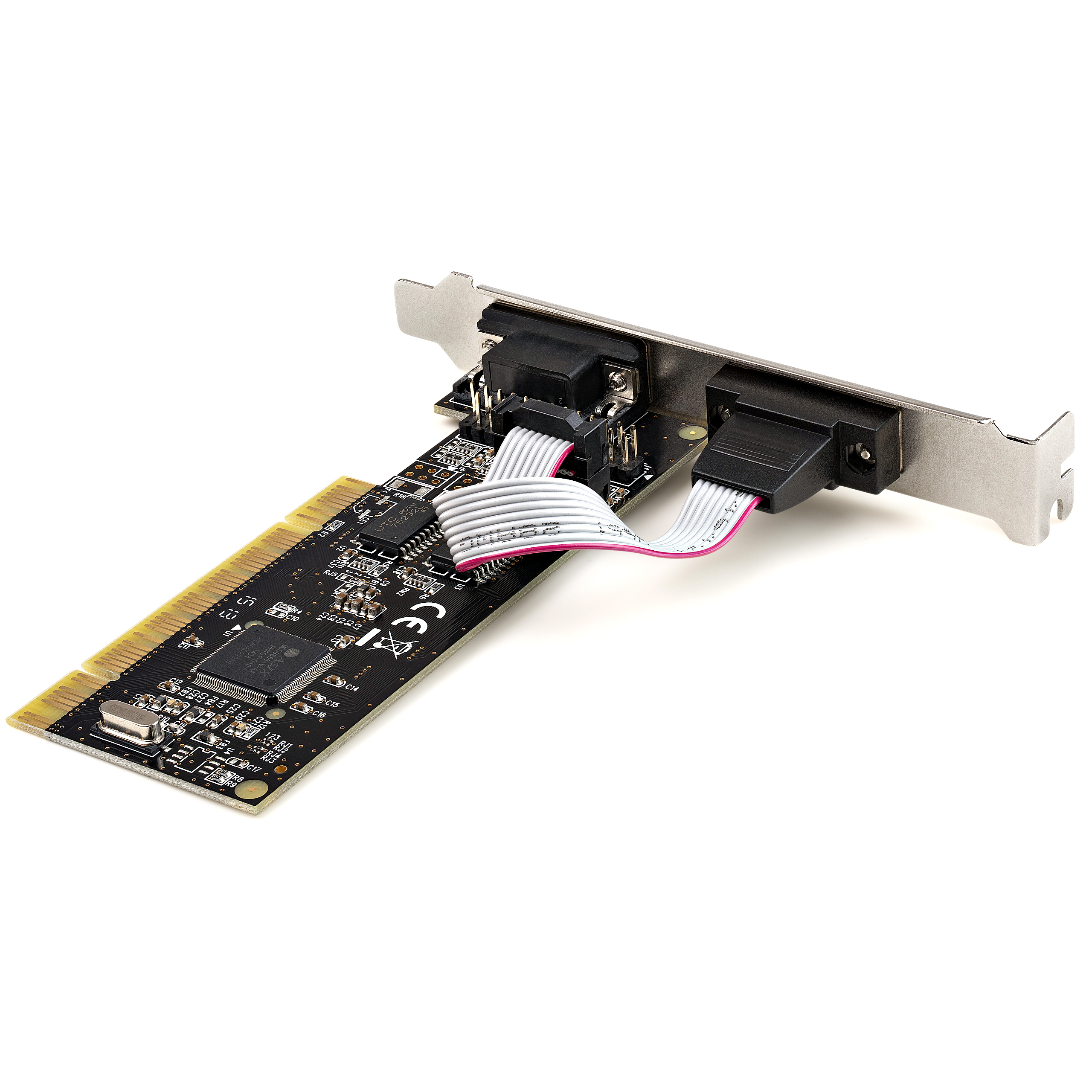

Product Images

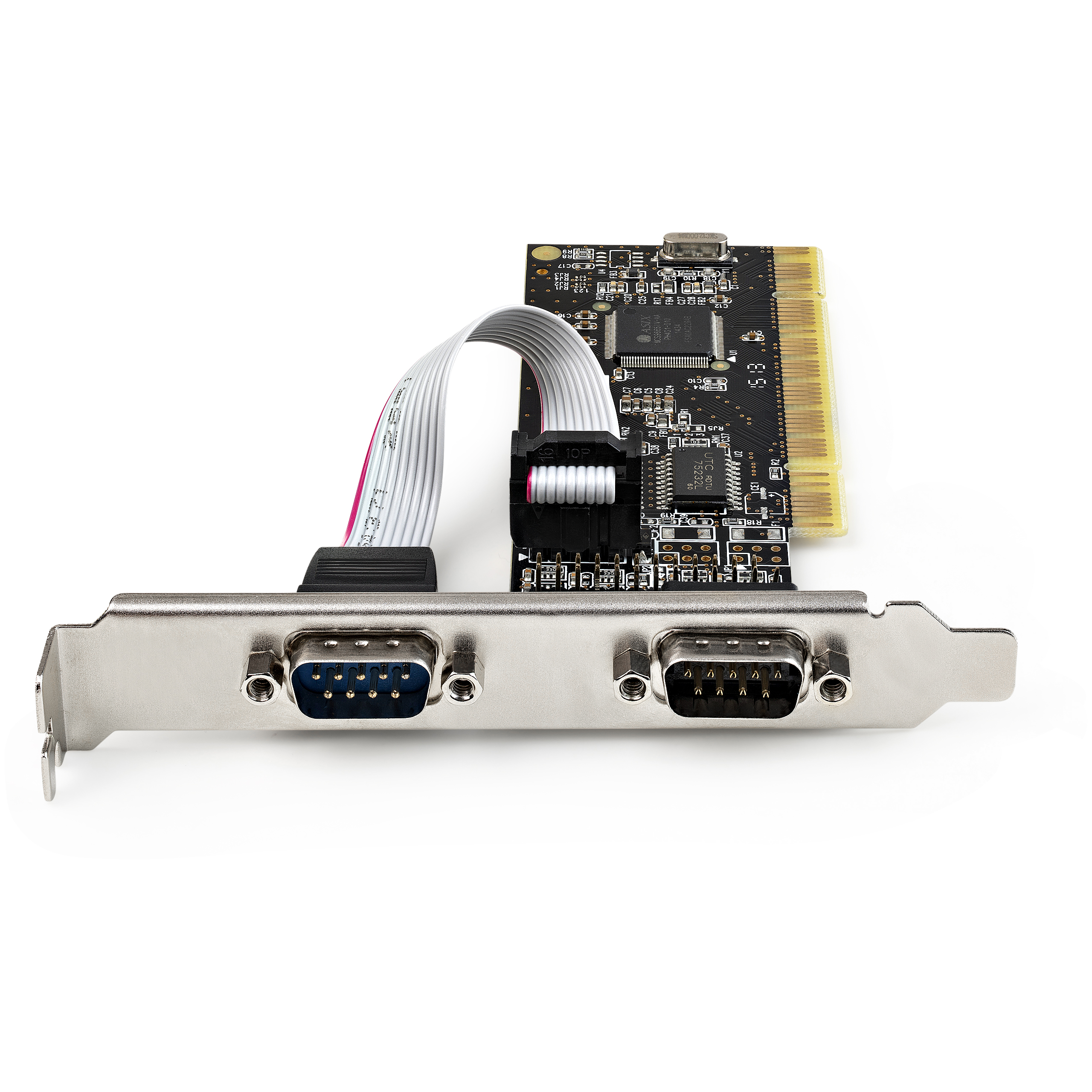

Product Images

Quick-Start Guide

Product Name	2 16C550 Serial 1 Parallel Port PCI Card
Product Number	PCI2S1P2
UPC	065030891301
Lifecycle status	End of Life
Warranty	Lifetime
Taxonomy	Product > Cards & Adapters > Serial and Parallel Cards & Adapters
Category Level 1	Computer Cards and Adapters
Category Level 2	Serial Cards, Adapters and Extenders
Category Level 3	Serial Host Adapter Cards
Family	Serial Host Adapter Cards - PCI - Serial/Parallel Combo
Country of Origin Europe & Japan	China
Country of Origin North America	China
Country of Origin History (1)	China
Country of Origin Revision (1)	XXXXXX072X

Quick-Start Guide	https://images.salsify.com/image/upload/s--uR8ZNHQC--/56ee793650f3bb29f0d95e58d6e24a6c75dca329.pdf
Driver	https://images.salsify.com/raw/upload/s--troiAUYG--/18d746bc41ce1026c19ba54e4d781d04a4469b11.zip https://images.salsify.com/raw/upload/s--NxX9doDN--/af90fa73b1d4e200e2bdf55e6cb2358bb9159cec.zip https://images.salsify.com/raw/upload/s--cJU3xqKt--/fe09ce57beb96fe765407284344ced01da80a957.txt https://images.salsify.com/raw/upload/s--strwdSWW--/3871313951e393ee0f0f65984b6cfa659d240ae4.txt

Product Title (Ultra-Short)	Serial/Parallel Card
Product Title (Short)	PCI Combo Card 2x Serial/1x Parallel
Product Title (Medium)	Serial/Parallel PCI Card with Dual Serial RS232 Ports & 1x Parallel LPT Port
Product Title (Standard)	PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel Port (DB25), PCI Adapter Expansion Card
Product Title (Long)	PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25) - PCI Combo Adapter Card - PCI Expansion Card Controller - PCI to Printer Card
Product Title (AMZ)	PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25) - PCI Combo Adapter Card - PCI Expansion Card Controller - PCI to Printer Card (PCI2S1P2)
Title Ingram (Part 1)	Serial/Parallel PCI Card with
Title Ingram (Part 2)	2x RS232 Serial and 1x Parallel
Website Product Headline	PCI \| RS-232 Serial \| IEEE 1284 Parallel \| Lifetime Warranty
Bullet 1	PCI CARD WITH SERIAL & PARALLEL PORTS: Using one PCI bus, add a DB25 parallel & two DB9 RS232 ports to your computer; Serial Parallel PCI Card installs in 2x full profile or 3x low profile expansion slots; Auto IRQ & IO assignment; Supports IRQ Sharing
Bullet 2	TECH SPECS: Parallel Speeds up to 1.5Mbps \| Supports SPP/Byte/ECP/EPP modes \| Compatible with IEEE 1284 \| Asix MCS9865 chip \| RS-232 speeds up to 115.2 Kbps \| 16C550 UART \| 256 byte FIFO buffer \| 5-9 bit character \| Even, Odd, No, Space or Mark Parity
Bullet 3	VERSATILE APPLICATIONS: PCI expansion combo card adds LPT Printer & two COM serial ports working with printers, scanners, plotters, point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, oscilloscope
Bullet 4	STANDARD PROFILE & LOW PROFILE BRACKETs: PCI multiport Parallel LPT & dual serial COM adapter card installs using 2x standard bracket (pre-installed) or 3x low profile brackets (incl); Supports Windows 7 and up, Linux 2.6.x to 5.x
Bullet 5	STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; These 1-Port Parallel & 2-Port Serial port PCI controller card is backed for life by StarTech.com, including free 24/5 North America based multi-lingual tech support
Bullets (Compact)	PCI Serial Parallel Combo Card adds 1x Parallel + 2x Serial RS232 ports - Up to 1.5Mbps Parallel LPT (DB25)/115.2Kbps Serial COM (DB9) - SPP/Byte/ECP/EPP modes - Asix MCS9865 - Expansion card - 2xStandard brackets (3xlow profile incl) - Windows/Linux
Bullets (Consolidated)	PCI Serial Parallel Combo Card adds dual Serial RS232 and 1x Parallel Ports using a PCI card slot - Parallel LPT (DB25) Speeds up to 1.5Mbps \| SPP/Byte/ECP/EPP modes \| IEEE 1284 - Serial COM (DB9) Speeds up to 115.2Kbps \| 16C550 UART \| 5-9 bit character \| Even/Odd/No/Space/Mark Parity - PCI expansion card (Asix MCS9865) with 2x standard brackets (3x low profile brackets incl) - PCI adapter/controller card supports Windows/Linux - Use card w/printer/scanner/plotter - Replacement for PCI2S1P
Marketing Copy
Applications	Connect printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes to your computer via the added parallel port Connect point of sale terminals, serial printers, PLCs, scientific sensors, medical equipment, scanners and oscilloscopes to your computer via the added serial ports Use in factories to control or automate equipment
Website Search Keyword	2 port serial pci card 9 pin serial card 9 pin serial port card db9 serial db9 serial card dual serial port dual serial port pci card external pci expansion lpt card lpt port card parallel adapter card parallel controller card Parallel pci card parallel port card parallel port card for pc parallel port expansion card parallel port pci parallel printer port card pci card parallel port pci card rs232 serial ports pci card serial port pci combo card pci expansion card pci lpt card pci lpt port pci parallel adapter card pci parallel card pci parallel port pci parallel port card pci printer card pci printer port card pci rs232 pci rs232 serial adapter card pci rs232 serial card PCI serial adapter pci serial adapter card pci serial card pci serial or parallel pci serial parallel pci serial parallel card pci serial port pci serial port card pci to lpt card pci to rs232 pci to rs232 card pci to serial pci to serial card pci to serial port pci to serial port card printer port card rs232 card rs232 parallel port rs232 pci card rs232 serial card rs232 serial port serial adapter card serial card serial controller card serial expansion card Serial parallel card Serial Parallel PCI Card serial pci card serial port card serial port card pci serial port expansion card serial port pci serial port pci card manhattan serial pci card moxa pci serial card PCI2S1P startech serial card

Required Regulatory Compliance Marks

FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
RCM - EMC/EMI - Australia/New Zealand - RCM Mark
WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU

Accessory Products	1284DB25_10 MXT100 MXT10010 MXT100FF 1284DB25 AT925FF AT925FM GC99MFRA1 MXT100_25 SC10MF SC10MM SC6MM1284 SC6MM PB6_ PC20
Related Products	PEX1S953LP PEX2S953 PEX2S953LP PEX4S953LP PEX4S953 PEX8S1050 PEX1P2 PEX8S1050LP PCI2S5502

Color	Black
Humidity	10~90% RH
Operating Temperature	0°C to 70°C (32°F to 158°F)
Product Length (mm)	133.600
Product Width (mm)	21.600
Product Height (mm)	120.000
Product Weight (g)	141.000
Storage Temperature	-20°C to 85°C (-4°F to 185°F)
TAA Compliant	No

Data Bits	5, 6, 7, 8, 9
FIFO	256 Bytes
Flow Control	None, Xon/Xoff, RTS/CTS
Max Baud Rate	115.2 Kbps
Maximum Data Transfer Rate
OS Compatibility	Windows 8 Windows Server 2012 Linux Windows 7 Windows 10 Windows Server 2016 Windows Server 2019 Windows Server 2008 R2 Windows 8.1 Windows 11 Windows Server 2022
Parity	None, Odd, Even, Space, Mark
Stop Bits	1, 1.5, 2
Supported Serial Protocol	RS-232

Bus Type PCI
Card Type Standard Profile (LP bracket incl.)
Chipset ID Asix - MCS9865
Industry Standards
IEEE 1284
16C550 (RS-232)
Interface/Bridge PCI / PCI-X (5 / 3.3V)
IO Card Port Style Integrated on Card

Carton Depth (mm)	360
Carton Height (mm)	340
Carton Quantity	40
Carton Weight Gross (g)	9000

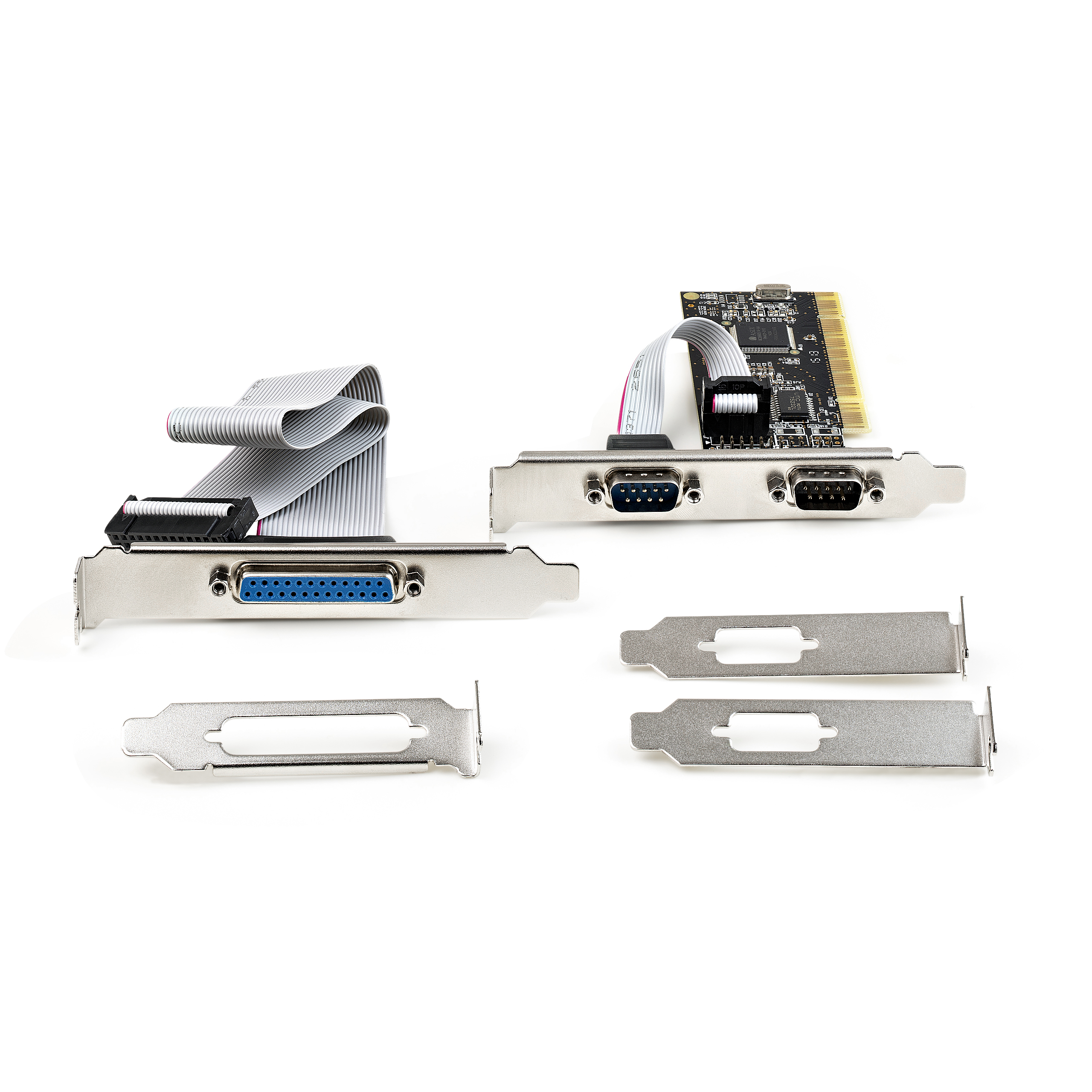

Included in Package	1 - PCI Serial Parallel Combo Card 1 - Full Profile Bracket (Installed) 2 - Low Profile Brackets (for Serial Ports) 1 - Low Profile Bracket (for Parallel Port) 1 - Quick-Start Guide
Number of Sub-Cartons	4
Package Depth (mm)	143
Package Height (mm)	33
Package Width (mm)	174
Package Quantity	1
Package Weight (g)	190
Packaging Description	2S1P PCI Serial Parallel Combo Card with 16C550 UART
Packaging Description India	2S1P PCI Serial Parallel Combo Card with 16C550 UART
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Quantity	10
Sub-Carton Weight (g)	0

Connector 1 PCI / PCI-X
Connector 1 (Quantity) 1
Connector 2 DB-9 Serial
Connector 2 (Quantity) 2
Connector 3 DB-25 Parallel / Serial
Connector 3 (Quantity) 1
