PCI2S1PDVLP
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name 2 Serial 1 Parallel Port Low Profile WHQL Approved Combo Car Product Number PCI2S1PDVLP UPC 065030819282 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Long) 2 Port PCI Low Profile Dual Voltage WHQL Serial Adapter Card 16650 Bullet 1 WHQL certified drivers ensure compatibility with any Windows® PC Bullet 2 Includes drivers to support DOS® or Linux® Bullet 3 Data transfer rates of up to 921.6 Kbps for peak serial device performance Bullet 4 PCI2S1PDV supports 32 bit PCI/5V and 64 bit PCI/3.3V slots Bullet 5 Built-in high-speed with 32-byte transmit/receive hardware FIFO buffer. 128 byte software FIFO buffer in Windows 2000/XP/2003 Marketing Copy Applications - Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Consumer (modems, PDAs, digital cameras, printers)
- Security (UPS control, access key panels, video cameras, card readers, modems)
- Casino (video lottery terminals, slot machines)
- Environmental Control (lighting, temperature, clocks)
- Healthcare (patient monitoring equipment, nurses' stations, modems)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
Website Search Keyword - 2 Port
- 16650
- Low Profile
- Serial
- PCI
- Dual Voltage
Microsoft WHQL Certified Yes Accessory Products - MC3MF
- MXT100
- AT925FF
- AT925FM
- SCNM9FF
- SCNM925FM
- SCNM9FM
- MXT100FF
- NETRS232_1
Product Length (mm) 120 Product Width (mm) 64 Product Weight (g) 62 TAA Compliant No General Specifications - Maximum Data Transfer Rate: 921.6 Kbps/sec
- Compatible OS: DOS, Windows 95, 98, ME, NT; Windows XP (32-bit, 64-bit), Windows Vista (32-bit, 64-bit), Linux
- Operation Temprature: 0 degrees C to 57 degrees C
- Storage Temprature: -20 degrees C to 85 degrees C
- IRQ and I/O address assigned by BIOS
- Data bits: 4,5,6,7, and 8
- Stop bits: 1, 1.5, and 2
- Parity: None, Odd, Even, Space, Mark
- Flow Control: None, Xon/Xoff, RTS/CTS
- Ports: 2 x DB9 Serial Ports
- Serial Communication: RS-232
- Parallel Communication: ECP/EPP/SPP/BPP
- : 1 x DB25 Parallel Port

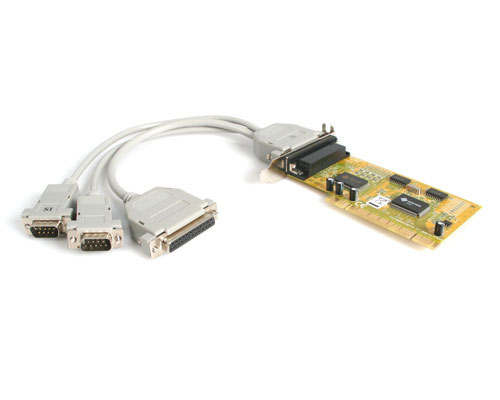

OS Compatibility Windows Vista Bus Type PCI / PCI-X (5 / 3.3V) Chipset ID Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 16200 Included in Package - 1 - Low Profile PCI/PCI-X Card
- 1 - DB9 Male Serial Connector Cable
- 1 - Manual
- 1 - Driver CD
Package Depth (mm) 54 Package Height (mm) 149 Package Width (mm) 216 Package Weight (g) 300 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Carey Cline
