PCI2S1PVA
2 16C550 Serial 1 Parallel Port PCI Card Ver. A
Add a parallel port and two RS-232 serial ports to your PC through a PCI expansion slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 2 16C550 Serial 1 Parallel Port PCI Card Ver. A Product Number PCI2S1PVA UPC 065030834452 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2 Port Serial & 1 Port Parallel PCI Card Product Title (Long) 2 Port 16C550 Serial and 1 Port EPP/ECP Parallel Slot Saver PCI Card Website Product Headline Add a parallel port and two RS-232 serial ports to your PC through a PCI expansion slot Bullet 1 Large list of supported operating systems including Windows®, Mac OS and Linux Bullet 2 IRQ sharing eliminates conflicts between multiple cards Bullet 3 One EPP/ECP parallel port with data transfer up to 1.5 Mbits/sec Bullet 4 Parallel port supports EPP, ECP, SPP and BPP Bullet 5 Two 16C550 serial ports with data transfer up to 460.8 Kbits/sec Marketing Copy Applications Connect parallel and serial devices like printers, scanners, ISDN terminal adapters, CD-R/RWs, Zip® drives and memory card readers Website Search Keyword - 2s1p
- RS-232
- Serial Card
- Parallel Card
- Serial PCI
- Parallel PCI
- PCI Serial
- PCI Parallel
Accessory Products - AT925FF
- AT925FM
- AT925SFM
- MC3MF
- MC6MF
- MXT100
- MXT100_25
- MXT100FF
- PB10
- PB6_
- PC20
- PC30
- PC50
- PTXFER15
- PTXFER6
- SC10FF
- SC10MF
- SC20MF
- SC20MM
- SC50MM
- SC6MF
- SC6MM
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
Related Products - PCI1PECP
- PCI2S550
- PCI2S1P
- PCI2S1PDV
- PCI2S232485I
Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 120 Product Height (mm) 55 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant No Data Bits 5, 6, 7, 8 FIFO Max Baud Rate 460.8 Kbps Maximum Data Transfer Rate OS Compatibility - Windows Server 2012
- Linux
- Mac OS X Mavericks (10.9)
- Windows 8
- Windows 7
Parity Even, Odd, Force or None Supported Serial Protocol RS-232 Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID ASIX - MCS9835CV Interface/Bridge - Serial
- Parallel

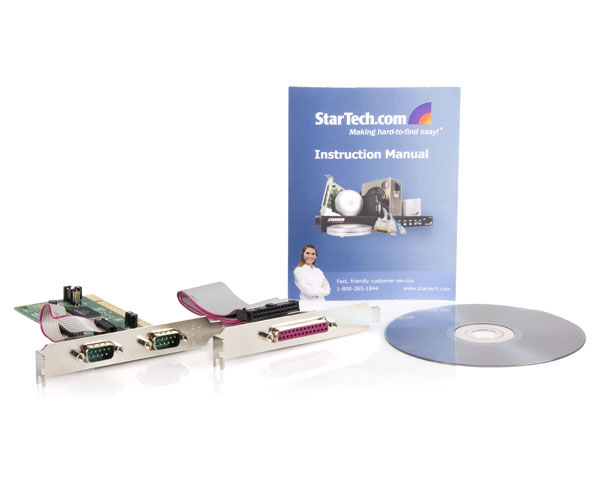

IO Card Port Style Integrated on Card Carton Depth (mm) 458 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 12200 Included in Package - 1 - Ribbon Cable
- 1 - Driver CD
- 1 - PCI 2S1P Card
- 1 - User Manual
- 3 - Low Profile Brackets
Package Depth (mm) 40 Package Height (mm) 145 Package Width (mm) 210 Package Weight (g) 220 Packaging Description 2S1P PCI RS232 Serial Parallel Combo Card Packaging Description India 2S1P PCI RS232 Serial Parallel Combo Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-25 Parallel / Serial Connector 2 (Quantity) 1 Connector 3 DB-9 Serial Connector 3 (Quantity) 2 en-US Content Approved Yes Product Manager Rafal Gwozdz
