PCI2S232485I
PCI Serial Adapter Card RS232 RS485 and RS422
Control and communicate with two serial devices even with mixed RS-232 & 485 protocols
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name PCI Serial Adapter Card RS232 RS485 and RS422 Product Number PCI2S232485I UPC 065030840408 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) 2 Port RS232/422/485 PCI Serial Adapter Product Title (Standard) 2 Port RS232/422/485 PCI Serial Adapter w/ ESD Product Title (Long) 2 Port RS232/422/485 PCI Serial Adapter Card w/ ESD Protection Product Title (AMZ) 2 Port RS232/422/485 PCI Serial Adapter Card w/ ESD - Serial adapter - PCI - RS-232 x 2 - yellow - PCI2S232485I Title Ingram (Part 1) 2 Port RS232/422/485 PCI Serial Title Ingram (Part 2) Adapter Card ESD Protection Website Product Headline Control and communicate with two serial devices even with mixed RS-232 & 485 protocols Bullet 1 Supports RS232, RS422, RS485 2 wire, and RS485 4 wire modes Bullet 2 Each port can be set independently Bullet 3 921.6Kbps maximum baud rate per port Bullet 4 Compliant with PCI Rev. 2.2 specifications Bullet 5 PCI Power Management Rev. 1.1 compliant Bullets (Compact) Control and communicate with two serial devices, even with mixed RS-232 & 485 protocols - Supports RS232, RS422, RS485 2-wire and RS485 4-wire modes - Communicate with multiple devices over mixed protocols - Each port can be set independently Bullets (Consolidated) Control and communicate with two serial devices even with mixed RS-232 and 485 protocols - 2-Port RS232/422/485 PCI Serial Adapter Card with ESD Protection - Two Port Serial Card/Serial Adapter Card/PCI Serial Card - Supports RS232 RS422 or RS485 2-wire and RS485 4-wire modes - Makes it easy to communicate with two different serial modes from the same PCI card - Supports baud rates up to 921.6 Kbps - built-in ESD protection to ensure that your connected serial devices remain protected Marketing Copy Applications - Add RS232, RS422, and RS485 support to a Desktop, Server, or Embedded system
- Ideal for lab environments where serial requirements may change
- Communicate with two different serial modes from the same PCI card
Website Search Keyword PCI Serial Adapter Card 2 port RS-232 RS-485 RS-422 add-on card ESD Protection Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - DB92422
- MXT100
- MXT10010
- MXT100FF
- MXT100_25
- NM9FF
- NM9MF
- SCNM925FM
- SCNM9FF
- SCNM9FM
- SCNM9FF25
Related Products - PCI2S485LP
- CB2S485
- PCI2S485
- CB1S485
- IC485S
- PCI4S422ISO
- ICUSB422
- ICUSB422IS
- PCI4S422DB9
- PCI2S422ISO
- PCI1S650PW
- PCI1S950DV
- PCI2S650DV
- PCI2S650PW
- PCI2S950DV
Color Yellow Humidity 5~95% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 121.000 Product Width (mm) 74.000 Product Height (mm) 18.000 Product Weight (g) 84.354 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Data Bits 5, 6, 7, 8, 9 FIFO 128 Bytes Flow Control Hardware, Auto Xon/Xoff, None Max Baud Rate 921.6 Kbps MTBF (hours) 234,450 hours OS Compatibility - Linux
- Windows 7
- Windows 8
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11

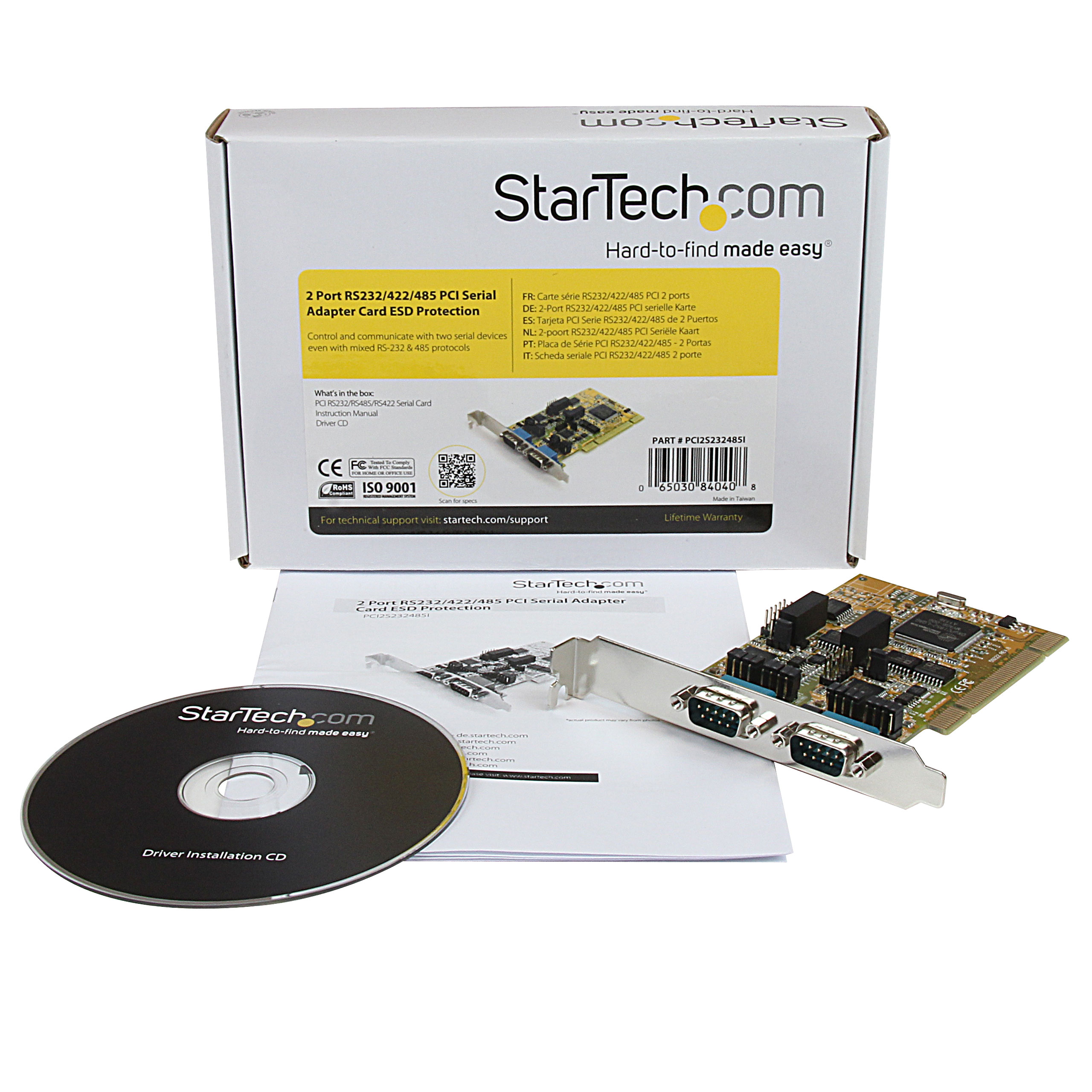

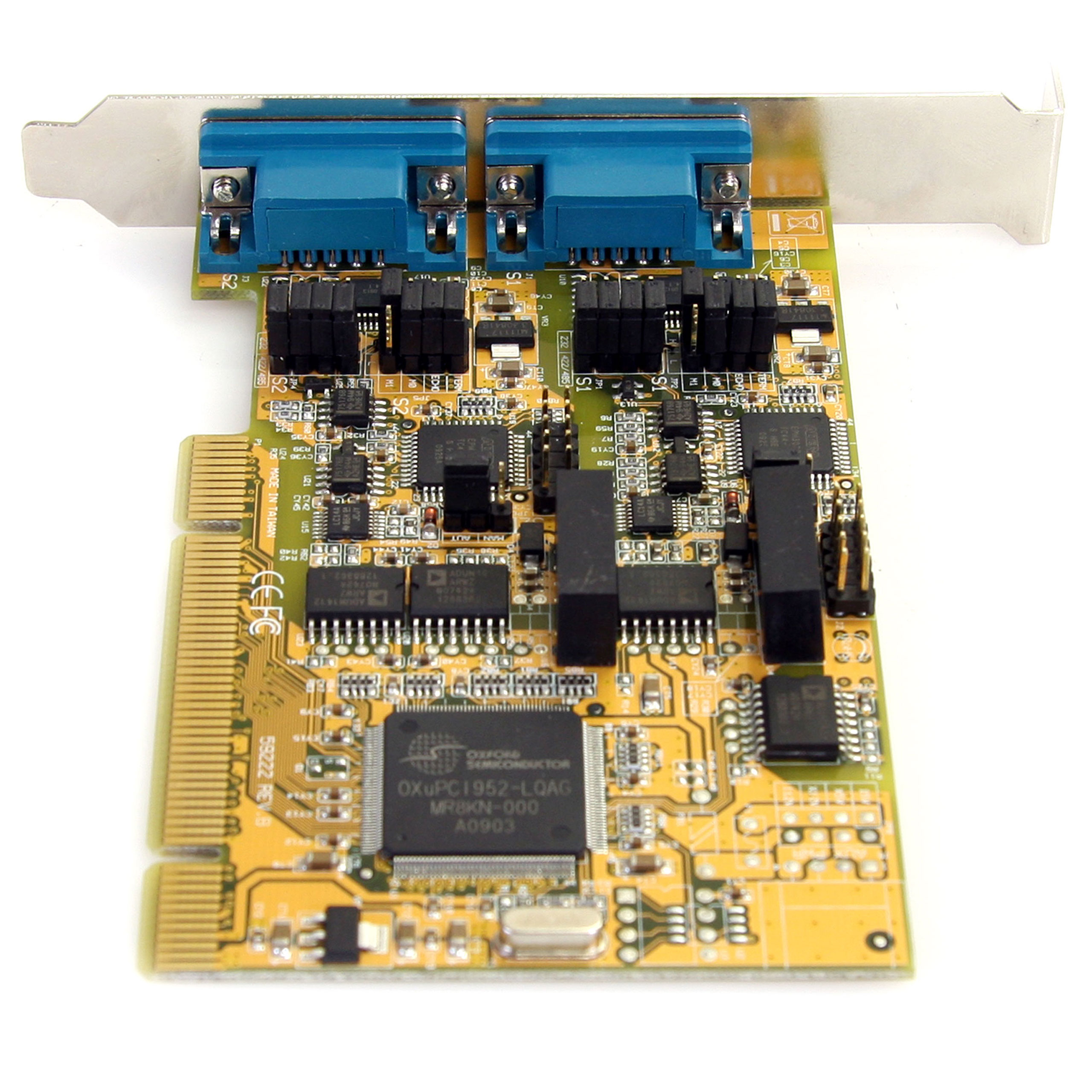

Parity None, Even, Odd Supported Serial Protocol RS-232/422/485 Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile Chipset ID PLX/Oxford - OXuPCI952 Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 440 Carton Height (mm) 333 Carton Quantity 50 Carton Weight Gross (g) 12200 Included in Package - 1 - PCI RS232/RS485/RS422 Serial Card
- 1 - Instruction Manual
- 1 - Driver CD
Package Depth (mm) 147 Package Height (mm) 41 Package Width (mm) 212 Package Quantity 1 Package Weight (g) 200.26 Packaging Description 2 Port RS232/422/485 PCI Serial Card Packaging Description India 2 Port RS232/422/485 PCI Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
