PCI2S2PMC

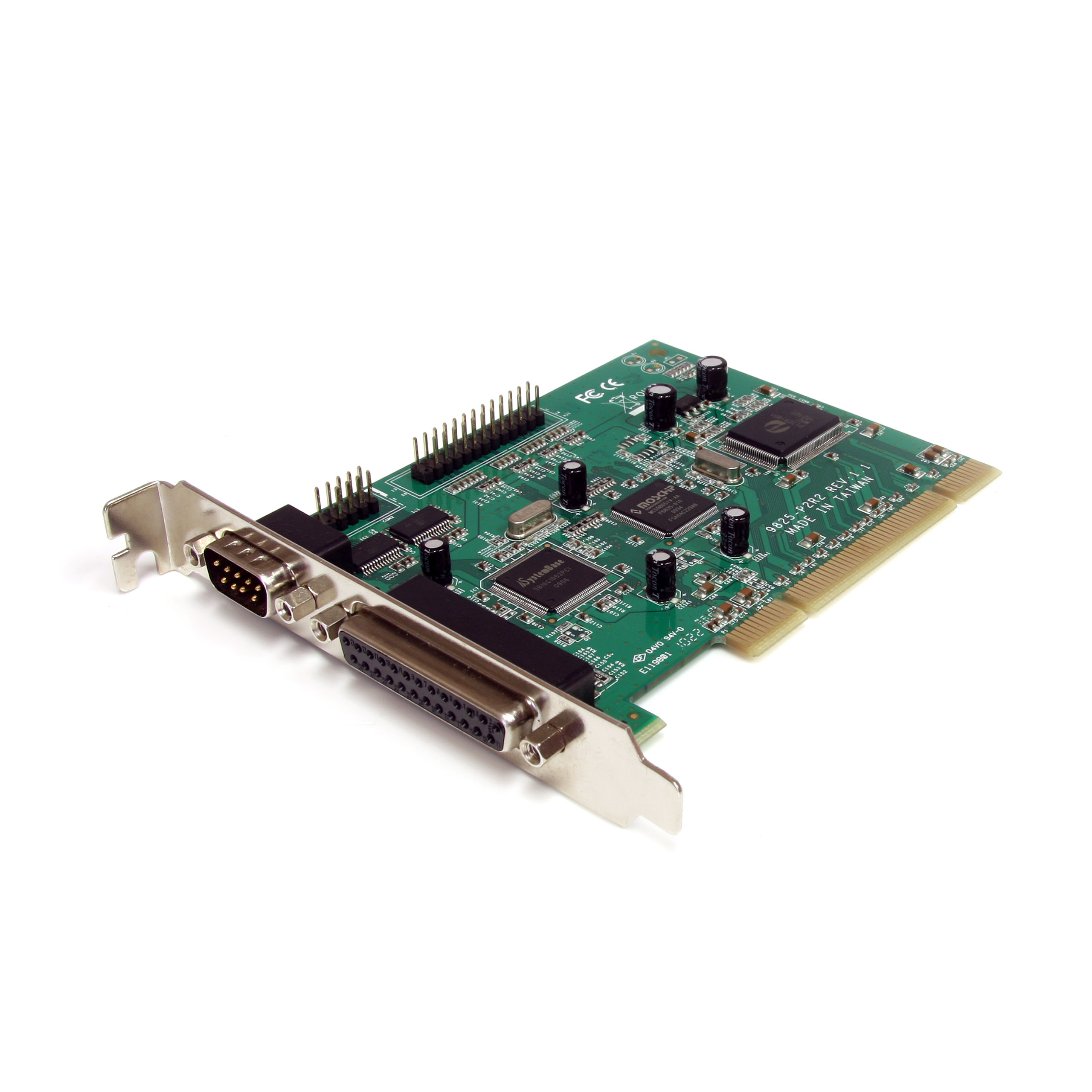

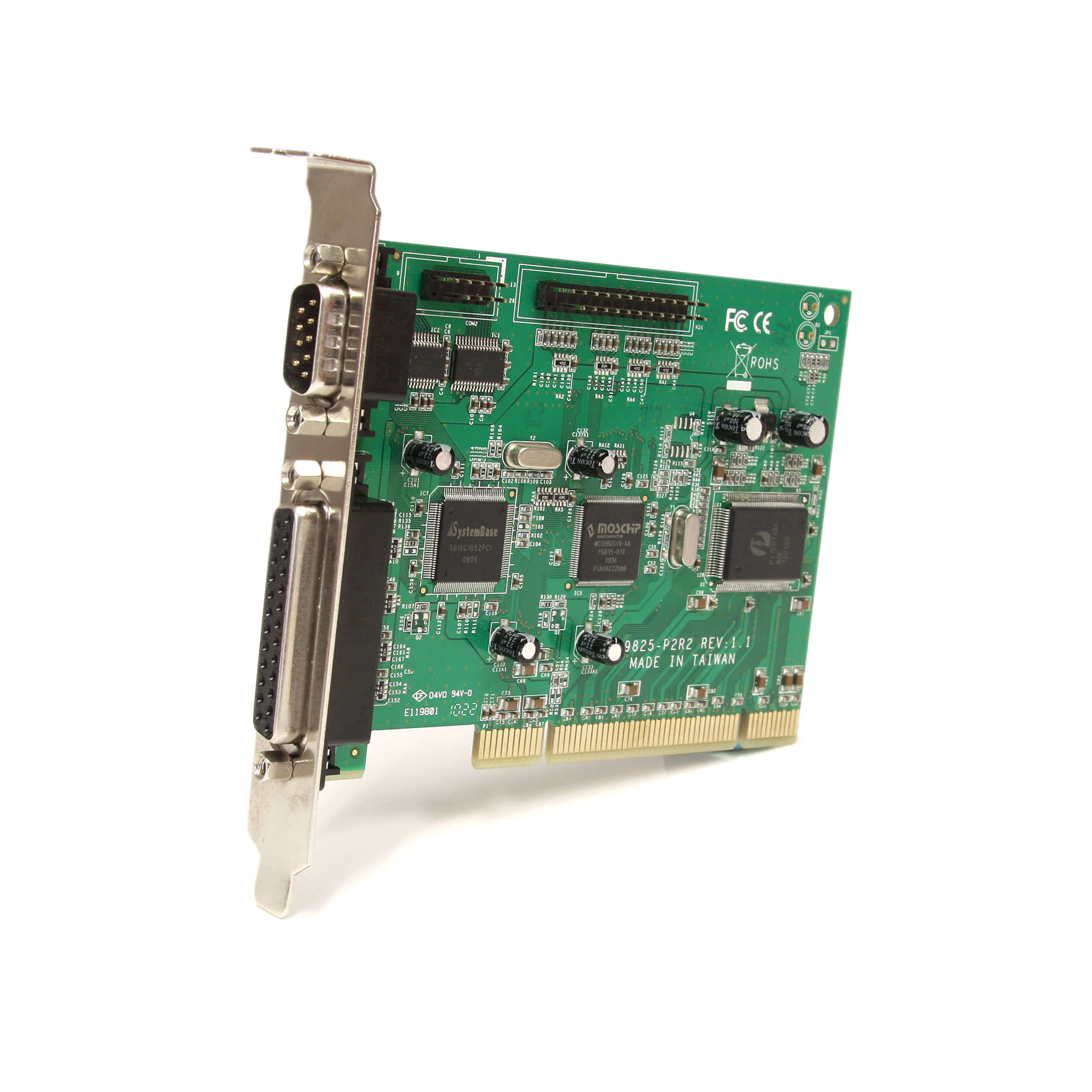

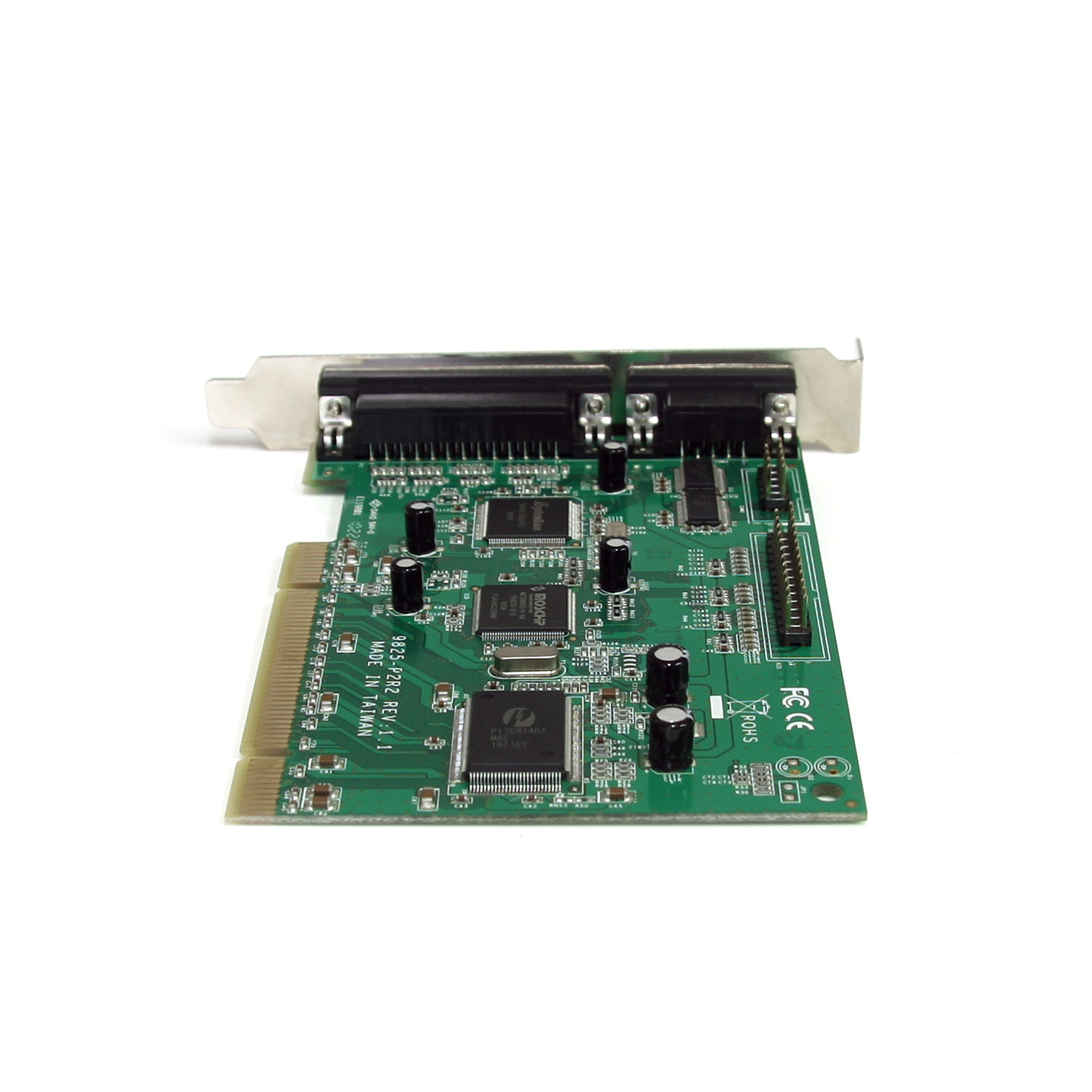

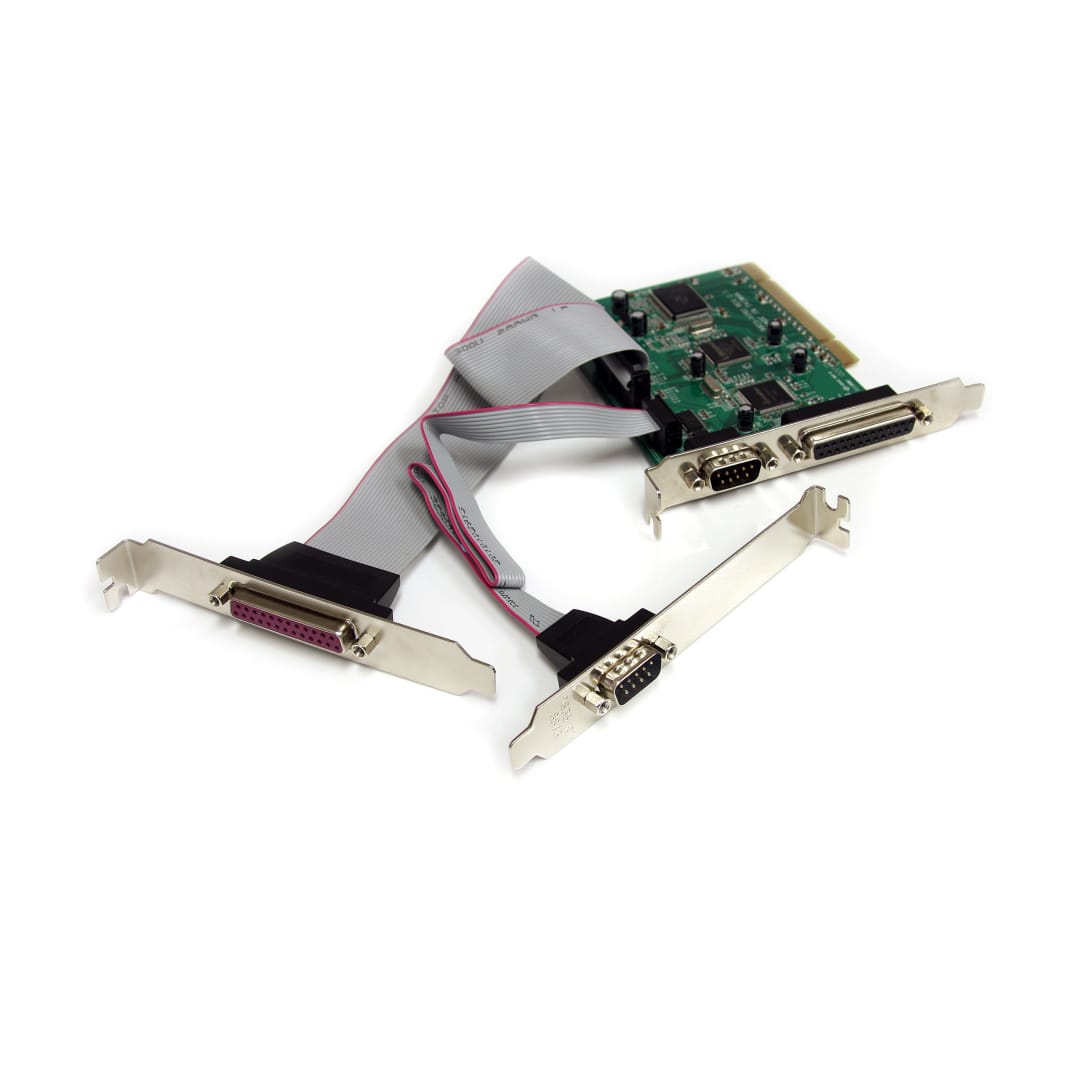

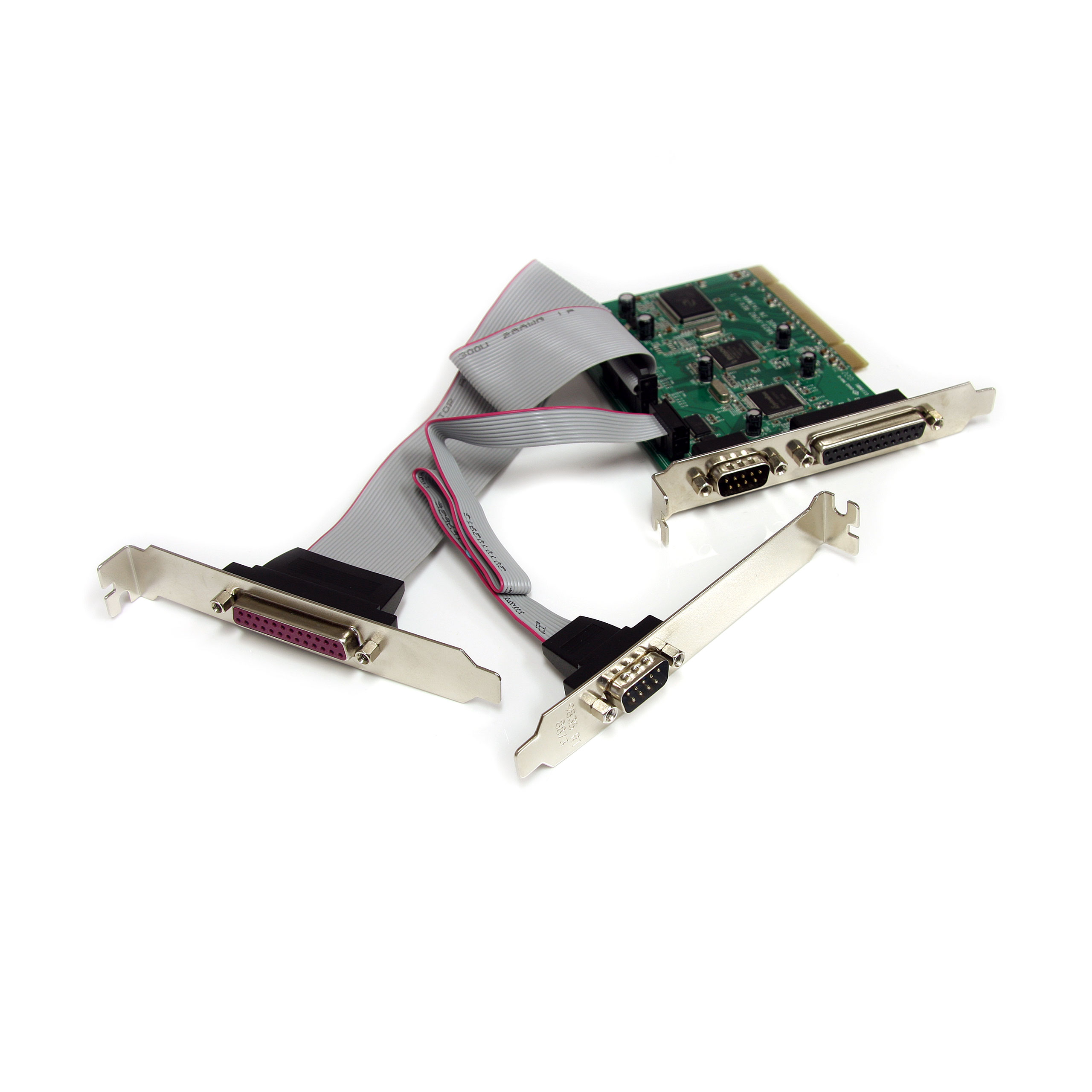

2 Serial 2 Parallel PCI Combo Card
Add two Serial and two Parallel ports to your desktop system through a single PCI slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Serial 2 Parallel PCI Combo Card Product Number PCI2S2PMC UPC 065030845823 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2S2P PCI Serial Parallel Combo Card Product Title (Standard) 2S2P PCI Serial Parallel Combo Card with 16C1050 UART Product Title (Long) 2S2P PCI Serial Parallel Combo Card with 16C1050 UART Product Title (AMZ) 2S2P PCI Serial Parallel Combo Card with 16C1050 UART - Mini PCIe Serial Parallel Card - 2 Port Serial Adapter (PCI2S2PMC) Title Ingram (Part 1) 2S2P PCI Serial Parallel Combo C Title Ingram (Part 2) ard with 16C1050 UART Website Product Headline Add two Serial and two Parallel ports to your desktop system through a single PCI slot Bullet 1 256 Byte deep transmit/receive FIFO Bullet 2 Universal 3.3/5V PCI card Bullet 3 Supports RS232 baud rates up to 115.2 Kbps Bullet 4 Compliant with PCI Local Bus Specification, Revision 2.3 Bullet 5 2x 16C1050 compatible UART serial ports, and 2x IEEE 1284 Parallel ports Marketing Copy Applications - Add serial and parallel connectivity to newer systems that lack integrated ports, or expand the amount of available peripheral connections
- Connects any parallel peripheral including printers, scanners, CD-R/RWs, Zip® drives, and memory card readers
- POS retail applications in grocery and other store locations, for controlling keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays
- Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners and label printers
- Upgrade standard PCs for control of industrial controls and automated devices on the factory production floor
Website Search Keyword - RS-232
- Serial Card
- Serial Port
- Serial Parallel adapter
- IEEE 1284
- 2s-2p
- 2 rs232 2 parallel
- 2 serial 2 parallel
- serial parallel combo
- serial and parallel card
- multi-port parallel
- paralel card
- multiport serial
- multi-port serial
- multiport parallel
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - AT925FF
- AT925FM
- DB9CONCABL6
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- NM9FF
- NM9MF
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
- SC10MF
- SC10MM
- 1284DB25
Related Products - PCI2S1P
- PCI2S1PDV
- PCI2S1PVA
- PCI2S4851050
- PCI2S550
Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 133 Product Width (mm) 19 Product Height (mm) 89 Product Weight (g) 80 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes Data Bits 5, 6, 7, 8 FIFO 256 Bytes Flow Control None, Xon/Xoff, RTS/CTS Max Baud Rate 115.2 Kbps Maximum Data Transfer Rate 1.5Mbps (Parallel) OS Compatibility - Windows 7
- Linux
- Windows Server 2012
- Windows 10
- Windows 11
Parity None, Odd, Even, Space, Mark Stop Bits 1, 1.5, 2 Supported Protocols RS232, EPP, ECP, SPP, PS2 Supported Serial Protocol RS-232 Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID ASIX - MCS9865IV Industry Standards PCI Local Bus Specification, Revision 2.3 Interface/Bridge - Serial
- Parallel

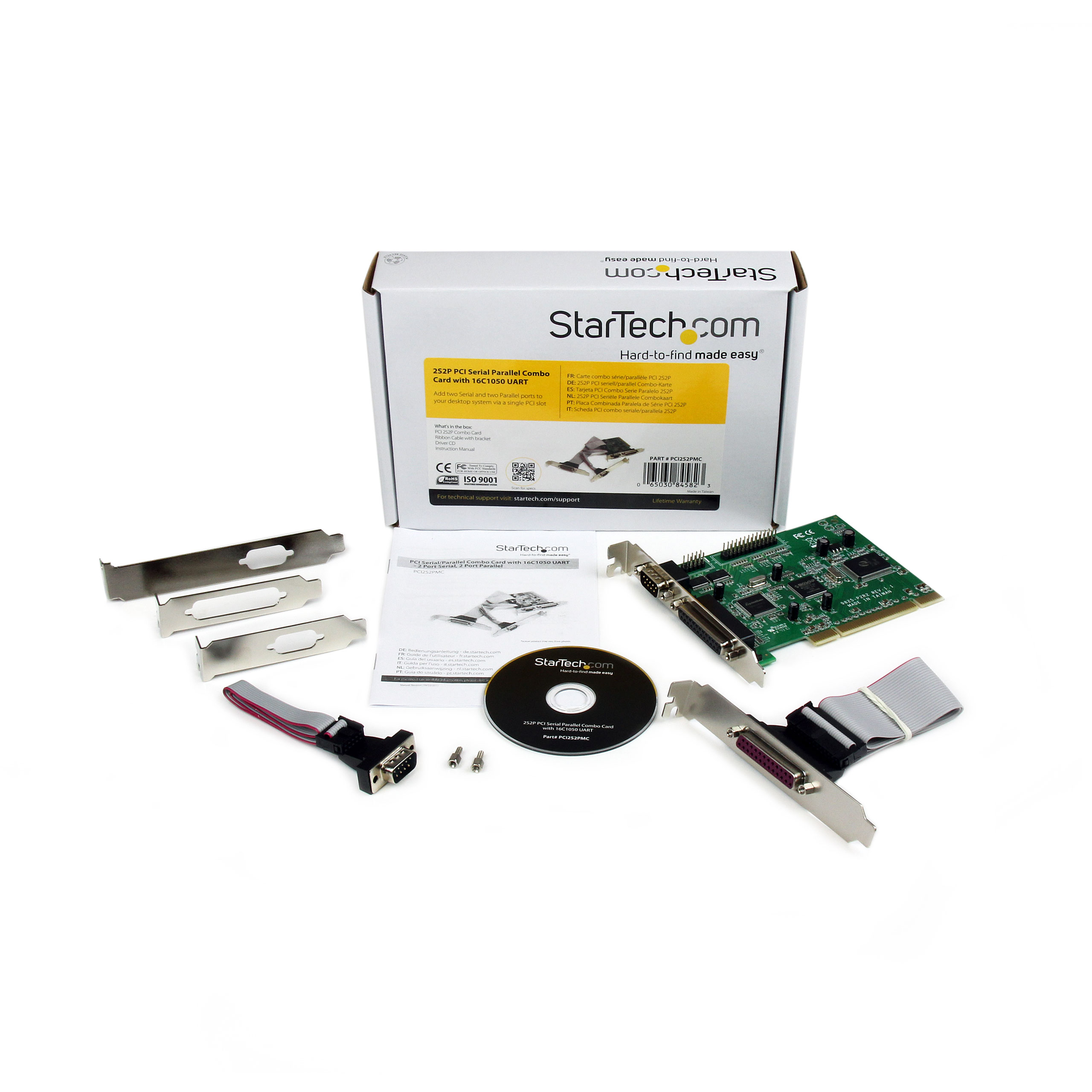

IO Card Port Style Integrated on Card Carton Depth (mm) 450 Carton Height (mm) 230 Carton Quantity 50 Carton Weight Gross (g) 13000 Included in Package - 1 - PCI 2S2P Combo Card

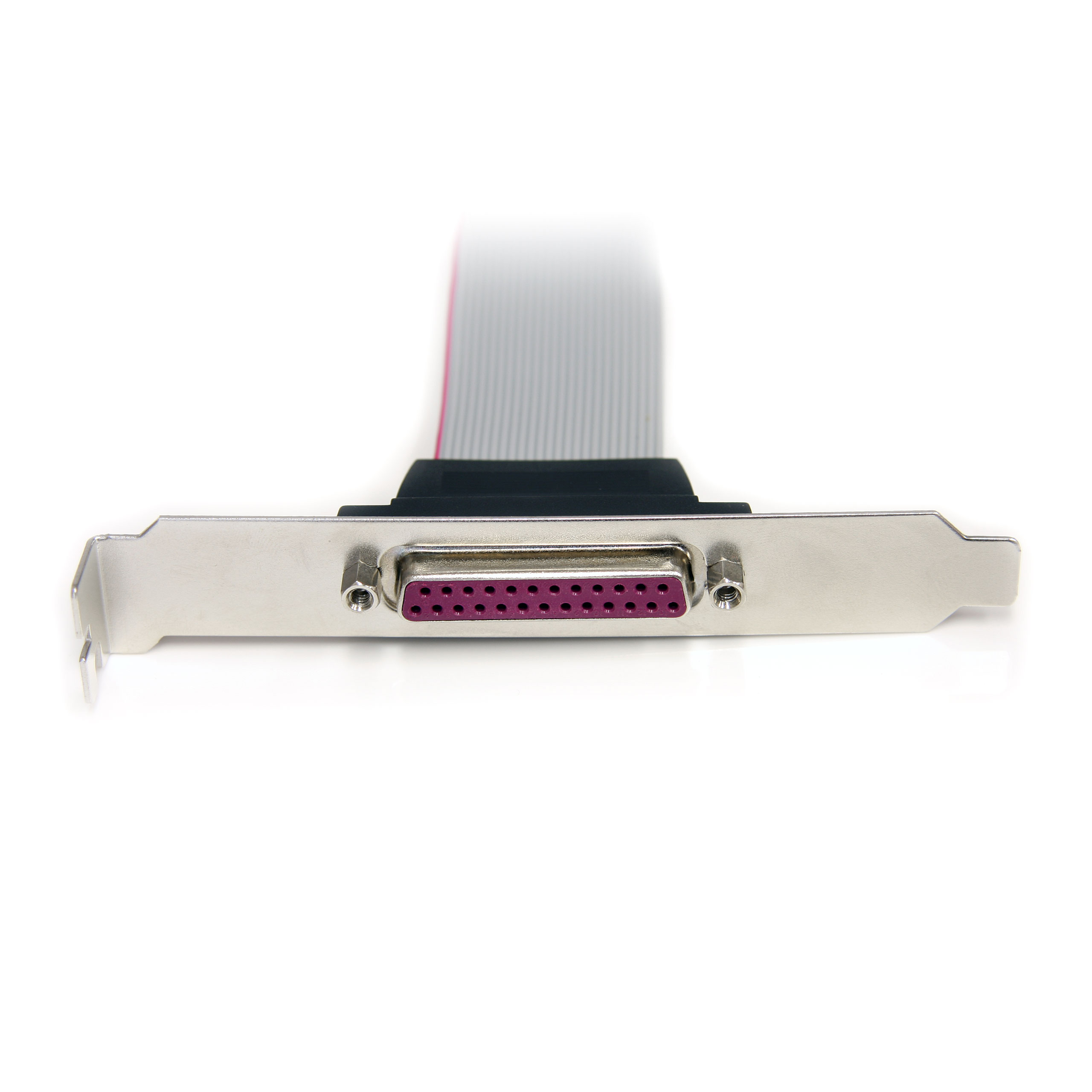

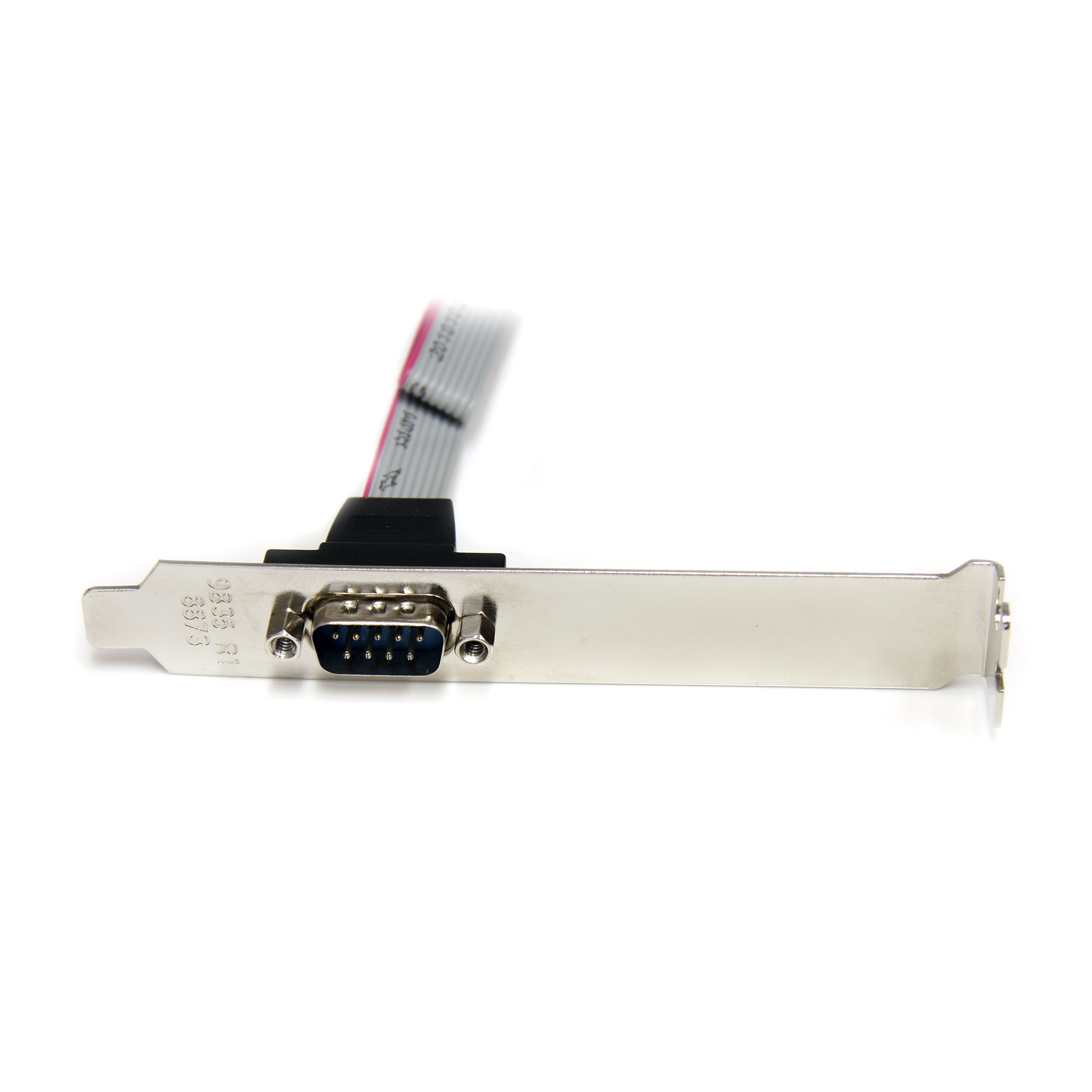

- 1 - Ribbon Cable with bracket
- 1 - Driver CD
- 1 - Instruction Manual
- 2 - Low Profile Brackets
Package Depth (mm) 145 Package Height (mm) 40 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 240 Packaging Description 2S2P PCI Serial Parallel Combo Card Packaging Description India 2S2P PCI Serial Parallel Combo Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Connector 3 DB-25 Parallel / Serial Connector 3 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
