PCI2S422DB9
Main Image

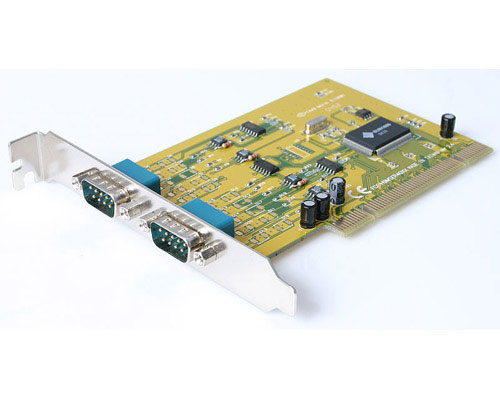

Product Name 2 Port RS-422/RS-485 Serial PCI Card (DB9) Product Number PCI2S422DB9 UPC 065030802284 Warranty Lifetime Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Country of Origin History (2) Taiwan Product Title (Long) 2 Port RS-422/RS-485 Serial PCI Card (DB9) Bullet 1 Compliant with the PCI 2.2 specification Bullet 2 128 Byte transmit-receive FIFO optimizes data transfer with transfer speeds of up to 921 kbits/sec Bullet 3 Easy Plug & Play installation Marketing Copy Applications - For use in industrial environments with serial networking devices, high speed modems, monitoring equipment, long distance communication devices and printers
- Ideal for commercial and industrial applications such as POS networks, ATMs, bank teller stations, and CNC based production lines
- Factory Automation
System and Cable Requirements Unused PCI slot Accessory Products - SCNM9FM
- SCNM925FM
Related Products PCI2S422TB Replacement Product PCI2S4851050 Product Length (mm) 127 Product Height (mm) 120 TAA Compliant No General Specifications - Serial Interface Support: RS-422 and RS-485
- Communication Support: Half-duplex and full-duplex
- OS Support: Windows 9x/ME/NT 4/2000/XP/Server 2003 and up, Linux, DOS
- Communication Buffer: 32 Byte hardware FIFO, 128 KByte software FIFO support under Windows 2000/XP/Server 2003
Maximum Cable Length (mm) 1219200 Maximum Data Transfer Rate 921000 Kbits/Sec OS Compatibility - MS DOS
- Linux
- Windows 3.1
- Windows 95
- Windows 98
- Windows 98SE
- Windows NT
- Windows XP
Bus Type PCI (5 Volt) Industry Standards PCI 2.2 Connector 1 DB-9 Serial Connector 1 (Quantity) 2 en-US Content Approved Yes
