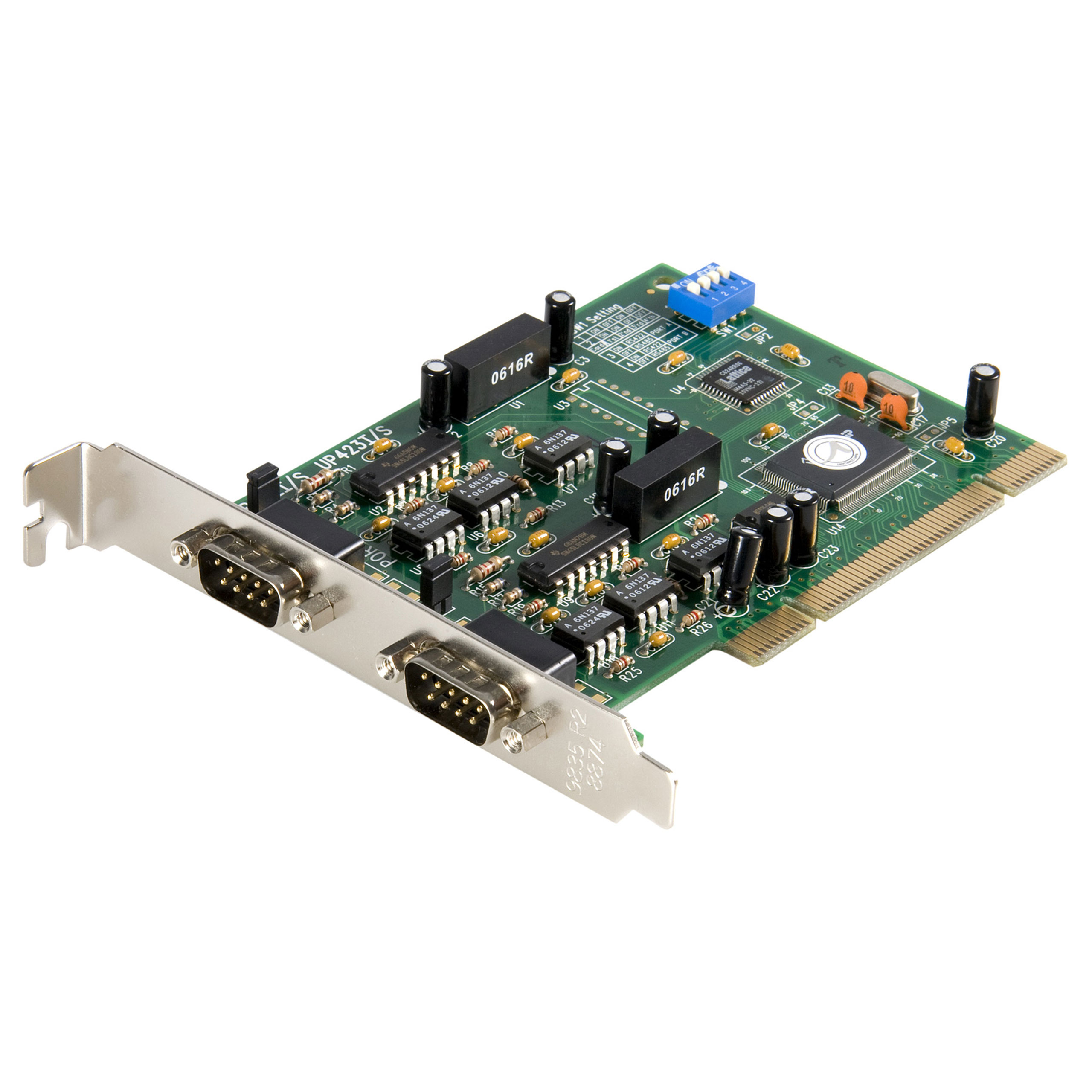

Main Image
PCI2S422ISO
2 Port RS422/RS485 Isolated PCI Card DB9
Add two optically isolated R422/485 serial port to your desktop computer via a PCI slot
Main Image

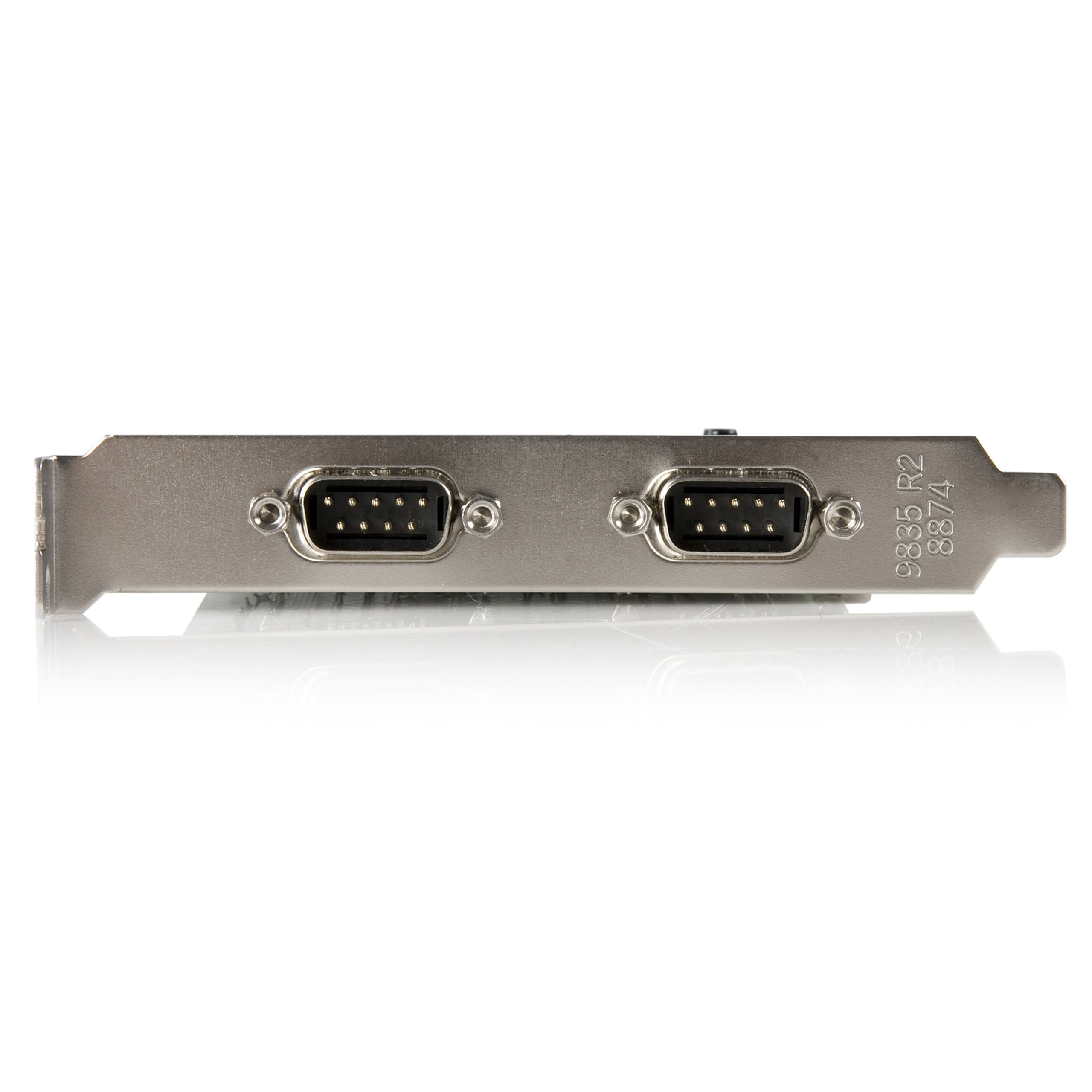

Product Images

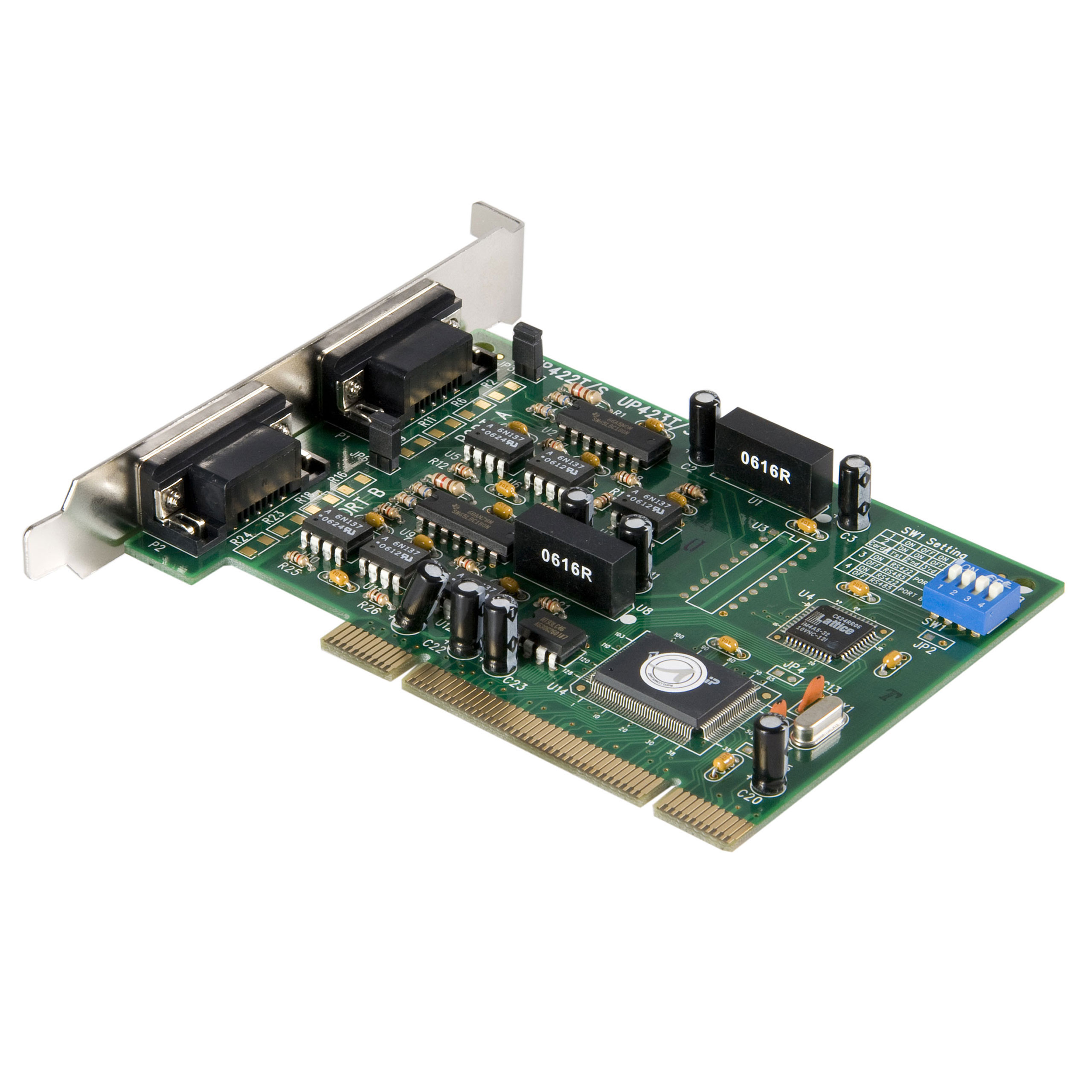

Product Images

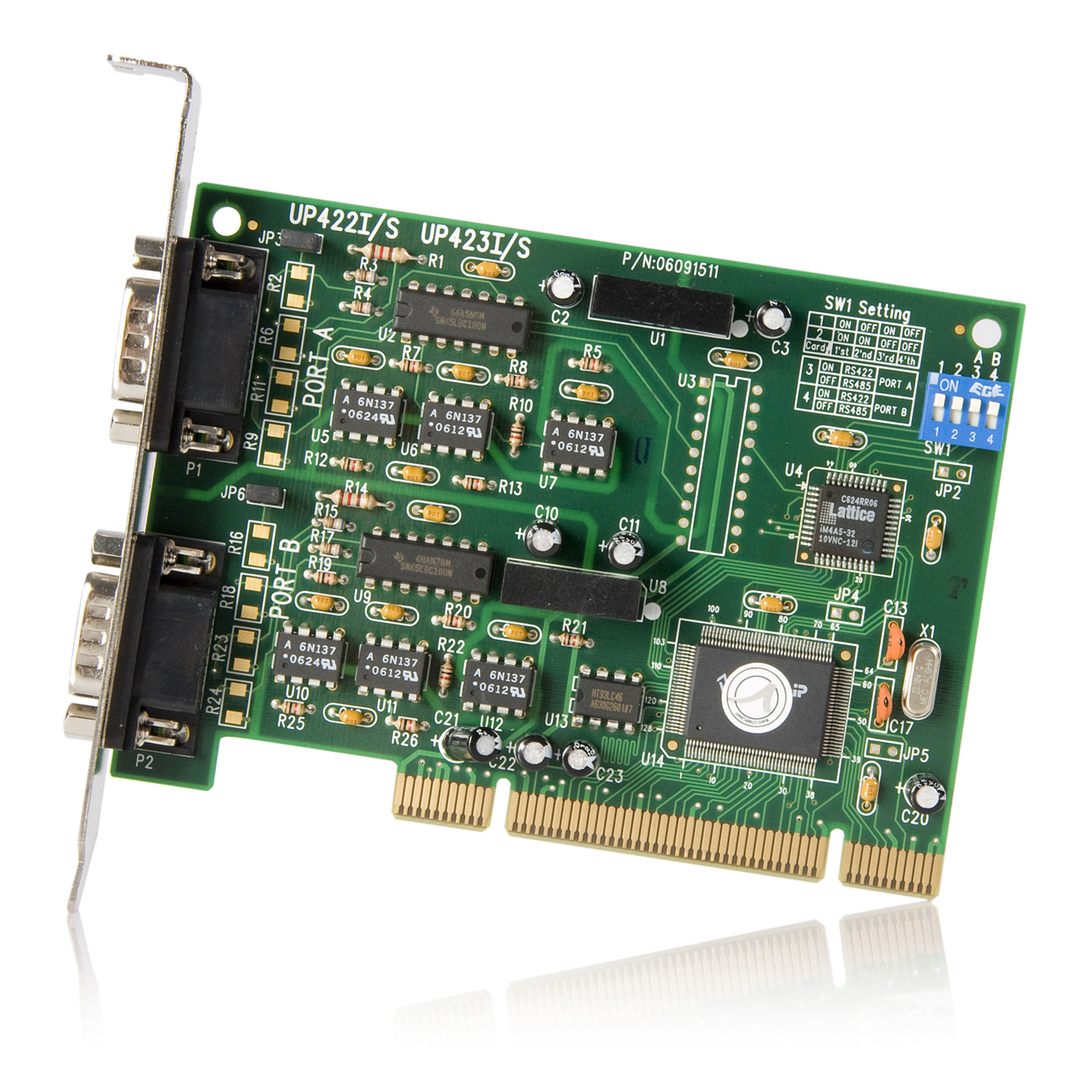

Product Images
Product Name 2 Port RS422/RS485 Isolated PCI Card DB9 Product Number PCI2S422ISO UPC 065030804349 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 2 Port PCI RS422/485 Serial Adapter Card Product Title (Standard) StarTech.com 2 Port PCI RS-422/RS-485/DB-9 Serial Adapter Card Product Title (Long) 2 Port PCI RS422 RS485 DB9 Serial Adapter Card Title Ingram (Part 1) 2 Port PCI RS422 RS485 DB9 Seria Title Ingram (Part 2) l Adapter Card Website Product Headline Add two optically isolated R422/485 serial port to your desktop computer via a PCI slot Bullet 1 Dip switch design allows you to select either RS422 or RS485 serial interface formats depending upon your application Bullet 2 Data transfer rates of up to 115.2 Kbps per port Bullet 3 Easily fits a 3.3 or 5 volt PCI slot Bullet 4 RS-485 mode supports Automatic Data Direction Control (ADDCTM) Bullet 5 PCI version 2.2 compliant Marketing Copy Applications - Ideal for commercial and industrial applications such as POS networks, ATMs, bank teller stations, and CNC based production lines
- Also used in serial networking environments with high speed modems and long distance communication devices
- Industrial process control
- Factory automation
Accessory Products - SCNM9FM
- SCNM925FM
Related Products PCI4S422ISO Power Consumption (In Watts) 120 mA @ 5V Humidity 5~85% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 120 Product Width (mm) 20 Product Height (mm) 120 Product Weight (g) 80 Storage Temperature 0°C to 65°C (32°F to 149°F) TAA Compliant No Data Bits 5, 6, 7, 8 FIFO 32 Bytes Max Baud Rate 115.2 Kbps OS Compatibility - MS DOS
- Windows 3.1
- Windows 95
- Windows 98
- Windows 98SE
- Windows 2000
- Windows NT
- Windows XP
- Linux
- UNIX
- Windows 8
- Windows 7
Parity Even, Odd or No-Parity Bit Stop Bits 1, 1.5, 2 Supported Protocols Supported Serial Protocol RS-422/485 Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile Chipset ID Texas Instruments - TL16C554A Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 5700 Included in Package - 1 - PCI Serial Card
- 2 - Driver Floppy Disks
- 1 - Instruction Manual
Package Depth (mm) 56 Package Height (mm) 151 Package Width (mm) 216 Package Weight (g) 450 Packaging Description 2 Port PCI RS422/485 Serial Card w/ Isolation Packaging Description India 2 Port PCI RS422/485 Serial Card w/ Isolation Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager Rafal Gwozdz
