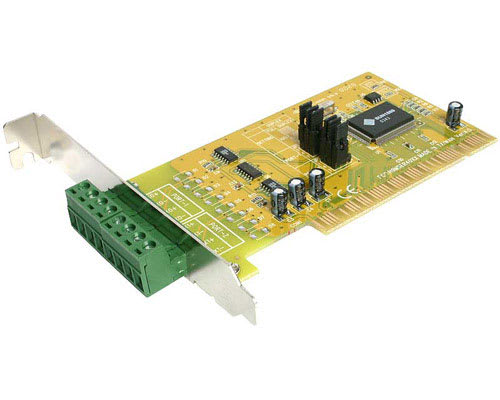

2 Port PCI RS422/RS485 Serial Card

Main Image

Product Name	2 Port PCI RS422/RS485 Serial Card
Product Number	PCI2S422TB
UPC	065030802291
Lifecycle status	Discontinued
Warranty	Lifetime
Taxonomy	Product > Legacy Discontinued
Category Level 1	Legacy Category
Category Level 2	Legacy Sub-Category
Category Level 3	Legacy Group
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan

Manual	https://images.salsify.com/image/upload/s--shwdNVZy--/5917aa566cebf32a609d1888da2bd5f53ac32ba3.pdf
Driver	https://images.salsify.com/raw/upload/s--sxkkETzP--/09fbbd370547318d0175eeb9f65948d569d158ab.zip https://images.salsify.com/raw/upload/s--6p_ddkzH--/05e9c564c7fd4f7a5e7a2bb0a67910f61c4bbd10.txt https://images.salsify.com/raw/upload/s--am9bivzG--/54bf3ed8dcbdf1a02119ef2c160c7cecbad2c9c3.txt

Product Title (Long)	2 Port RS422 / RS485 Serial PCI Card Terminal Block
Bullet 1	RS-422 and RS-485 connections are made through the terminal block connector
Bullet 2	Supports 4-wire RS-422/485 full duplex and 2-wire RS-485 half duplex modes
Bullet 3	Compliant with the PCI 2.2 specification
Bullet 4	32 Byte transmit-receive FIFO optimizes data transfer with transfer speeds of up to 960 kbits/sec
Bullet 5	Easy Plug & Play installation
Marketing Copy
Applications	For use in industrial environments with serial networking devices, high speed modems, monitoring equipment, KIOSKs or ATMs Industrial Process Control Factory Automation

General Specifications	Connector Type: 2 x Terminal Block Communication Buffer: 32 Byte FIFO OS Support: Windows 95/98/98SE/ME/NT4/2000/XP/Server 2003, Linux and DOS
Maximum Cable Length (mm)	1219200
Maximum Data Transfer Rate	960000 Kbits/Sec
OS Compatibility	Linux MS DOS Windows 3.1 Windows 95 Windows 98 Windows 98SE Windows 2000 Windows NT Windows XP
