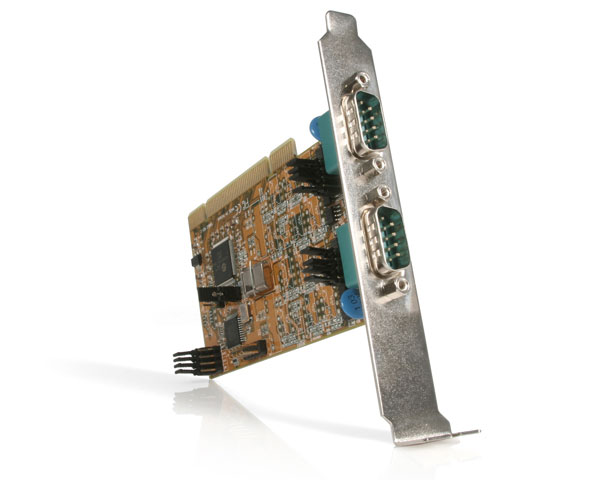

Main Image
PCI2S485
Main Image
Product Name 2 port PCI RS-422/485 Card w. DB9 Product Number PCI2S485 UPC 065030825115 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) 2 Port PCI RS422/485 Serial Adapter Card Product Title (Standard) StarTech.com 2 Port PCI RS422/485 Serial Adapter Card Product Title (Long) 2 Port PCI RS422/485 Serial Adapter Card with DB9 Title Ingram (Part 1) 2 Port PCI RS422/485 Serial Adap Title Ingram (Part 2) ter Card with DB9 Bullet 1 Compliant with the PCI 2.2 specification Bullet 2 Easily fits a 3.3/ 5 PCI and PCI X slot Bullet 3 RS-485 mode supports Auto Transceiver turn around (ATTA) Bullet 4 128-byte deep FIFO per transmitter and rec Bullet 5 High Performance 16C950 UART with maximum data transfer rate up to 921kbps Marketing Copy Applications - For use in industrial environments with serial networking devices, high speed modems, monitoring equipment, long distance communication devices and printers
- Ideal for commercial and industrial applications such as POS networks, ATMs, bank teller stations, and CNC based production lines
- Factory Automation
Accessory Products - SCNM9FM
- SCNM925FM
- DB92422
Related Products PCI2S422DB9 Replacement Product PCI2S4851050 Product Length (mm) 120 Product Width (mm) 65 Product Weight (g) 130 TAA Compliant No Data Bits 5, 6, 7, 8, 9 Maximum Data Transfer Rate 921.6 Kbps OS Compatibility - Windows 98SE
- Windows NT
- Windows 2000
- Windows XP
- Windows Vista
- Linux
Supported Serial Protocol RS-422/485 Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile Chipset ID PLX/Oxford - OX16PCI952 IO Card Port Style Integrated on Card Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 11700 Included in Package - 1 - Serial PCI Card
- 1 - Instruction Manual
- 1 - Driver CD
Package Depth (mm) 43 Package Height (mm) 165 Package Width (mm) 230 Package Weight (g) 210 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager Carey Cline
