PCI2S4851050

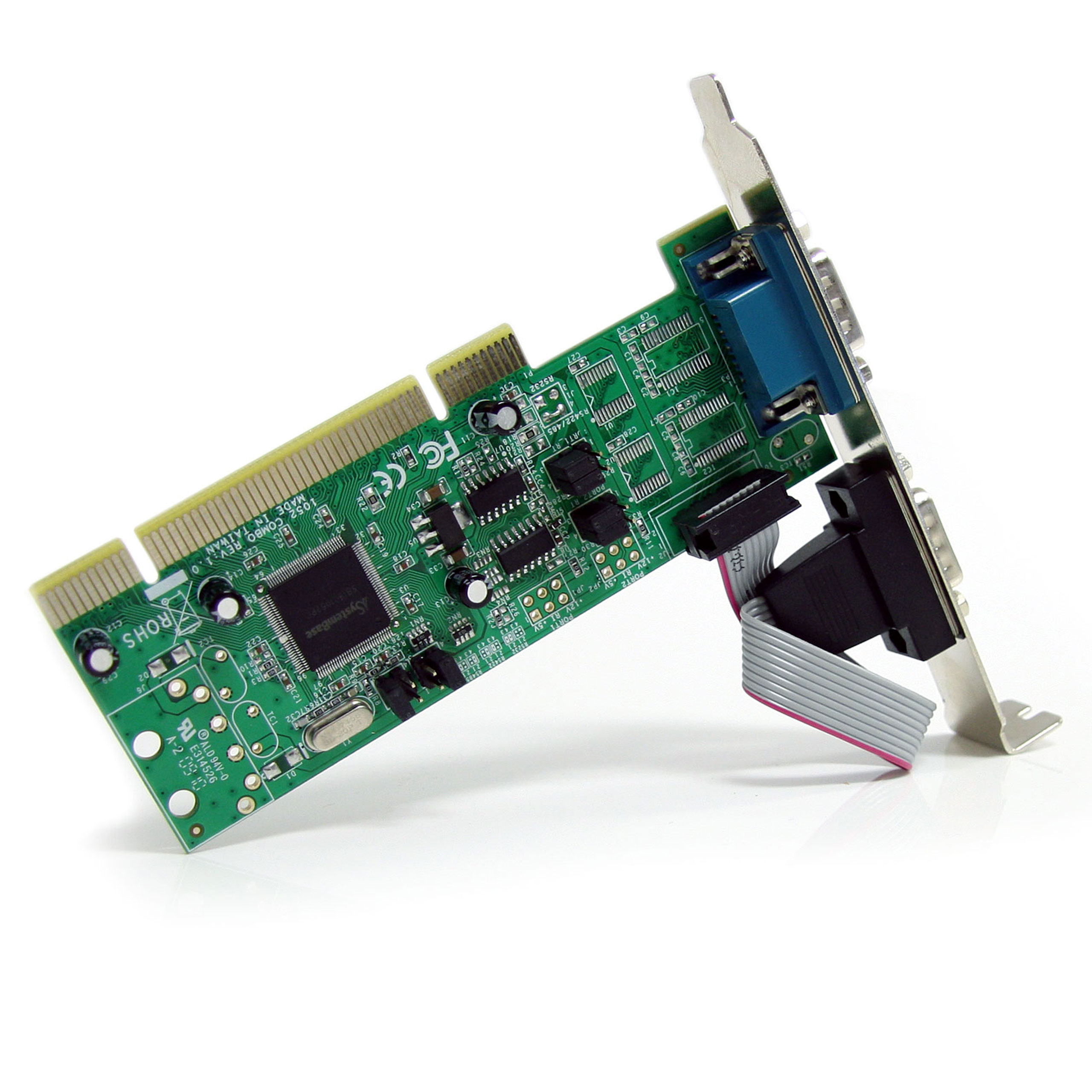

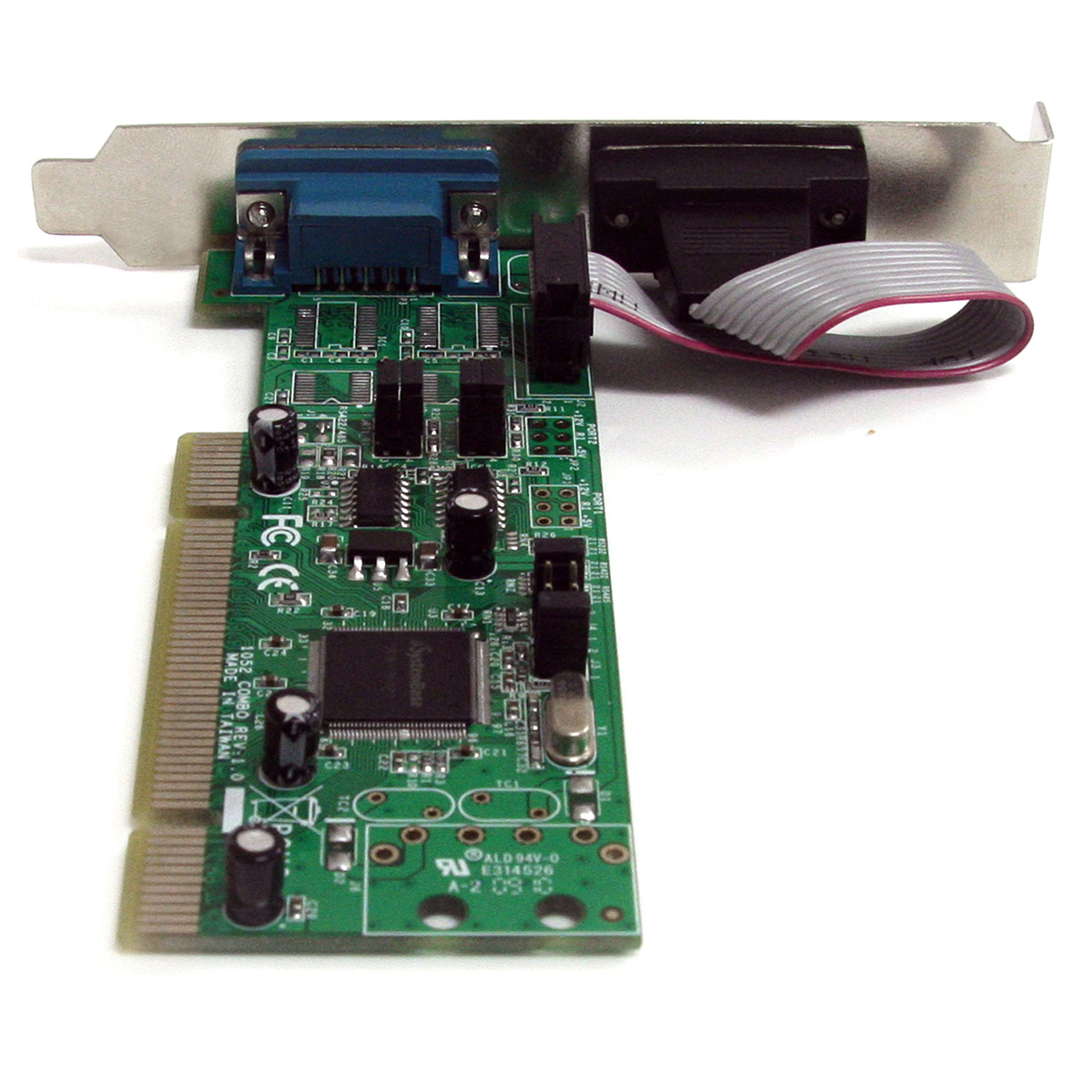

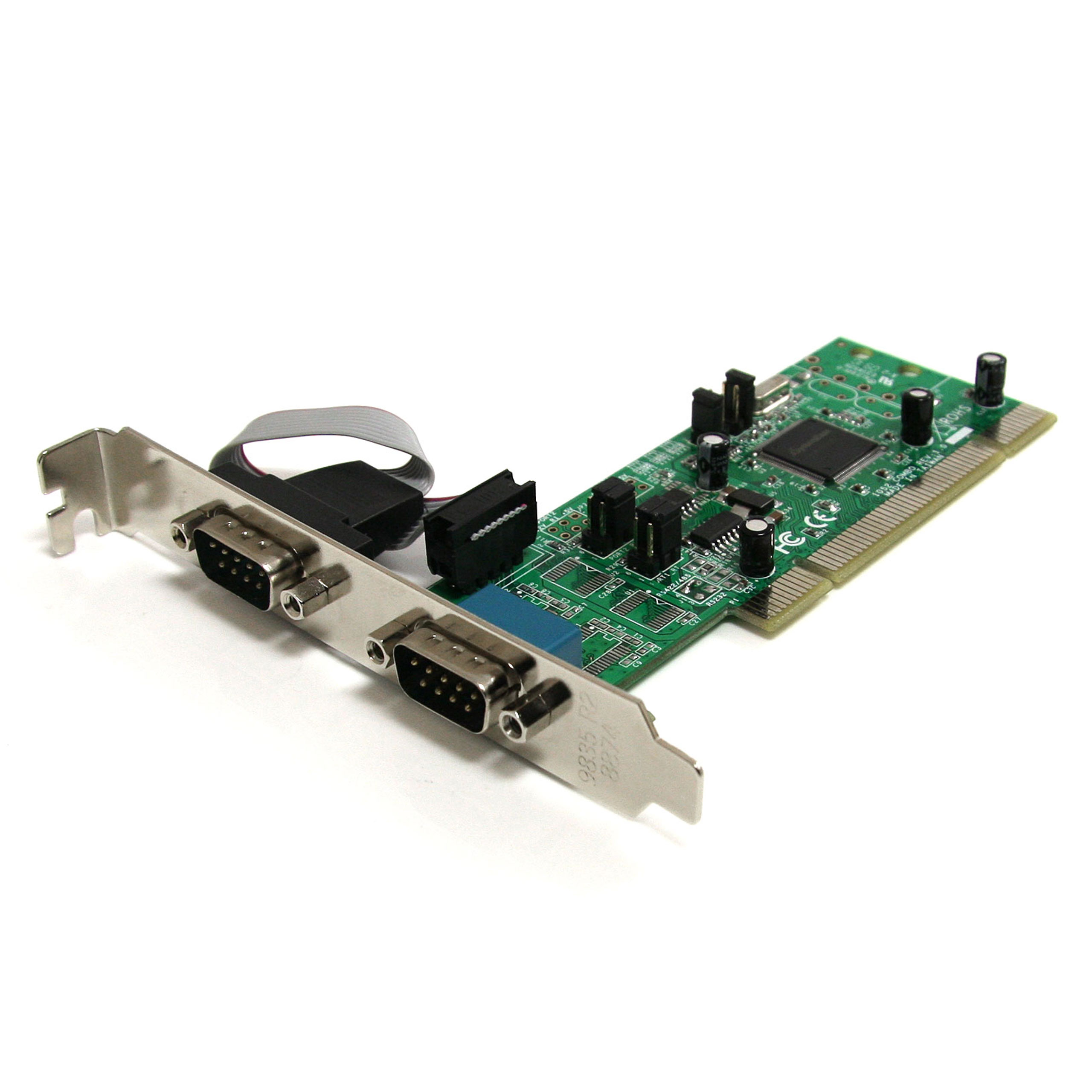

2 Port RS422 RS485 PCI Serial Card w 161050 UART
Add two RS422/485 serial ports through a standard or low profile PCI expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port RS422 RS485 PCI Serial Card w 161050 UART Product Number PCI2S4851050 UPC 065030842587 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Family Serial Host Adapter Cards - PCI Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) . Product Title (Short) 2x PCI RS422/485 Serial Card w/ 161050 Product Title (Standard) 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART, TAA Product Title (Long) 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART - TAA Product Title (AMZ) 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART - Serial adapter - PCI-X - RS-422/485 x 2 , TAA (PCI2S4851050) Title Ingram (Part 1) 2 Port PCI RS422/485 Serial Adap Title Ingram (Part 2) ter Card with 161050 UART Website Product Headline Add two RS422/485 serial ports through a standard or low profile PCI expansion slot Bullet 1 16C1050 UART with 256-byte Deep FIFO Bullet 2 Jumper pins for RS422/485 toggling Bullet 3 Supports Hardware and Software flow control Bullet 4 Supports PCI Power Management 1.1 Bullet 5 Compliant with PCI Local Bus Specification 2.3 Bullets (Compact) . Bullets (Consolidated) Add two RS422/485 serial ports through a standard or low profile PCI expansion slot - 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART - PCI serial card supports maximum data transmission rate of 128Kbps - rs422 serial card - rs485 serial card - dual port serial card - 2 port rs422 pci card - PCI serial expansion card supports both 2-wire and 4-wire RS485 modes Marketing Copy Applications - Add RS422 and RS485 (2 or 4-wire) support to a Desktop, Server or Embedded system
- For use in industrial environments with serial networking devices, high speed modems, monitoring equipment, long distance communication devices and printers
- Ideal for commercial and industrial applications such as POS networks, ATMs, bank teller stations, and CNC based production lines
- Works for industrial process control and factory automation applications
Website Search Keyword - RS-422
- RS-485
- RS485
- Serial Card
- DB9
- PCI Serial
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - DB92422
- SCNM9FM
- SCNM925FM
- NM9MF
- MXT100FF
- MXT10010
- MXT100_25
- MXT100
Related Products - PCI2S232485I
- PCI2S485
- PCI2S485LP
- PCI2S422ISO
- PCI2S650DV
- PCI2S950
- PCI2S950DV
- PCI2S550_LP
- PCI2S550
Color Green Humidity 5~85% RH Material Steel Operating Temperature -10°C to 80°C (14°F to 176°F) Primary Material Steel Product Length (mm) 120.000 Product Width (mm) 120.000 Product Height (mm) 18.000 Product Weight (g) 53.000 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes Data Bits 5, 6, 7, 8 FIFO 256 Bytes Flow Control Xon, Xoff Max Baud Rate 128 Kbps OS Compatibility - Windows 7
- Windows 8
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows 11
- Windows Server 2022
- Windows Server 2019

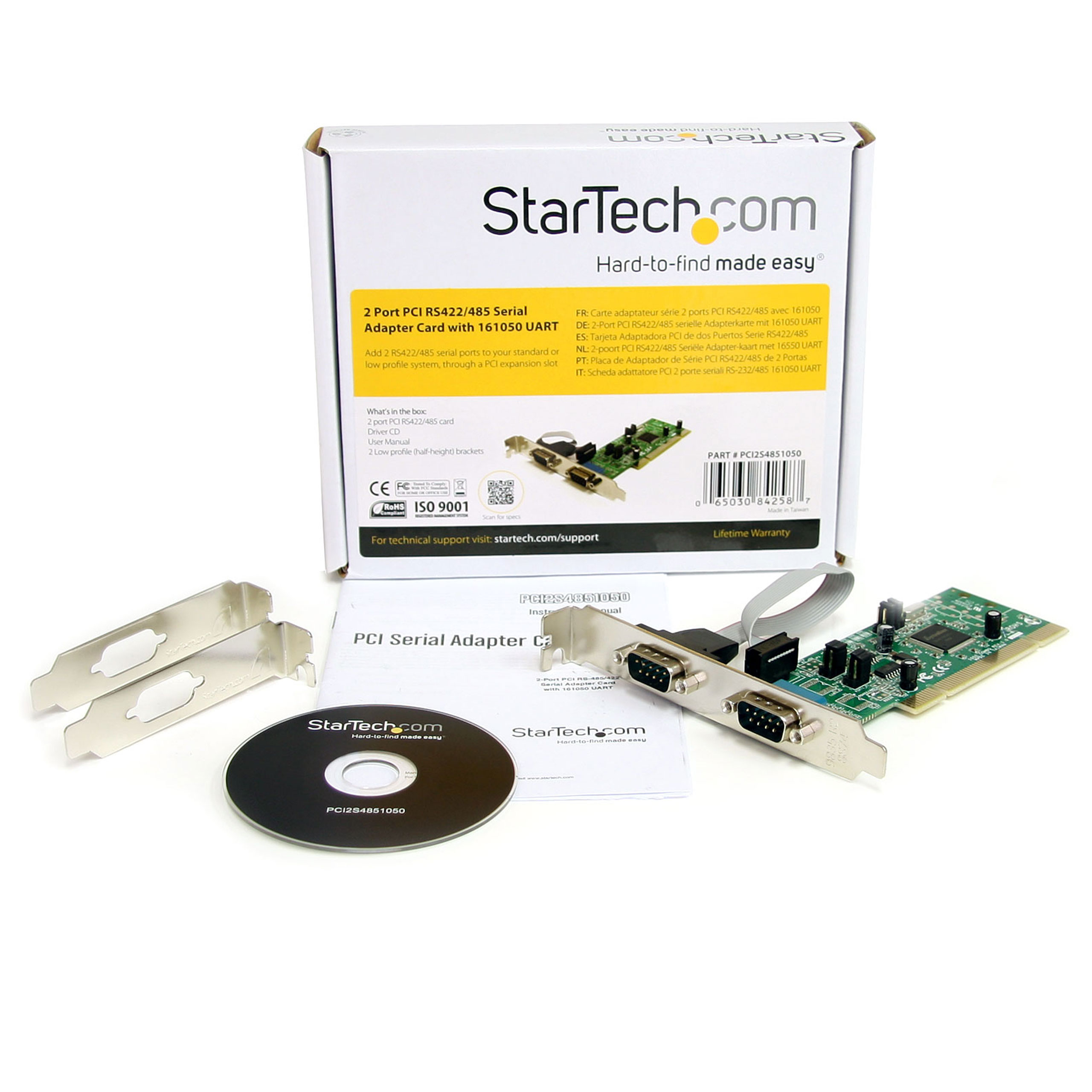

Parity Even, Odd, or No Parity Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-422/485 Bus Type PCI Card Type Standard Profile (LP bracket incl.) Chipset ID SystemBase - SB16C1052PCI Industry Standards Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 352 Carton Height (mm) 316 Carton Quantity 75 Carton Weight Gross (g) 11898 Included in Package - 1 - 2 port PCI RS422/485 card
- 1 - Driver CD
- 1 - User Manual
- 2 - Low profile (half-height) brackets
Included In Package for Label - 1 - 2 Port PCI Rs422/485 Card
- 1 - Driver CD
- 1 - User Manual
- 2 - Low Profile (Half-Height) Brackets

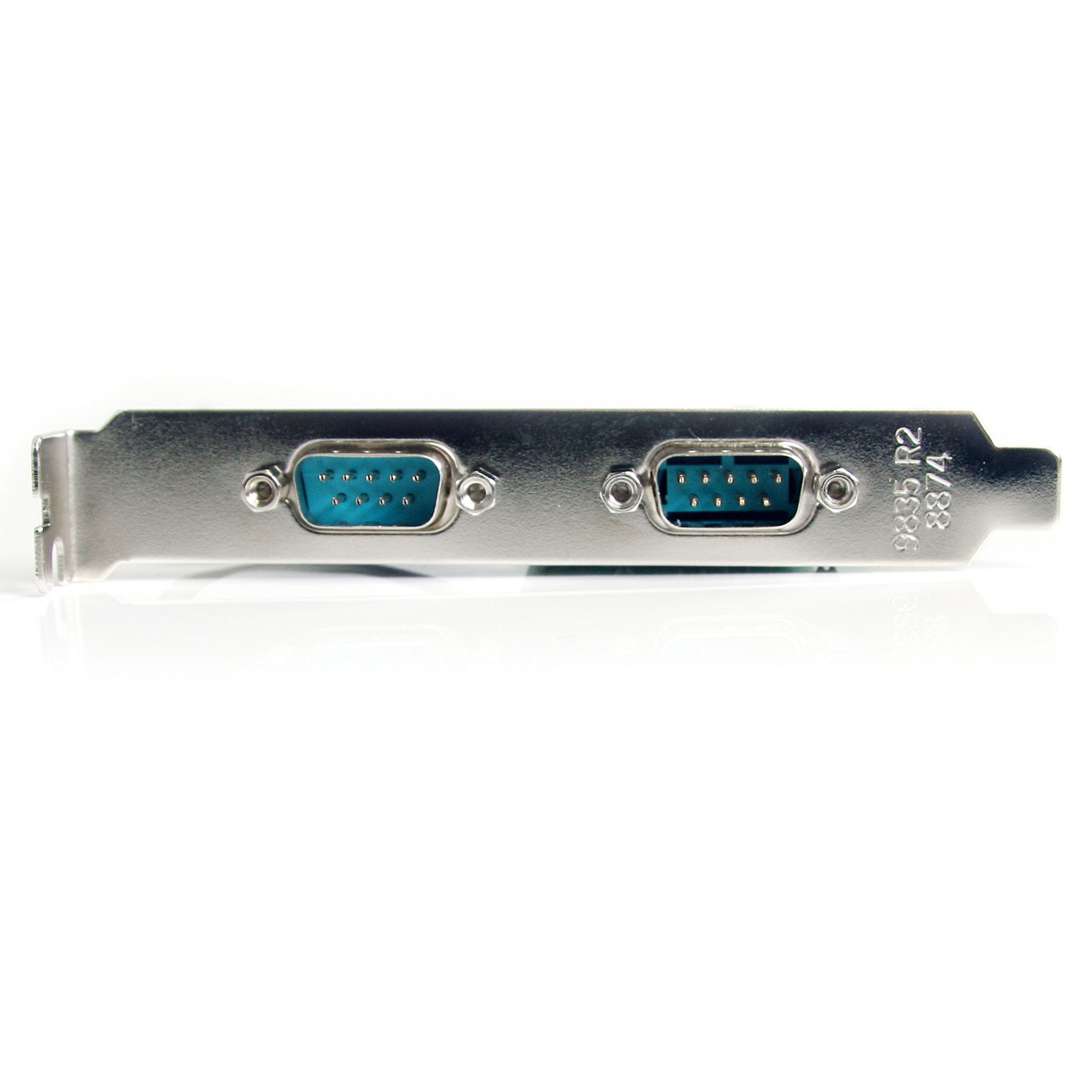

Package Depth (mm) 144 Package Height (mm) 33 Package Width (mm) 176 Package Quantity 1 Package Weight (g) 142 Packaging Description 2 Port PCI RS422/485 Serial Card w/ 161050 Packaging Description India 2 Port PCI RS422/485 Serial Card w/ 161050 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None
