PCI2S485LP

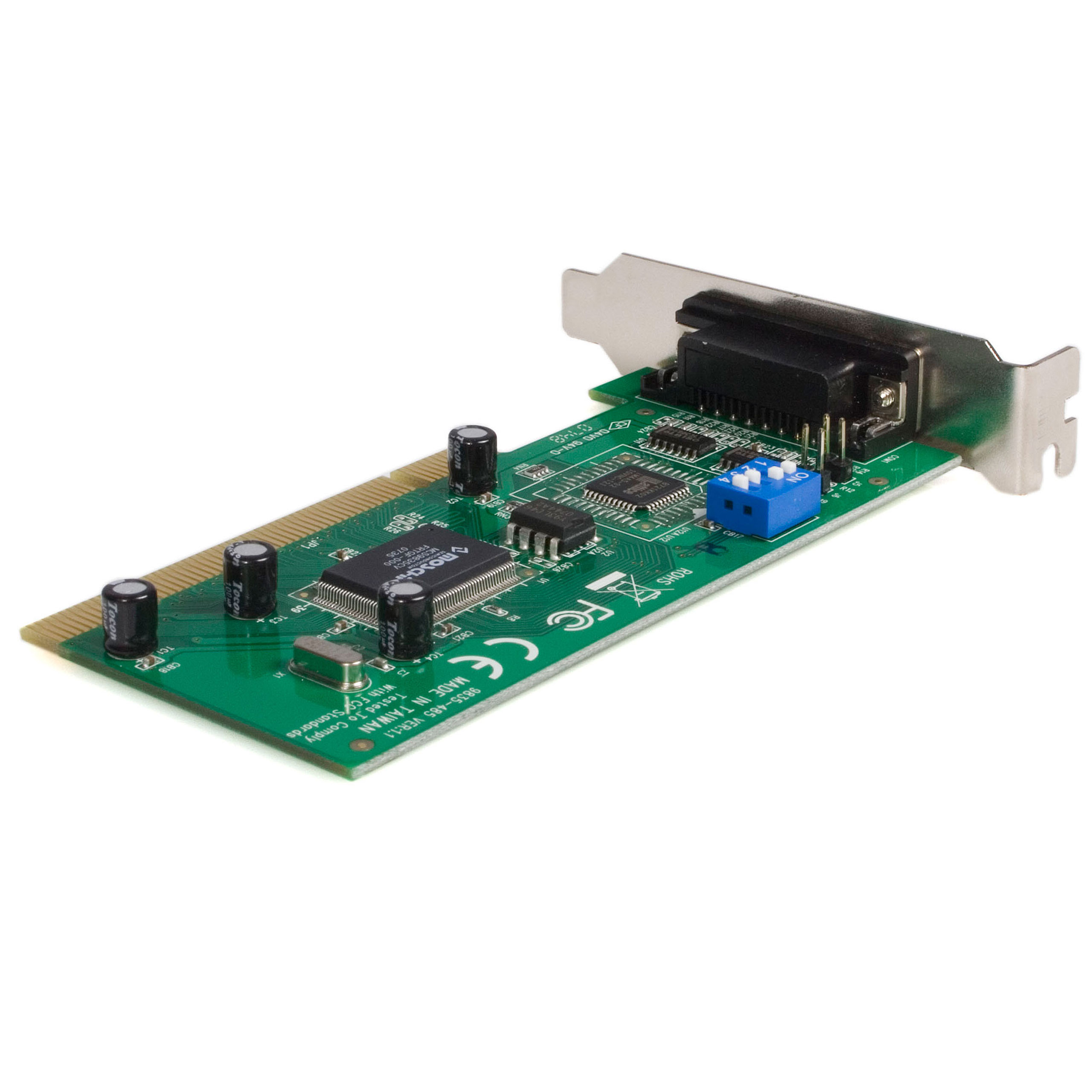

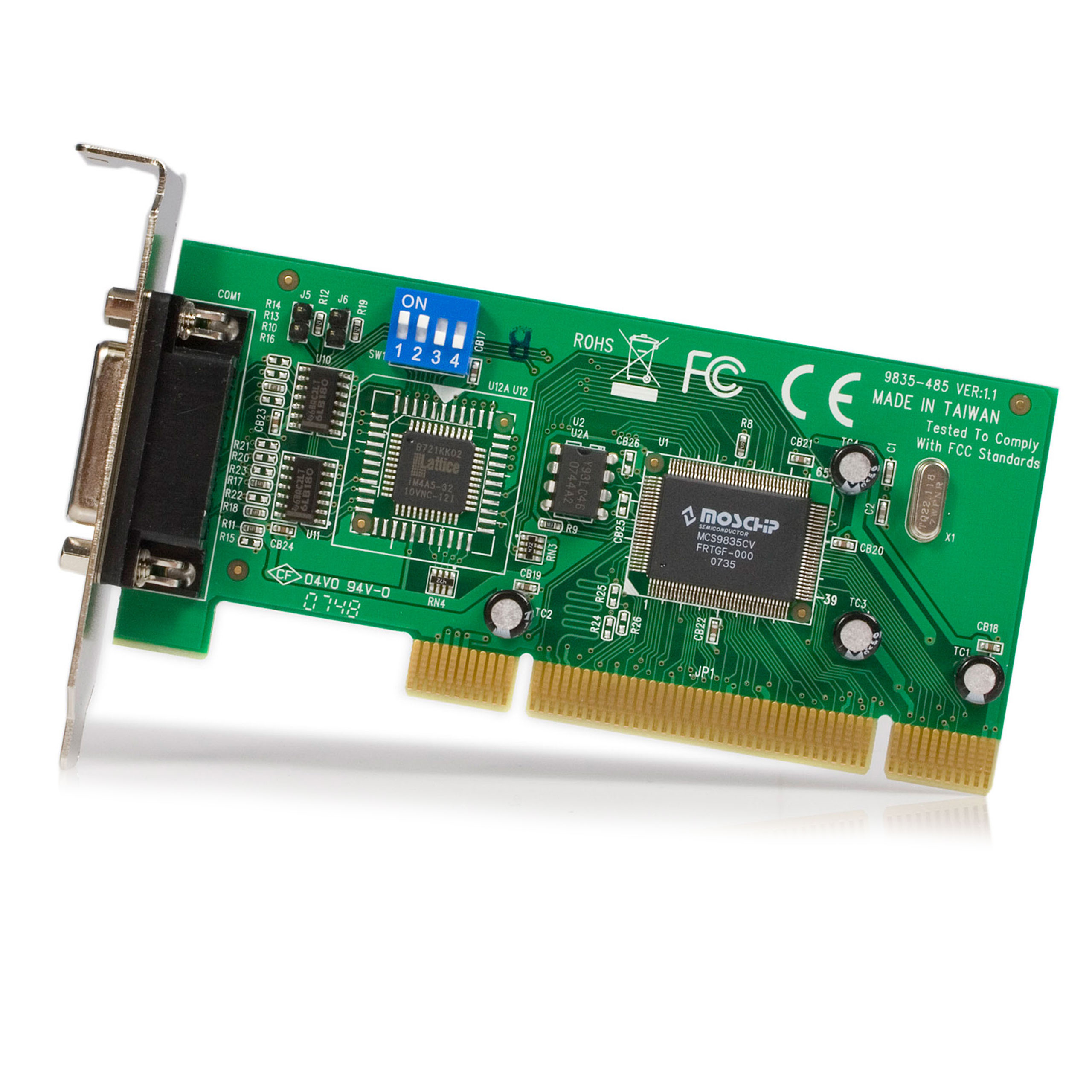

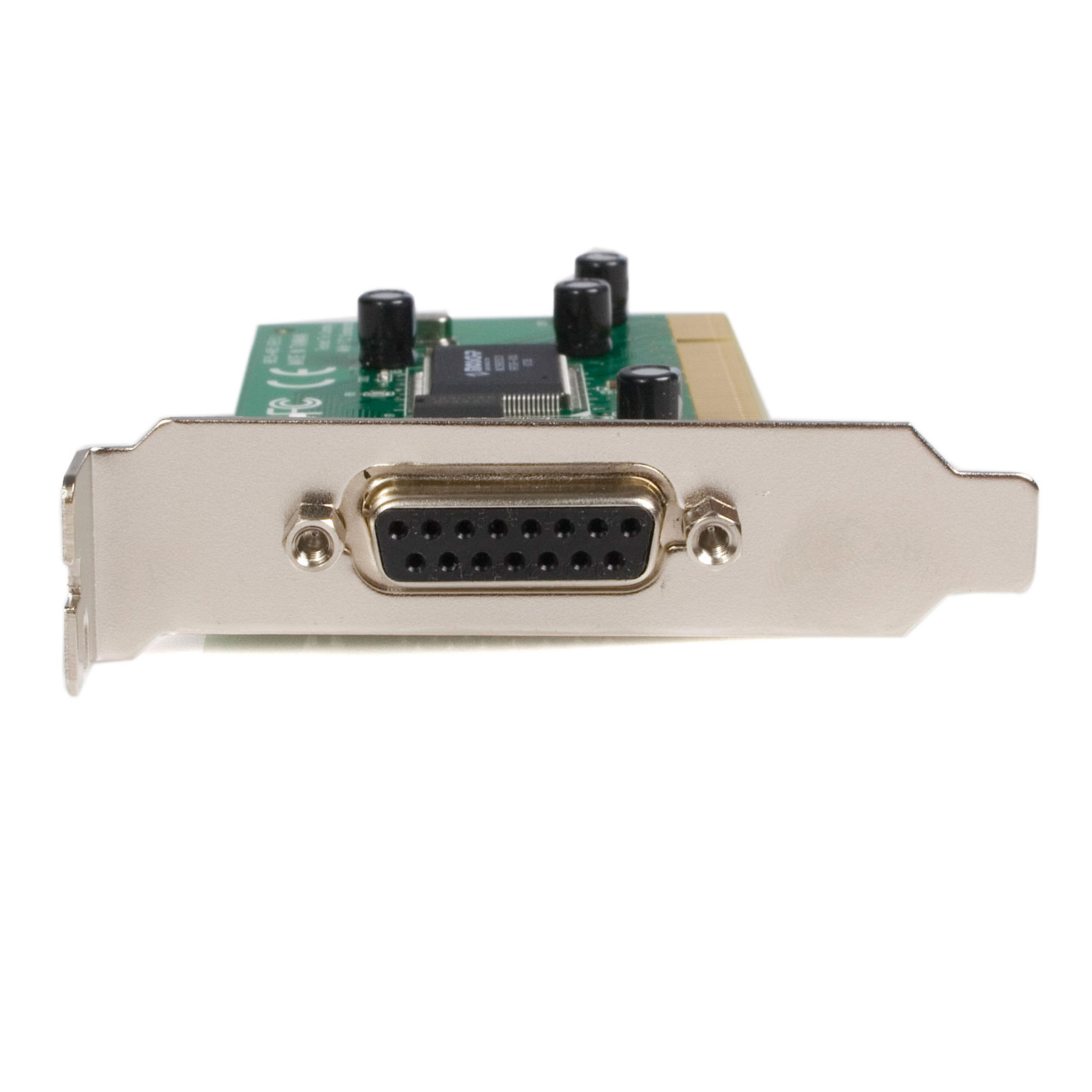

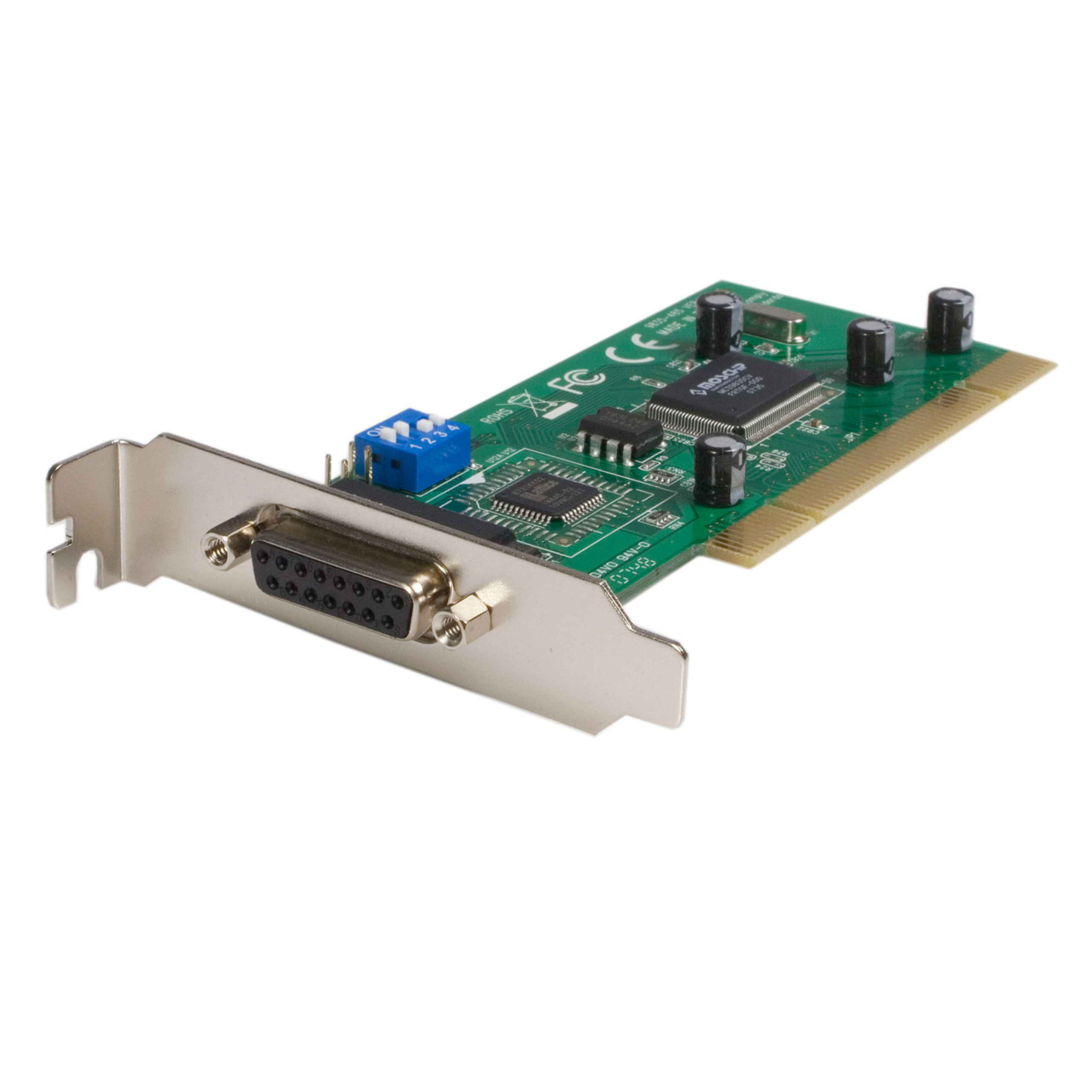

2 Port Low Profile PCI RS-422/485 Card w. DB9
Add 2 RS422/485 serial ports to your low profile/small form factor computer with a PCI expansion slot
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port Low Profile PCI RS-422/485 Card w. DB9 Product Number PCI2S485LP UPC 065030826754 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2 Port LP RS-422/485 PCI Serial Card Product Title (Standard) 2 Port Low Profile RS-422/485 PCI Serial Card Product Title (Long) 2 Port Low Profile RS-422/485 PCI Serial Card Title Ingram (Part 1) 2 Port Low Profile RS-422/485 PC Title Ingram (Part 2) I Serial Card Website Product Headline Add 2 RS422/485 serial ports to your low profile/small form factor computer with a PCI expansion slot Bullet 1 128-byte deep FIFO per transmitter and receiver Bullet 2 Compliant with the PCI 2.2 specification Bullet 3 Compatible with PCI and PCI-X slots Bullet 4 High Performance 16C950 UART with maximum data transfer rate up to 115.2kbps Bullet 5 Supports RS422 and RS485 serial interface ideal for industrial applications Marketing Copy Applications - Factory Automation
- For use in industrial environments with serial networking devices, high speed modems, monitoring equipment, long distance communication devices and printers
- Ideal for commercial and industrial applications such as POS networks, ATMs, bank teller stations, and CNC based production lines
Website Search Keyword 422 / 485 Accessory Products - SCNM925FM
- SCNM9FM
- DB92422
Related Products PCI2S422DB9 Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 120 Product Width (mm) 20 Product Weight (g) 139 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant No Data Bits 5, 6, 7, 8, 9 FIFO 128 Bytes Max Baud Rate 115.2 Kbps OS Compatibility - Linux
- Mac OS X Mavericks (10.9)
- Windows 8
- Windows Server 2012
- Windows 7

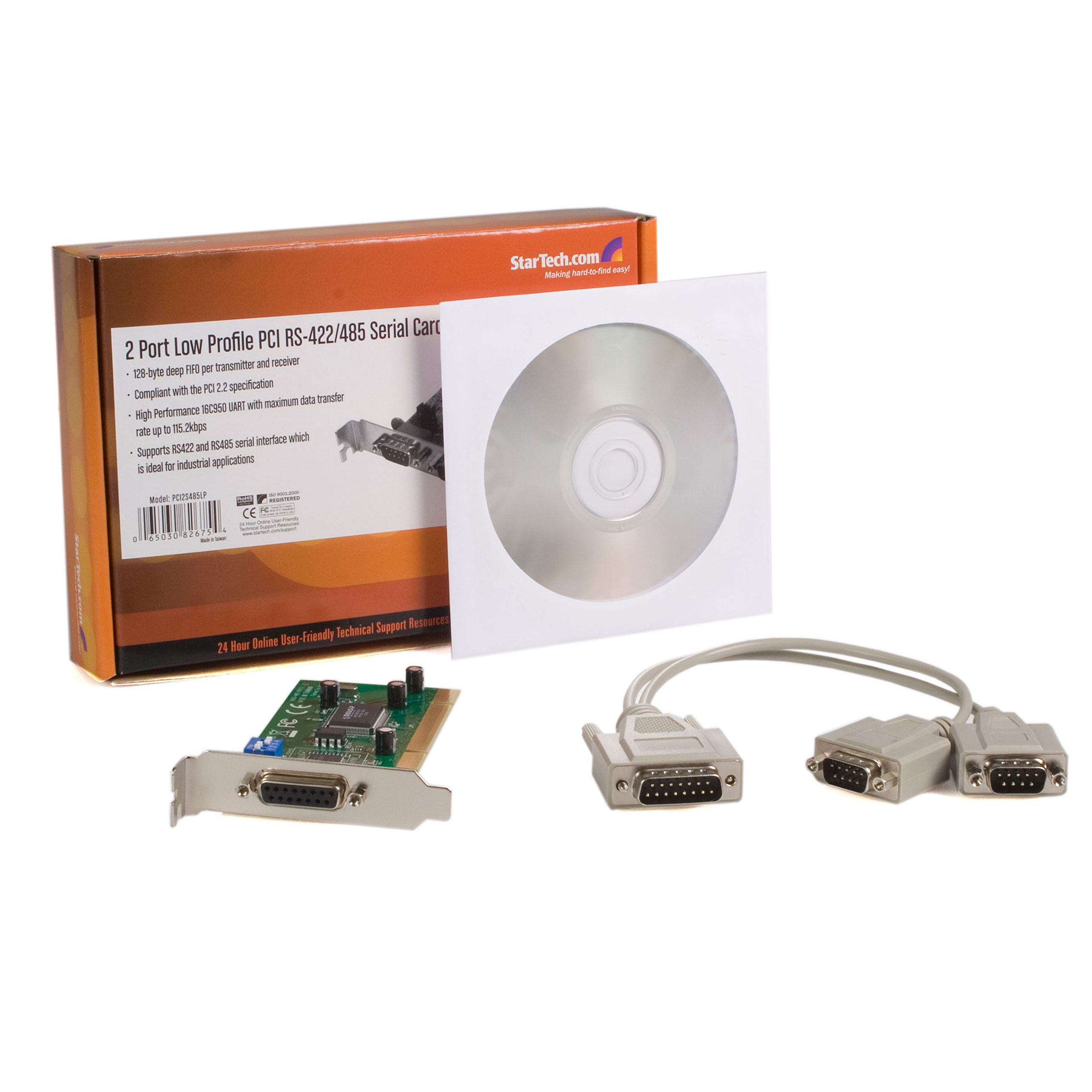

Supported Serial Protocol RS-422/485 Bus Type PCI / PCI-X (5 / 3.3V) Card Type Low Profile Chipset ID ASIX - MCS9835CV Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 14200 Included in Package - 1 - Driver CD
- 1 - Instruction Manual
- 1 - Serial PCI Card

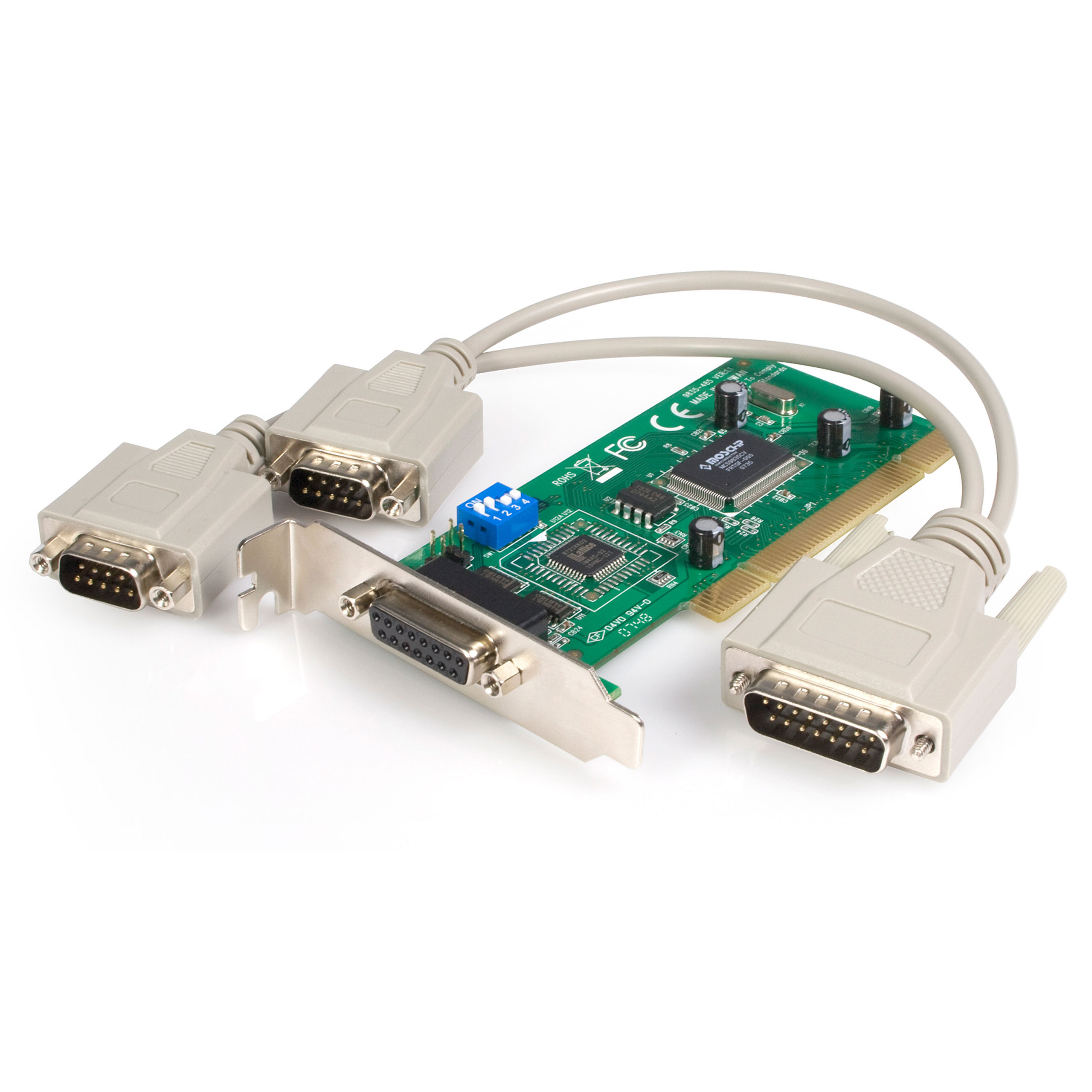

- 1 - 2 Port DB9 Break-out cable
Package Depth (mm) 40 Package Height (mm) 143 Package Width (mm) 210 Package Weight (g) 260 Packaging Description 2 Port Low Profile PCI RS422/485 Serial Card Packaging Description India 2 Port Low Profile PCI RS422/485 Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager Rafal Gwozdz
