PCI2S550_LP

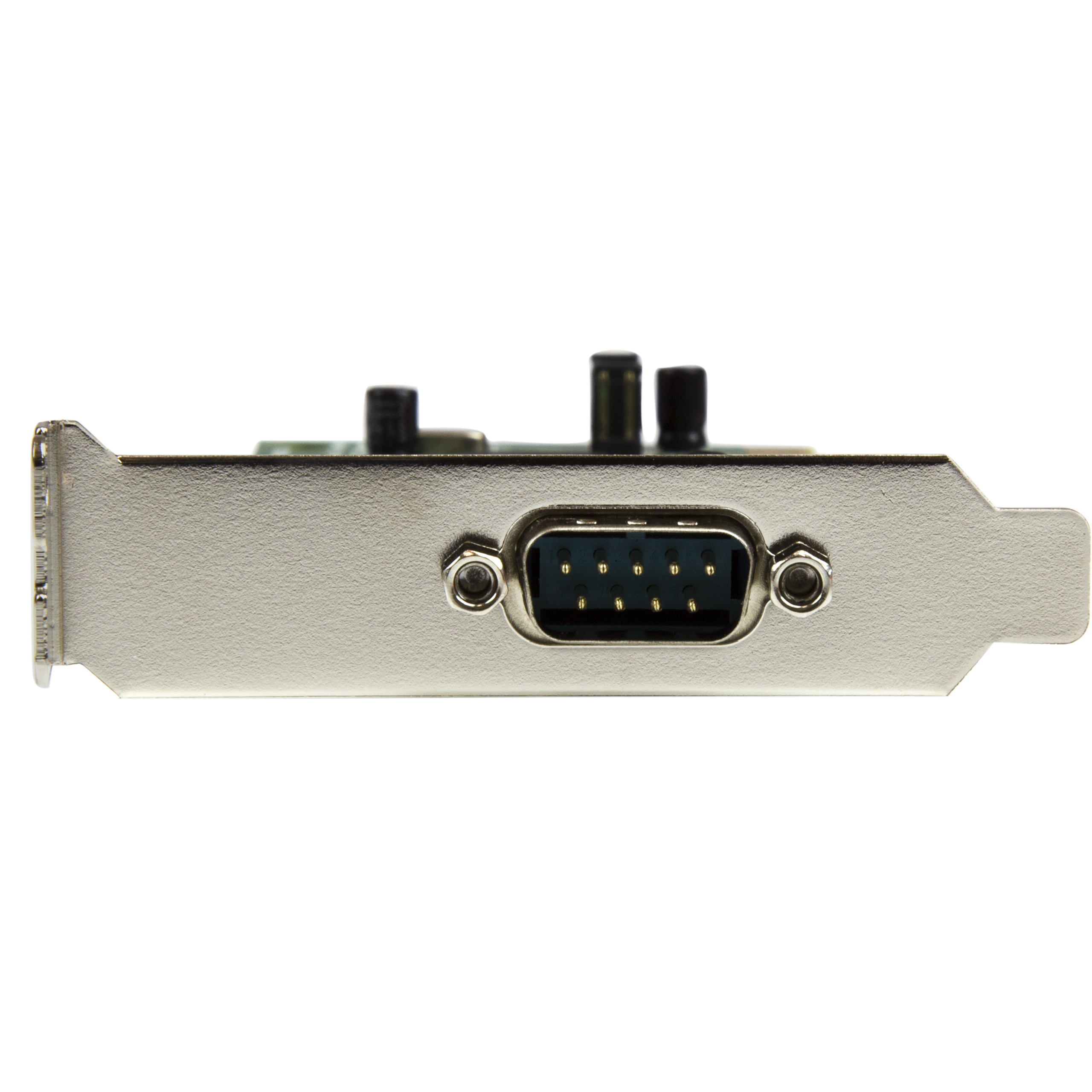

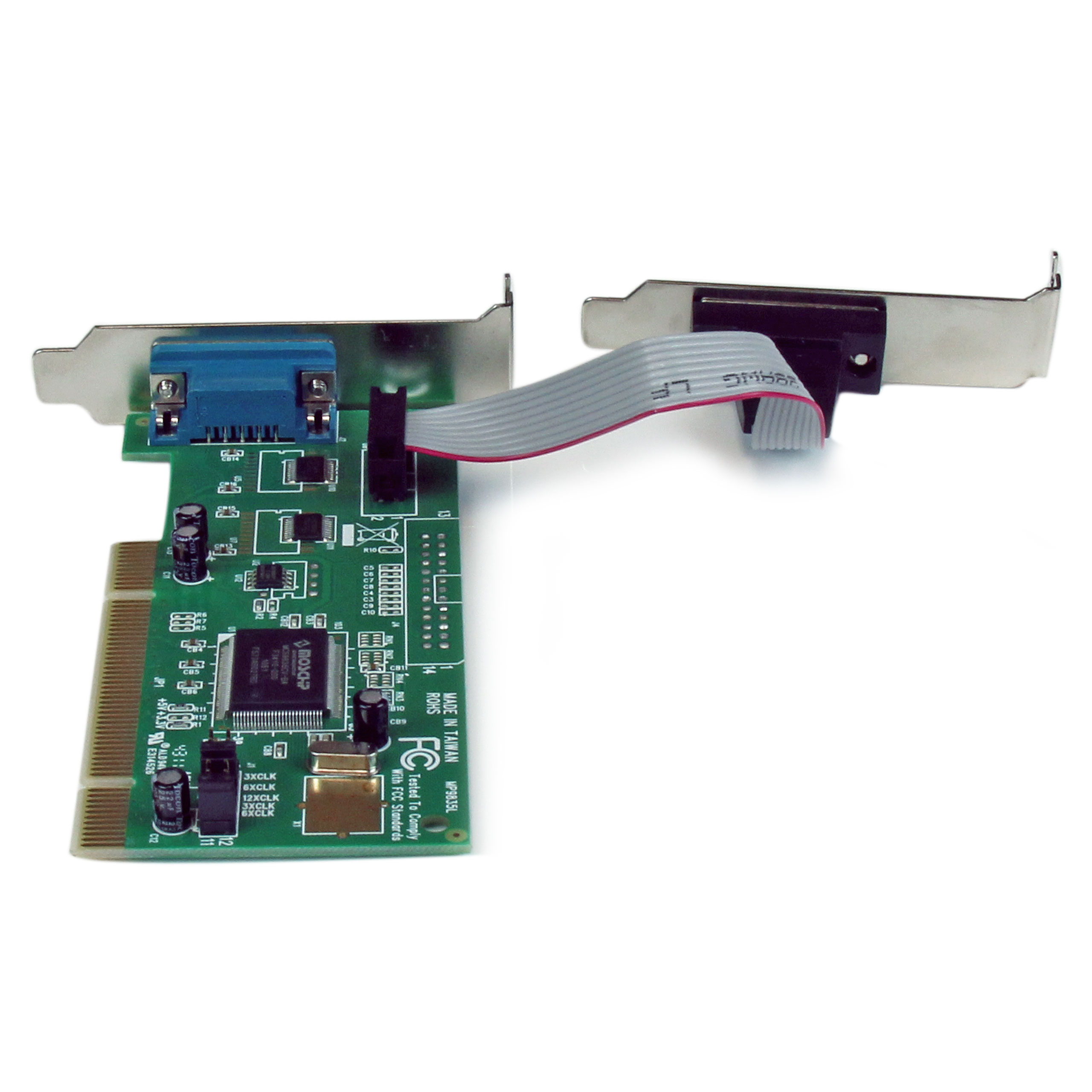

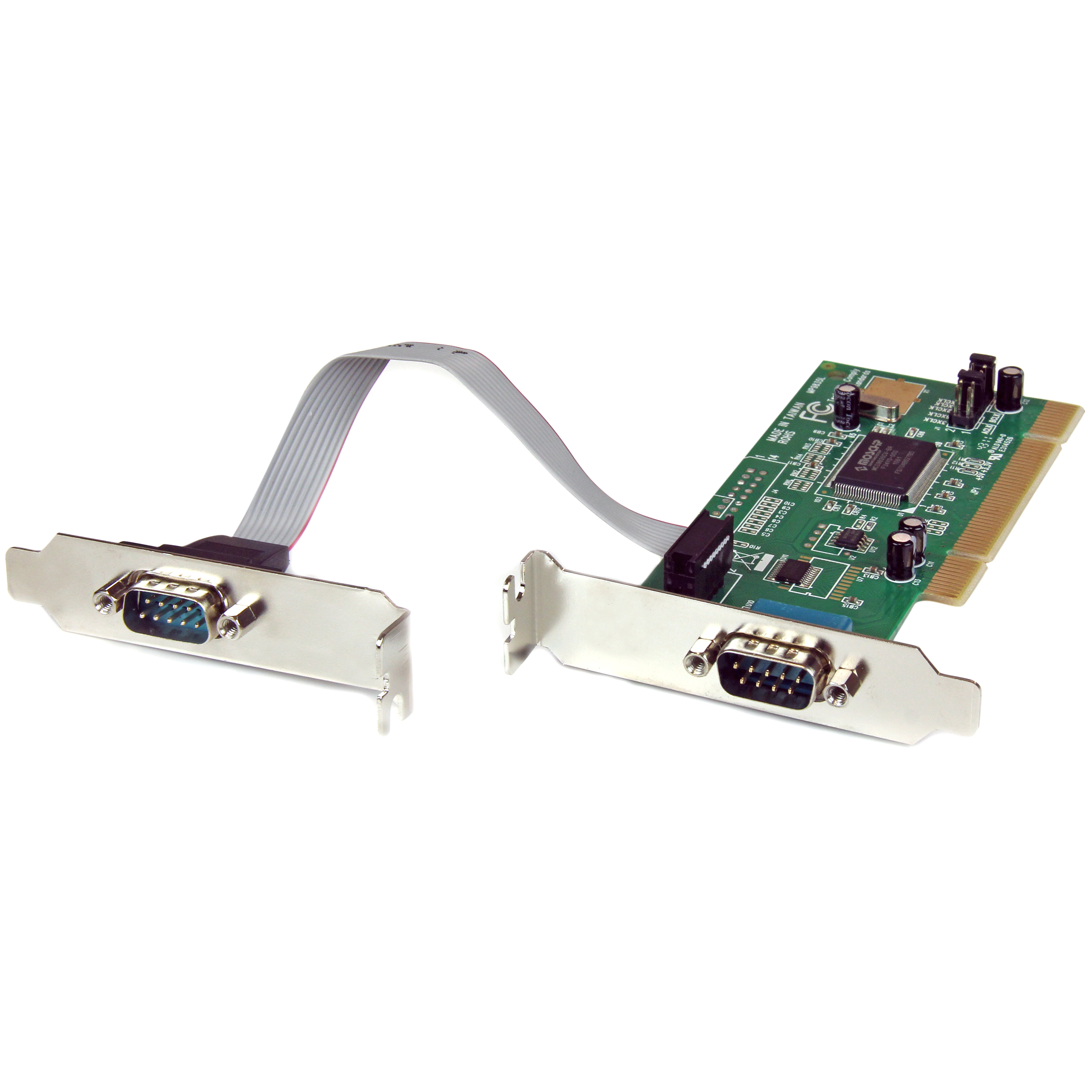

Low Profile PCI 2 Port 16550 Serial Card
Add 2 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Low Profile PCI 2 Port 16550 Serial Card Product Number PCI2S550_LP UPC 065030788748 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2 Port PCI LP RS232 Serial Adapter Card Product Title (Medium) x Product Title (Standard) 2 Port PCI Low Profile RS232 Serial Adapter Card with 16550 UART - Low Profile 2 Port 16550 Serial PCI Card - Serial adapter - PCI - serial - 2 ports Product Title (Long) 2 Port PCI Low Profile RS232 Serial Adapter Card with 16550 UART - TAA Product Title (AMZ) 2 Port PCI Low Profile RS232 Serial Adapter Card with 16550 UART - Serial adapter - PCI - RS-232 x 2 - PCI2S550_LP Title Ingram (Part 1) 2 Port PCI Low Profile RS232 Ser Title Ingram (Part 2) ial Adapter Card w/ 16550 Website Product Headline Add 2 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI expansion slot Bullet 1 Supports the RS-232 serial interface Bullet 2 16 byte FIFO buffer ensures fast data transfer while multitasking Bullet 3 IRQ sharing saves resources and eliminates conflicts Bullets (Consolidated) Add 2 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI expansion slot - RS232 Card - PCI Serial Card - PCI RS232 - Low Profile PCI Serial Adapter - LP Dual Port Serial Card Marketing Copy Applications Website Search Keyword RoHS Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - MC3MF
- MC6MF
- MXT100
- MXT100_25
- AT925FF
- AT925FM
- AT925SFM
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
- MXT100FF
Related Products - PCI2S550
- PCI4S550
- PCI4S550N
- 10PKPCI1S550
Input Voltage 3.3V / 5V DC Output Voltage (V) 3.3V DC Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 120.000 Product Width (mm) 55.000 Product Height (mm) 20.000 Product Weight (g) 45.000 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes FIFO 16 Byte Max Baud Rate 115.2 Kbps MTBF (hours) 6,548,788 Hours OS Compatibility - Windows 8
- Linux
- Windows Server 2012
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11

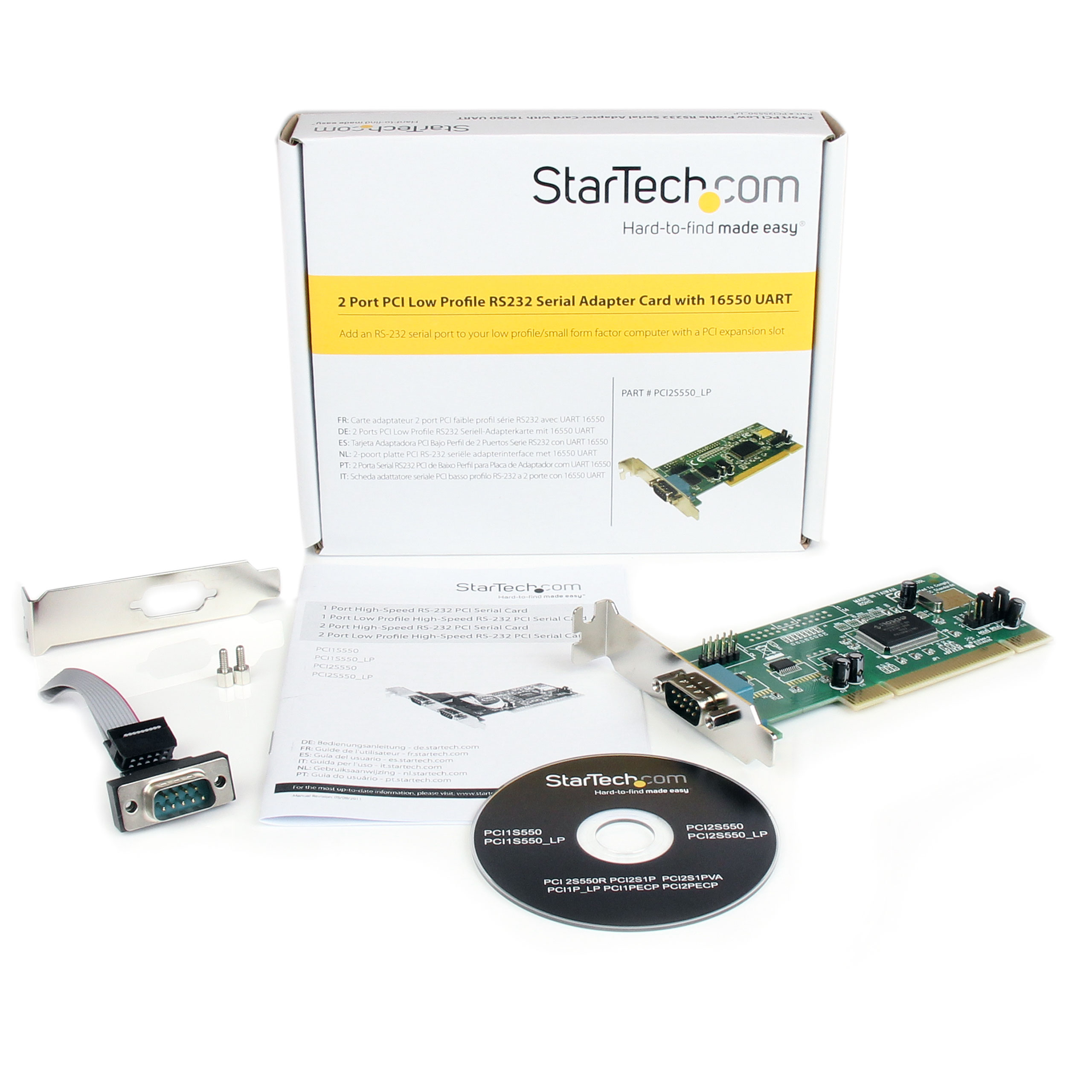

Supported Serial Protocol RS-232 Bus Type PCI Card Type Low Profile Chipset ID ASIX - MCS9835CV Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 353 Carton Height (mm) 320 Carton Quantity 75 Carton Weight Gross (g) 11120 Included in Package - 1 - PCI Low Profile 2 Port Serial Card
- 1 - Instruction Manual
- 1 - Driver CD
- 1 - Low profile bracket
- 2 - Screws
Package Depth (mm) 174 Package Height (mm) 30 Package Width (mm) 144 Package Quantity 1 Package Weight (g) 136 Packaging Description 2 Port Low Profile PCI RS232 Serial Card Packaging Description India 2 Port Low Profile PCI RS232 Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,EU,JP,NZ,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
