PCI2S650DVLP
Main Image
Product Images
Product Images

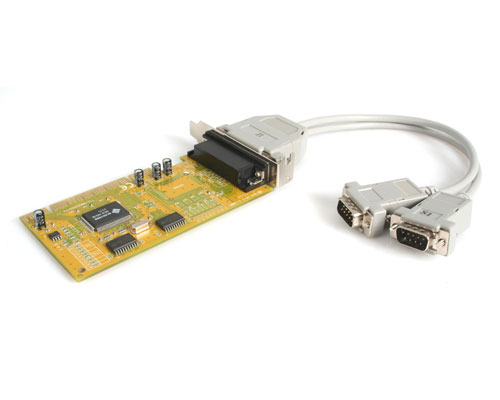

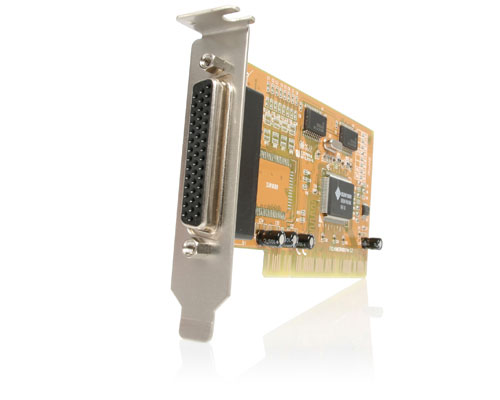

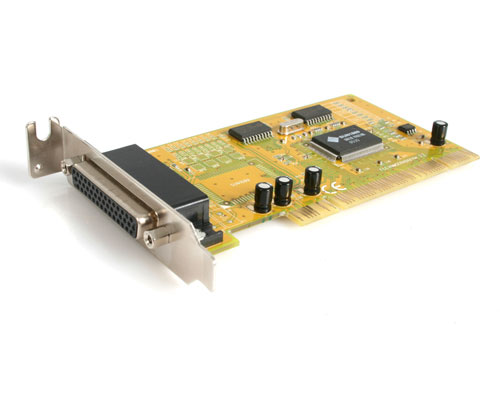

Product Name 2 Port 16650 Low Profile WHQL Approved Serial Card Product Number PCI2S650DVLP UPC 065030819244 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Long) 2 Port PCI Low Profile Dual Voltage WHQL Approved Serial Card Bullet 1 128K transmit/receive FIFO buffer helps improve overall system performance Bullet 2 Dual voltage card supports both 64-bit(3.3V) and 32-bit(5V) PCI Bullet 3 High speed serial data transfers up to 920Kbps (depending on Operating System) Bullet 4 IRQ sharing eliminates IRQ conflicts Bullet 5 Microsoft WHQL certified drivers Marketing Copy Applications - Casino (video lottery terminals, slot machines)
- Consumer (modems, PDAs, digital cameras, printers)
- Environmental Control (lighting, temperature, clocks)
- Healthcare (patient monitoring equipment, nurses' stations, modems)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- ISDN Networking
- Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Security (UPS control, access key panels, video cameras, card readers, modems)
Website Search Keyword - PCI Serial Card
- PCI-X Serial Card
- WHQL Certified Serial Card
Microsoft WHQL Certified Yes Accessory Products - AT925FF
- AT925FM
- AT925SFM
- MC3MF
- MC6MF
- MXT100
- MXT100_25
- MXT100FF
- MXT100MM
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
Related Products - PCI1S550
- PCI1S650DV
- PCI2S550
- PCI4S650DV
- PCI8S650DV
- PCI2S650DV
Product Length (mm) 120 Product Width (mm) 64 Product Weight (g) 58 TAA Compliant No General Specifications - Data Transfer Rate (max): 920 Kbits
- Compatible OS: DOS, Windows 95, 98, ME, NT; Windows XP (32-bit, 64-bit), Windows Vista (32-bit, 64-bit), Linux
- Legacy Port Remap Addressing: 3F8, 3E8, 2F8, 2E8
- Port: DB44 Female
- Chipset: SUNIX SUN1889
OS Compatibility Windows Vista Bus Type PCI / PCI-X (5 / 3.3V) Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 13700 Included in Package - 1 - Low Profile PCI/PCI-X Serial Card
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - DB44 Connector Cable
Package Depth (mm) 54 Package Height (mm) 149 Package Width (mm) 216 Package Weight (g) 250 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Carey Cline
