PCI2S650PW
Main Image

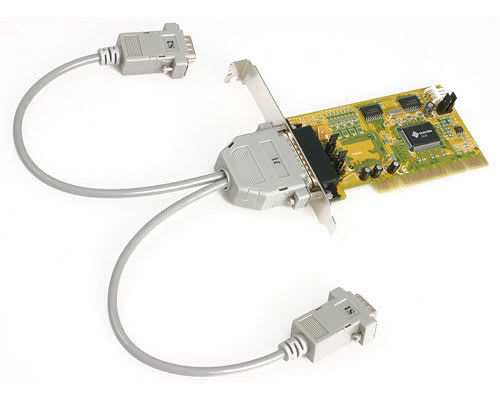

Product Name 2 Port 3.3V/5V Serial Card with Power Product Number PCI2S650PW UPC 065030812733 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 2 Port PCI Serial Adapter Card Product Title (Standard) StarTech.com 2 Port Dual Profile PCI RS232 Serial Adapter Card with 16650 UART - Dual Profile 2 Port RS-232 Powered 16650 Serial PCI Card - PCI 64-bit - 2 x D-Sub (DB-9) Male RS-232 Serial Via Cable (Optional) - Plug-in Card Product Title (Long) 2 Port Dual Profile PCI RS232 Serial Adapter Card with 16650 UART Title Ingram (Part 1) 2 Port Dual Profile PCI RS232 Se Title Ingram (Part 2) rial Adapter Card w/ 16650 Bullet 1 Configurable in 5V, 12V, and RI (non-powered) modes. Bullet 2 Supports major operating systems, including 64-bit editions of Microsoft Windows. Bullet 3 Works in both PCI and PCI-X slots, either standard or low profile. Marketing Copy Applications - Perfect for adding barcode scanners, card readers, and other similar devices to POS, manufacturing, and industrial solutions.
- Reduce clutter and the need for extra power connections by using self-powered serial devices.
Microsoft WHQL Certified Yes System and Cable Requirements - Available PCI or PCI-X slot (full size or low profile)
- IBM-compatible computer
Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100_25
- MXT100FF
- SCNM9FF
- SCNM9FF25
Related Products - PCI1S650PW
- PCI4S650PW
Operating Temperature 0-57 Product Length (mm) 120 Product Width (mm) 17 Product Height (mm) 50 Product Weight (g) 50 TAA Compliant No General Specifications - UART: 16C650 UART compatible
- FIFO: 32 byte (hardware) / 128 Kbytes (via Windows software driver)
- Internal connector: SP4 power connector for additional power demands
- Power Output: 5V /12V / RI (unpowered), selectable via jumper
- Compatible OS: DOS, Windows 95, 98, ME, NT; Windows XP (32-bit, 64-bit), Windows Vista (32-bit, 64-bit), Linux
Maximum Data Transfer Rate 920000 Kbits/Sec OS Compatibility Windows Vista Supported Serial Protocol RS-232 Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID Sunix - SUN1889 IO Card Port Style Dongle (Included) Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 6800 Included in Package - 1 - Installation CD
- 1 - Instruction Manual
- 1 - Low-profile backet
- 1 - PCI1S650PW serial card
- 1 - 2 port DB9 connector dongle
Package Depth (mm) 55 Package Height (mm) 146 Package Width (mm) 217 Package Weight (g) 280 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 2 en-US Content Approved Yes Product Manager Carey Cline
