PCI2S950
2 Port PCI 16C950 Serial Card
Add 2 RS-232 serial ports to your computer via a single PCI slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port PCI 16C950 Serial Card Product Number PCI2S950 UPC 065030789974 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2 Port PCI RS232 Serial Adapter Card Product Title (Standard) StarTech.com Port PCI RS232 Serial Adapter Card with 16950 UART - Serial adapter - PCI - serial - 2 ports Product Title (Long) 2 Port PCI RS232 Serial Adapter Card with 16950 UART Product Title (AMZ) 2 Port PCI RS232 Serial Adapter Card with 16950 UART (PCI2S950) Title Ingram (Part 1) 2 Port PCI RS232 Serial Adapter Title Ingram (Part 2) Card with 16950 UART Website Product Headline Add 2 RS-232 serial ports to your computer via a single PCI slot Bullet 1 Automated flow-control Bullet 2 Full 128-byte receiver and transmitter FIFO Bullet 3 Fully adjustable IRQ trigger levels Bullet 4 IRQ sharing saves resources and eliminates conflicts Bullet 5 Supports the RS-232 serial interface Marketing Copy Applications - Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Consumer (modems, PDAs, digital cameras, printers)
- Security (UPS control, access key panels, video cameras, card readers, modems)
- Casino (video lottery terminals, slot machines)
- Environmental Control (lighting, temperature, clocks)
- Healthcare (patient monitoring equipment, nurses' stations, modems)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
- ISDN Networking
Accessory Products - MC3MF
- MC6MF
- MXT100
- MXT100_25
- AT925FF
- AT925FM
- AT925SFM
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
- MXT100FF
Related Products - PCI2S550
- PCI4S950
- PCI4S9503V
- PCI8S950
- PCI8S9503V
Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 120 Product Width (mm) 20 Product Height (mm) 120 Product Weight (g) 60 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant No Data Bits 5, 6, 7, 8, 9 FIFO 128 Bytes Maximum Data Transfer Rate 460.8Kbps MTBF (hours) 14,744,913 Hours OS Compatibility - Windows 7
- Linux
- Windows 8
- Windows Server 2012
- Windows 10
- Windows 11
Supported Serial Protocol RS-232 Bus Type PCI (5 Volt) Card Type Standard Profile Chipset ID PLX/Oxford - OX16PCI952 Industry Standards - PCI 2.2
- Power Management 1.1

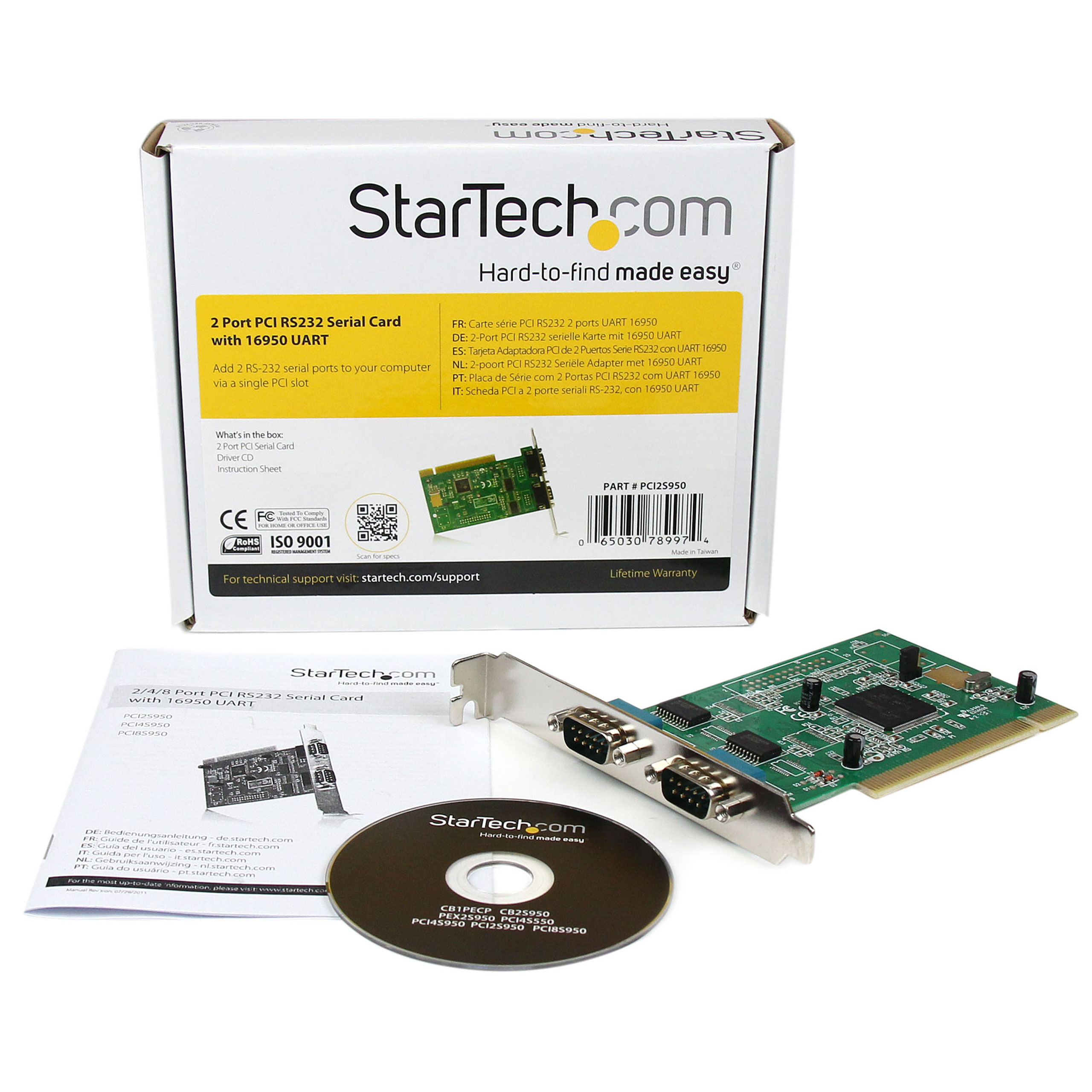

Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 9200 Included in Package - 1 - 2 Port PCI Serial Card
- 1 - Driver CD
- 1 - Instruction Sheet
Package Depth (mm) 40 Package Height (mm) 144 Package Width (mm) 212 Package Quantity 1 Package Weight (g) 160 Packaging Description 2 Port PCI RS232 Serial Card 16950 UART Packaging Description India 2 Port PCI RS232 Serial Card 16950 UART Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
