PCI2S950DV

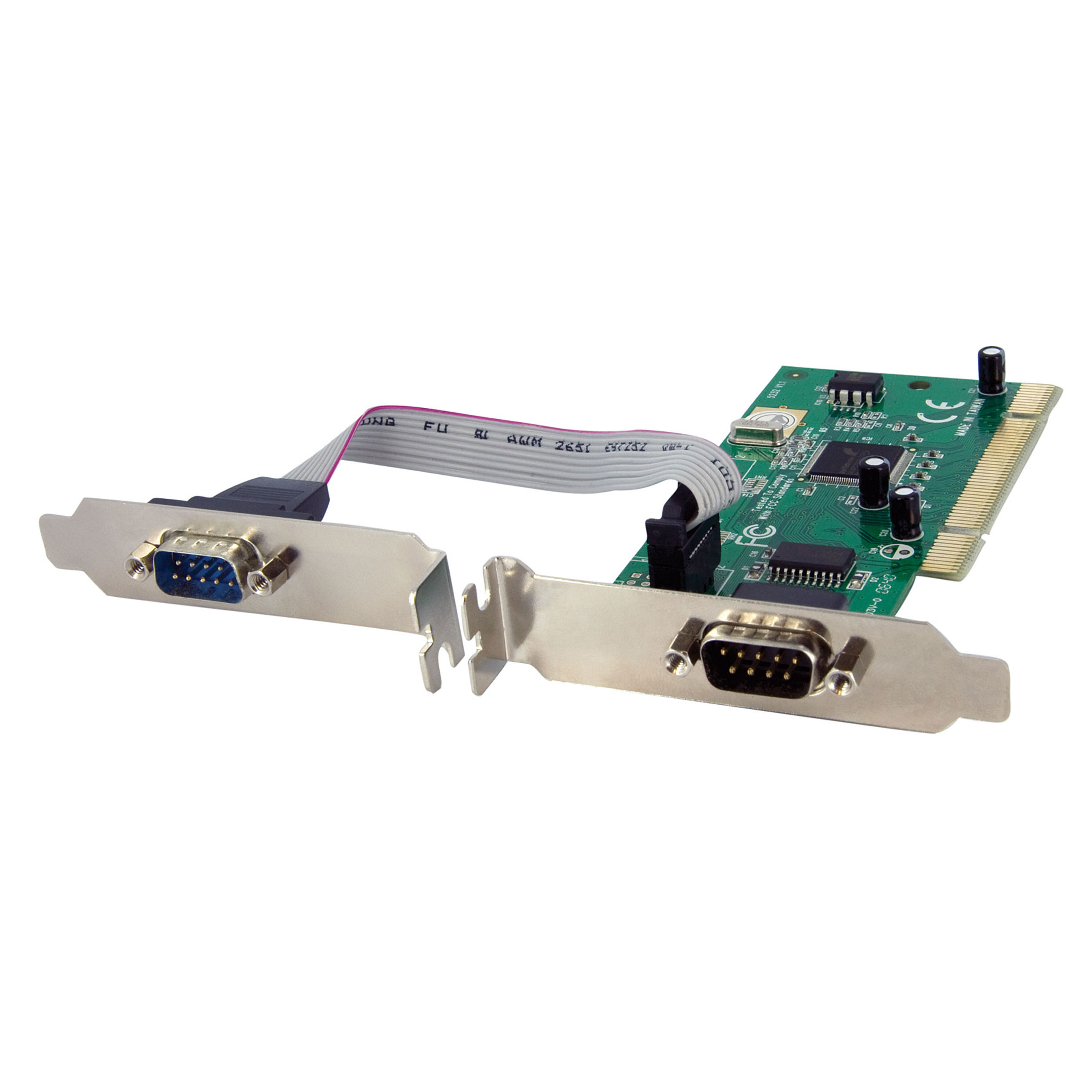

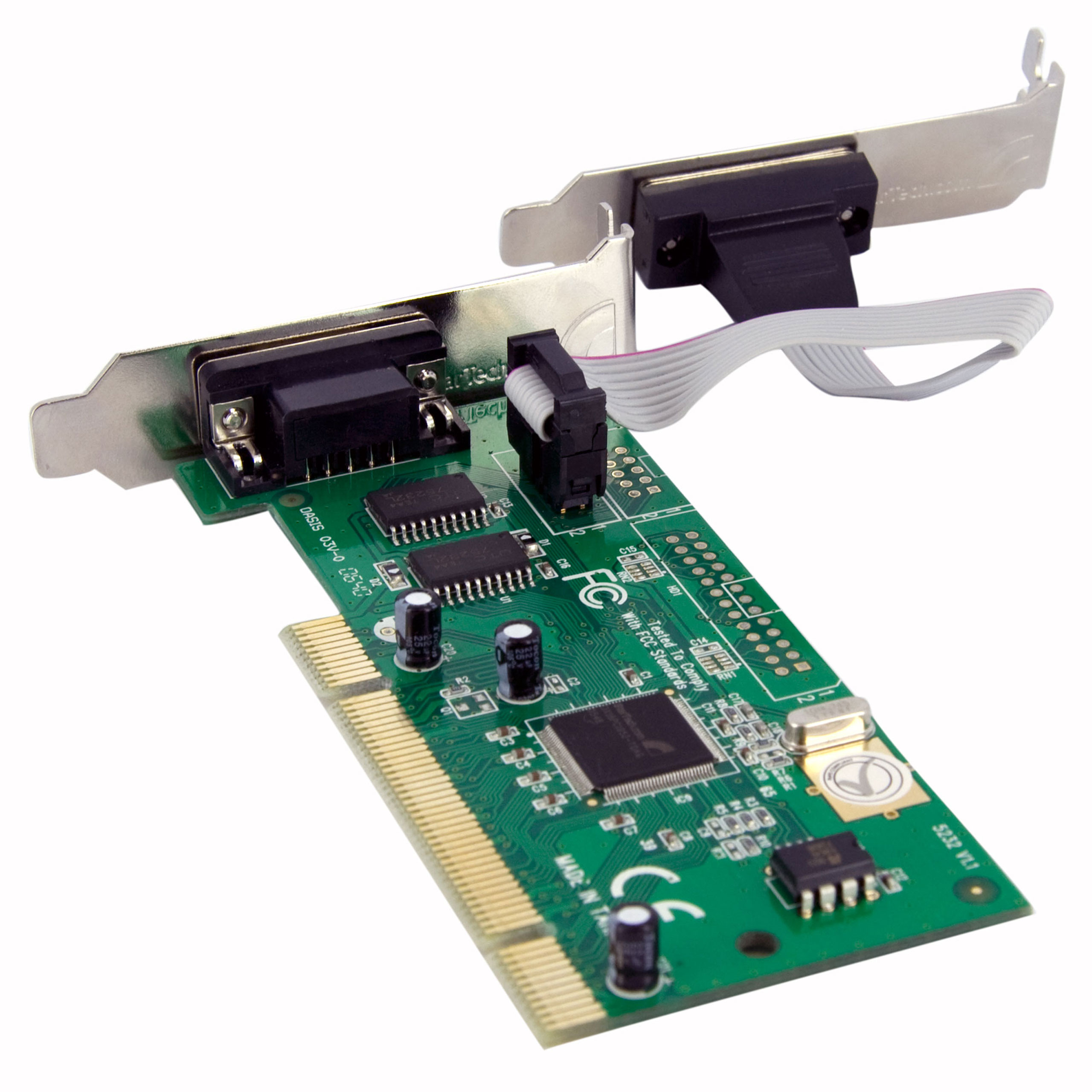

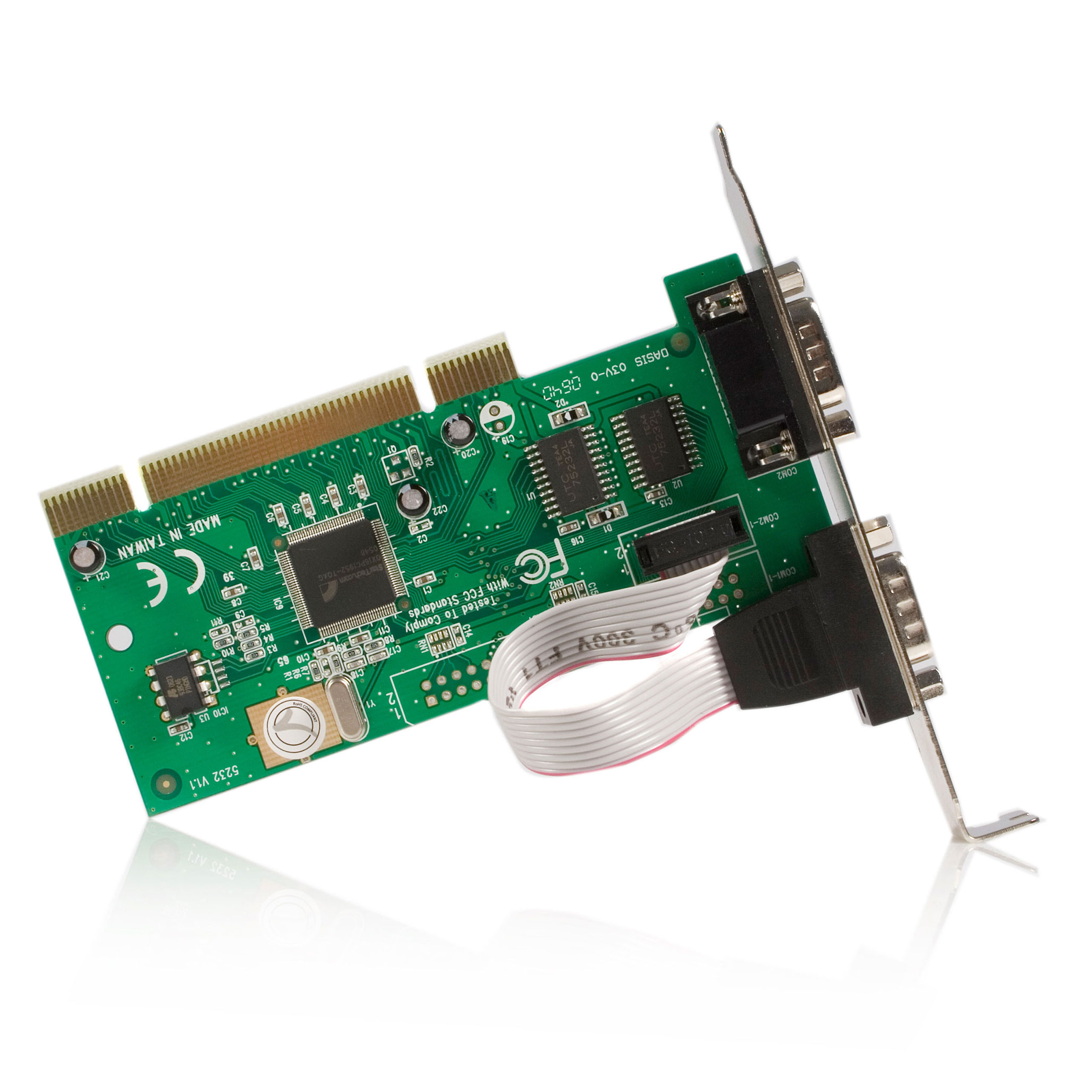

2 Port PCI 16950 RS-232 Serial Card
Add 2 RS-232 serial ports to your PC with this dual voltage universal PCI expansion card
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port PCI 16950 RS-232 Serial Card Product Number PCI2S950DV UPC 065030821476 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Manual Driver Product Title (Short) 2x PCI Serial Adapter Card Dual Voltage Product Title (Standard) 2 Port PCI RS232 Serial Adapter Card w/ 16950 UART - Dual Voltage / Dual Profile Serial Card - Serial adapter - PCI-X low profile - RS-232 - 2 ports Product Title (Long) 2 Port PCI RS232 Serial Adapter Card w/ 16950 UART - Dual Voltage Product Title (AMZ) 2 Port PCI RS232 Serial Adapter Card w/ 16950 UART - Dual Voltage (PCI2S950DV) Title Ingram (Part 1) 2 Port PCI RS232 Serial Adapter Title Ingram (Part 2) Card w/ 16950 - Dual Voltage Website Product Headline Add 2 RS-232 serial ports to your PC with this dual voltage universal PCI expansion card Bullet 1 Two high performance 16C950 UART channels Bullet 2 Maximum data transfer rate of 460 Kbps Bullet 3 PCI 3.0 and Power Management 1.1 compliant Bullet 4 UART’s fully compatible with 16C550 type devices Bullet 5 128-byte deep FIFO per transmitter and receiver Marketing Copy Applications - Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Consumer (modems, PDAs, digital cameras, printers)
- Security (UPS control, access key panels, video cameras, card readers, modems)
- Casino (video lottery terminals, slot machines)
- Environmental Control (lighting, temperature, clocks)
- Healthcare (patient monitoring equipment, nurses' stations, modems)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
- ISDN Networking
Website Search Keyword - Dual Voltage
- Dual Profile
- 16950
- Serial
- PCI
- RS-232
Special Notes Crystal will need to be adjusted to achieve 460 Kbps Accessory Products - MC3MF
- MC6MF
- MXT100
- AT925FF
- AT925SFM
- SCNM925FM
- SCNM9FF
- SCNM9FM
- MXT100FF
Related Products - PCI1S950DV
- PEX2S550
- PCI4S422DB9
Color Green Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 105 Product Width (mm) 20 Product Height (mm) 120 Product Weight (g) 55 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant No Data Bits 5, 6, 7, 8, 9 FIFO 128 Bytes Flow Control Hardware, Auto Xon/Xoff, None Max Baud Rate 460.8 Kbps OS Compatibility - Linux
- Windows 7
- Windows 8
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows 11

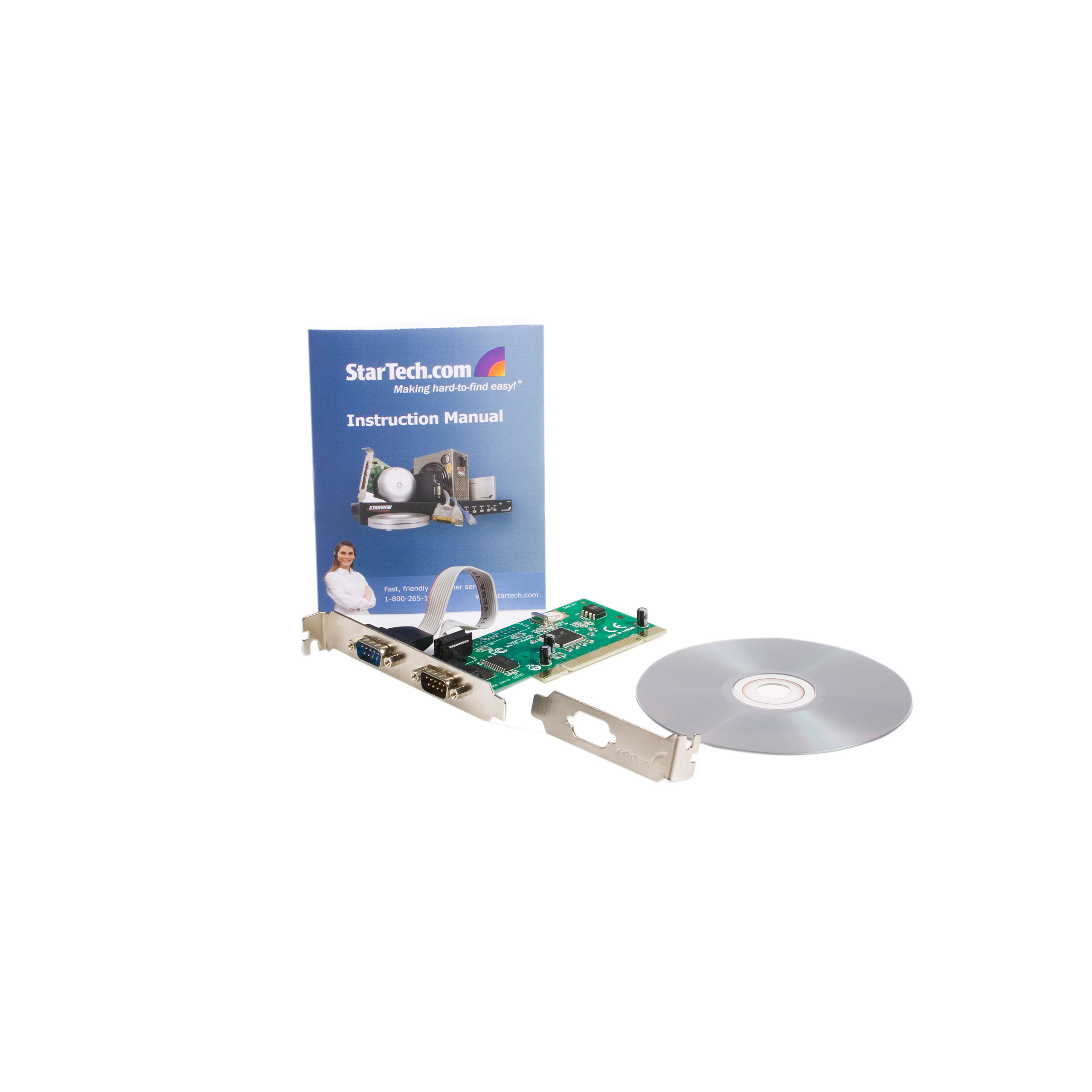

Parity None, Even, Odd Supported Serial Protocol RS-232 Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID PLX/Oxford - OXuPCI952 Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 510 Carton Height (mm) 310 Carton Quantity 48 Carton Weight Gross (g) 8880 Included in Package - 1 - 2 Port PCI / PCI-X Serial Card
- 2 - Low Profile Bracket
- 1 - Instruction Manual
- 1 - Driver CD
Package Depth (mm) 58 Package Height (mm) 195 Package Width (mm) 148 Package Quantity 1 Package Weight (g) 160 Packaging Description 2 Port Dual Voltage PCI Serial Card Packaging Description India 2 Port Dual Voltage PCI Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
