PCI2USB
Main Image

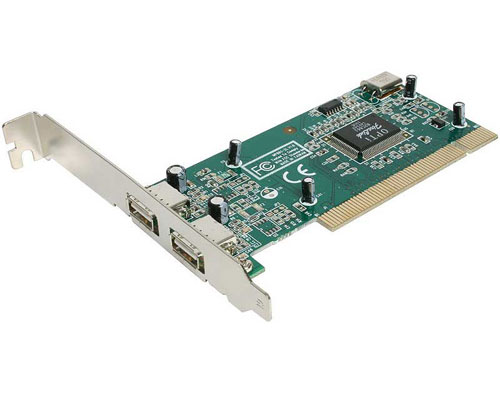

Product Name 2 Port USB 1.1 PCI Card for PC/Mac Product Number PCI2USB UPC 065030782012 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Long) 2 Port USB 1.1 PCI Card Bullet 1 Easy plug and play installation Bullet 2 Hot swap capabilities let you connect peripherals without rebooting Bullet 3 Connect up to 127 devices by cascading multiple hubs Bullet 4 Adds USB connectivity to older systems Marketing Copy Applications - MP3 players
- Digital cameras
- PDAs
- Portable hard drives
- Mice and keyboards
- External CDR/RWs
- DVD drives
- Flash card readers/writers
- Joysticks
- Printers
- Scanners
- Webcams
System and Cable Requirements - Pentium II 233 MHz
- PowerPC
- Mac OS 8.6 users must download and install USB Adapter Card Support 1.4.1 from Apple
- Mac OS 9.x users must install USB Adapter Card Support from the Mac OS installation CD
Accessory Products - USBFAB_3
- USBFAB_6
- USBFAB_10
- USBFAB_15
- USBFAAEXT15A
- USBFAB3T
- USBFAB6T
- USBFAB10T
- USBFAB15T
- USBRETR
- USB2HAB6LEDB
- USB2HAB6LEDR
- USB2HAB6LEDY
- USBHAB6FLBG
- USBHAB6FLRY
Related Products - 10PKPCI2USB
- PCI225USB
Product Length (mm) 120 Product Height (mm) 55 TAA Compliant No General Specifications - Maximum Current: 300 mA
Maximum Data Transfer Rate 12000000 Mbits/Sec OS Compatibility - Linux
- Mac OS 8.6
- Mac OS 9.x
- Mac OSX 10.x
- Windows 98
- Windows 98SE
- Windows ME
- Windows 2000
- Windows XP
Bus Type PCI (5 Volt) Chipset ID OPTi - 82C861 Industry Standards OHCI Carton Depth (mm) 145 Carton Height (mm) 240 Carton Quantity 10 Carton Weight Gross (g) 2200 Included in Package - 1 - PCI to USB card
- 1 - INSTRUCTION SHEET
Package Depth (mm) 24 Package Height (mm) 136 Package Width (mm) 150 Package Weight (g) 100 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 en-US Content Approved Yes Product Manager Carey Cline
