PCI300WN2X2
802.11N 300 Mbps PCI Wireless Network Adapter
Add high speed Wireless-N connectivity to a desktop PC through PCI
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 802.11N 300 Mbps PCI Wireless Network Adapter Product Number PCI300WN2X2 UPC 065030848763 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Wireless Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX049X Product Title (Short) PCI 300 Mbps Wireless N Network Adapter Product Title (Standard) PCI Wireless N Adapter - 300 Mbps PCI 802.11 b/g/n Network Adapter Card – 2T2R 2.2 dBi Product Title (Long) PCI Wireless N Adapter - 300 Mbps PCI 802.11 b/g/n Network Adapter Card – 2T2R 2.2 dBi Product Title (AMZ) PCI Wireless N Adapter - 300 Mbps PCI 802.11 b/g/n Network Adapter Card – 2T2R 2.2 dBi - Desktop Card - PCI WiFi Card (PCI300WN2X2) Title Ingram (Part 1) 802.11N 300 Mbps PCI Wireless Ne Title Ingram (Part 2) twork Adapter - 2T2R Website Product Headline Add high speed Wireless-N connectivity to a desktop PC through PCI Bullet 1 2 Transmitter/2 Receiver (2x2:2) antenna configuration Bullet 2 Compliant with IEEE 802.11n standard, with support for up to 300Mbps of wireless data bandwidth Bullet 3 Backward compatible with IEEE 802.11b/g standards for up to 11/54Mbps connections respectively with Wireless-B and Wireless-G networks Bullet 4 Supported security features: WEP (64-128-bit), WPA, WPA2, WPS Bullet 5 Support for WMM/WMM-PS Quality of Service (QoS) Bullets (Consolidated) Add high speed Wireless-N connectivity to a desktop PC through PCI - Compatible with PCI equipped computers such as HP Compaq Desktops - PCI WiFi Network Card/PCI Wireless NIC/Wireless PCI card - Supports Wireless 802.11 N/G (300 Mbps) for high speed wireless Internet applications such as online gaming and Video Streaming - Upgrade your internal PCI Wireless NIC - Increase WiFi range and speed by adding Wireless G compatible card - PCI Wireless N Card/PCI Wireless Network Adapter Card Marketing Copy Applications Connect a remote workstation PC to a wireless-N network, in environments where running network cables is not feasible Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
System and Cable Requirements Available PCI expansion card slot Accessory Products - NRPSMA1FM
- RPSMASMA10MM
- RPSMA10MF
Related Products - PCI555WG
- USB150WN1X1
- PEX300WN2X3
- USB300WN2X2
Humidity 10% ~ 90% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 129 Product Width (mm) 53 Product Height (mm) 19 Product Weight (g) 50 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant Yes Bandwidth 20/40 MHz Full Duplex Support Yes Maximum Data Transfer Rate 802.11n: 300 Mbps OS Compatibility - Windows 8
- Windows 7
- Linux
- Windows 10
- Windows 11
Security Features - TKIP/AES
- WEP Data Encryption
- WPA and WPA2-PSK Data Encryption
- WPA and WPA2 Enterprise Data Encryption

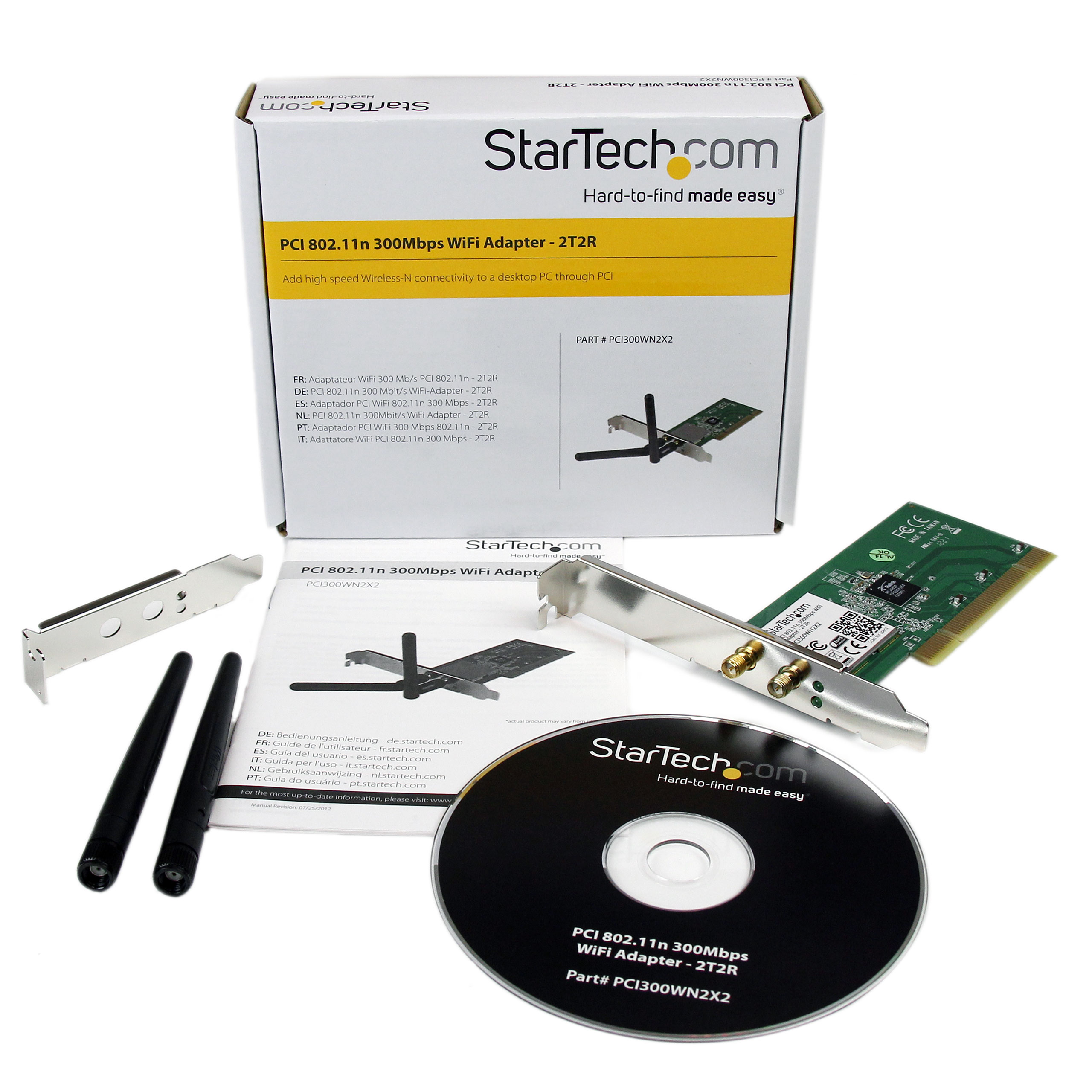

Supported Protocols CSMA/CA Antenna Configuration 2x2:2 (TxR:S) Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID Ralink - RT3062F Interface/Bridge Wireless Ethernet Carton Depth (mm) 360 Carton Height (mm) 350 Carton Quantity 100 Carton Weight Gross (g) 16500 Included in Package - 1 - PCI Wireless-N Card
- 2 - Antenna
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - Low Profile Bracket
Package Depth (mm) 136 Package Height (mm) 32 Package Width (mm) 163 Package Quantity 1 Package Weight (g) 155 Packaging Description PCI 802.11n 300Mbps WiFi Adapter - 2T2R Packaging Description India PCI 802.11n 300Mbps WiFi Adapter - 2T2R Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 RP-SMA (50 Ohm) Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
