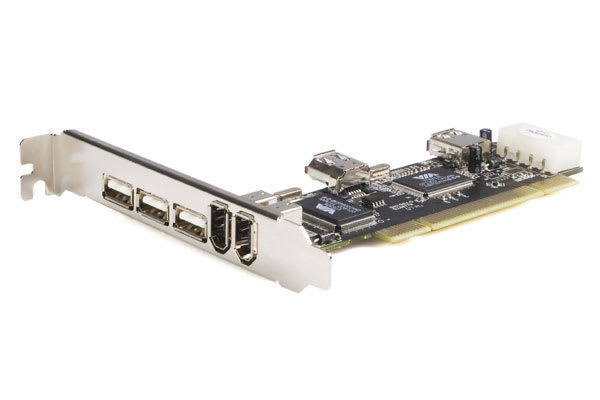

3 USB 2.0 and 2 Firewire PCI Combo Card

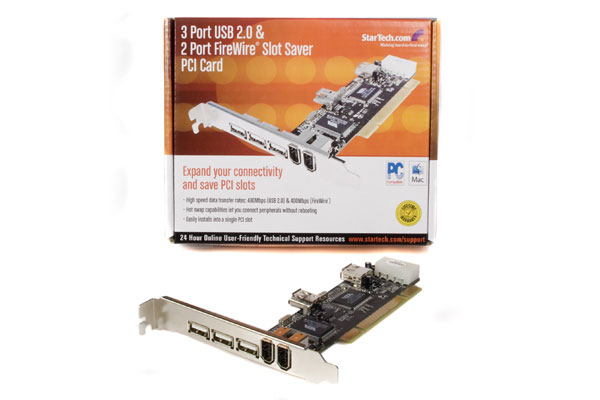

Main Image

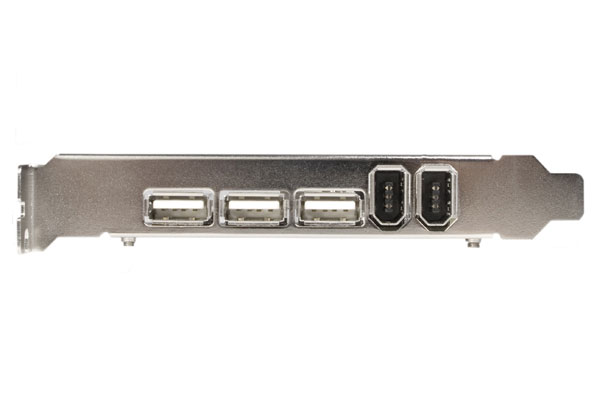

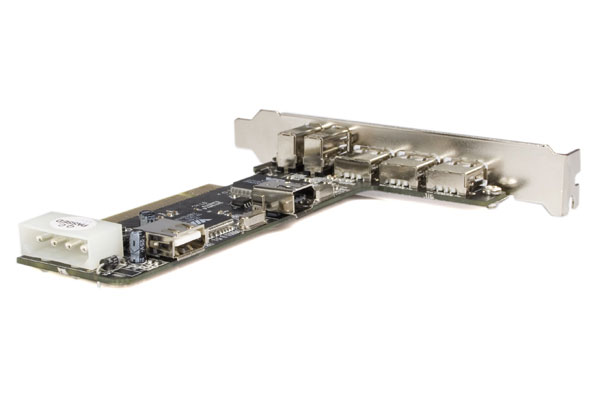

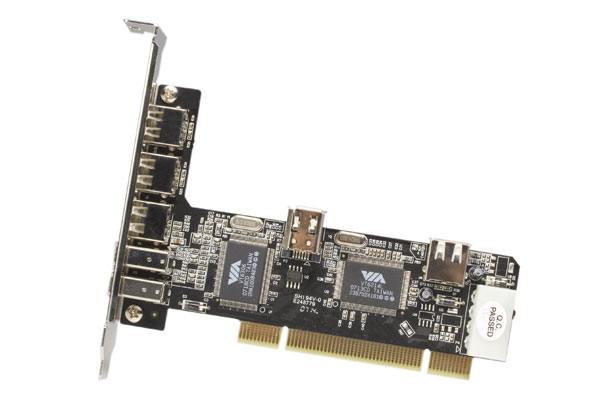

Product Images

Product Images

Product Images

Product Images

Product Name	3 USB 2.0 and 2 Firewire PCI Combo Card
Product Number	PCI3UV22F
UPC	065030802307
Lifecycle status	Discontinued
Warranty	Lifetime
Taxonomy	Product > Legacy Discontinued
Category Level 1	Legacy Category
Category Level 2	Legacy Sub-Category
Category Level 3	Legacy Group
Country of Origin Europe & Japan	China
Country of Origin North America	China
Country of Origin History (1)	China
Country of Origin Revision (1)	XXXXXX076X

Manual	https://images.salsify.com/image/upload/s--zWnImAge--/7f2d1ec957b98e838c50feb546615c3c3dfa4c04.pdf
Driver	https://images.salsify.com/raw/upload/s--UAYKY2GE--/f46e36f323977c222d39dc56f08452644c94b7f6.zip https://images.salsify.com/raw/upload/s--YHBGfCTJ--/7a087033326b0fb5c531dc5ac45e1b490f5cc786.zip https://images.salsify.com/raw/upload/s--bl2xATQ---/1dab5c3cb27caab9f2622955465e76b646ec39ce.txt

Product Title (Short)	4x USB 3x PCI USB Firewire Adapter Card
Product Title (Standard)	4 Port USB 2.0 3 Port IEEE 1394a PCI USB Firewire Combo Adapter Card - USB / FireWire adapter - PCI - USB, Firewire, Hi-Speed USB - 7 ports
Product Title (Long)	4 Port USB 2.0 3 Port IEEE 1394a PCI USB Firewire Combo Adapter Card
Title Ingram (Part 1)	4 Port USB 3 Port 1394a PCI USB
Title Ingram (Part 2)	Firewire Combo Adapter Card
Bullet 1	Three external (plus one internal) USB 2.0 ports with data transfer rates up to 480 Mbits/sec
Bullet 2	Two external (plus one internal) IEEE-1394 FireWire® ports with data transfer rates up to 400 Mbits/sec
Bullet 3	Hot swap capabilities let you connect peripherals without rebooting
Bullet 4	Compliant with PCI specification 2.2
Bullet 5	Backward compatible with USB 1.1 devices
Marketing Copy
Applications	Connect to a wide range of USB 2.0/1.1 and IEEE-1394 FireWire® devices including CD-RW/DVD-ROMs, removable hard drives, video cameras, hubs, digital camcorders/cameras and MP3 players/iPods
Website Search Keyword	iPod

General Specifications	USB: 3 x USB Type A Female FireWire: 2 x 6 pin 1394A USB: 1 x USB Type A Female FireWire: 1 x 6 pin 1394A USB 2.0 Devices: Up to 480 Mbps USB 1.1/1.0 Devices: Up to 12 Mbits/sec IEEE 1394A Devices: Up to 400 Mbits/sec Bus Interface: PCI PCI: Version 2.2 FireWire: 1394 & 1394A USB: EHCI and OHCI Compliant
Maximum Data Transfer Rate	480 Mbits/Sec
OS Compatibility	Linux Mac OS X Windows 2000 Windows XP Windows Server 2003 Windows Vista Windows 7 Windows Server 2008 R2

Bus Type PCI / PCI-X (5 / 3.3V)
Chipset ID
Interface/Bridge
USB 2.0
FireWire 400 (1394a)

Carton Depth (mm)	760
Carton Height (mm)	250
Carton Quantity	50
Carton Weight Gross (g)	10700
Included in Package	1 - PCI USB 2.0 and 1394a Combo Card 1 - Instruction Manual
Package Depth (mm)	37
Package Height (mm)	145
Package Width (mm)	210
Package Weight (g)	190
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0

Connector 1 FireWire 400 (6-Pin, 400Mbps, Bus Power)
Connector 1 (Quantity) 3
Connector 2 USB-A (480Mbps, 2.5W)
Connector 2 (Quantity) 4
