PCI420USB
5 Port PCI USB 2.0 Card
Add 5 USB 2.0 ports to any desktop computer with a PCI slot
Main Image
Product Images
Product Images
BOM Image
Product Name 5 Port PCI USB 2.0 Card Product Number PCI420USB UPC 065030794190 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - USB 2.0 Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Short) 5 Port PCI USB 2.0 Adapter Card Product Title (Standard) StarTech.com USB adapter card - PCI - Hi-Speed USB - 5 ports Product Title (Long) 5 Port PCI High Speed USB 2.0 Adapter Card Product Title (AMZ) 5 Port PCI High Speed USB 2.0 Adapter Card (PCI420USB) Title Ingram (Part 1) 5 Port PCI High Speed USB 2.0 Ad Title Ingram (Part 2) apter Card Website Product Headline Add 5 USB 2.0 ports to any desktop computer with a PCI slot Bullet 1 Provides four external USB 2.0 ports and one shared internal port Bullet 2 Fully compliant with USB 2.0 specifications, with support for transfer rates up to 480 Mbps Bullet 3 Backwards compatible with USB 1.0/1.1 devices Bullet 4 Compliant with PCI revision 2.2 specification Bullet 5 Supports up to 127 USB devices per port (requires additional USB hubs) Marketing Copy Applications - Expand a PCI-based system's USB capabilities with four additional external USB ports
- Add additional USB bandwidth to a system that already uses many USB devices/hubs
- Connect additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc. to a computer system
Microsoft WHQL Certified Yes Special Notes The internal USB 2.0 is shared with the top-most external USB 2.0 port, therefore only one of those ports may be used at a time. System and Cable Requirements Unused PCI slot Accessory Products - USB2HAB10
- USB2HAB6
- USB2HAB15
- USB2HAB6T
- USB2HAB10T
- USB2HAB15T
- USB2HAB6LEDB
- USB2HAB6LEDR
- USB2HAB6LEDY
- USBHAB6FLBG
- USBHAB6FLRY
Related Products - PCI220USB
- PCI425USB
Humidity 10~90% RH Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 120 Product Height (mm) 95 Product Weight (g) 30 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No Maximum Data Transfer Rate 480 Mbps OS Compatibility - Linux
- Windows XP
Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile Chipset ID VIA/VLI - VT6212 Industry Standards - OHCI
- EHCI
- PCI 2.2

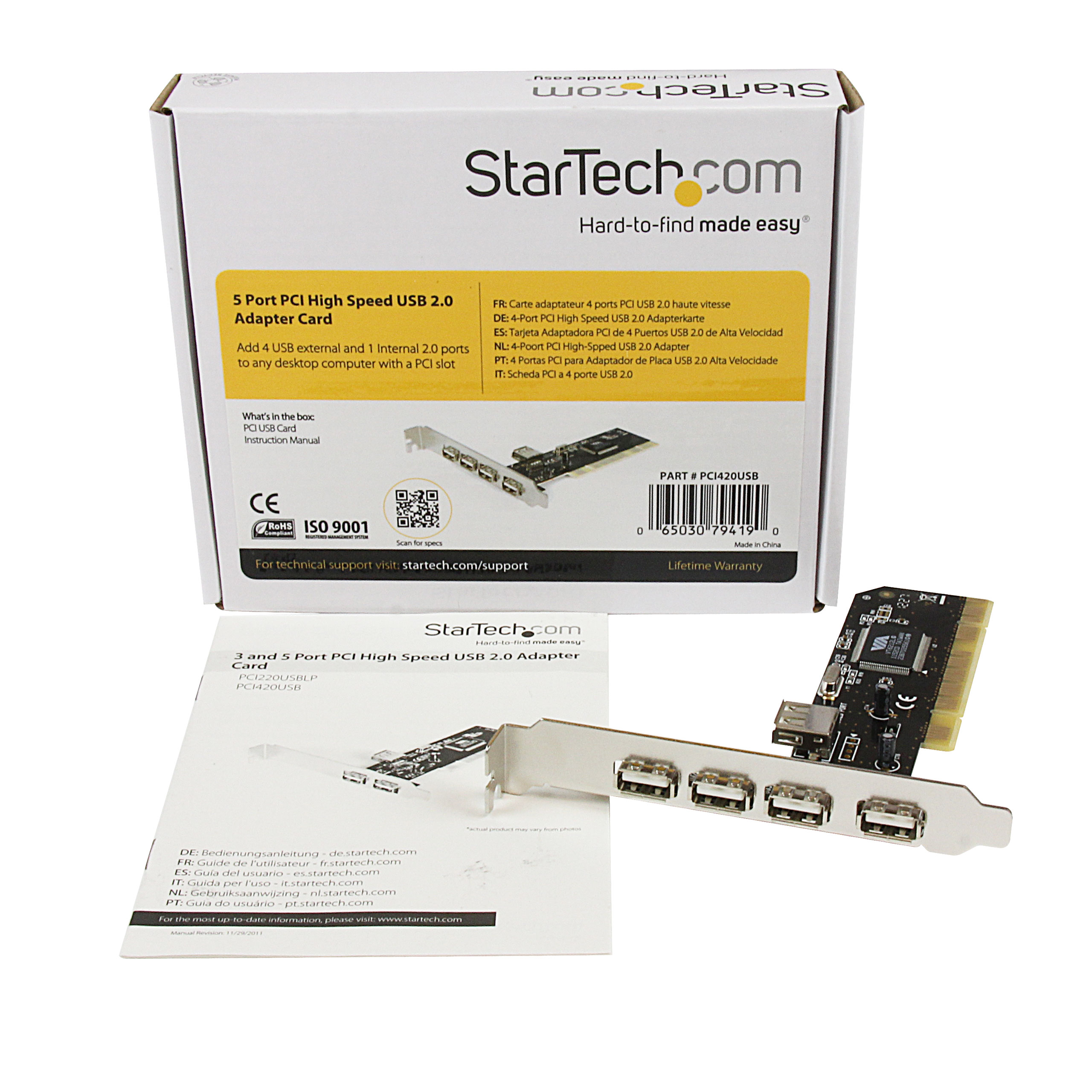

Interface/Bridge USB 2.0 Carton Depth (mm) 450 Carton Height (mm) 243 Carton Quantity 50 Carton Weight Gross (g) 6700 Included in Package - 1 - PCI USB card
- 1 - Instruction Manual
Package Depth (mm) 42 Package Height (mm) 145 Package Width (mm) 212 Package Quantity 1 Package Weight (g) 110 Packaging Description 5 Port PCI USB 2.0 Card Packaging Description India 5 Port PCI USB 2.0 Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
