PCI4S422DB9

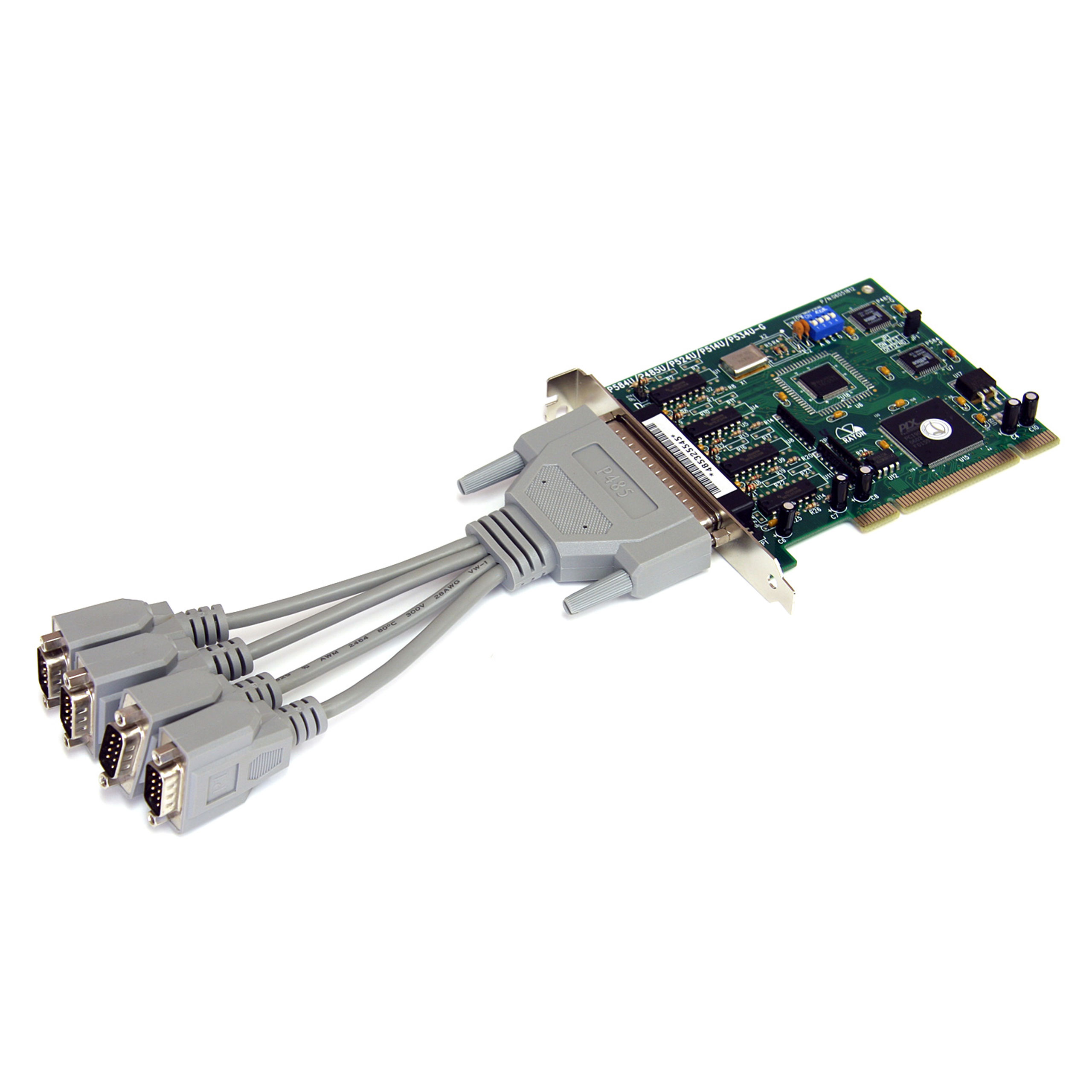

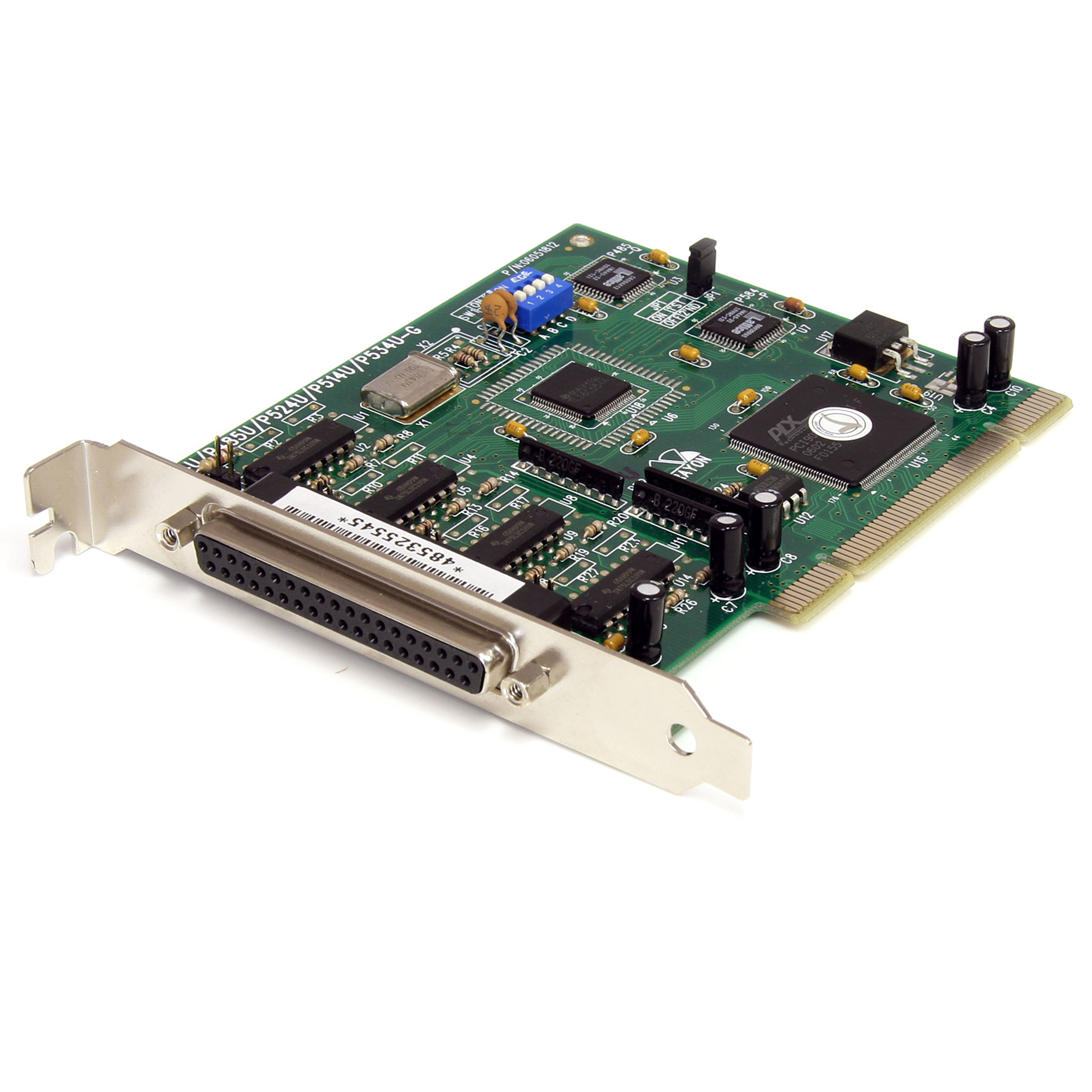

4 Port PCI RS422 RS485 Serial Adapter Card
Add four RS422/485 serial ports to your desktop computer through a PCI expansion slot
Main Image
Product Images
Product Images
Product Images
Product Name 4 Port PCI RS422 RS485 Serial Adapter Card Product Number PCI4S422DB9 UPC 065030804332 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 4 Port PCI RS422/485 Serial Adapter Card Product Title (Standard) StarTech.com 4 Port RS-422/RS-485 Serial PCI Adapter Card Product Title (Long) 4 Port PCI RS422 RS485 Serial Adapter Card Title Ingram (Part 1) 4 Port PCI RS422 RS485 Serial Ad Title Ingram (Part 2) apter Card Website Product Headline Add four RS422/485 serial ports to your desktop computer through a PCI expansion slot Bullet 1 Easily fits 5 volt and 3.3 volt PCI and PCI-X slots Bullet 2 Compatible with most major OS platforms including Windows, Linux, UNIX and DOS Bullet 3 RS-485 configuration supports Automatic Data Direction Control (ADDCTM) Bullet 4 32 Byte FIFO minimizes data loss and optimizes host efficiency and data integrity Bullet 5 Plug & Play support for Windows O/S environments Marketing Copy Applications - Ideal for commercial and industrial applications such as POS networks, ATMs, bank teller stations, and CNC based production lines
- Also used in environments using serial networking devices, high speed modems, monitoring equipment, long distance communication devices and printers
- Industrial process control
- Factory automation
Special Notes One IRQ mapping assigned by PCI BIOS System and Cable Requirements Unused PCI slot Humidity 5~85% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 126 Product Height (mm) 102 Storage Temperature 0°C to 65°C (32°F to 149°F) TAA Compliant No Data Bits 5, 6, 7, 8 FIFO 32 Bytes Max Baud Rate 230.4 Kbps OS Compatibility - MS DOS
- Windows 3.1
- Windows 95
- Windows 98
- Windows 98SE
- Windows 2000
- Windows NT
- Windows XP
- Windows 8
- Windows 7
- Linux
Parity Even, Odd or No-Parity Bit Stop Bits 1, 1.5, 2 Supported Protocols Automatic Data Direction Control (ADDC®) Supported Serial Protocol RS-422/485 Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile Chipset ID Texas Instruments - TL16C554A Industry Standards RS422, RS485 Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 5600 Included in Package - 1 - Serial Card
- 1 - Driver CD
- 1 - Instruction Manual

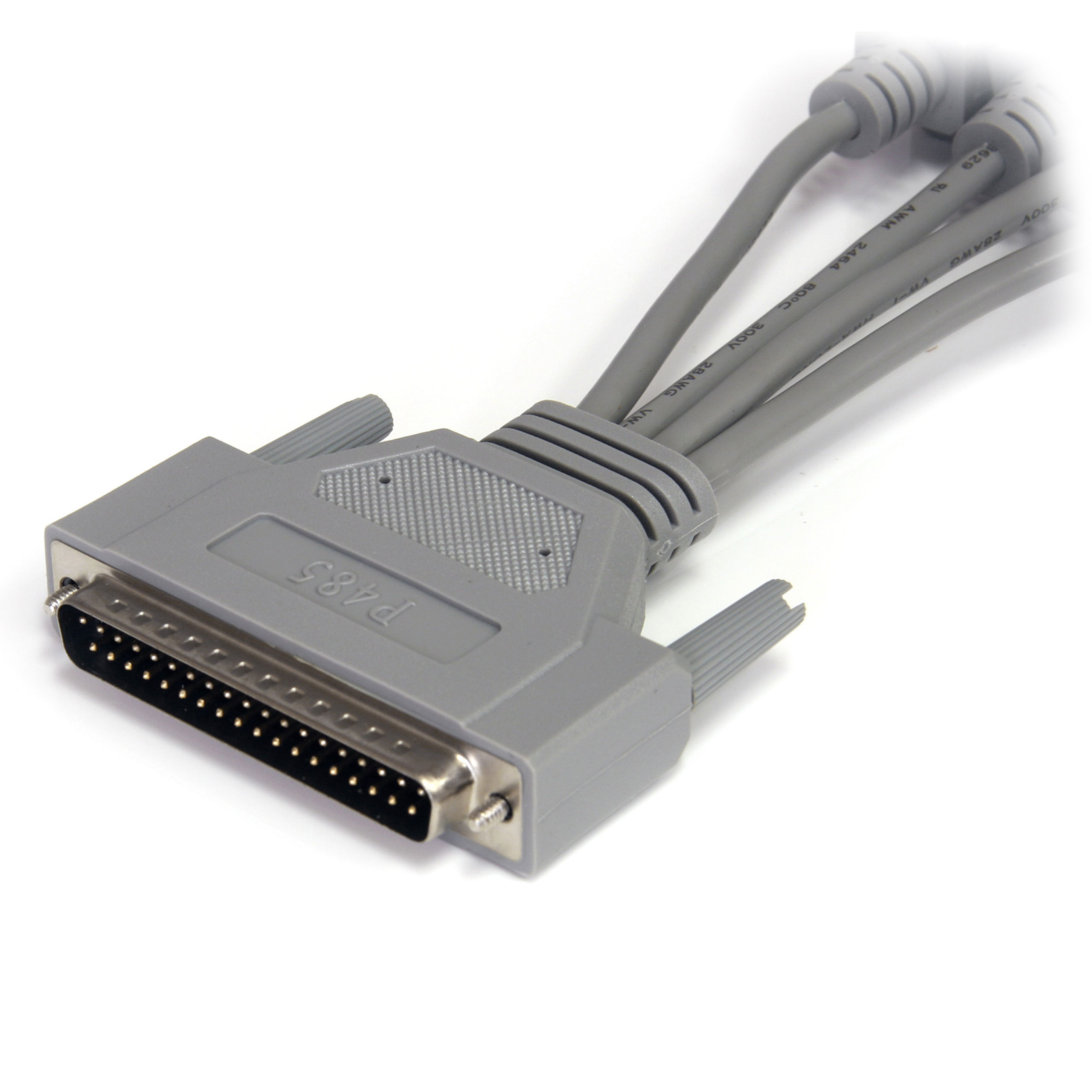

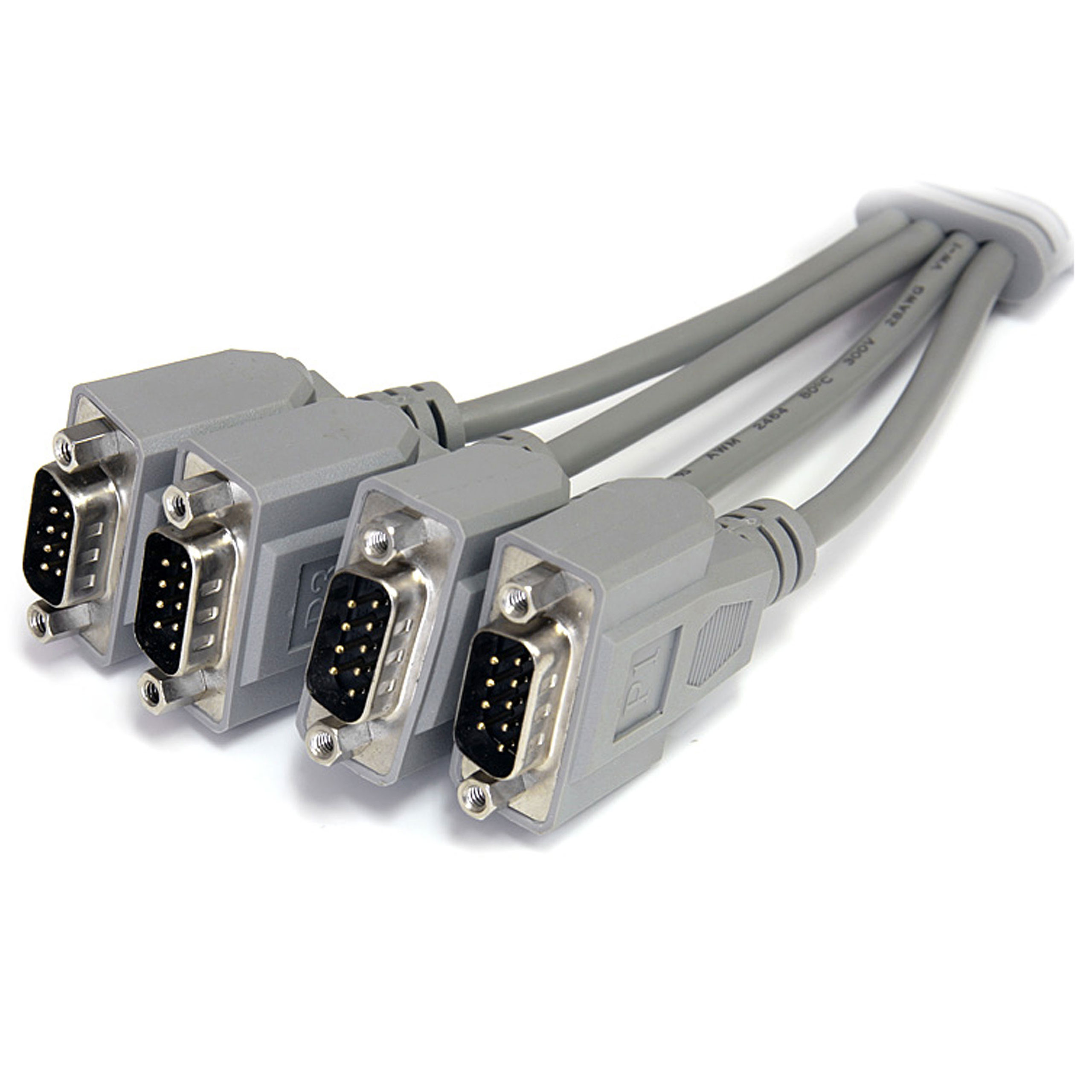

- 1 - 4 Port DB9 Break-out Cable
Package Depth (mm) 56 Package Height (mm) 150 Package Width (mm) 220 Package Weight (g) 440 Packaging Description 4 Port PCI RS422 RS485 Serial Card w/ Cable Packaging Description India 4 Port PCI RS422 RS485 Serial Card w/ Cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 4 en-US Content Approved Yes Product Manager Rafal Gwozdz
